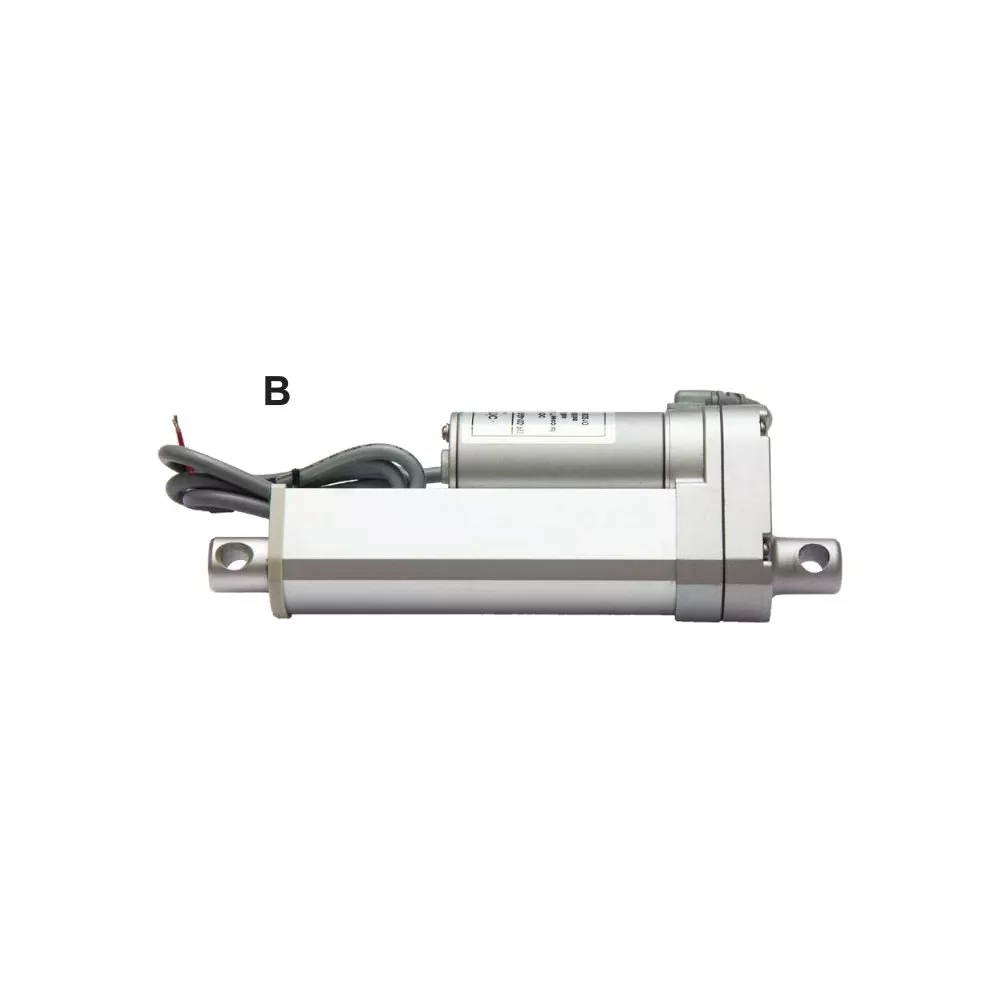

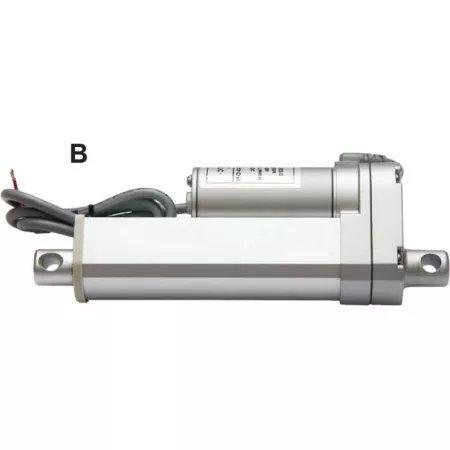

12V DC Concentric Linear Actuator 3.93" Stroke 8.07" Retracted 12" Extended Acme Drive Linear Actuators Tractor Repair & Parts

The Concentric 12V DC Linear Actuator is a gear driven drive motor that extends a shaft used primarily to open and close devices in tight or hard-to-reach areas. Their compact design as well as numerous control and mounting options make these water-resistant linear actuators ideally suited for industrial, agricultural, automotive off highway and other applications. The linear actuator's overload clutch also stops the shaft when it reaches full extension.

12VDC linear actuator with a 110 lb. load capacity and a 550 lb. static capacity
IP63 rated for total dust protection and water-resistance
Linear actuator has a maximum load speed of .50 in./sec
Overload clutch stops the shaft when the DC linear actuator reaches full extension
3.93 in. stroke; 8.07 in. retract; 12 in. extended; rod diameter measures 20.0 mm; weighs 3 lb.
Acme linear actuator drive for powerful use
Ideally suited for industrial, agricultural, automotive off highway and other applications
Offers users the flexibility of up to 3 programmable pre-sets
Extends a shaft used primarily to open and close devices in tight or hard-to-reach areas
Compact design allows for easy transport and storage
Numerous control and mounting options for versatility
Overload clutch stops the shaft when it reaches full extension

Note: This product may require up to 2 additional days for order processing prior to shipping

12V DC Concentric Linear Actuator 3.93" Stroke 8.07" Retracted 12" Extended Acme Drive Linear Actuators Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Linear Actuators

Specification	Description
Brand	Concentric
Country of Origin	Made in USA
Brand Compatibility	Universal
Compatibility	Industrial, agricultural, automotive off highway and other applications
Features	Water-Resistant
Input Voltage	12V
Maximum Speed	0.50 in./sec.
Model Compatibility	Universal
Package Quantity	1
Power Source	12-Volt
Product Weight	2.2 lb.
Warranty	1 Year
Manufacturer PartNumber	139220

Concentric 12VDC Linear Actuator, 3.93 in. Stroke, 8.07 in. Retracted, 12 in. Extended, Acme Drive Specifications Expand/Collapse Specification Description Brand Concentric Country of Origin Made in USA Brand Compatibility Universal Compatibility Industrial, Agricultural, Off-Road Automotive and Other Applications Features Water Resistant Input Voltage 12V Maximum Speed 0.50 in/sec. Model Compatibility Universal Package Quantity 1 Power Source 12 Volt Product Weight 2.2 lbs. Warranty 1 Year Manufacturer Part Number 139220
