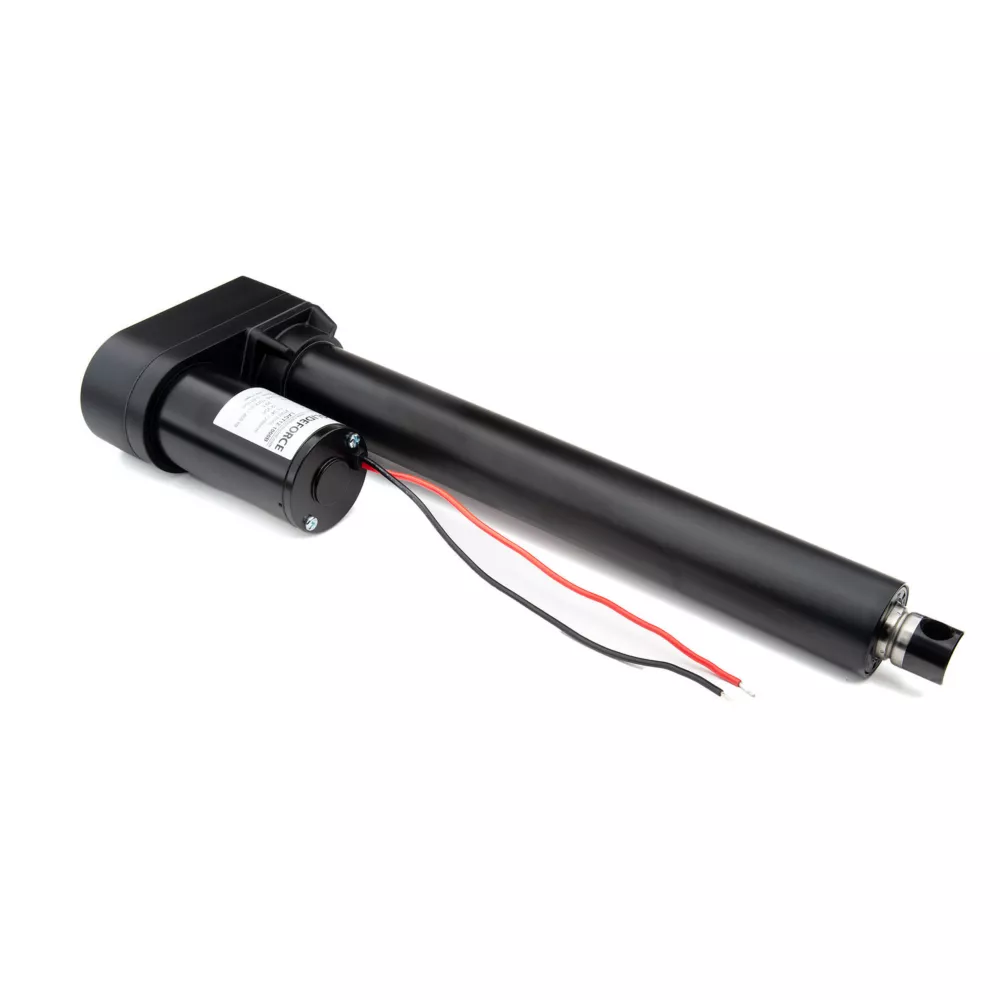

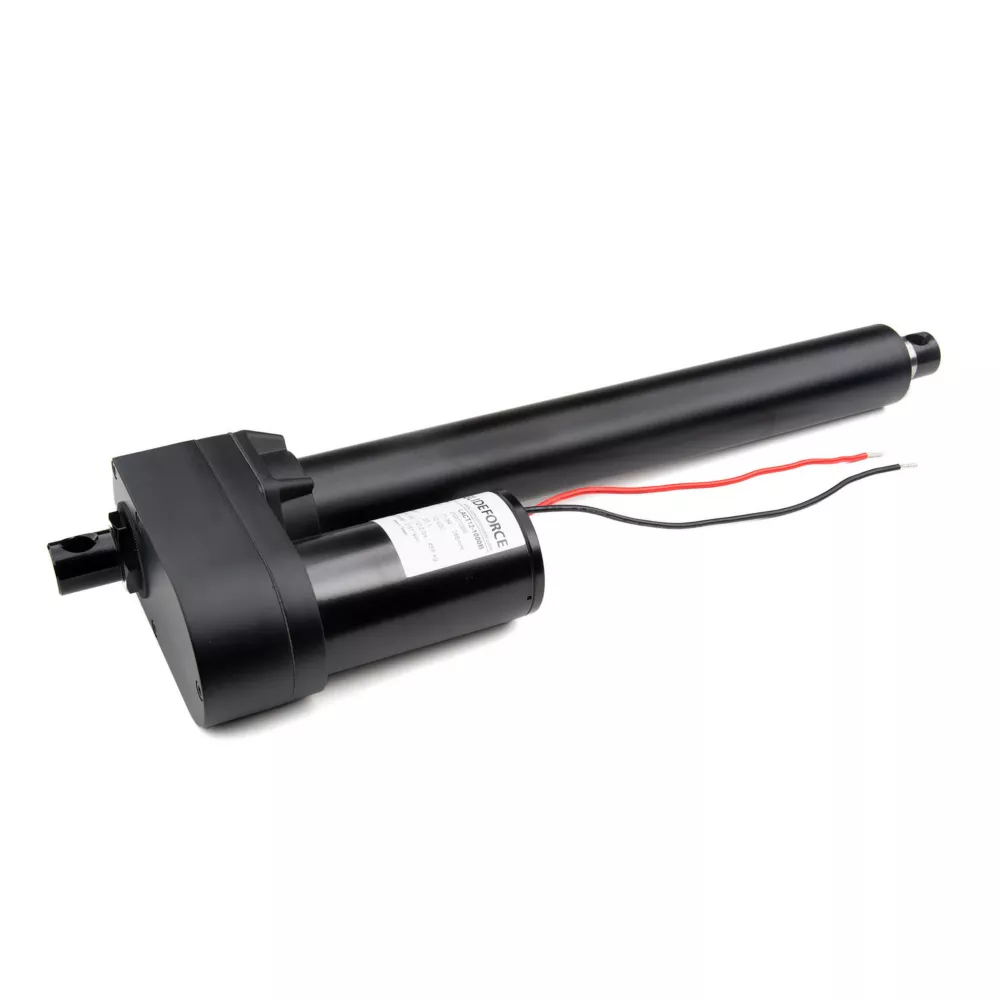

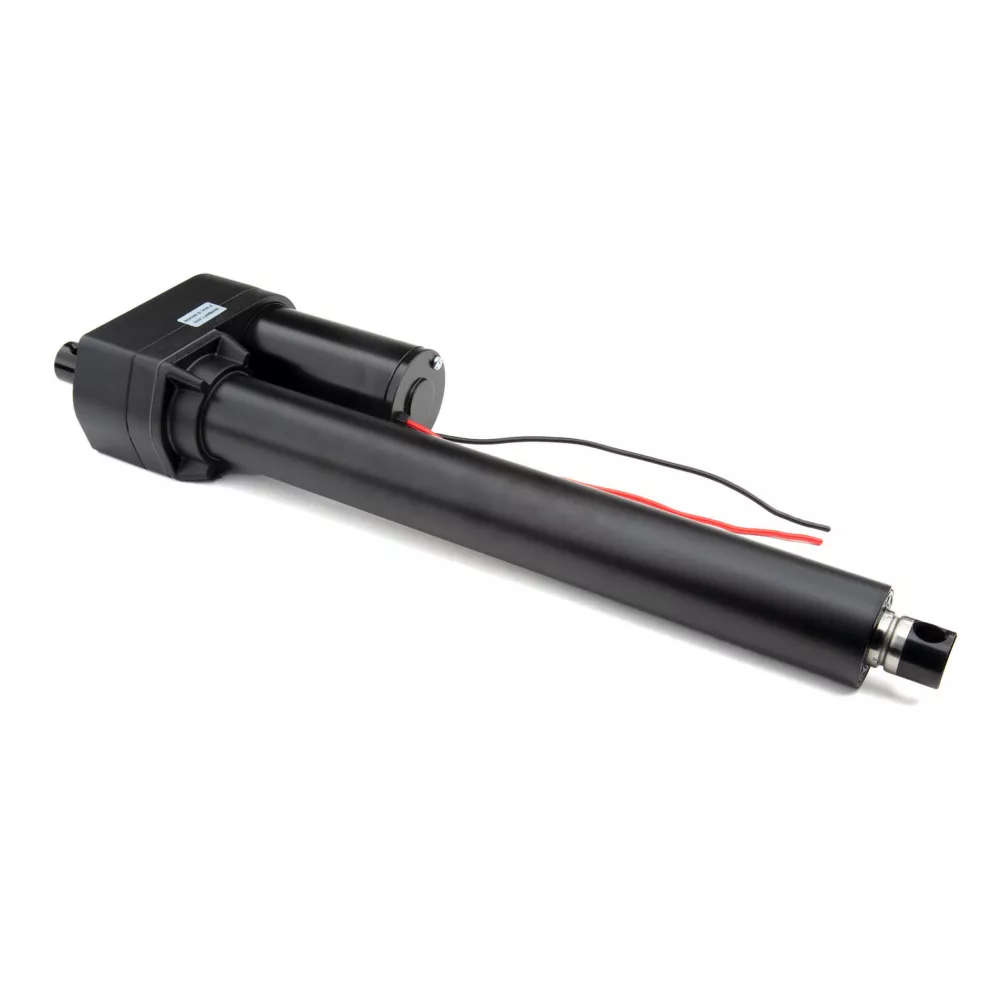

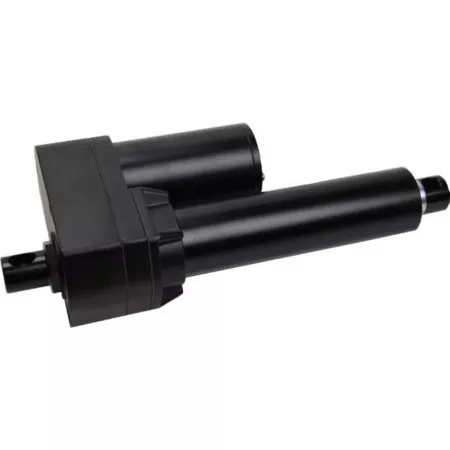

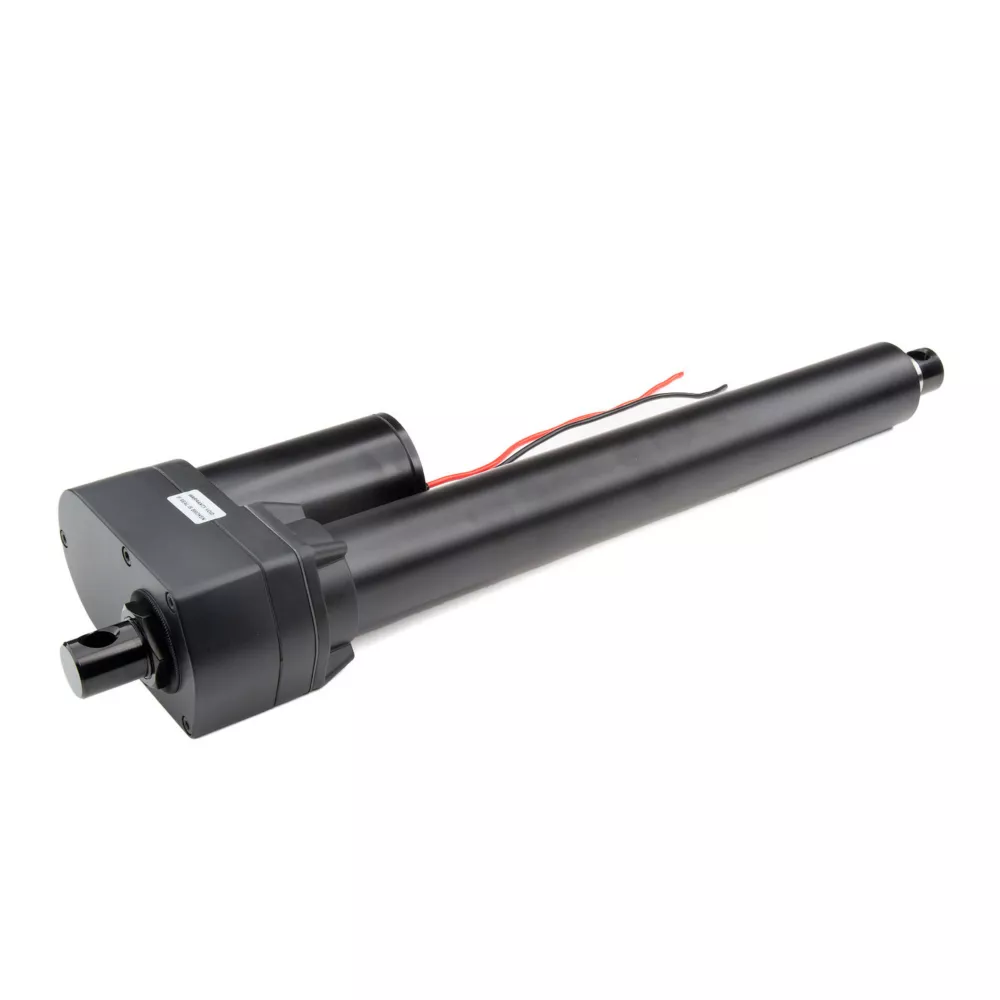

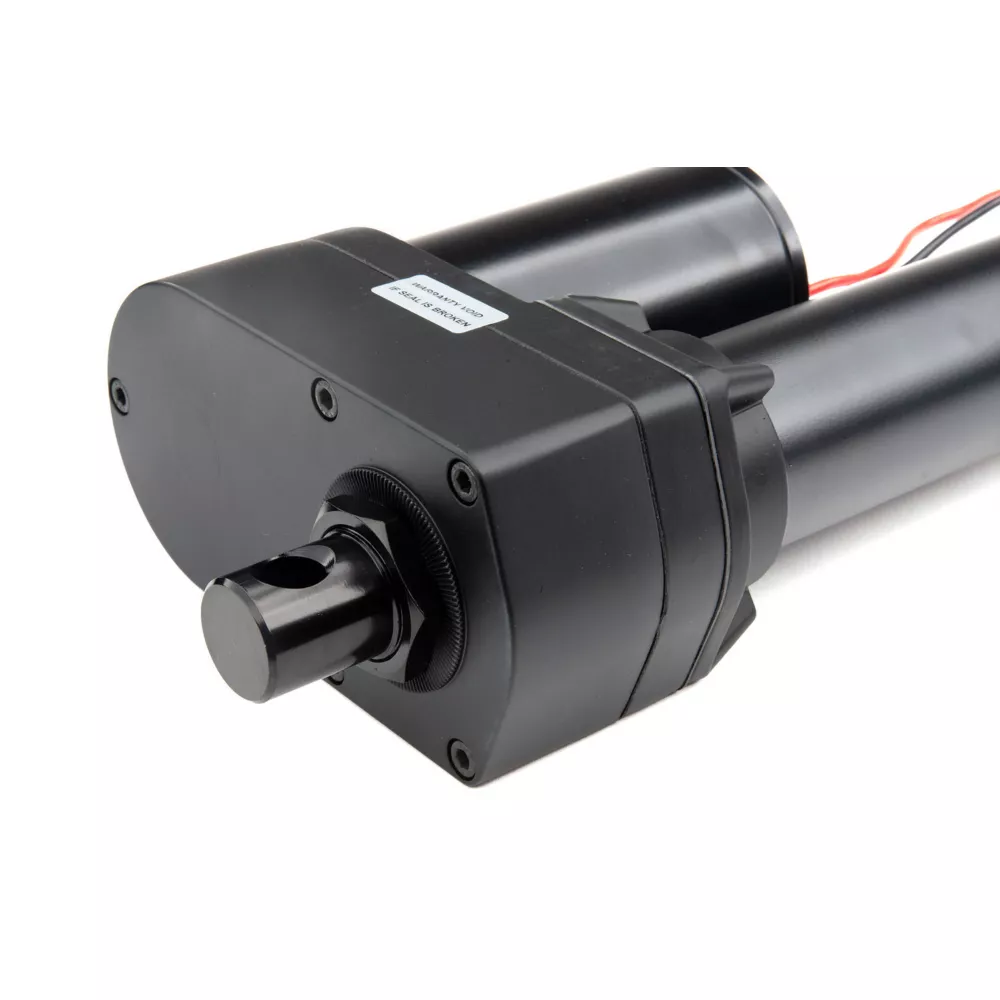

12V DC Concentric Linear Actuator 5.31" Stroke 14.06" Retracted 19.37" Extended Ball Screw Linear Actuators Tractor Repair & Parts
The Concentric 12VDC Linear Actuator is a gear-driven drive motor that extends a shaft used primarily to open and close devices in tight or hard-to-reach areas. With its compact design and numerous control and mounting options, this linear actuator is ideally suited for industrial, agricultural, automotive off-highway and other applications. The overload clutch stops the shaft when it reaches full extension.- Concentric linear actuator has a 110 lb. load capacity and a 550 lb. static capacity
- IP63 rated for dust protection and water resistance to guard against damage
- Linear actuator has a max load speed of .50 in./sec
- Overload clutch stops the shaft when the DC linear actuator reaches full extension
- Ball screw
- Potentiometer-equipped DC linear actuators can be used with the optional controller, offering the flexibility of up to 3 programmable pre-sets
- Features 5.31 in. stroke, 14.06 in. retract and 19.37 in. extended
- Weight: 11 lb.
- Backed by a 1-year warranty
12V DC Concentric Linear Actuator 5.31" Stroke 14.06" Retracted 19.37" Extended Ball Screw Linear Actuators Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Linear Actuators
| Specification | Description |
|---|---|
| Brand | Concentric |
| Country of Origin | Made in USA |
| Brand Compatibility | Universal |
| Compatibility | Industrial, agricultural, automotive off highway and other applications |
| Input Voltage | 12V |
| Maximum Speed | 0.50 in./sec. |
| Model Compatibility | Most applications |
| Package Quantity | 1 |
| Power Source | 12-Volt |
| Primary Material | Metal |
| Product Height | N/A |
| Product Length | N/A |
| Product Weight | 11 lb. |
| Product Width | N/A |
| Warranty | 1 Year |
| Manufacturer PartNumber | 139280 |
