3 Phase 2 Speed Electric Chain Hoist 1/2 Ton Capacity 15 Feet Lift JET Electric Hoists Ceiling Hoists

JET TS Series electric hoist is designed and built for safety, durability, and efficient operation in the toughest industrial applications. Designed with two speeds you can move materials quickly and safely. Allowing your material to then slow down to be placed exactly where you need it without the excessive bump firing. Additionally, a two in one mechanical brake and overload protection assures you of safety first on the jobsite. This new system will brake quickly while providing protection from overloading the hoist. We engineered this hoist to keep the operator safe and prolong the life of your tool. Lastly a patented gear limit switch will allow precise control of the stopping point in both directions. This feature will prolong the life of the hoist and help avoid possible damage to the unit. All of this with safe lifting speeds up to 33 feet per minute and as low as 3 feet per minute to give you the ability to be more efficient with every load.The TS series is available from 1/2 Ton to 5 Ton capacities. Let's Get to Work

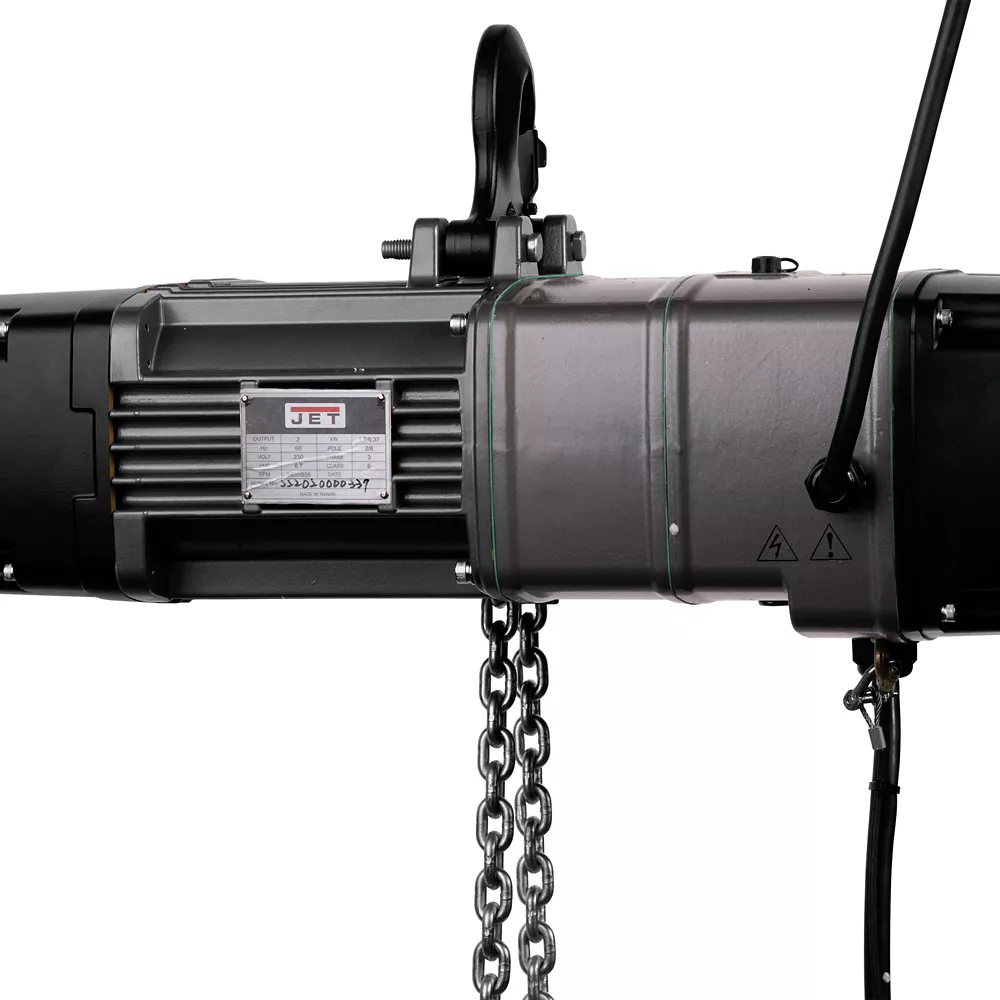

IP55 TEFC Motor with Class F insulation for working in harsh environments
The 2 in 1 design of the Mechanical Brake and Overload Protection ensure operator safety and extended product life.
DC Motor Brake actuates instantly in the event of a power failure to ensure operator safety.
Patented gear limit switch ensures the switches off power instantly in the case of over lifting or lowering position.

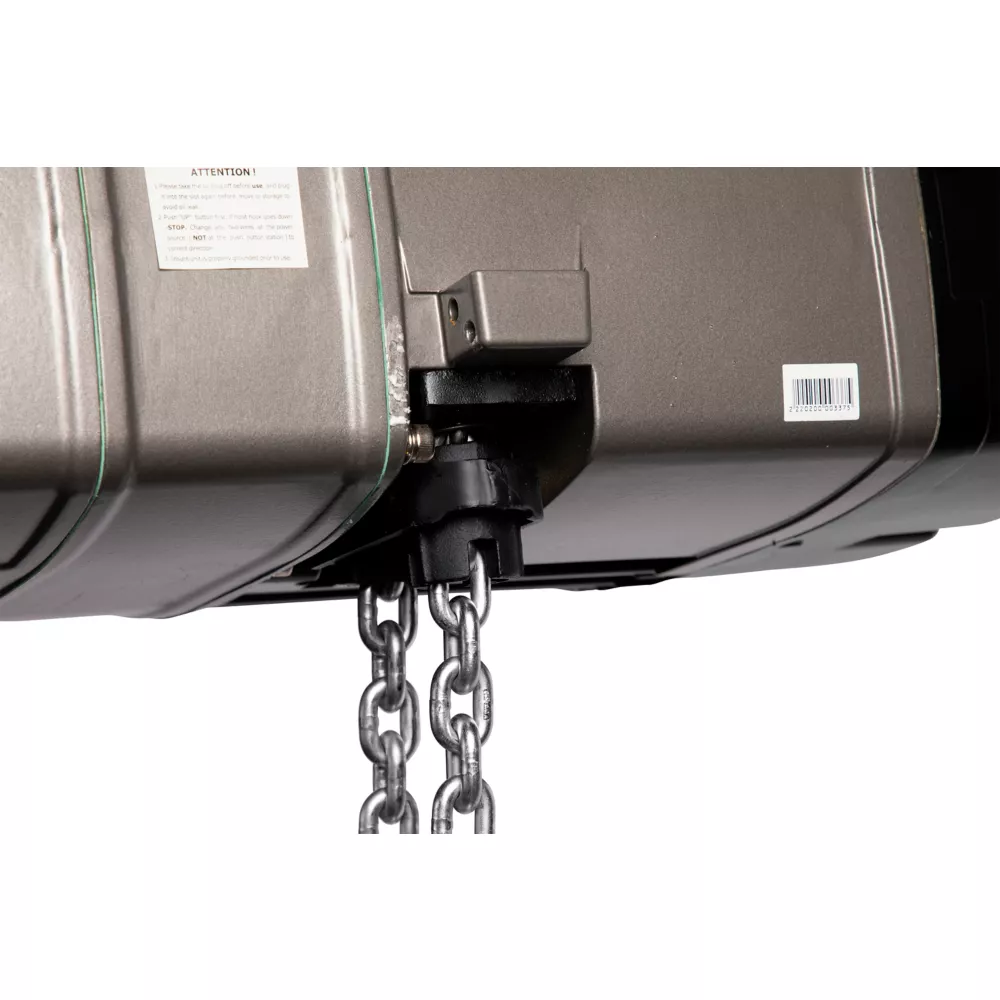

5 Pocket chain sprocket provides reduced vibration, smoother operation, and reduced chain wear during long lifting or lowering of loads.
Load chain is Grade 80 hardened and galvanized alloy steel chain built to withstand harsh conditions such as rain, saltwater, and chemicals with minimal wear.

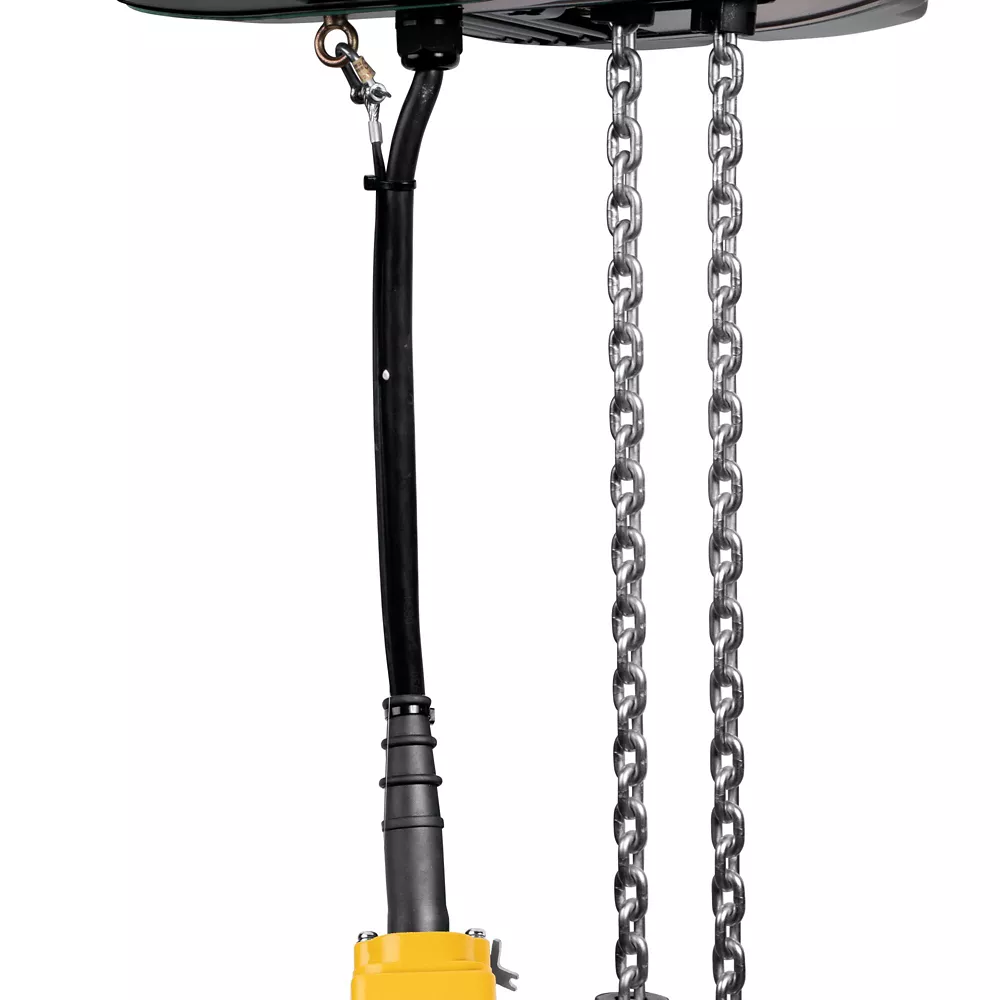

Pendant control is IP65 rated and is fully water-proof, insulated and impact resistant for years of service.
Built in heat protection will not allow lifting if internal temperatures exceed 285 F (+/-40). Load will be allowed to be lowered until unit cools. This saves internal components and extends the life of the product.
Comes with 10ft power supply cord

2 year

3 Phase 2 Speed Electric Chain Hoist 1/2 Ton Capacity 15 Feet Lift JET Electric Hoists Home Improvement> Moving & Lifting> Ceiling Hoists> Electric Hoists

Specification	Description
Brand	JET
Country of Origin	Imported
Amperage	6.9A
Chain Length	0 in.
Chain Width	0 in.
Features	Galvanized Chain
Full Load Lifting Speed	33 FPM
Full Load Lowering Speed	8FPM
Hoist Mount Type	Hook mount
Number Of Speeds	2
Horsepower	1.5 HP
Lift Assist Ratio	0
Lift Height	15 ft.
Lift Mechanism	Other
Maximum Pull Length	15 ft.
Maximum Weight Capacity	1/2 Ton
Phase	Triple
Primary Material	Steel
Product Height	23.622 in.
Product Length	26.772 in.
Product Weight	121 lb.
Product Width	19.685 in.
Voltage	230V
Warranty	2 Year
Manufacturer PartNumber	140234

JET 1/2 Ton Capacity 15 ft. Lift 3-Phase 2-Speed Electric Chain Hoist Specifications expand/collapse Specification Description Brand JET Country of Origin Imported Amperage 6.9 A Chain Length 0 in. Chain Width 0 in. Features Galvanized Chain Full Load Raise Speed 33 FPM Full Load Lower Speed 8 FPM Type Hoist Mounting Hook Mounting Number of Speeds 2 Horsepower 1.5 Lifting Assist Ratio HP 0 Lifting Height 15 Feet Lifting Mechanism Other Maximum Pull Length 15 Feet Maximum Weight Capacity 1/2 Ton Phase Triple Main Material Steel Product Height 23.622 inches Product Length 26.772 inches Product Weight 121 lbs Product Width 19.685 inches Voltage 230 V Warranty 2 years Manufacturer part number 140234.
