AgKNX 45 HP Model 400 Post Hole Excavator Post Hole Diggers Fencing & Gates

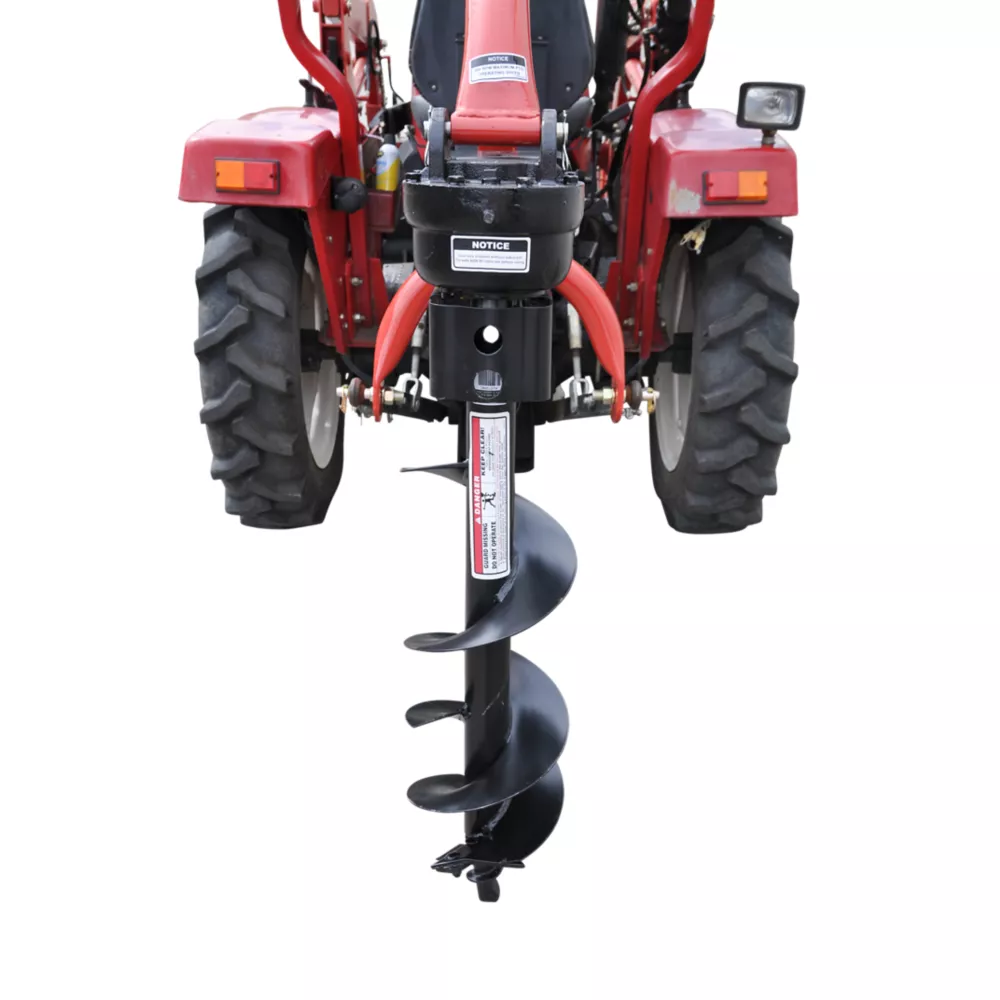

The AgKNX Model 400 Post Hole Digger is for most sub-compact, compact and Category 0 tractors with CAT 1 pins, allowing for fast post hole digging with convenient, safe operation from the tractor seat. The Model 400 can also be used on smaller CAT 1 tractors. The post hole digger features a heavy-duty gear box, durable driveline, and rust-resistant powder coat finish. Quick connect to 6 spline PTO to quickly change out implements. Rated for tractors up to 45 HP, this post hole digger can make quick work of your next job. CAT 0, Compact and Sub-Compact tractors typically come in 2 different configurations concerning the 3-pt. Some come with CAT 1 pins and other with CAT 0 pins. A CAT 0 3-pt includes 5/8" top link pin and 5/8" lift arm pin. A CAT 1 3-pt includes a 3/4" top link pin and 7/8" lift arm pin. Our Model 400 Post Hole Digger works with tractors that have the CAT 1 pins. CAT 0 lift arm pin is sold separately.- Ideal post hole digger for sub-compact, compact and Category 0 tractors with CAT 1 pins.
- Fast post hole digging with convenient, safe operation from the tractor seat
- Rated for tractors up to 45 HP
- Quick connect to 6 spline PTO
- Standard duty rating
- Top link pin hole diameter: 3/4 in. (Works with 5/8 in. pin. Bushing sold separately)
- Lift arm pin diameter: 7/8 in CAT 1 *(5/8 in CAT 0 pin sold separately)

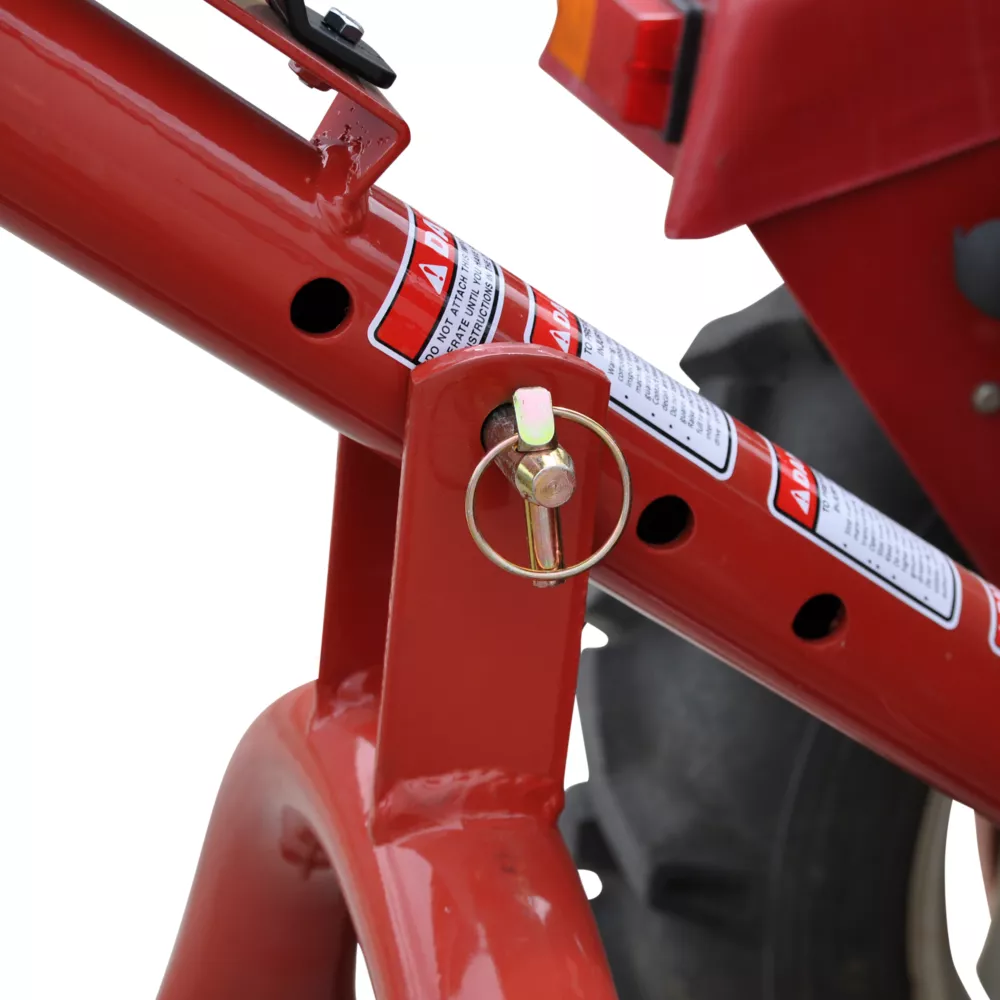

- 4 position adjustment
- This post hole digger is compatible with 6 in., 9 in., 12 in. compact auger and standard (sold separately)

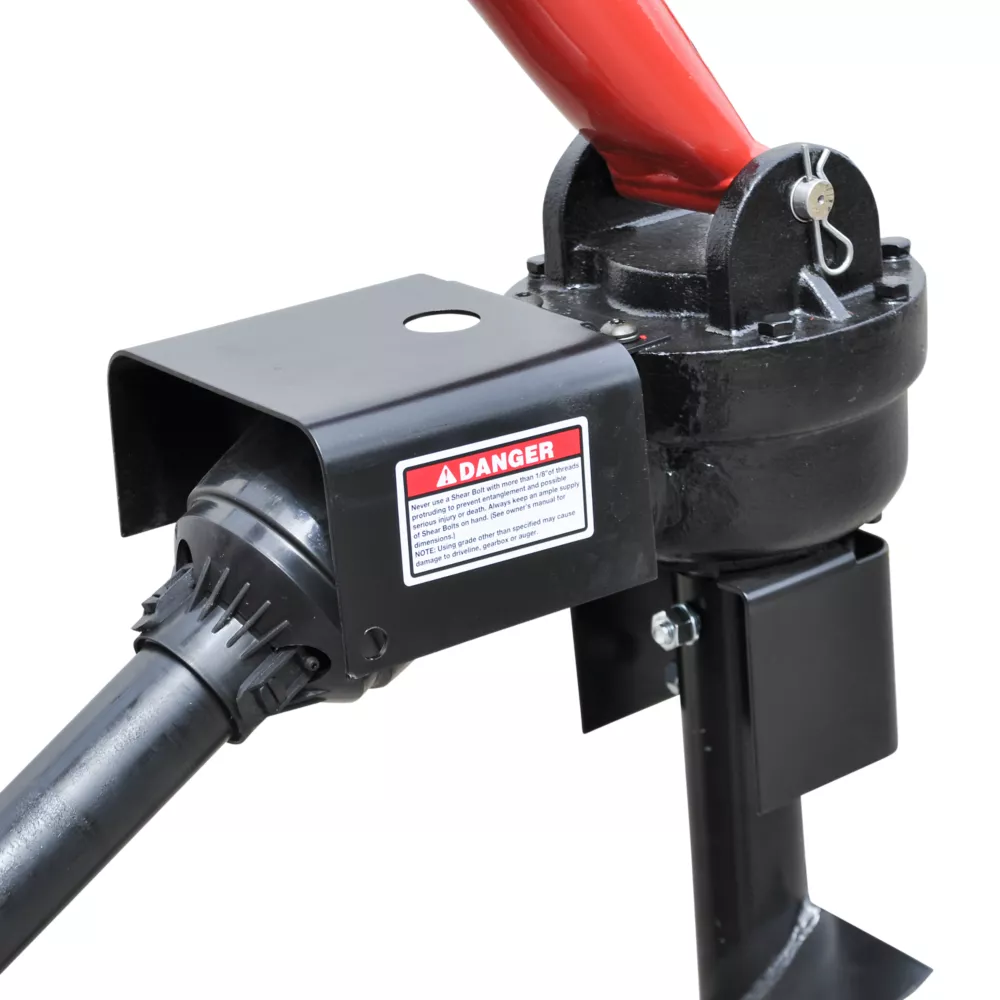

- Digger includes: Boom with high strength 2-7/8 in. tubing with 4 adjustment hole sets and manual canister; PTO driveline, robust 1 series with safety shields (1 3/8 in. x 6 quick release x 1 1/4 in. round with shear bolt); heavy duty right angle gear box; high strength A-frame - 21 in. lift arm spacing; hardware kit with necessary pins and bolts

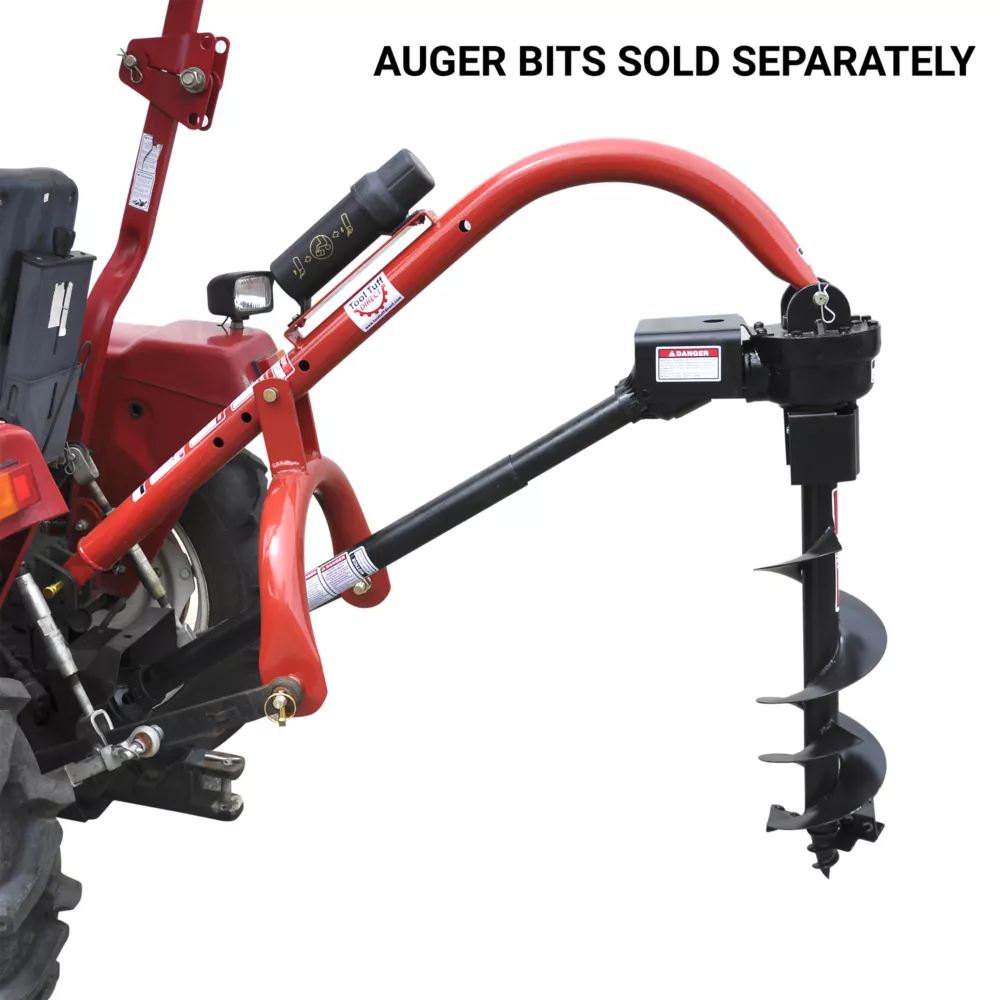

- Note: Can be purchased with or without augers (all augers are 36 in. length); augers 6-12 in. diameter are standard-duty with replaceable edges
AgKNX 45 HP Model 400 Post Hole Excavator Post Hole Diggers Fencing & Gates> Fencing Supplies & Tools> Fencing Hand Tools> Post Hole Diggers
| Specification | Description |
|---|---|
| Brand | AgKNX |
| Country of Origin | Imported |
| Auger Diameter | 6 in. 9 in. 12 in. |
| Auger Length | 36 in. |
| Auger Material | Steel |
| Auger Speed | 186 rpm |
| Boom Diameter | 2.9 in. |
| Boom Pole Shape | L shape |
| Compatibility | Sub-Compact, Compact & Category 0 tractors |
| Features | Rust/Corrosion Resistant |
| Gearbox Ratio | 2.92:1 |
| Hitch Type | N/A |
| Lift Capacity | This boom is not designed be a lift device. Max boom lift capacity is to 500 lb. |
| Maximum Tractor Horsepower | 45 hp |
| Minimum Tractor Horsepower | 0 hp |
| Number Of Lifting Loops | 4 |
| Primary Material | Steel |
| Product Height | 37.6 in. |
| Product Length | 48 in. |
| Product Weight | 137.50 lb. |
| Product Width | 32.8 in. |
| Recommended Auger Part Number | 1930006, 1930007, 1930008 |
| Manufacturer PartNumber | 24-0361 |
