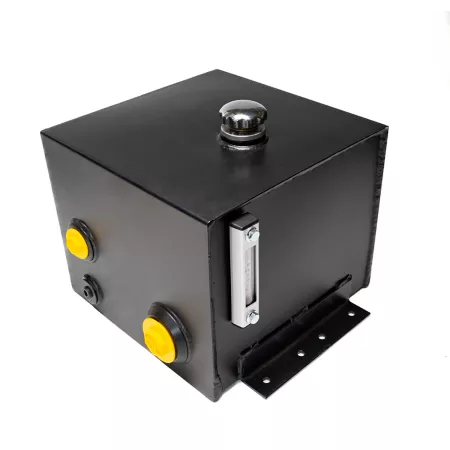

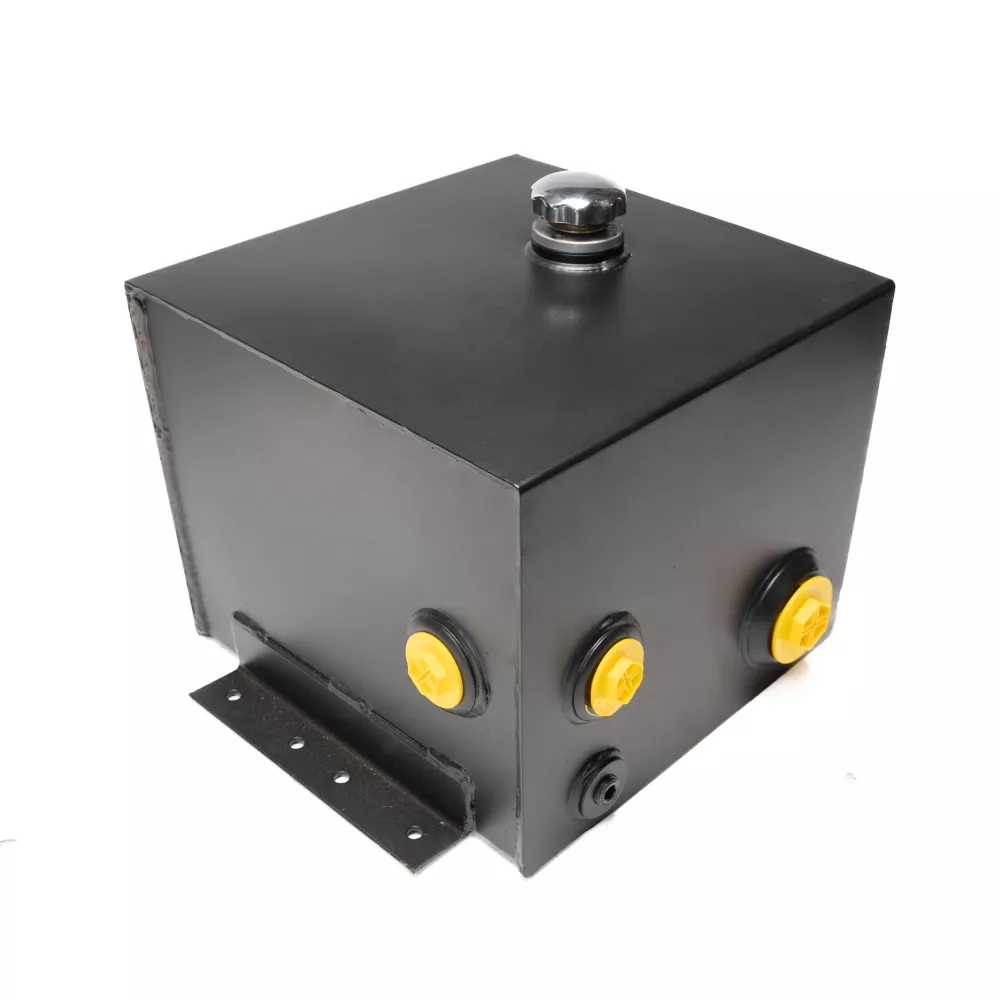

AgKNX 7 gal Steel hydraulic fluid tank horizontal mounting Fuel Transfer Tanks Truck & Automotive

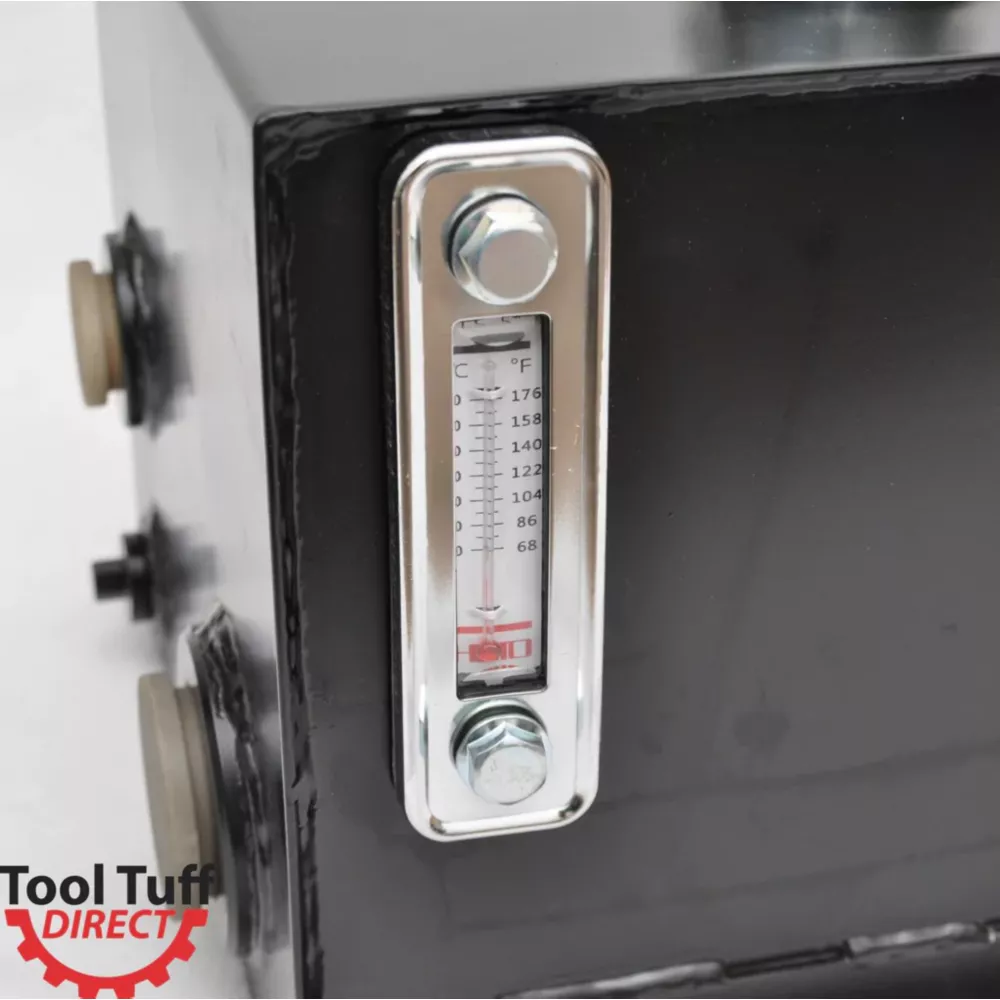

The AgKNX 7 gal. Steel Hydraulic Fluid Reservoir Tank is factory leak-tested and includes many features to help make your DIY project or repair a success. With its 7 gal. fluid capacity, 2 in. wide fill port, and dual 2 in. NPT threaded ports, this fluid reservoir tank is ideal for many applications. This hydraulic fluid tank also has a built-in sight gauge/temp gauge combo. Order your AgKNX reservoir tank today.- Built-in sight gauge/temp gauge combo
- Fuel tank boasts heavy-duty steel construction to ensure lasting quality

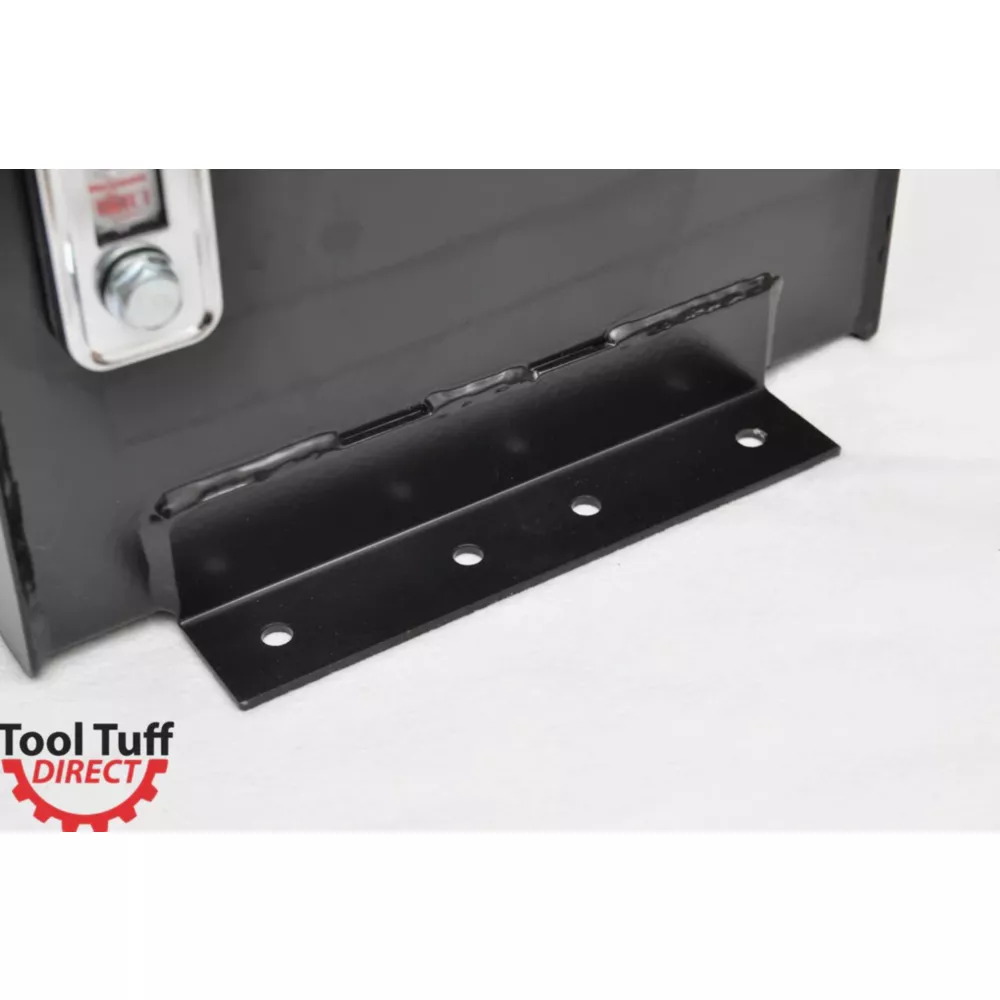

- 4-hole mounting plates on each side (max 7.875 in. apart between the two outer holes, and the holes in between are 2 in. apart); Center-Center Distance between the two mounting brackets across the tank is 16 in.
- Internally baffled

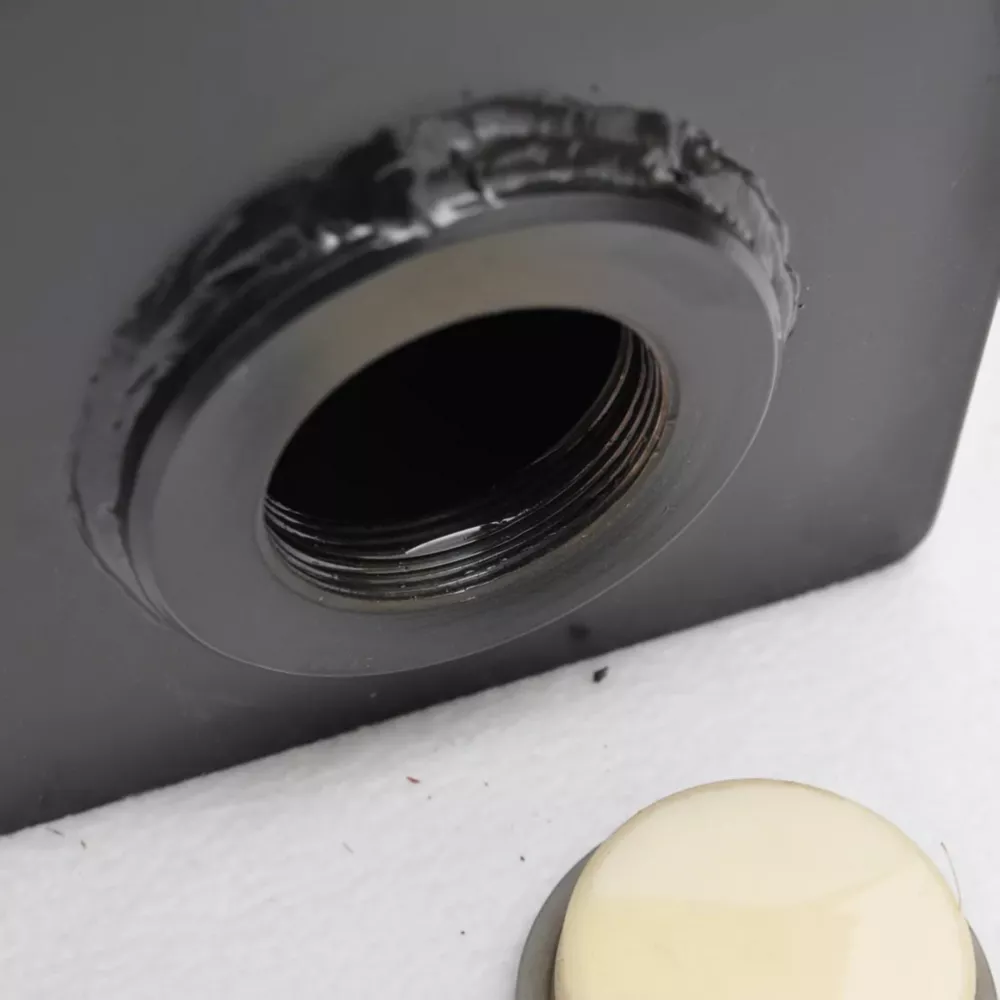

- 1.25 in. NPT threaded port

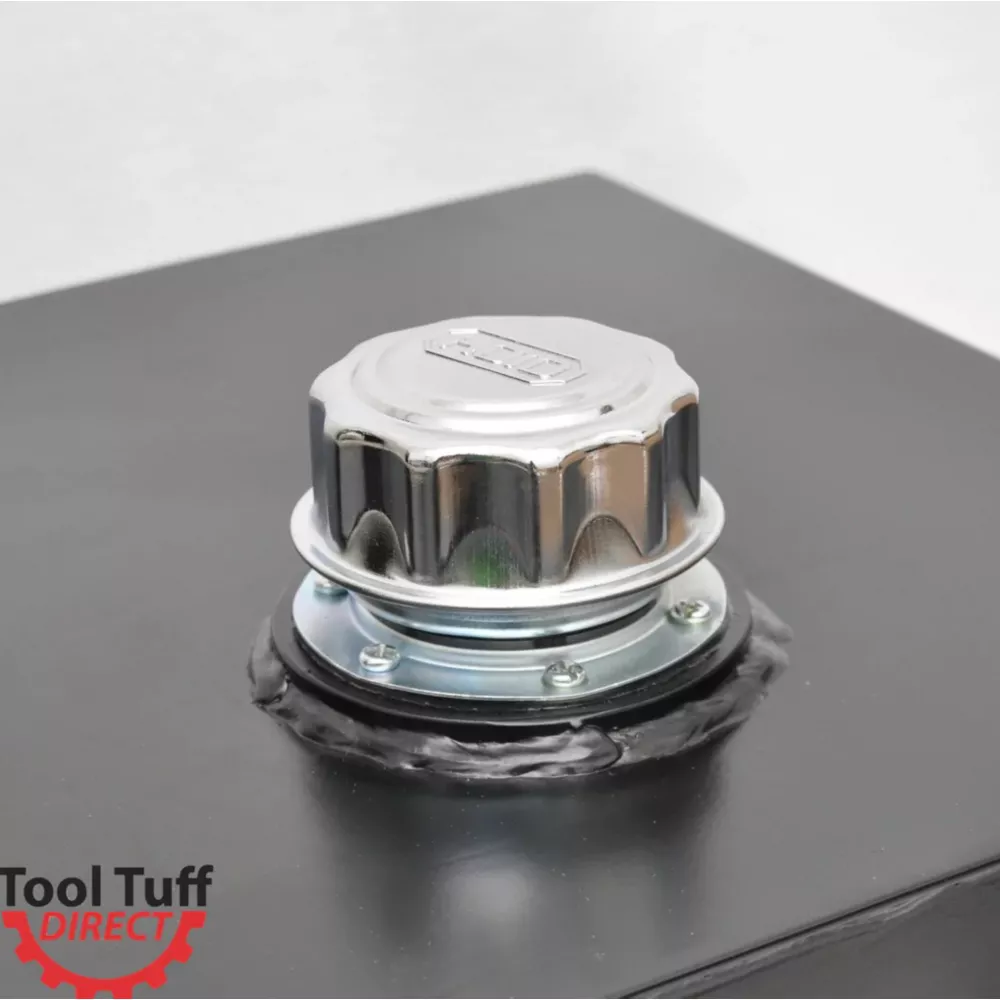

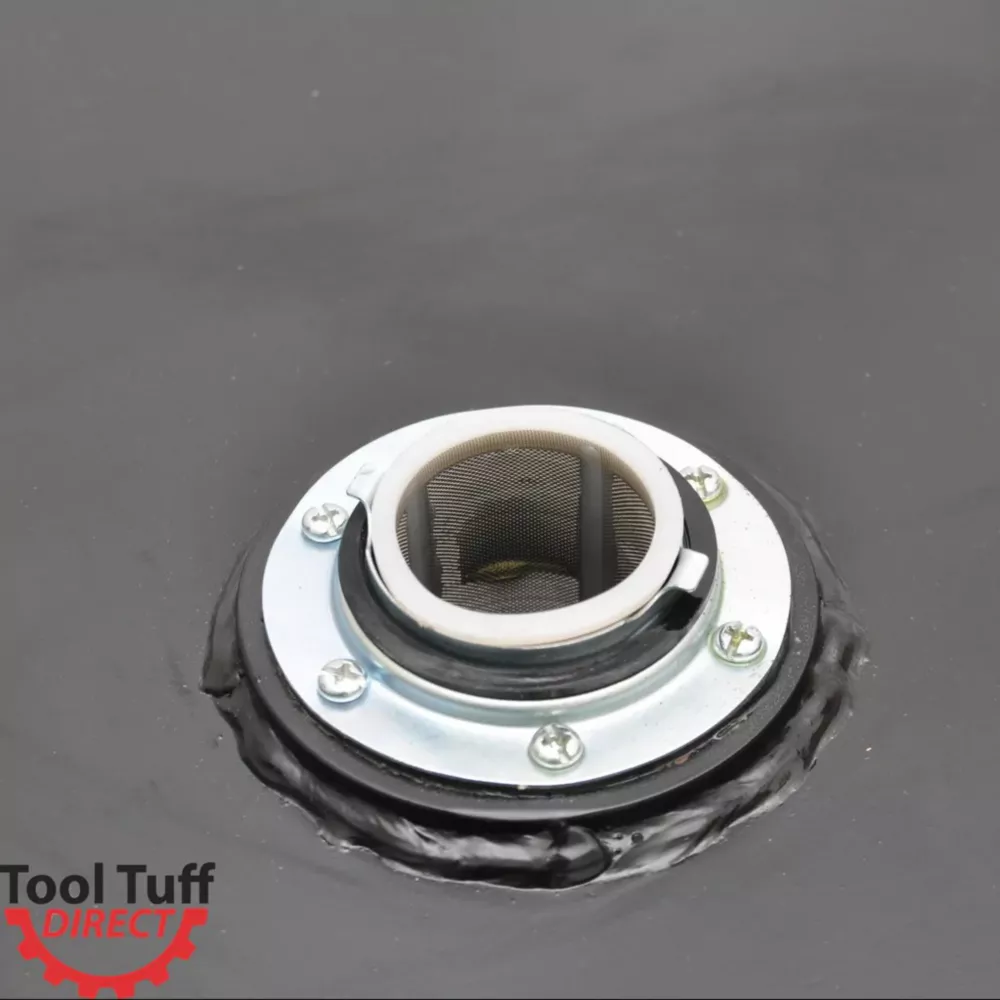

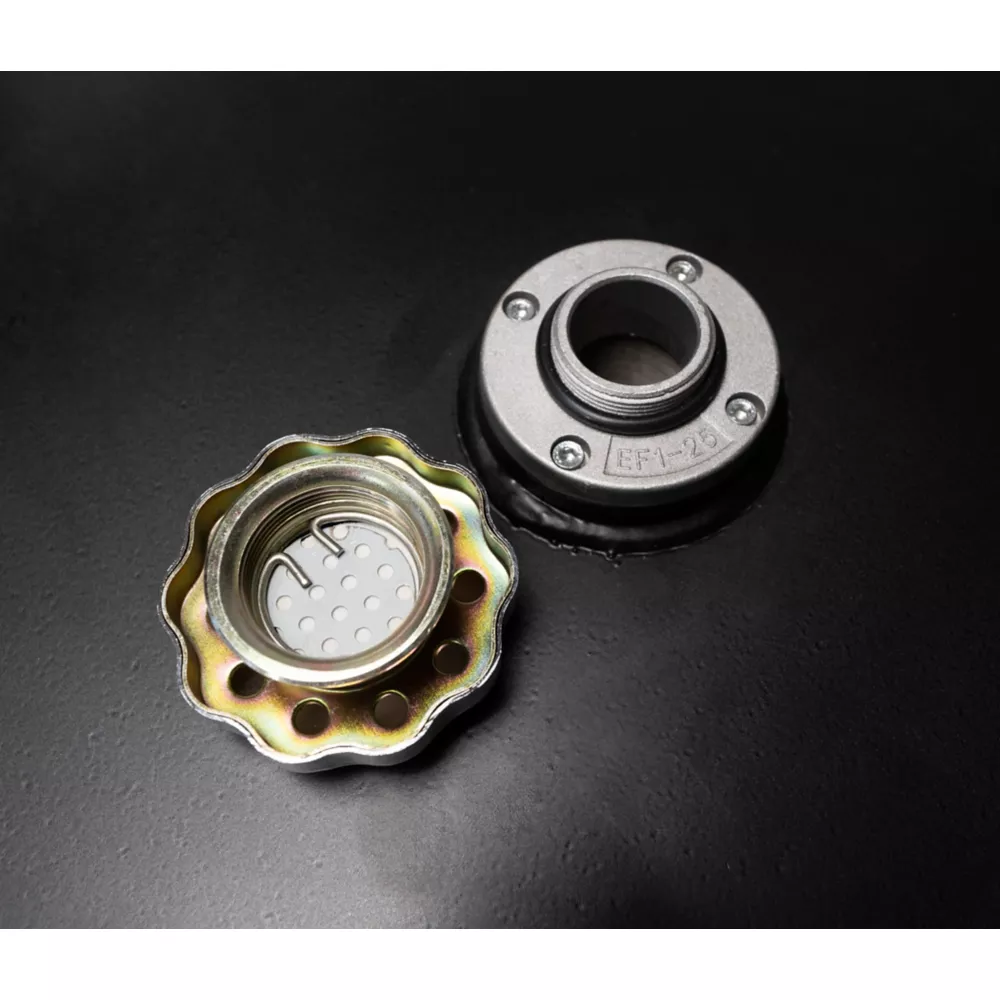

- 40 micron breather cap with 1/4-turn release
- Dimensions of the hydraulic fluid reservoir tank: 17.5 in. W (including bracket width)x 14 in. L x 12 in. H (14.5 in. high with cap)
- Factory leak-tested
- Drain plug is not included, the port is a 7/8 in.-18 SAE, plug can be found at most auto stores
- Weight: 41.5 lb
- Tank comes with poly plugs for all ports (may not be rated for use in all applications, but it'll keep it from leaking on it's way to you)
- 6-month warranty
AgKNX 7 gal Steel hydraulic fluid tank horizontal mounting Fuel Transfer Tanks Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Tanks
| Specification | Description |
|---|---|
| Brand | AgKNX |
| Country of Origin | Imported |
| Features | Drain Plug |
| Fill Opening Diameter | 2 in. |
| Maximum Fill Capacity | 7 gal. |
| Maximum Tank Fill Capacity | 7 gal |
| Outlet Diameter | 2 in. |
| Primary Color | Black |
| Primary Material | Steel |
| Product Height | 17 in. |
| Product Length | 12 in. |
| Product Weight | 45 lb. |
| Product Width | 14 in. |
| Tank Shape | Square |
| Warranty | 6 months |
| Manufacturer PartNumber | 31-108 |
