AIMS Power 1000W Pure Sine Wave Inverter and Battery Charger 12V DC to 120V AC ETL Listed Power Inverters Power Inverters

This AIMS Power 1000W Pure Sine Inverter and Battery Charger, listed to conform with UL 458 standards, is a combination of an inverter, battery charger and AC auto-transfer switch into one complete system with a peak DC and AC conversion efficiency of 80%. It is packed with unique features and it is one of the most advanced inverter chargers in the market today. It features power factor corrected, sophisticated multi-stage charging and pure sine wave output with unprecedentedly high surge capability to meet demanding power needs of inductive loads without endangering the equipment. The AC/Battery priority and auto generator start functionality make it suitable to work in either backup power or renewable energy applications. When customized to battery priority mode via a DIP switch, the AIMS power inverter will extract maximum power from external sources and renewable energy systems, with only minimal battery cycles being required. The overloads capacity is 300% of continuous output for up to 20 seconds to reliably support tools and equipment longer. In AC priority mode, when utility AC power cuts off, the transfer relay is de-energized and the load is automatically transferred to the inverter output. Once the qualified AC utility is restored, the relay is energized and the load is automatically transferred to AC utility. When switching to battery priority mode via the DIP switch, the inverter will extract power from external power sources in renewable energy systems and a minimal cycle of the battery will be required. with the availability of the auto generator start, an electrical generator can be integrated into the system as a backup and started when the battery voltage goes low.

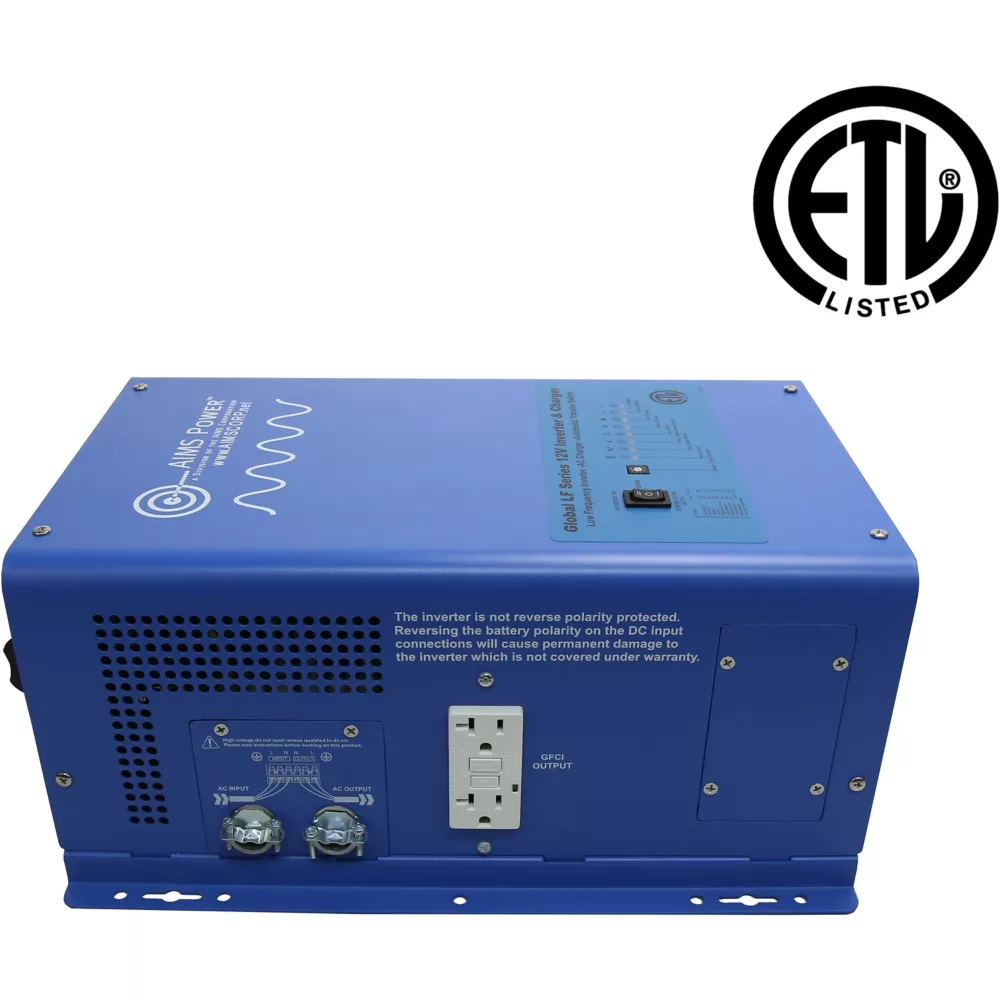

GFCI outlet
Auto gen start capability allows an electrical generator to be integrated into the system as a backup and started when the battery voltage goes low
Pure sine inverter is conformal coated for marine applications
Multi stage smart charger 35 amp
Remote panel available
Auto frequency detect from AC input
Less than 10msec typical transfer time
Optional 25W power save mode
7 battery type settings for charger
Combination of an AIMS power inverter, battery charger, and AC auto-transfer switch in one complete system
Peak AC and DC conversion efficiency of 80%
Pure sine wave output with high surge capability to meet demanding power needs of inductive loads without endangering equipment
When customized to battery priority mode, AIMS power inverter will extract maximum power from external sources and renewable energy systems with only minimal battery cycles being required
Overload capacity is 300% of continuous output for up to 20 seconds to reliably support tools and equipment longer

AIMS Power 1000W Pure Sine Wave Inverter and Battery Charger 12V DC to 120V AC ETL Listed Power Inverters Truck & Automotive> Automotive Batteries & Charging> Power Inverters

Specification	Description
Brand	AIMS Power
Country of Origin	Imported
Continuous Output Capacity	1,000W
Control Type	Knobs
Cord Length	0 ft.
Features	Listed to UL 458 Standards and CSA 22.2 No 107.1
Frequency Compatibility	50 Hz/60 Hz
Inverter Power	1,000W
Line Power	N/A
Nominal Output Voltage	100-110-120VAC
Number Of Outlets	1
Outlet Type	GFCI
Output Frequency Regulation	50Hz - 0.3Hz / 60Hz / - 0.3Hz
Peak Output Capacity	3,000W
Power Source	12-Volt
Power Type	12 Volt
Primary Color	Blue
Primary Material	Steel
Product Height	7 in.
Product Length	16-1/4 in.
Product Weight	37 lb.
Product Width	11 in.
Voltage	12VDC to 120VAC
Warranty	2 Year
Manufacturer PartNumber	PICOGLF10W12V120V

AIMS Power 1,000W Pure Sine Inverter and Battery Charger, 12VDC to 120VAC, ETL Listed Specifications Expand/Collapse Specification Description Brand AIMS Power Country of Origin Imported Continuous Output Capacity 1000 W Control Type Buttons Cord Length 0 ft. Features Listed to UL 458 and CSA 22.2 No. 107.1 Frequency Compatibility 50 Hz/60 Hz Inverter Power 1000W Mains Power N/A Rated Output Voltage 100-110-120VAC Number of Outlets 1 Outlet Type Output Frequency Regulation GFCI 50Hz - 0.3Hz / 60Hz / - 0. 3 Hz Maximum Output Capacity 3000 W Power Source Power Type 12 V Primary Color 12 V Blue Primary Material Product Height Steel 7 in. Product length 16-1/4 in. Product weight 37 lbs. Product width 11 in. Voltage 12 V DC to 120 V AC Warranty 2 years Manufacturer part number PICOGLF10W12V120V
