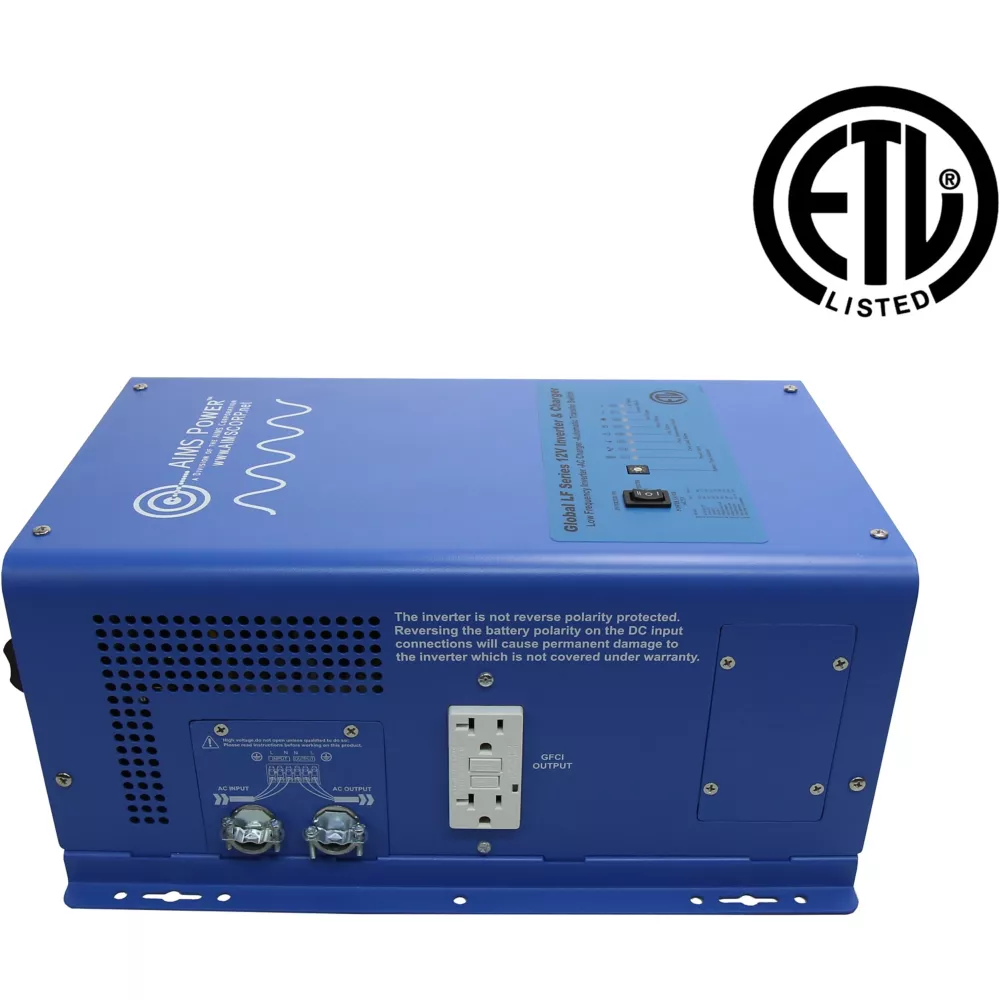

AIMS Power 1500W Pure Sine Wave Inverter and Battery Charger 12V DC to 120V AC ETL Listed Power Inverters Power Inverters

This AIMS Power PICOGLF15W12V120V 1500W Pure Sine Inverter and Battery Charger, listed to conform with UL 458 standards, is a combination of an inverter, battery charger and AC auto-transfer switch into one complete system with a peak DC and AC conversion efficiency of 80%. It is packed with unique features and it is one of the most advanced inverter chargers in the market today. It features power factor corrected, sophisticated multi-stage charging and pure sine wave output with unprecedentedly high surge capability to meet demanding power needs of inductive loads without endangering the equipment. The AC/Battery priority and auto generator start functionality make it suitable to work in either backup power or renewable energy applications. When customized to battery priority mode via a DIP switch, the AIMS power inverter will extract maximum power from external sources and renewable energy systems, with only minimal battery cycles being required. The overloads capacity is 300% of continuous output for up to 20 seconds to reliably support tools and equipment longer. In AC priority mode, when utility AC power cuts off, the transfer relay is de-energized and the load is automatically transferred to the inverter output. Once the qualified AC utility is restored, the relay is energized and the load is automatically transferred to AC utility. When switching to battery priority mode via the DIP switch, the inverter will extract power from external power sources in renewable energy systems and a minimal cycle of the battery will be required. With the availability of the auto generator start, an electrical generator can be integrated into the system as a backup and started when the battery voltage goes low.

GFCI outlet
Auto gen start capability allows an electrical generator to be integrated into the system as a backup and started when the battery voltage goes low
Pure sine inverter is conformal coated for marine applications
Multi stage smart charger 50 amp
Remote panel available
Auto frequency detect from AC input
Less than 10msec typical transfer time
Optional 25W power save mode
7 battery type settings for charger
Combination of an AIMS power inverter, battery charger, and AC auto-transfer switch in one complete system
Peak AC and DC conversion efficiency of 80%
Pure sine wave output with high surge capability to meet demanding power needs of inductive loads without endangering equipment
When customized to battery priority mode, AIMS power inverter will extract maximum power from external sources and renewable energy systems with only minimal battery cycles being required
Overload capacity is 300% of continuous output for up to 20 seconds to reliably support tools and equipment longer

AIMS Power 1500W Pure Sine Wave Inverter and Battery Charger 12V DC to 120V AC ETL Listed Power Inverters Truck & Automotive> Automotive Batteries & Charging> Power Inverters

Specification	Description
Brand	AIMS Power
Country of Origin	Imported
Continuous Output Capacity	1,500W
Control Type	Switches
Cord Length	N/A
Features	Low Battery Shutdown
Frequency Compatibility	60 Hz
Inverter Power	1,500W
Line Power	N/A
Nominal Output Voltage	120VAC
Number Of Outlets	1
Outlet Type	GFCI
Output Frequency Regulation	60 Hz
Peak Output Capacity	4,500W
Primary Color	Blue
Primary Material	Metal
Product Height	7 in.
Product Length	16-1/4 in.
Product Weight	37 lb.
Product Width	11 in.
Voltage	24VDC to 240VAC
Warranty	2 Year
Manufacturer PartNumber	PICOGLF15W12V120V

AIMS Power 1,500W Pure Sine Inverter and Battery Charger, 12VDC to 120VAC, ETL Listed Specifications Expand/Collapse Specification Description Brand AIMS Power Supply Country of Origin Imported Continuous Output Capacity 1500W Control Type Switches Cord Length N/A Features Low Battery Shutdown Frequency Compatibility 60Hz Inverter Power 1500W Power Supply mains N/A Rated output voltage 120 V AC Number of outlets 1 Output type Output frequency regulation GFCI 60 Hz Maximum output capacity 4500 W Primary color Blue Main material Metal Product height 7 in. Product length 16-1/4 in. Product weight 37 lbs. Product width 11 in. Voltage 24 V DC to 240 V AC Warranty 2 Year Manufacturer Part Number PICOGLF15W12V120V
