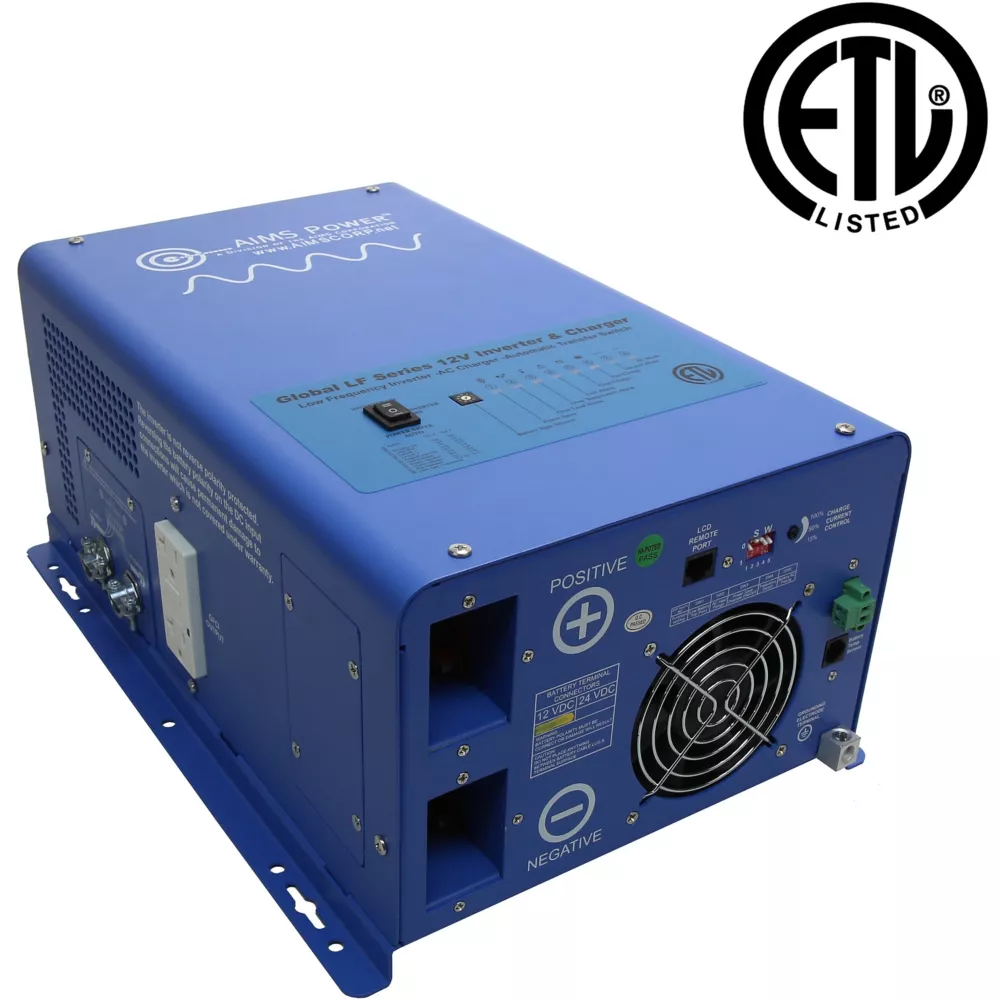

AIMS Power 2000W Pure Sine Wave Inverter and Battery Charger 12V DC to 120V AC ETL Listed Battery Chargers Truck & Automotive

This AIMS Power 2000W Pure Sine Inverter and Battery Charger, listed to conform with UL 458 standards, is a combination of an inverter, battery charger and AC auto-transfer switch into one complete system with a peak DC and AC conversion efficiency of 80%. It is packed with unique features and it is one of the most advanced inverter chargers in the market today. It features power factor corrected, sophisticated multi-stage charging and pure sine wave output with unprecedentedly high surge capability to meet demanding power needs of inductive loads without endangering the equipment. The AC/Battery priority and auto generator start functionality make it suitable to work in either backup power or renewable energy applications. When customized to battery priority mode via a DIP switch, the AIMS power inverter will extract maximum power from external sources and renewable energy systems, with only minimal battery cycles being required. The overloads capacity is 300% of continuous output for up to 20 seconds to reliably support tools and equipment longer. In AC priority mode, when utility AC power cuts off, the transfer relay is de-energized and the load is automatically transferred to the inverter output. Once the qualified AC utility is restored, the relay is energized and the load is automatically transferred to AC utility. When switching to battery priority mode via the DIP switch, the inverter will extract power from external power sources in renewable energy systems and a minimal cycle of the battery will be required. With the availability of the auto generator start, an electrical generator can be integrated into the system as a backup and started when the battery voltage goes low.

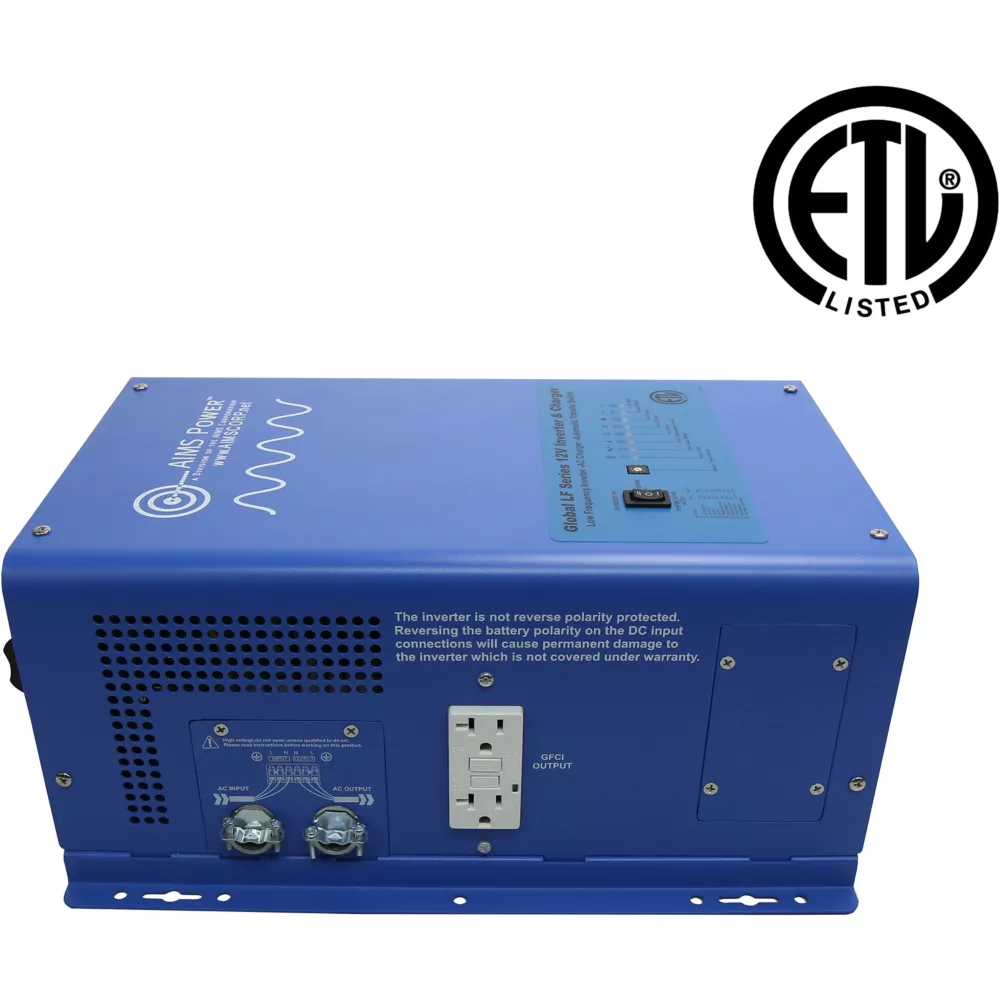

GFCI outlet
Auto gen start capability allows an electrical generator to be integrated into the system as a backup and started when the battery voltage goes low
Pure sine inverter is conformal coated for marine applications
Multi stage smart charger 70 amp
Remote panel available
Auto frequency detect from AC input
Less than 10msec typical transfer time
Optional 25W power save mode
7 battery type settings for charger
Combination of an AIMS power inverter, battery charger, and AC auto-transfer switch in one complete system
Peak AC and DC conversion efficiency of 80%
Pure sine wave output with high surge capability to meet demanding power needs of inductive loads without endangering equipment
When customized to battery priority mode, AIMS power inverter will extract maximum power from external sources and renewable energy systems with only minimal battery cycles being required
Overload capacity is 300% of continuous output for up to 20 seconds to reliably support tools and equipment longer

AIMS Power 2000W Pure Sine Wave Inverter and Battery Charger 12V DC to 120V AC ETL Listed Battery Chargers Truck & Automotive> Automotive Batteries & Charging> Battery Chargers & Jump Starters> Battery Chargers

Specification	Description
Brand	AIMS Power
Country of Origin	Imported
Amperage	70 A
Battery Charge Time	0 V
Compatible Battery Sizes	12V
Cord Length	0 in.
Features	2000 W low frequency inverter, 6000 W surge for 20 seconds 300% surge capability, Battery Priority Selector
Input Voltage	12 v
Number of Batteries Charged	12v
Output Current	50 hz
Output Voltage	12v
Package Quantity	1
Product Height	7.1 in.
Product Length	16.48 in.
Product Weight	53 lb.
Product Width	8.74 in.
Vehicle Compatibility	Other
Warranty	1 year
Manufacturer PartNumber	PICOGLF20W12V120V

AIMS Power 2,000 Watt Pure Sine Inverter and Battery Charger, 12VDC to 120VAC, ETL Listed Specifications expand/collapse Specification Description Brand AIMS Power Supply Country of Origin Imported Amperage 70A Battery Charge Time 0V Compatible Battery Sizes 12V Cord Length 0 in. Features 2000W low frequency inverter, 6000W surge for 20 seconds 300% surge capacity, battery priority Selector switch Input voltage 12V Number of batteries charged 12V Output current 50Hz Output voltage 12V Package Quantity 1 Product Height 7.1 in. Product length 16.48 in. Product weight 53 lbs. Product width 8.74 in. Vehicle Compatibility Other Warranty 1 Year Manufacturer Part Number PICOGLF20W12V120V
