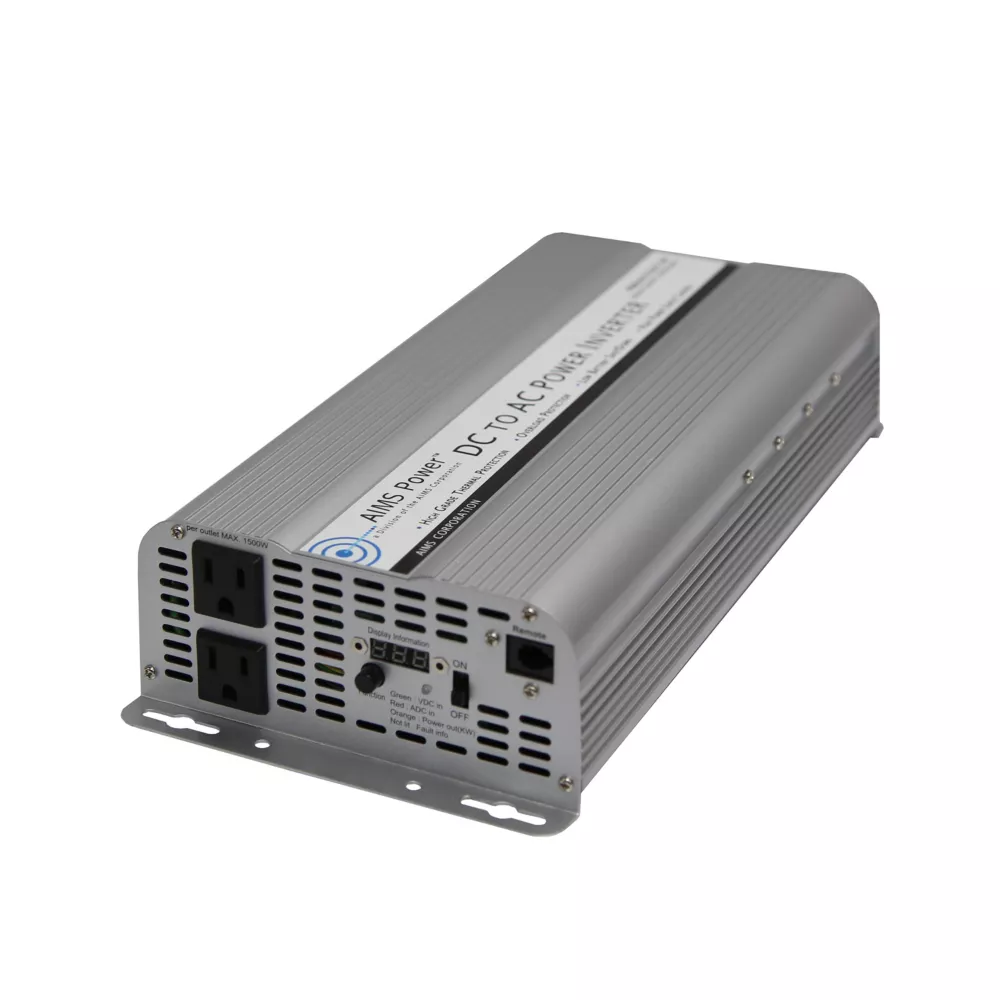

AIMS Power 2500W Modified Sine Wave Inverter 24V DC to 120V AC Power Inverters Truck & Automotive

The AIMS Power 2500W Modified Sine Power Inverter is an excellent choice for our customers who currently have a 24V DC power source. AIMS Power offers all the great features found on a 12V version and included them with this inverter. Some of those great features include a digital bar graph style display gauges, thermally controlled fan, and isolated ground neutral. First, the display gauges offer immediate information regarding your inverter system. The dual bar graph style meters boast red, yellow, and green lights for a quick reference to your system's condition. Second, the cooling fans are thermally controlled and only operate when needed based on temperature. The design saves battery power since the fans will not run all the time. Lastly, the isolated ground neutral allows the modified sine wave inverter to be connected to an off grid panel. Please contact the tech support department for help with this feature. Whether you need reliable power for a bus/coach that is has a 24V system or an off grid cabin that has a 24V battery bank connected to solar panels, this AIMS Power inverter is a great option.

AIMS Power has yet again supplied a great off grid power inverter to fit into numerous applications

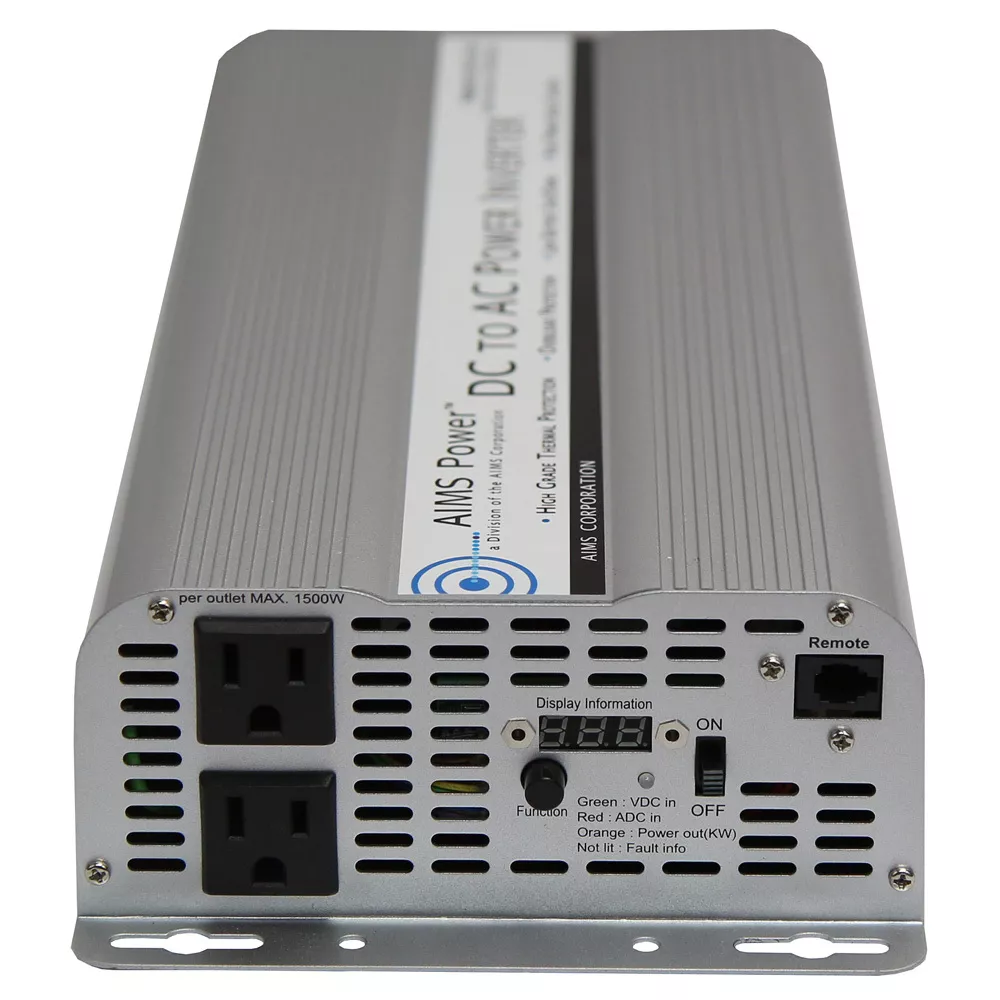

Digital display on front panel to monitor your battery voltage
Over-temperature and overload protection with LED indicator
Dual bar graph style display gauges have red, yellow, and green lights for a quick reference to your system's condition
2 AC receptacles
Isolated ground neutral allows the modified sine wave inverter to be connected to an off grid panel
On/off switch offers easy operation

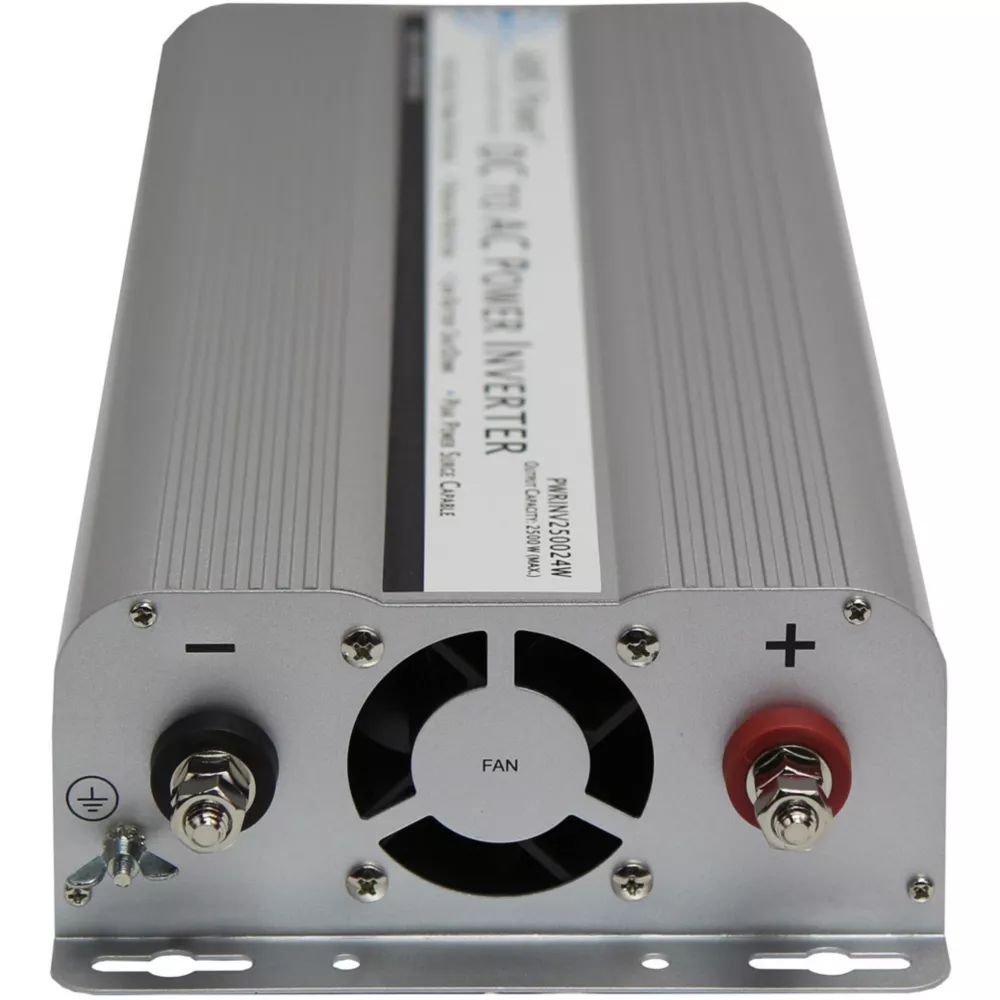

Single cooling fan operation is thermally controlled and only operates when needed based on temperature
AIMS Power inverter is internal fuse protected
AC cable included to connect to shore power
Auto reset on most fault conditions
Aluminum case for optimal cooling
Pre-wired for remote on/off switch
Pre-slotted mounting plate
Instruction manual included
Free 1 year tech support

AIMS Power 2500W Modified Sine Wave Inverter 24V DC to 120V AC Power Inverters Truck & Automotive> Automotive Batteries & Charging> Power Inverters

Specification	Description
Brand	AIMS Power
Country of Origin	Imported
Continuous Output Capacity	2,500W
Control Type	Switches
Cord Length	N/A
Features	Low Battery Shutdown
Frequency Compatibility	60 Hz
Inverter Power	2,500W
Line Power	N/A
Nominal Output Voltage	120VAC
Number Of Outlets	2
Outlet Type	AC
Output Frequency Regulation	60 Hz
Peak Output Capacity	5,000W
Power Source	12-Volt
Power Type	Battery
Primary Color	Gray
Primary Material	Metal
Product Height	3-1/8 in.
Product Length	14-5/8 in.
Product Weight	6 lb.
Product Width	6-5/8 in.
Voltage	24VDC to 120VAC
Warranty	1 Year
Manufacturer PartNumber	PWRINV250024W

AIMS Power 2,500W Modified Sine Power Inverter, 24VDC to 120VAC Specifications Expand/Collapse Specification Description Brand AIMS Power Supply Country of Origin Imported Continuous Output Capacity 2500W Control Type Switches Cord Length N/A Features Low Battery Shutdown Frequency 60Hz Compatibility Inverter Power 2500W Power Supply mains N/A Rated output voltage 120 V AC Number of sockets Socket type 2 AC output Frequency regulation 60 Hz Maximum output capacity 5000 W Power source Power type 12 V Battery Primary color Gray Main material Metal Height of product 3-1/8 in. Product length 14-5/8 in. Product Weight 6 lb. Product Width 6-5/8 in. Voltage 24 V DC to 120 V AC 1 year warranty Manufacturer part number PWRINV250024W.
