AIMS Power 5000W Modified Sine Wave Inverter 12V DC to 120V AC Power Inverters Truck & Automotive

This AIMS Power 5000W Modified Sine Inverter is packed with power but still small enough to fit in small spaces. This modified sine wave inverter is capable of providing up to 41.6 AC amps, which is perfect for larger pumps, tools, compressors and refrigerators/freezers. Includes V and amp meter, optional remote, AC direct connect terminal block and 4 AC receptacles. This is a great whole-house AIMS Power inverter or large RV or toy hauler inverter.

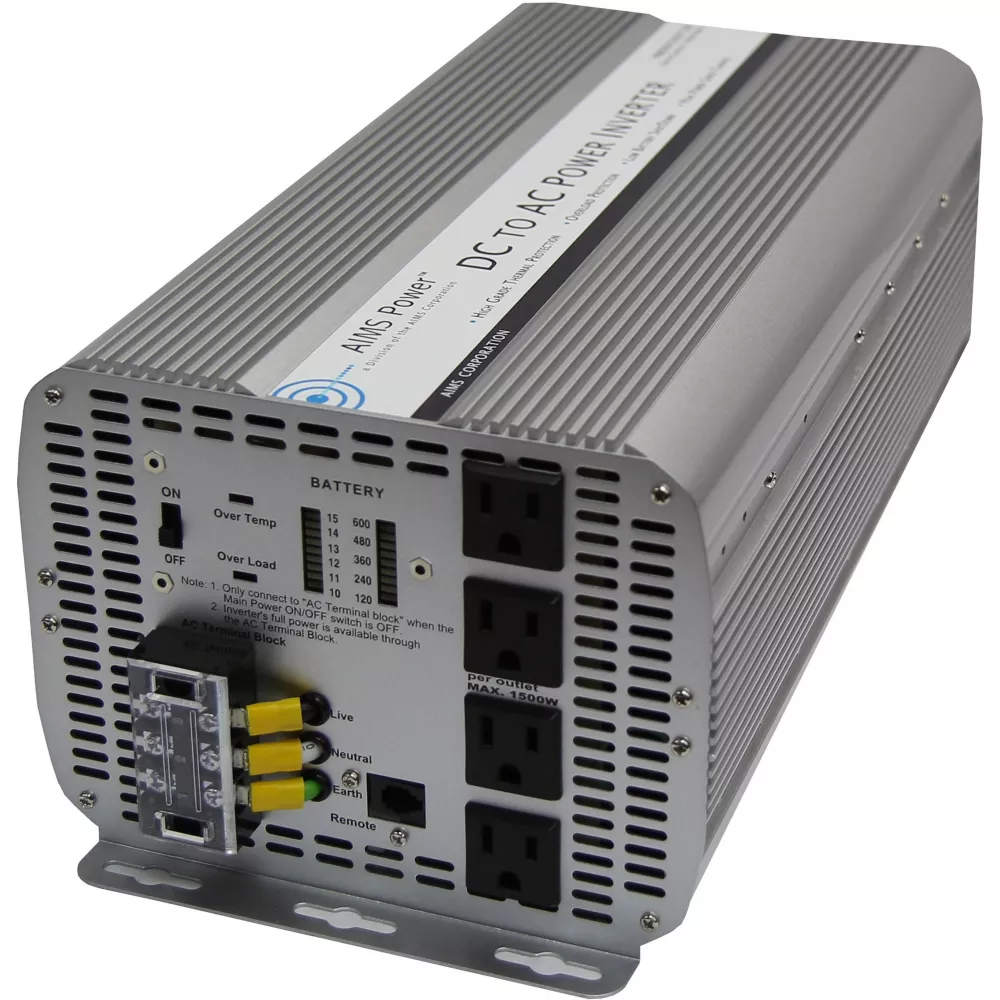

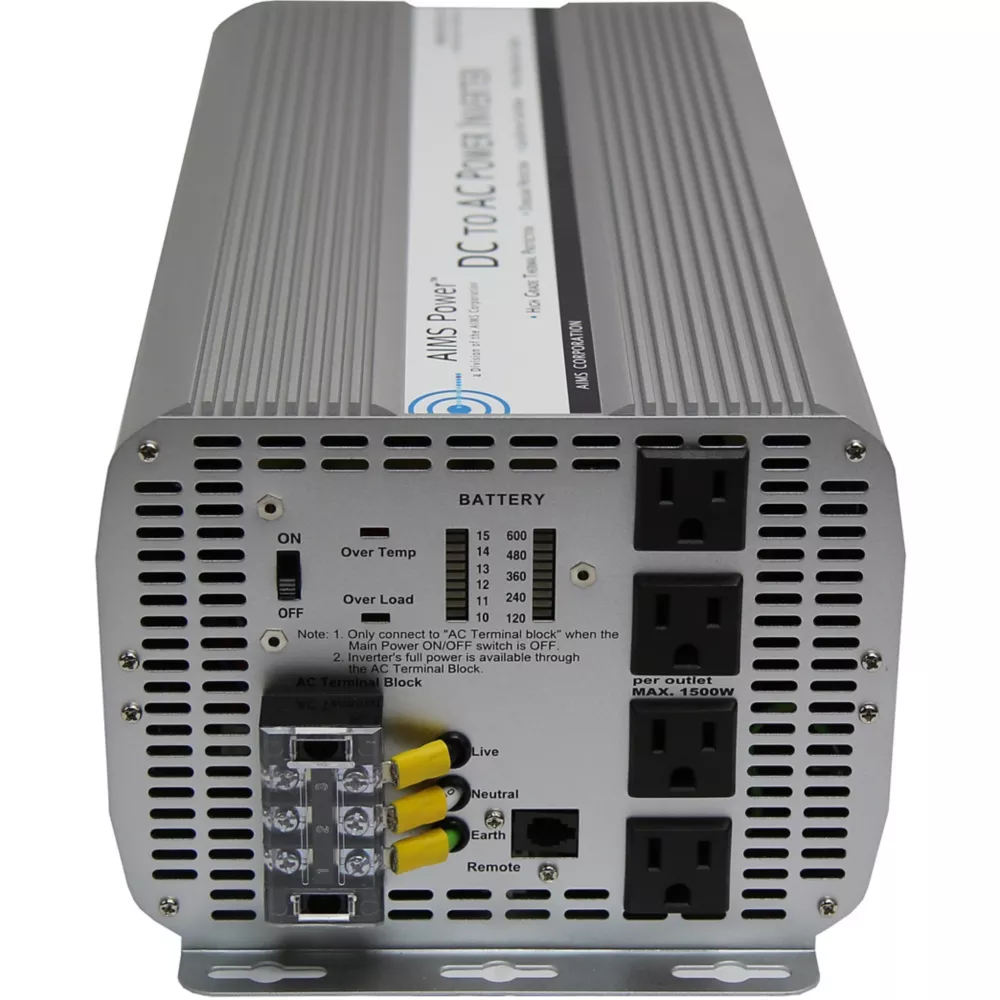

Voltage meter on front panel of the AIMS Power inverter to monitor your battery voltage
Amp meter on front panel to monitor your current use (rate at which battery is drained)
AC direct connect terminal
Over-temperature LED indicator
Overload LED indicator
Quadruple AC receptacle that can be used with any separate splitter to provide even more outlets
On/off switch offers easy operation
Over-temperature protection
Overload protection
AIMS Power inverter is internal fuse protected
AC output short circuit protection
Auto reset on most fault conditions
Aluminum case for optimal cooling
Pre-wired for remote on/off switch
Pre-slotted mounting plate
Instruction manual included
Free 1 year tech support
1 year warranty parts and labor
Single cooling fan operation is thermally controlled
Modified sine wave inverter is capable of providing up to 41.6 AC amps

AIMS Power 5000W Modified Sine Wave Inverter 12V DC to 120V AC Power Inverters Truck & Automotive> Automotive Batteries & Charging> Power Inverters

Specification	Description
Brand	AIMS Power
Country of Origin	Imported
Continuous Output Capacity	5,000W
Control Type	Switches
Cord Length	N/A
Features	Low Battery Shutdown
Frequency Compatibility	60 Hz
Inverter Power	5,000W
Line Power	N/A
Nominal Output Voltage	120VAC
Number Of Outlets	4
Outlet Type	AC
Output Frequency Regulation	60 Hz
Peak Output Capacity	10,000W
Power Source	Battery
Power Type	12 Volt
Primary Color	Gray
Primary Material	Metal
Product Height	6-1/8 in.
Product Length	16-3/4 in.
Product Weight	18 lb.
Product Width	7-7/8 in.
Voltage	12VDC to 120VAC
Warranty	1 Year
Manufacturer PartNumber	PWRINV500012W

AIMS Power 5,000W Modified Sine Inverter, 12VDC to 120VAC Specifications Expand/Collapse Specification Description Brand AIMS Power Supply Country of Origin Imported Continuous Output Capacity 5000W Control Type Switches Cord Length N/A Features Low Battery Shutdown Frequency 60Hz Compatibility Inverter Power 5000W Power Supply mains N/A Rated output voltage 120 V AC Number of sockets Socket type 4 AC output Frequency regulation 60 Hz Maximum output capacity 10,000 W Power source Battery power type 12 Volt Primary color Gray Main material Metal Product Height 6-1/8 in. Product length 16-3/4 in. Product weight 18 lbs. Product width 7-7/8 in. Voltage 12 V DC to 120 V AC Warranty 1 year Manufacturer part number PWRINV500012W
