AIMS Power 7 000 Watt Modified Sine Wave Inverter 48V DC to 240V AC 50/60 Hz Battery Chargers Battery Chargers & Jump Starters

The AIMS Power 7000W Modified Sine Inverter accepts a 48V input and produces 240Vac of modified sine wave AC power. With the AIMS Power industrial grade line, you get a commercial grade inverter that is a true work horse. The 240Vac output is a great option for an off grid well pump, job site, power tools, large 240Vac air compressor, electric motor and even a small house. However, keep in mind that this inverter is not 'split phase,' you will not be able to pull one leg of 120V off of it. The power inverter also has a selectable frequency switch making it ideal for European and African applications where 50 Hz power is needed. It can easily be changed from a North American output (60 Hz) to a European/African output (50 Hz) with the flip of a simple switch. With the 48V DC input, you can run smaller cable and multiple batteries for this heavy-duty inverter.

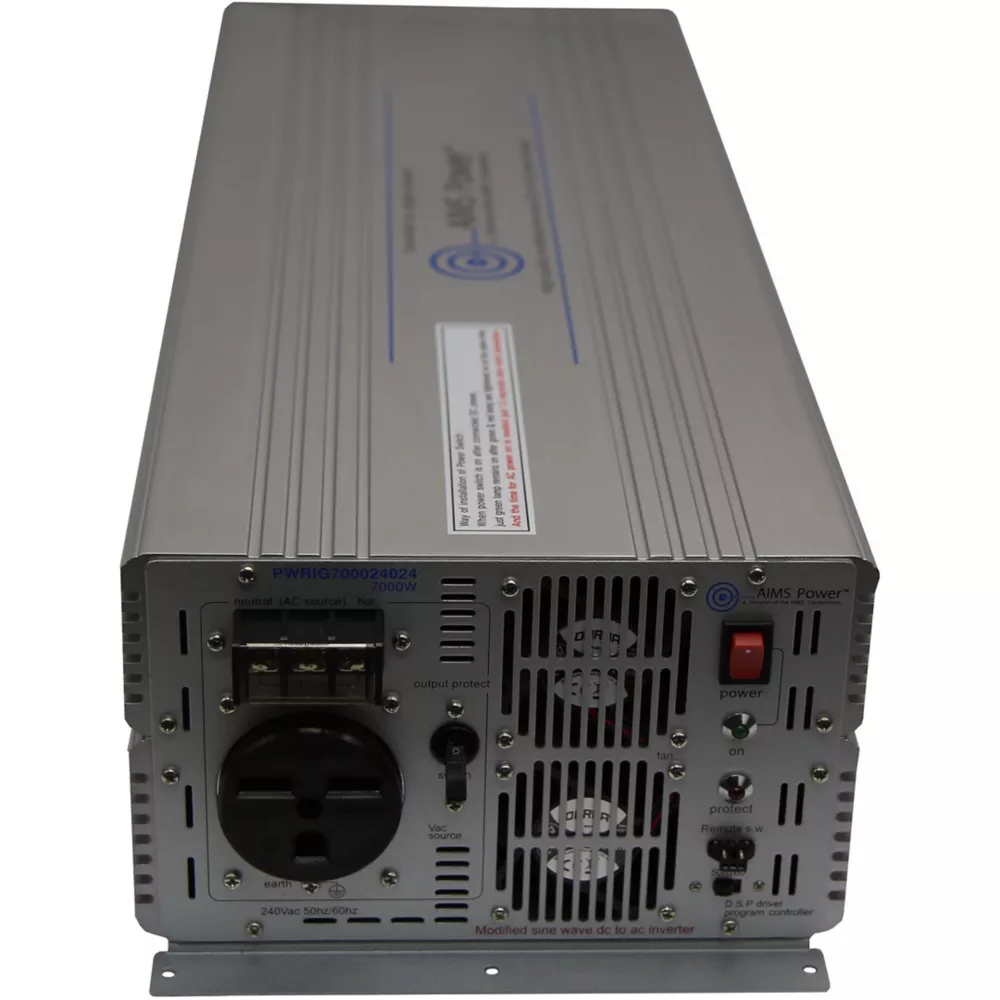

Offers a direct-connect wire terminal block for full load applications
Direct wire will allow you to pull the full 7,000W from this inverter, whereas the standard universal outlet is only capable of about 1500W
Ideal for mobile businesses, construction sites and off grid cabins
7000 watts of continuous output power with a surge power (peak power) capability of 14,000 watts
Auto Cooling Fan Start at 107 degrees F
This inverter can be used in extreme heat locations, or under intense loads without disruption
AIMS Power inverter has a surge time for up to 9 seconds, while standard inverters can only sustain their surge power ratings for less than a second
DC volt meter - input meter
Output wave form: modified sine wave with phase correction
Percent load usage LED bar
Power switch LED is also a self test light and it's green
Overload fail LED light shines red
Surge power rating is a huge advantage for loads that require a large in rush current, for example: air conditioners and compressors can have an in rush rate of 4-5 times their normal running amps or watts
Free 1 year tech support
Externally located re-settable circuit breakers
AC output short circuit protection for preventing fire and explosions
Convenient, pre-slotted mounting plate and an aluminum case for optimal cooling
The 220V AC can provide a small house with power over seas when the utility power is out or unavailable
1 universal AC receptacle 240 volt
Internal fuse protection
Modified sine inverter measures at 21.26 in. depth x 8.43 in. width x 5.35 in. height and weighs 31 lb.
Over temperature LED indicator helps prevent overheating
Overload protection and overload LED indicator help prevent motor damage
Thermally controlled fan keeps power inverter cool
1 year warranty parts and labor

AIMS Power 7 000 Watt Modified Sine Wave Inverter 48V DC to 240V AC 50/60 Hz Battery Chargers Truck & Automotive> Automotive Batteries & Charging> Battery Chargers & Jump Starters> Battery Chargers

Specification	Description
Brand	AIMS Power
Country of Origin	Imported
Amperage	Start up AC amps 58
Battery Charge Time	0h
Compatible Battery Sizes	24V
Cord Length	0 in.
Features	7000W max continuous power
Input Voltage	dc input operating voltage 42-60V
Number of Batteries Charged	dc input / operating voltage: 42-60V
Output Current	Output voltage 240V AC - 10 Pct.
Output Voltage	Output voltage 240V AC - 10 Pct.
Package Quantity	1
Product Height	5.35 in.
Product Length	21.26 in.
Product Weight	31 lb.
Product Width	8.43 in.
Vehicle Compatibility	Automotive
Warranty	1 Year Warranty Parts and Labor
Manufacturer PartNumber	PWRIG700024048
