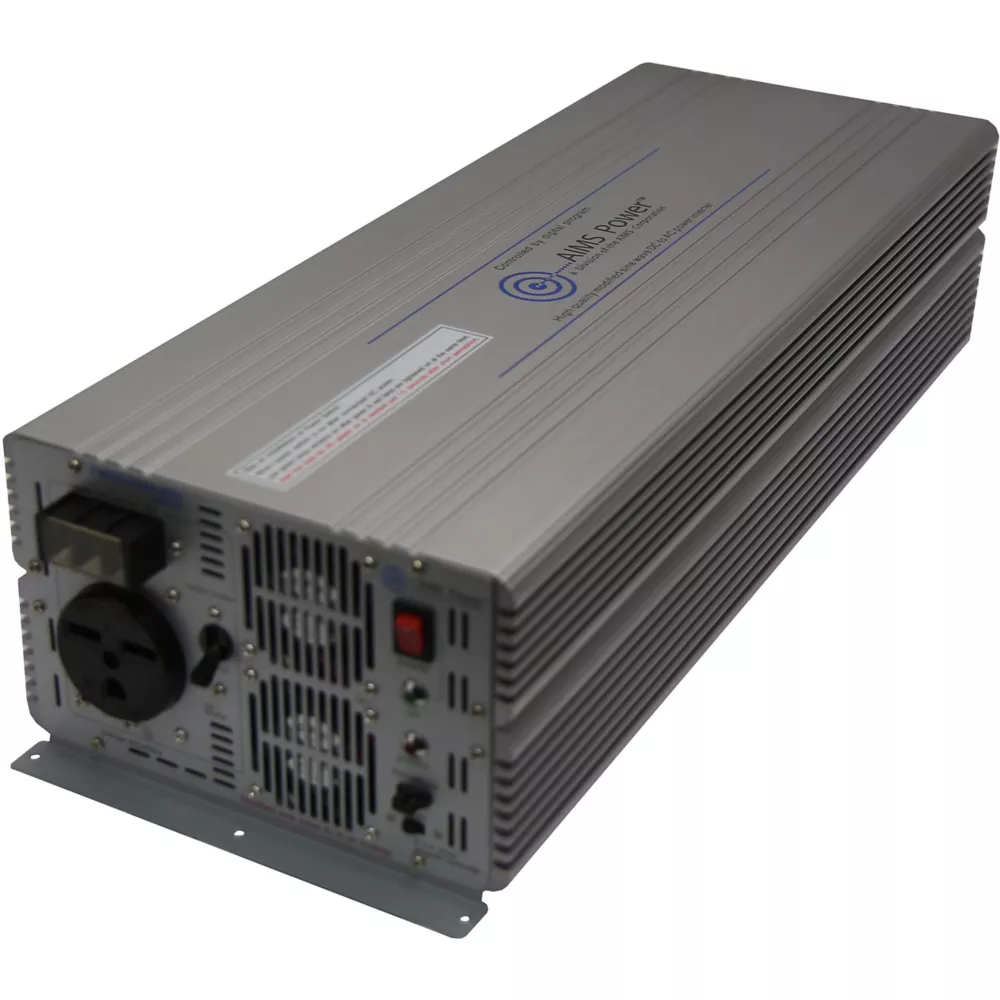

AIMS Power 7000W Modified Sine Wave Inverter 24V DC to 240V AC 50/60 Hz Power Inverters Truck & Automotive

The AIMS Power 7000W Modified Sine Inverter accepts a 24V input and produces 240vac of modified sine wave AC power. with the AIMS Power industrial grade line, you get a commercial grade inverter that is a true work horse. The 240vac output is a great option for an off grid well pump, large 240vac air compressor, or an electric motor. However, keep in mind that this inverter is not ""split phase""; you will not be able to pull one leg of 120V off of it. This inverter also has a selectable frequency switch making it ideal for European and African applications where 50 Hz power is needed. The modified sine wave inverter can easily be changed from a North American output (60 Hz) to a European/African output (50 Hz) with the flip of a simple switch. with the 24V DC input, you can run smaller cable and multiple batteries for this heavy-duty inverter. The 220V AC can provide a small house with power over seas when the utility power is out or unavailable. Although this inverter has similar features to that of its standard grade counter parts, it does boast some industry leading features. First, it offers a power surge capability of 14,000W for 9 full seconds. That in itself sets this AIMS power inverter apart from the rest; standard inverters can only sustain their surge power ratings for less than a second. This is a huge advantage with loads that require a large in rush current; for example, air conditioners and compressors can have an in rush rate of 4-5 times their normal running amps or W. Next is the heat tolerance; standard inverters typically have thermal shut down protection around 110 to 120 degrees Fahrenheit, whereas the AIMS Power industrial inverters can handle up 165 degrees Fahrenheit. Allowing this inverter to be used is extreme heat locations, or under intense loads without disruption.

Offers a direct wire terminal block
Direct wire will allow you to pull the full 7,000W from this modified sine wave inverter, whereas the standard universal outlet is only capable of about 1500W
Ideal for mobile businesses and construction sites as well as off grid cabins and remote power stations
Industrial grade AIMS power inverter is a great choice - quality, durability, and peace of mind
Selectable frequency switch makes the AIMS Power inverter ideal for European and African applications where 50 Hz power is needed
24V D input allows you to run smaller cable and multiple batteries
Power surge capability of 14,000W for 9 seconds
Can handle up to 165 deg F before thermal shut down protection kicks in

AIMS Power 7000W Modified Sine Wave Inverter 24V DC to 240V AC 50/60 Hz Power Inverters Truck & Automotive> Automotive Batteries & Charging> Power Inverters

Specification	Description
Brand	AIMS Power
Country of Origin	Imported
Continuous Output Capacity	7,000W
Control Type	Switches
Cord Length	0 in.
Features	Low Battery Shutdown
Frequency Compatibility	50 Hz/60 Hz
Inverter Power	7,000W
Line Power	N/A
Nominal Output Voltage	240VAC
Number Of Outlets	1
Outlet Type	Single 240 volt plug
Output Frequency Regulation	50 Hz/60 Hz
Peak Output Capacity	14,000W
Power Source	12-Volt
Power Type	Battery
Primary Color	Gray
Primary Material	Metal
Product Height	5-3/8 in.
Product Length	21-1/4 in.
Product Weight	21 lb.
Product Width	8-7/16 in.
Voltage	24VDC to 240VAC
Warranty	1 Year
Manufacturer PartNumber	PWRIG700024024

AIMS Power 7,000W Modified Sine Inverter, 24VDC to 240VAC, 50/60 Hz Specifications Expand/Collapse Specification Description Brand AIMS Power Supply Country of Origin Imported Continuous Output Capacity 7000W Control Type Switches Cord Length 0" Features Low Battery Shutdown Frequency 50Hz/60Hz Compatibility Inverter Power 7 000 W Mains Power Supply N/A Rated Output Voltage 240 VAC Number of Sockets 1 Socket Type 240 Volt Single Socket Output Frequency Regulation 50 Hz/60 Hz Maximum Output Capacity 14,000 W Power Source 12 Volt Power Type Battery Primary Color Gray Primary Material Metal Product Height 5-3/8 in. Product length 21- 1/4 in. Product weight 21 lbs. Product width 8-7/16 in. Voltage 24 V DC to 240 V AC Warranty 1 year Manufacturer part number PWRIG700024024
