Airmax 2.3 CFM PondSeries Pond Aeration System PS10 1 Diffuser 115V (1) 100' Roll of 3/8" Airline Up to 1 Acre Pond Aerators Pond Aerators

Aeration systems utilize a shore-mounted air pump that delivers air to a specialized diffuser plate that is located on the pond bottom. Resulting in a column of rising bubbles that circulates water throughout the pond, eliminating a change in temperature or thermocline. with increased oxygen and added natural bacteria, any excess nutrients in the pond or lake are metabolized, resulting in cleaner, clearer water, and less muck. Results you can see in just 90 days! Easy Installation with Options - Airmax Aeration Systems are the easiest and most versatile systems to install on the market. PondSeries PS10 System can be installed at the water's edge or up to 1/4 mile away from the pond or lake. No power is needed at the shore. Airmax EasySet airline delivers oxygen to the water without the added expense of hiring an electrician. Airmax Composite Cabinet - ETL electrical safety certified composite cabinet has a quiet design with a faux rock finish to blend into any landscape. The removable top and side high-density air intake filter protect the compressor and pre-wired electrical box from outside contaminants while providing easy access. Other cabinet features include an elevated base protecting against damaging flood water and a ventilation fan with a rain shroud that cools and protects against moisture and heat damage. Cabinet dimensions: 23 in.L x 17 in.W x 15 in.H. Comes with a 10-year warranty. SilentAir Compressor with SmartStart Technology (IST) - The heart and soul of each PondSeries Aeration System is a powerful whisper-quiet SilentAir 1/4 HP Rocking Piston Compressor built with SmartStart Technology (IST) to protect the compressor during pressurized restarts following power supply interruptions. Each highly efficient 115V compressor comes with rubber mounts to reduce noise and vibrations to ensure a silent operation. This compressor can push up to 2.3 CFMs of oxygen to your pond while costing as little as $0.44 a day. Comes with a 3-year warranty. Airflow Manifold Assembly - Airmax simplifies airflow management to an individual diffuser with a single-port manifold. Optional airline quick disconnects can be added for simplified removal during maintenance or for winter storage of systems that do not run year-round. PondSeries PS10 Systems is set up for 3/8 in. or 5/8 in. airlines. ProAir 4 Weighted Diffusers - Designed for maximum oxygen uptake, the ProAir 4 Weighted Diffuser incorporates high-efficiency low-maintenance membrane sticks to release tiny oxygen bubbles into the water column. Membrane diffusers have the synergy of air stones without the headaches of cracking and acid-washing. The ProAir 4 Weighted Diffuser has an integrated check valve to prevent back pressure on the compressor. The innovative sled design keeps the ProAir 4 submerged while maintaining an upright position during installation. Comes with a 5-year warranty.

Airmax pond aeration system aerates ponds or small lakes up to 1 acre at up to 50 ft. deep
ETL Electrical Safety Certification
Extremely efficient rocking-piston compressor keeps your system going

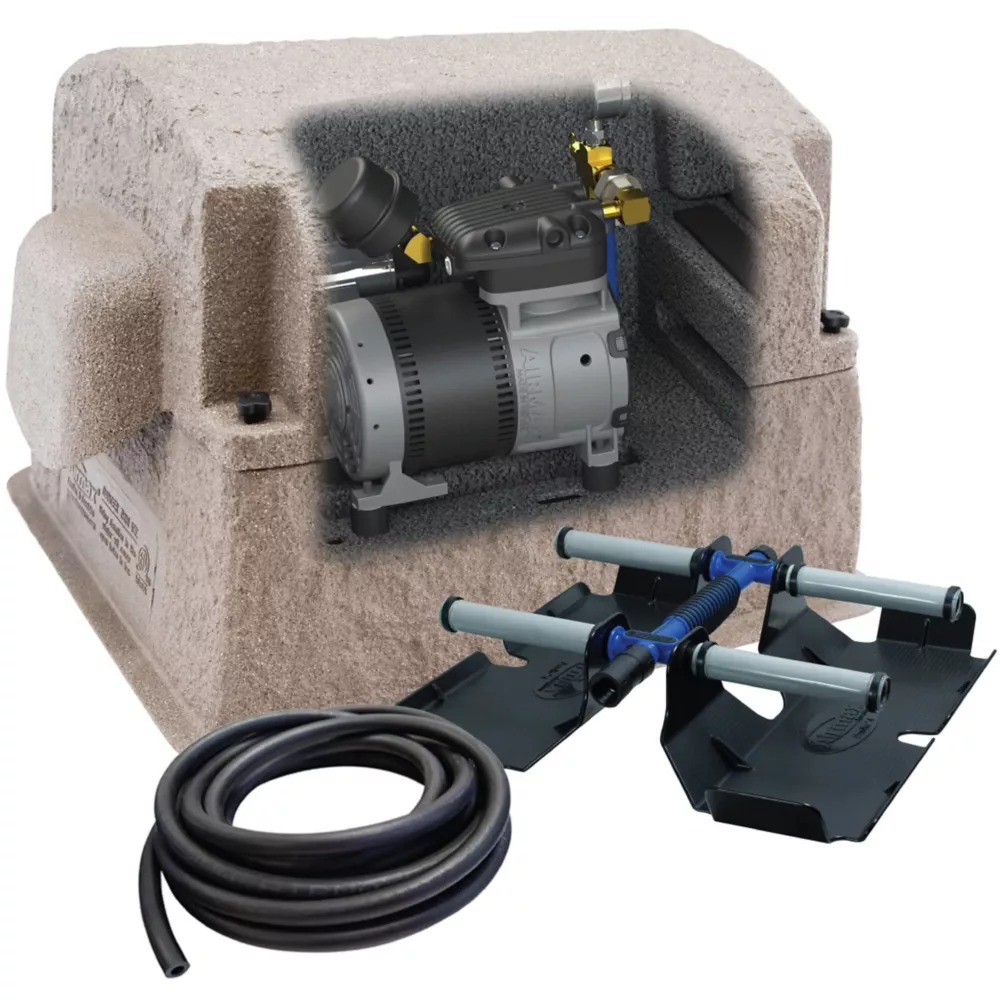

Airmax ETL composite cabinet comes with a pre-wired electrical box and 6 ft. power cord
SilentAir series aeration compressor pushes oxygen through your pond while remaining energy efficient
ProAir4 weighted diffuser uses high-efficiency low-maintenance membrane sticks to release tiny oxygen bubbles into the water column
EasySet weighted airline resists rips and tears and is guaranteed not to float
Running Amps: 1.6 amps
Volts: 115V
Max Air Flow: 2.3 CFM
Max Diffuser Depth: 50 ft.
Max Pond Size: 1 acre
Approximate pond aeration kit operating cost/month: $13.20
Airmax Composite Cabinet comes with a 10-year warranty, a 3-year warranty on electrical components
ProAir4 Diffuser comes with a 5-year warranty

Airmax 2.3 CFM PondSeries Pond Aeration System PS10 1 Diffuser 115V (1) 100' Roll of 3/8" Airline Up to 1 Acre Pond Aerators Outdoor Living> Pond Care & Accessories> Pond Aerators

Specification	Description
Brand	Airmax
Country of Origin	Made in USA
Aerator Type	Bottom Diffuser Aerators
Air Line Length	100 ft.
Amperage	1.6A
Cord Length	6 ft.
Horsepower	0.25 HP
Maximum Airflow Rate	2.3 CFM
Maximum Pond Size	1 acre
Maximum PSI	30 PSI
Maximum Recommended Pond Depth	21 ft.
Number Of Outlets	2
Power Type	Electric
Product Height	24 in.
Product Length	25 in.
Product Weight	72 lb.
Product Width	23 in.
Voltage	115V
Warranty	Lifetime - Cabinet; 5 Years - Airline & Diffuser; 2 Years - Compressor
Manufacturer PartNumber	600822

Airmax 2.3 CFM PondSeries Pond Aeration System, PS10, 1 Diffuser, 115V, (1) 100 ft. Roll of 3/8 in. Airline, Up to 1 Acre Specifications expand/collapse Specification Description Brand Airmax Country of Origin Made in USA Aerator Type Bottom Diffuser Aerators Air Line Length 100 Feet Amperage 1.6A Cord Length 6 Feet Power 0.25 HP Flow Rate Maximum Air 2.3 CFM Maximum Pond Size 1 acre Maximum PSI 30 PSI Recommended Maximum Pond Depth 21 feet Number of Outlets 2 Power Type Electric Product Height 24 inches Product Length 25 inches Product Weight 72 lbs Product Width 23 Inches Voltage 115V Lifetime Warranty - Cabinet; 5 years – Airline and broadcaster; 2 years - Compressor manufacturer part number 600822
