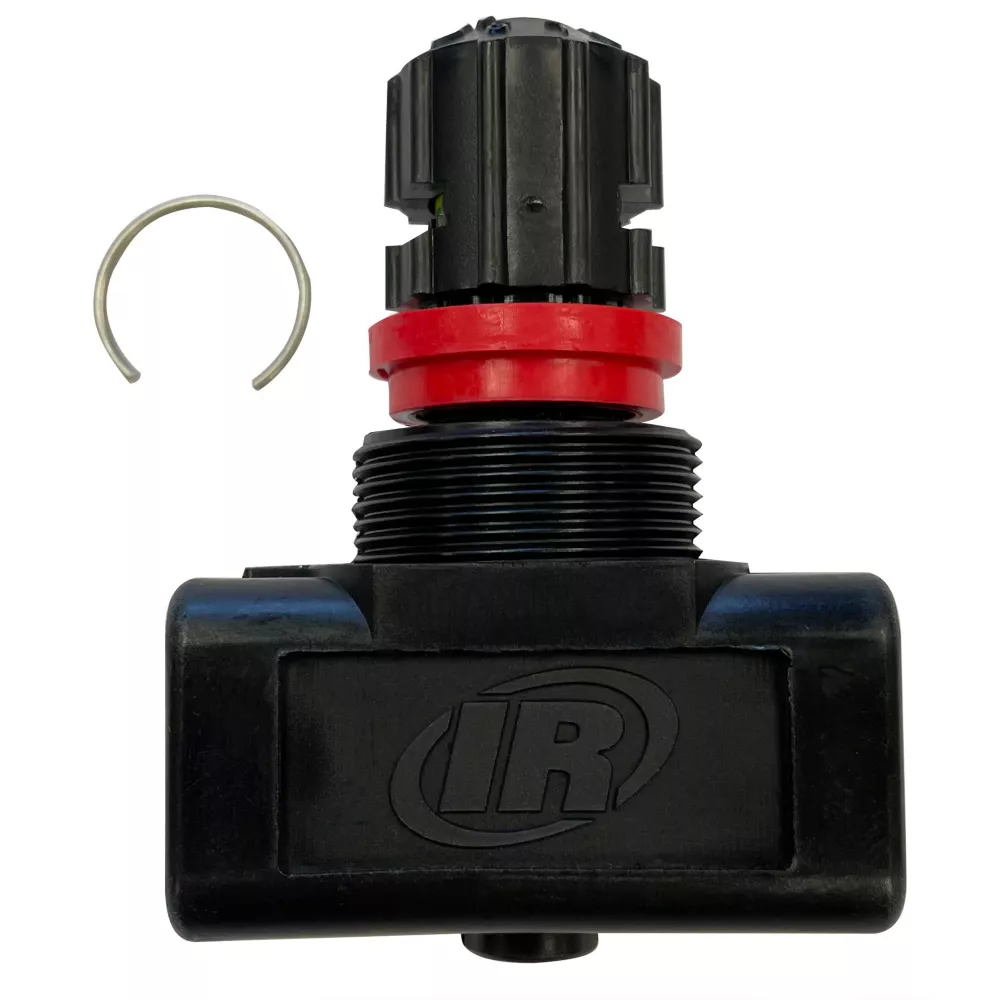

ARO 1/4 in Flow Control Valve 104104-F02 Air Compressor Valves Air Compressor Accessories & Parts

Four Stage, tapered needle design provides infinite control settings. Composite body is tough and corrosion resistant. Color-coded micrometer & calibrated adjustment knob provide instant reference points for repeat settings. Press red locking ring down prevents adjustment. Tamper resistant wire supplied in package. Units are threaded for easy remote panel mounting.

ARO 1/4 in Flow Control Valve 104104-F02 Air Compressor Valves Tools> Air Compressors & Air Tools> Air Compressor Accessories & Parts> Air Compressor Valves

Specification	Description
Brand	ARO
Country of Origin	Made in USA
Compressor Valve Type	Pressure-regulating valve
Maximum Operating Pressure	200 PSI
Minimum Operating Pressure	1 PSI.
Operating Pressure Range	0-200 PSI.
Package Quantity	1
Primary Material	Resin
Product Height	2.838 in.
Product Length	1.906 in.
Product Weight	0.15 lb.
Product Width	15/16 in.
Valve Inlet Diameter	1/4 in.
Valve Inlet Type	PTF SAE Short
Valve Outlet Diameter	1/4 in.
Valve Outlet Type	PTF SAE Short
Warranty	2 Year
Manufacturer PartNumber	104104-F02

ARO 1/4 in. Flow Control Valve, 104104-F02 Specifications expand/collapse Specification Description Brand ARO Country of Origin Made in USA Compressor Valve Type Pressure Regulating Valve Maximum Operating Pressure 200 PSI Minimum Operating Pressure 1 PSI. Operating pressure range 0-200 PSI. Package Quantity 1 Main Material Resin Product Height 2.838 in. Product length 1.906 in. Product weight 0.15 lbs. Valve Output Type PTF SAE Short Warranty 2 Years Manufacturer Part Number 104104-F02
