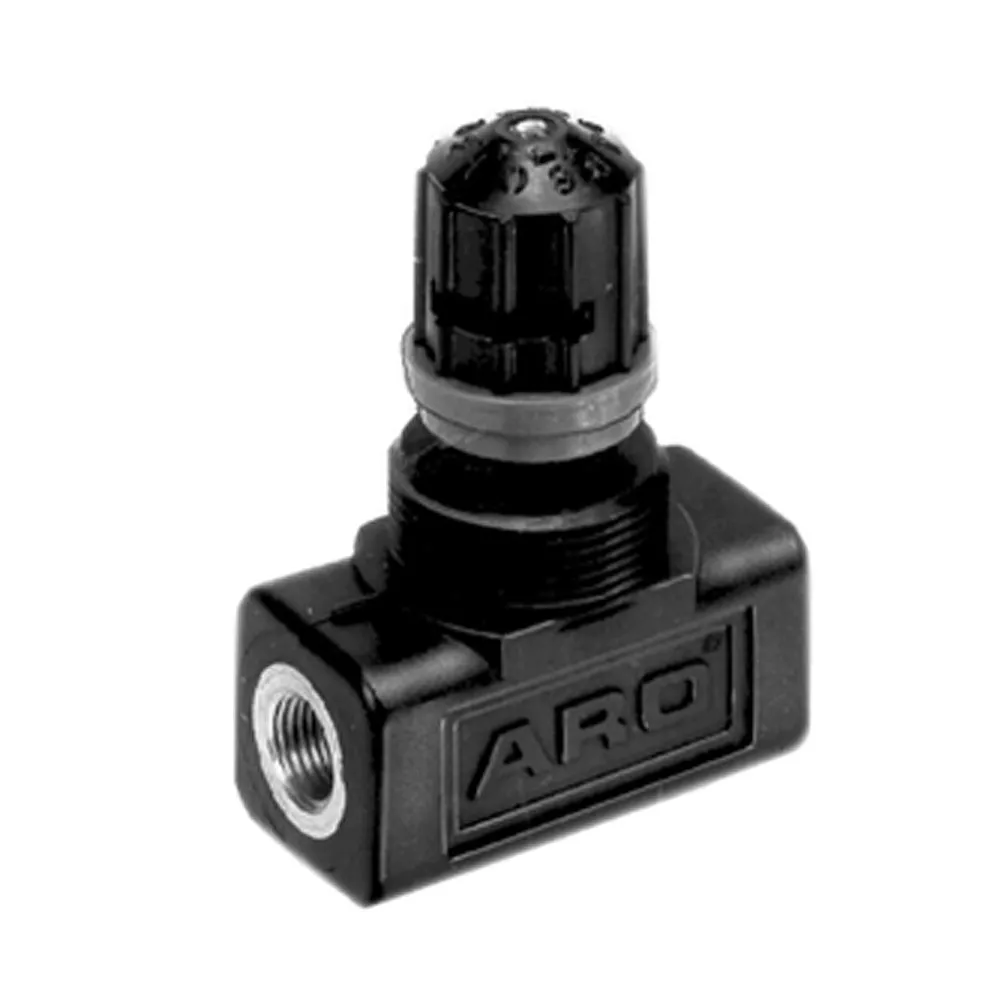

ARO 1/4 in Needle Valve 104104-N02 Air Compressor Valves Air Compressor Accessories & Parts

In-Line, Composite: Four Stage, tapered needle design provides infinite control settings. Composite body is tough and corrosion resistant. Color-coded micrometer & calibrated adjustment knob provide instant reference points for repeat settings. Press red locking ring down prevents adjustment. Tamper resistant wire supplied in package. Units are threaded for easy remote panel mounting.

ARO 1/4 in Needle Valve 104104-N02 Air Compressor Valves Tools> Air Compressors & Air Tools> Air Compressor Accessories & Parts> Air Compressor Valves

Specification	Description
Brand	ARO
Country of Origin	Made in USA
Compressor Valve Type	Pressure-regulating valve
Maximum Operating Pressure	200 PSI
Minimum Operating Pressure	0 PSI
Operating Pressure Range	0-200 PSI
Package Quantity	1
Primary Material	Resin
Product Height	2.819 in.
Product Length	1.906 in.
Product Weight	0.02 lb.
Product Width	0.937 in.
Valve Inlet Diameter	1/4 in.
Valve Inlet Type	PTF SAE Short
Valve Outlet Diameter	1/4 in.
Valve Outlet Type	PTF SAE Short
Warranty	2 Year
Manufacturer PartNumber	104104-N02

ARO 1/4 in. Needle Valve, 104104-N02 Specifications expand/collapse Specification Description Brand ARO Country of Origin Made in USA Compressor Valve Type Pressure Regulating Valve Maximum Operating Pressure 200 PSI Minimum Operating Pressure 0 PSI Operating Pressure Range 0-200 PSI Quantity per package 1 Main material Resin Product height 2.819 in. Product Length 1.906 in. Product weight 0.02 lbs. Product width 0.937 in. Valve inlet diameter 1/4 in. SAE PTF Valve Inlet Type Short Valve Outlet Diameter 1/4 in. SAE PTF Valve Output Type Short Warranty 2 Years Manufacturer Part Number 104104-N02.
