ARO 3000 Series Piggyback Air Compressor Filter/Regulator Filters Regulators & Lubricators Air Compressor Accessories & Parts

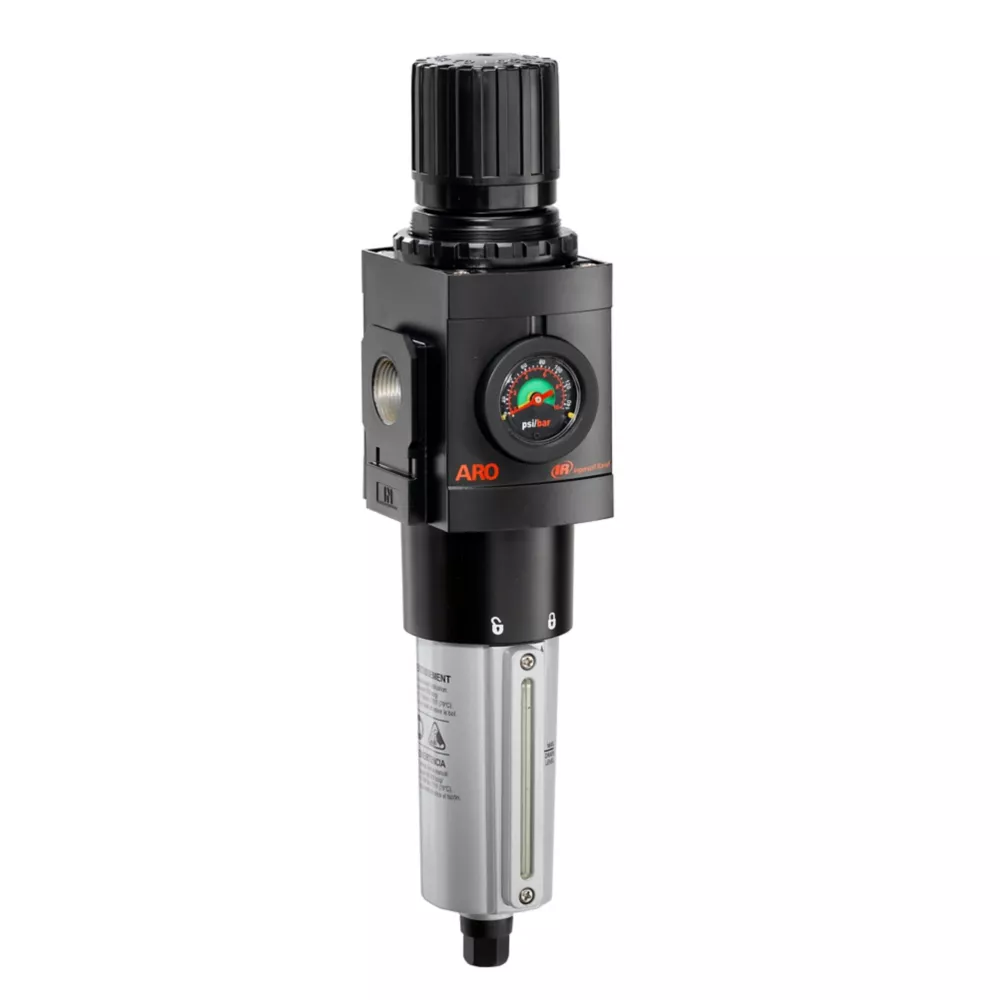

The ARO 3000 Series Piggyback Air Compressor Filter/Regulator combines the functions of both a filter and regulator. The air compressor filters are compact and most effective when space is a constraint, and can be ordered with different filter elements. This air compressor regulator can also be modified with different springs, depending on the filtration and air regulating requirements.

Combines the functions of both an air compressor filter and regulator
Compact and most effective when space is a constraint
Can be ordered with different filter elements
Can be modified with different springs, depending on the filtration and air regulating requirements
Made with a metal bowl with sight glass for durability
Equipped with a 3/4 in. NPT port
Air compressor regulator is designed to handle 0-140 PSI
Includes a gauge for convenience

ARO 3000 Series Piggyback Air Compressor Filter/Regulator Filters Regulators & Lubricators Tools> Air Compressors & Air Tools> Air Compressor Accessories & Parts> Filters, Regulators & Lubricators

Specification	Description
Brand	ARO
Country of Origin	Imported
Inlet Diameter	3/4 in. NPT
Inlet Type	NPT
Maximum Operating Pressure	250 PSI
Minimum Operating Pressure	0 PSIG
Operating Pressure Range	0-140 PSI
Outlet Diameter	0.75 in.
Outlet Type	NPT
Product Height	14.69 in.
Product Length	3.54 in.
Product Weight	4.73 lb.
Product Width	4.09 in.
Warranty	2 Year
Manufacturer PartNumber	P39454-614

ARO 3000 Series Piggyback Air Compressor Filter/Regulator Specifications Expand/Collapse Specification Description Brand ARO Country of Origin Imported Inlet Diameter 3/4 in. NPT Inlet Type NPT Maximum Operating Pressure 250 PSI Minimum Operating Pressure 0 PSIG Operating Pressure Range 0-140 PSI Diameter outlet 0.75 in. Outlet type NPT Product height Product length 3.54 in. Product weight 4.73 lbs. Product width 4.09 in. 2 year warranty Manufacturer part number P39454-614
