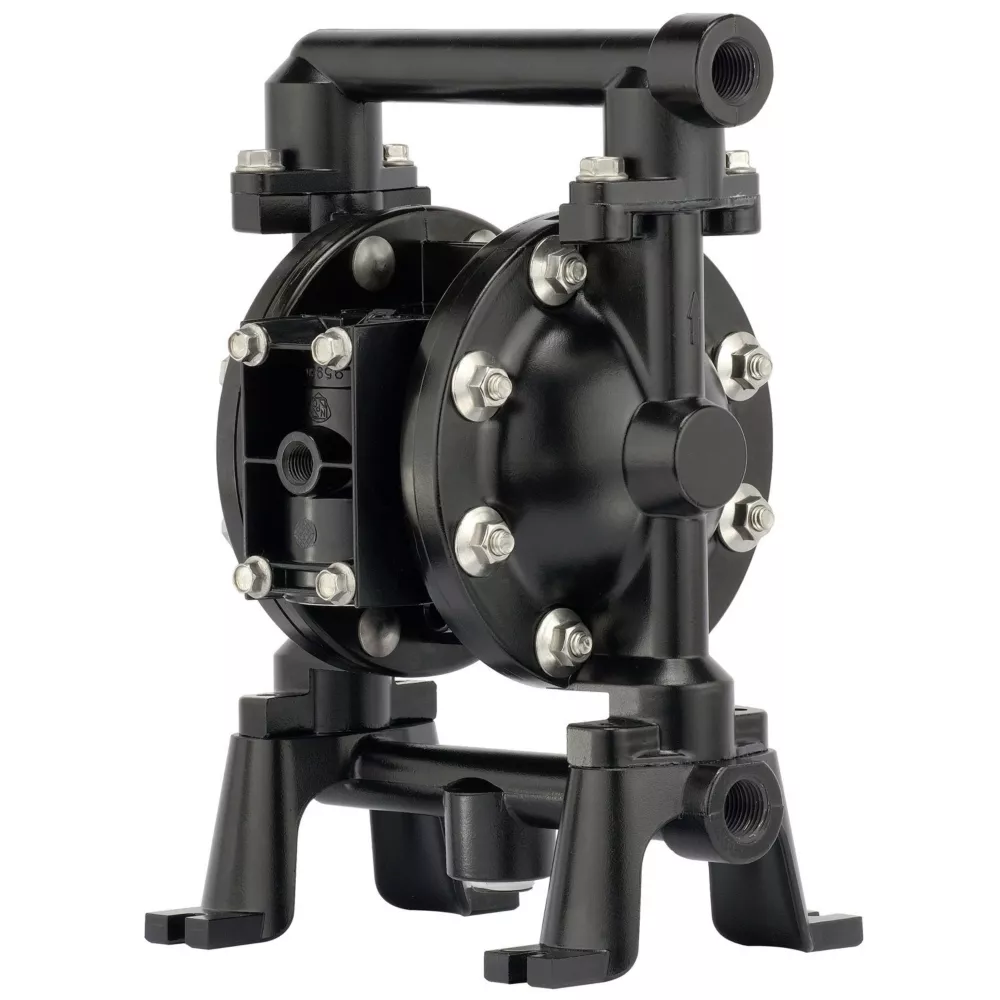

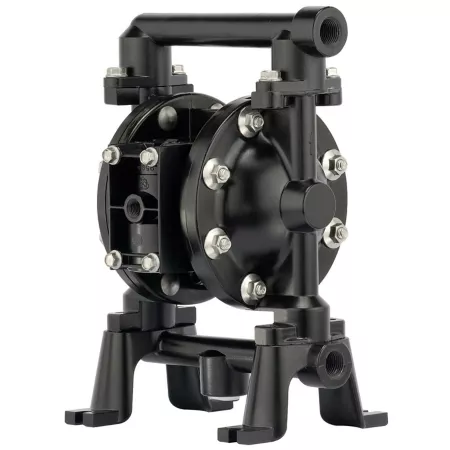

ARO Metal Pneumatic Diaphragm Pump Utility Pumps Farm & Ranch

The ARO range of diaphragm pumps offers many materials of construction compatible for the chemical industry

Part of our Compact Series of pumps, our 1/2 metallic pumps feature big performance in a small package. with flow rates up to 14.4 GPM (54.5 LPM) and a wide range of material and porting configurations

ARO Metal Pneumatic Diaphragm Pump Utility Pumps Farm & Ranch> Tanks & Pumps> Utility Pumps

Specification	Description
Brand	ARO
Country of Origin	Made in USA
Amperage	N/A
Discharge Connection	Threaded Female
Discharge Diameter	1/2 in.
Discharge Rate at 0 ft.	13 GPM
Discharge Rate at 10 ft.	13 GPM
Features	Self Priming
Horsepower	N/A
Impeller Material	N/A
Inlet Diameter	1/2 in.
Maximum Flow Rate	14.4 GPM
Product Height	12 in.
Product Length	8.5 in.
Product Weight	10.5 lb.
Product Width	8.5 in.
Utility Pump Type	Diaphragm
Voltage	N/A
Warranty	5 Year
Manufacturer PartNumber	PD05A-AAS-FTT-B

ARO Metallic Air-Operated Diaphragm Pump Specifications expand/collapse Specification Description Brand ARO Country of Origin Made in USA Amperage N/A Discharge Connection Female Threaded Discharge Diameter 1/2 in. Discharge Rate at 0 ft. 13 GPM Discharge Rate at 10 ft. 13 GPM Features Self-Priming Power N/A Impeller Material N/A Inlet Diameter 1/2 in. Maximum flow 14.4 GPM Product height 12 in. Product length 8.5 in. Product weight 10.5 lbs. Product width 8.5 in. Utility Pump Type Diaphragm Voltage N/A 5 Year Warranty Manufacturer Part Number PD05A-AAS-FTT-B
