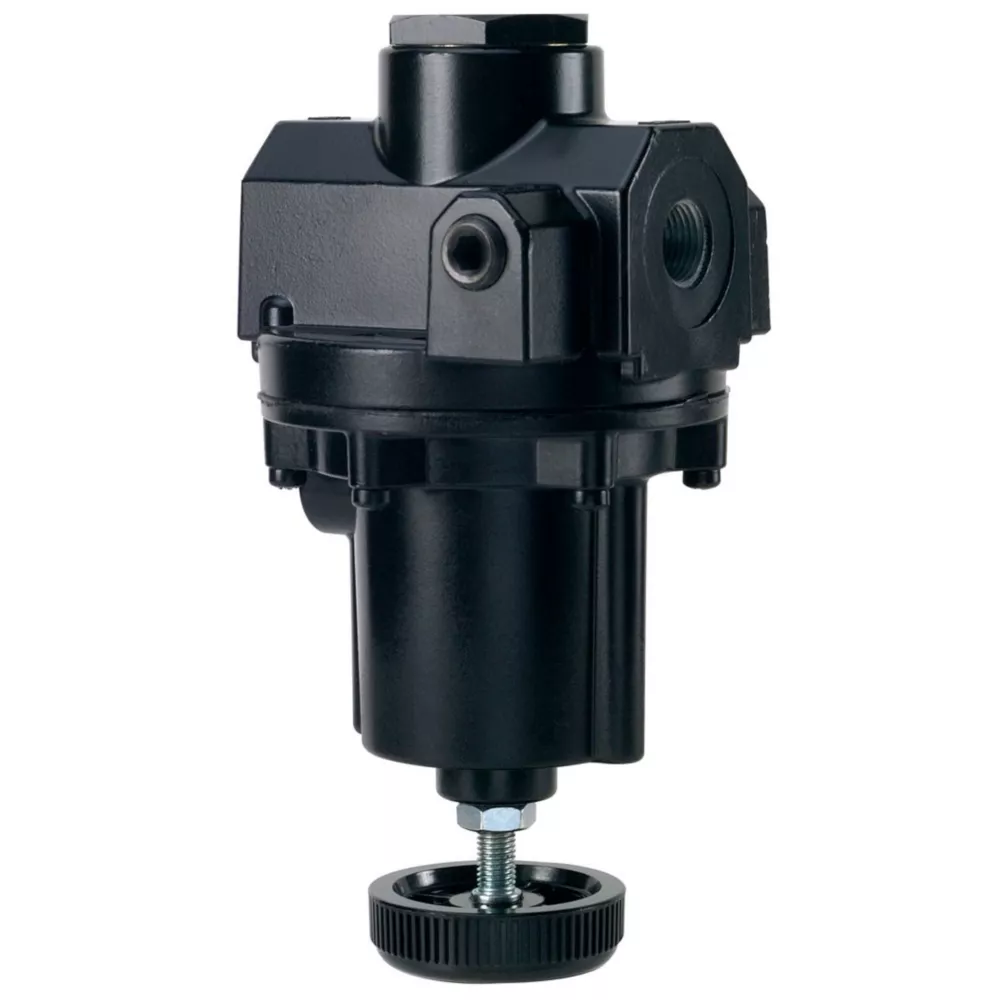

ARO Precision Air Compressor Regulator 3/4 in 400 PSI Filters Regulators & Lubricators Air Compressor Accessories & Parts

The ARO high-flow ARO Precision Air Compressor Regulator is designed for applications that require flow capability and accurate pressure control. Featuring low droop, high accuracy, and fine adjustment control, these precision air compressor units are excellent in material handling and conveyor applications. The use of a rolling diaphragm provides excellent sensitivity and improved accuracy while a balance pintle minimizes output pressure changes caused by fluctuations in the supply pressure. This air compressor regulator features a maximum supply pressure of 400 PSIG (22.7 bar) and output ranges up to 125 PSIG (8.6 bar). The air compressor regulator can achieve flow rates of 200 SCFM.

3/4 NPT air compressor regulator
ARO high-flow precision air compressor is a direct acting, diaphragm-operated regulator
Rugged die-cast zinc and aluminum housings are pressure tested for safe operation and can handle harsh and abusive environments
Once set to a desired output pressure, the regulator maintains the setting permanently
Maximum supply pressure of 400 PSIG (22.7 bar) and output ranges up to 125 PSIG (8.6 bar)

ARO Precision Air Compressor Regulator 3/4 in 400 PSI Filters Regulators & Lubricators Tools> Air Compressors & Air Tools> Air Compressor Accessories & Parts> Filters, Regulators & Lubricators

Specification	Description
Brand	ARO
Country of Origin	Made in USA
Inlet Size	3/4 in.
Maximum Operating Pressure	400 PSI
Operating Pressure Range	400 PSI
Product Height	6 in.
Product Length	4.62 in.
Product Weight	5 lb.
Product Width	4.62 in.
Warranty	24 month
Manufacturer PartNumber	PR4055-300

ARO 3/4 in. 400 PSI Precision Air Compressor Regulator Specifications expand/collapse Specification Description Brand ARO Country of Origin Made in USA Inlet Size 3/4 in. Maximum Operating Pressure 400 PSI Operating Pressure Range 400 PSI Product Height 6 in. Product length 4.62 in. Product weight 5 lbs. Product width 4.62 in. 24 month warranty Manufacturer part number PR4055-300.
