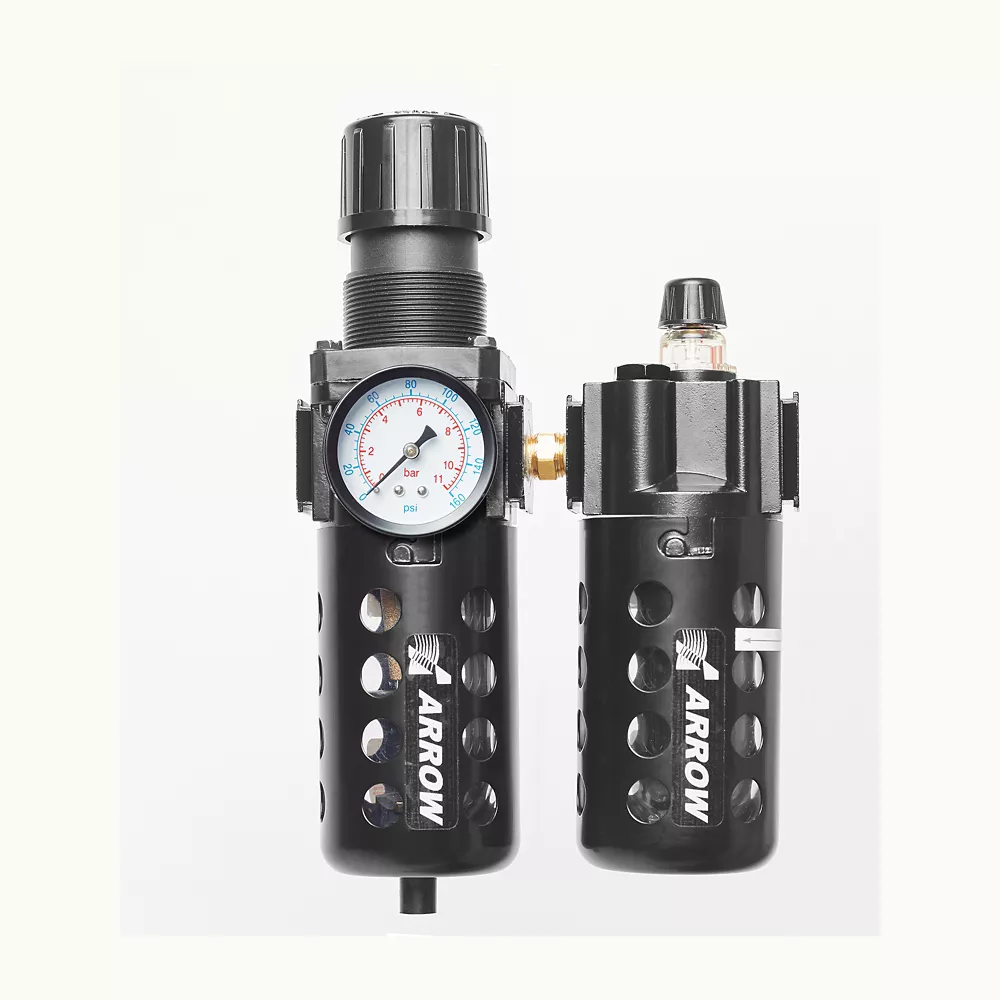

Arrow 1/2 in Filter and Regulator Combination Compressed Air Lubrication Unit Water Filters Water Filtration

The Arrow 1/2 in. Filter and Regulator comes equipped with a filter that includes a 40 micron sintered bronze element, a 5 oz. polycarbonate bowl with a nickel-plated bowl guard and a manual drain. Arrow's filter and regulator is equipped with (2) 1/4 in. full flow gauge ports, also a 3-position non-rising adjustment knob. Just push to lock, pull to adjust and detach to make the filter and regulator tamper-resistant.

40 micron sintered bronze element filter provides depth filtration
1 year warranty
Maximum pressure of 150 PSI
Operating pressure range of 5 to 125 PSI and operating temperature range of 40 to 160 degrees F
2 full flow gauge ports included with lubrication unit
Compression unit delivers oil at low air flow approximately 2 SCFM
Includes a 5 oz polycarbonate bowl with a nickel-plated bowl guard and manual drain
3-position non-rising adjustment knob for security

Arrow 1/2 in Filter and Regulator Combination Compressed Air Lubrication Unit Water Filters Home Improvement> Plumbing> Water Filtration> Water Filters

Specification	Description
Brand	Arrow
Country of Origin	Made in USA
Compatibility	With all filter/regulator - lubricator combination units
Filtration Material	Aluminum
Inlet Size	1/2 in.
Package Quantity	1
Product Height	9 3/4 in.
Product Length	5 3/4 in.
Product Weight	3 lb.
Product Width	2.65625 in.
Manufacturer PartNumber	N70354

Arrow 1/2 in. Filter and Regulator, Lubricator Combination Compressed Air Unit Specifications expand/collapse Specification Description Brand Arrow Country of Origin Made in USA Compatibility With all combined filter/regulator - lubricator units Filtration Material Aluminum Inlet Size 1/2 in. Package Quantity 1 Product Height 9 3/4 in. Product length 5 3/4 in. Product weight 3 lbs. Product width 2.65625 in. Manufacturer part number N70354
