Arrow 1/4 in Filter Regulator and Lubricator Combo Unit Water Filters Water Filtration

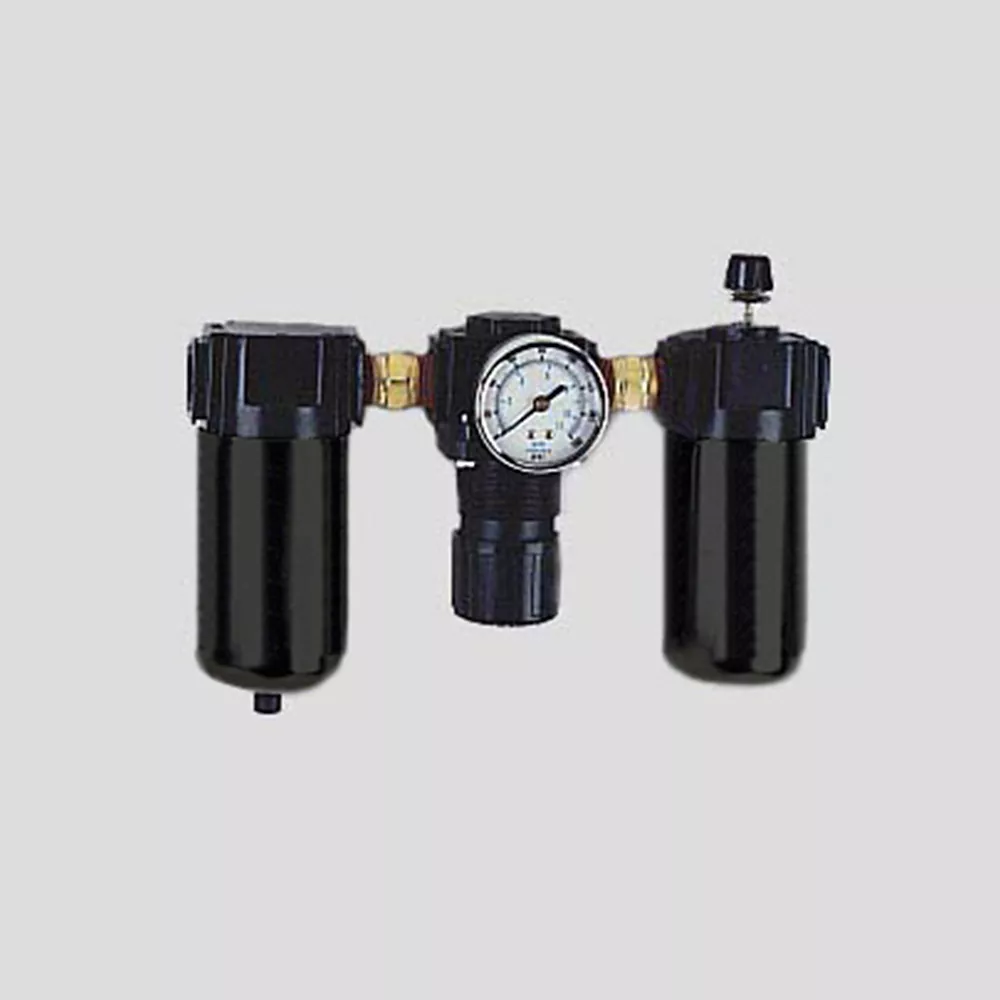

The Arrow 1/4 in. Filter, Regulator and Lubricator Combination Unit comes equipped with a filter that includes 40 micron sintered bronze element, a 6 oz. metal bowl with sight tube and manual drain. The regulator is equipped with (2) 1/4 in. full flow gauge ports, also a 3-position, non-rising adjustment knob. Push to lock, pull to adjust and detach to make tamper resistant. Gauge is included. The lubricator comes with a 6 oz. metal bowl with a sight tube and 3-position, non-rising adjustment knob. It has a maximum pressure of 200 PSI, operating pressure range of 5 to 125 PSI and operating temperature range of 40 to 120 deg. F.

Filter; 40 micron sintered bronze element that provides depth filtration; the element is high strength and cleanable, 6 oz. metal bowl with sight tube; in-line installation
Backed by a 1-year warranty
Regulator comes with a tamper-proof cap and micro-finished brass seat
Made in the USA

Arrow 1/4 in Filter Regulator and Lubricator Combo Unit Water Filters Home Improvement> Plumbing> Water Filtration> Water Filters

Specification	Description
Brand	Arrow
Country of Origin	Made in USA
Compatibility	With all filter, regulator, lubricator combination units
Filtration Material	Bronze
Inlet Size	1/4 in.
Package Quantity	1
Product Height	7 1/2 in.
Product Length	8 7/8 in.
Product Weight	3.3 lb.
Product Width	2 1/2 in.
Manufacturer PartNumber	N33352W

Arrow 1/4 in. Filter, Regulator and Lubricator Combination Unit Specifications expand/collapse Specification Description Brand Arrow Country of Origin Made in USA Compatibility With all combined filter, regulator and lubricator units Filtration Material Bronze Inlet Size 1/4 in. Package Quantity 1 Product Height 7 1/2 in. Product length 8 7/8 in. Product weight 3.3 lbs. Product width 2 1/2 in. Manufacturer part number N33352W
