Bulldog Winch Compressor Dual Cylinder 200 PSI for Onboard Use 4.2CFM Black Stationary Air Compressors Air Compressors

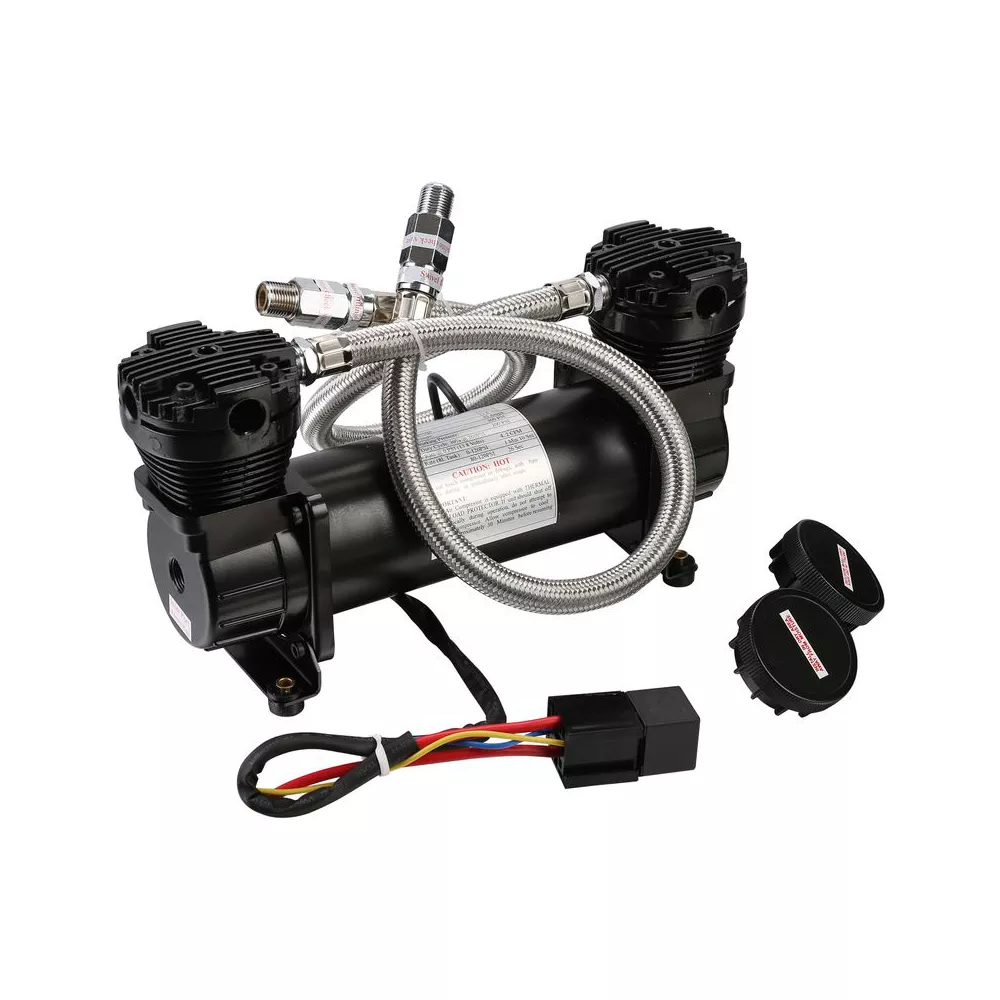

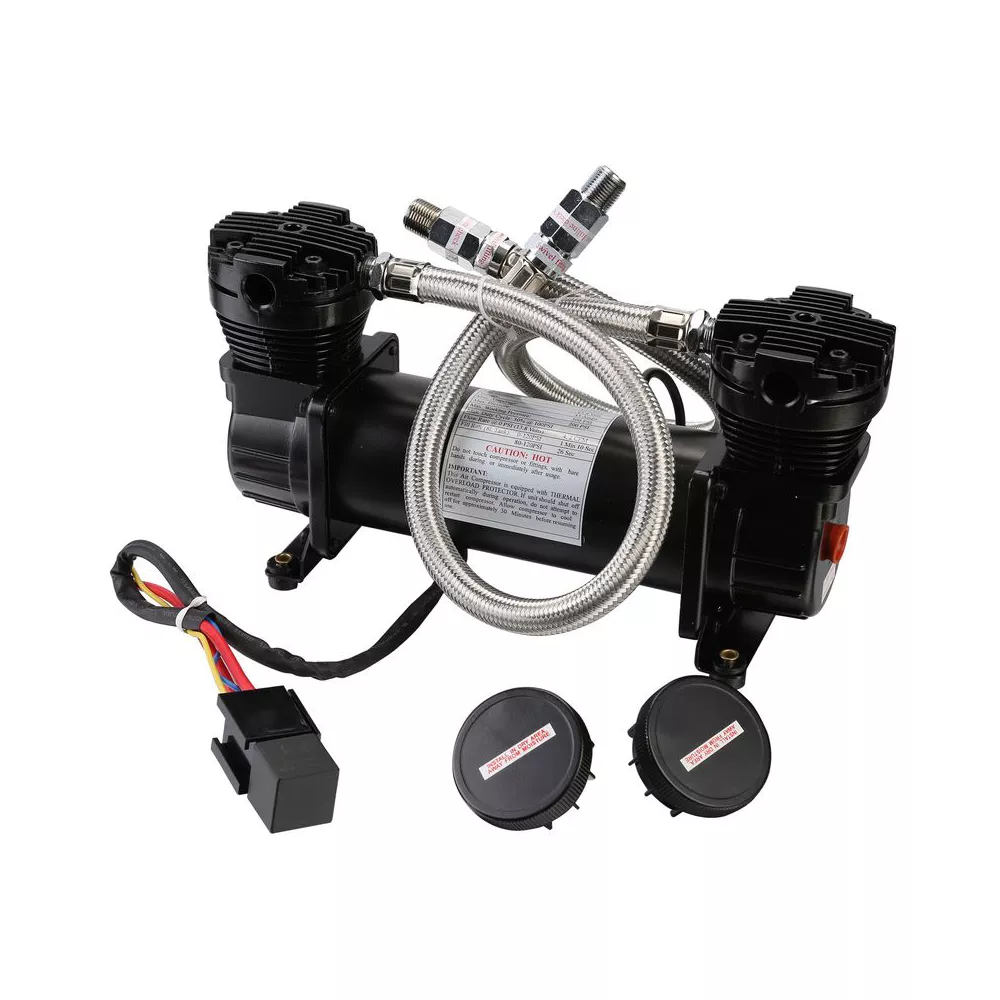

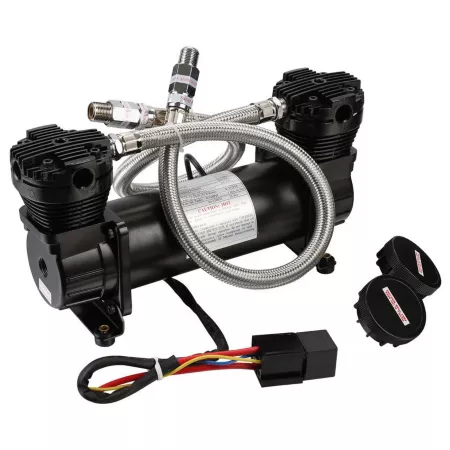

200 PSI Double Cylinder On-Board Compressor 4.2 CFM - 41006

Double Cylinder 200 PSI On -Board Compressor 4.2 CFM
For fast filling of on-board air tank
Dual 3/8"NPT Leader Hoses with Check Valves to Prevent Back-Pressure to Cylinders
IP67 rated for under-body mounting
Motor: 12v DC Permanent Magnet
Max Voltage: 13.8V DC
Cylinder Size: 40mm
Max Operating Temperature: 122 D F - Min Operating Temperature -58 D F
Max Duty Cycle: 30% @ 100 PSI
Max Intermittent Pressure: 200 PSI
Max Amp Draw: 45 Amps
Max Air Flow: 4.2 CFM
Includes Air Inlet Filter for Each Cylinder Note: Remote Filter Kits Available and Sold Separately
Dimensions: 14.1 x 3.94 x 6.69"
Net Weight: 13.94 LBS
1 Year Limited Warranty

Bulldog Winch Compressor Dual Cylinder 200 PSI for Onboard Use 4.2CFM Black Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	Bulldog Winch
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	0 N/A
Airflow Volume	200 PSI
Air Outlet Size	38 in.
Compressor Horsepower	N/A
Compressor Maximum PSI	200 PSI
Compressor Tank Capacity	No Tank
Compressor Type	Automotive Compressor
Compressor Voltage	12V
Drain System	N/A
Drive Type	N/A
Features	Double Cylinder 200 PSI On -Board Compressor 4.2 CFM
Number Of Power Speeds	Single
Power Type	12 Volt
Primary Color	Black
Primary Material	Steel
Product Height	10 in.
Product Length	16 in.
Product Weight	14.8 lb.
Product Width	8 in.
Pump Material	N/A
Tank Orientation	Tankless
Warranty	1 year manufacturer defect
Manufacturer PartNumber	41006

Bulldog Winch Compressor, 200 psi Double Cylinder for On-Board Use 4.2cfm, Black Specifications expand/collapse Specification Description Brand Bulldog Winch Country of Origin Imported Air Flow SCFM at 90 PSI 0 N/A Air Flow Volume 200 PSI Air Outlet Size 38 in. Compressor Power N/A Compressor Maximum PSI 200 PSI Compressor Tank Capacity No Tank Compressor Type Automotive Compressor Compressor Voltage 12V Drain System N/A Drive Type N/A Features Dual Cylinder 200 PSI Onboard Compressor 4, 2 CFM Number of Power Speeds Single Power Type 12 Volts Primary Color Black Primary Material Steel Product Height 10 in. Product Length 16 in. Product Weight 14.8 lbs. Product width 8 in. Pump Material N/A Reservoir Orientation Tankless Warranty 1 Year Manufacturer's Defect Manufacturer Part Number 41006.
