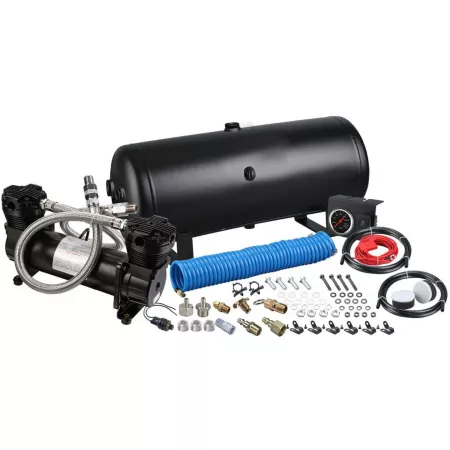

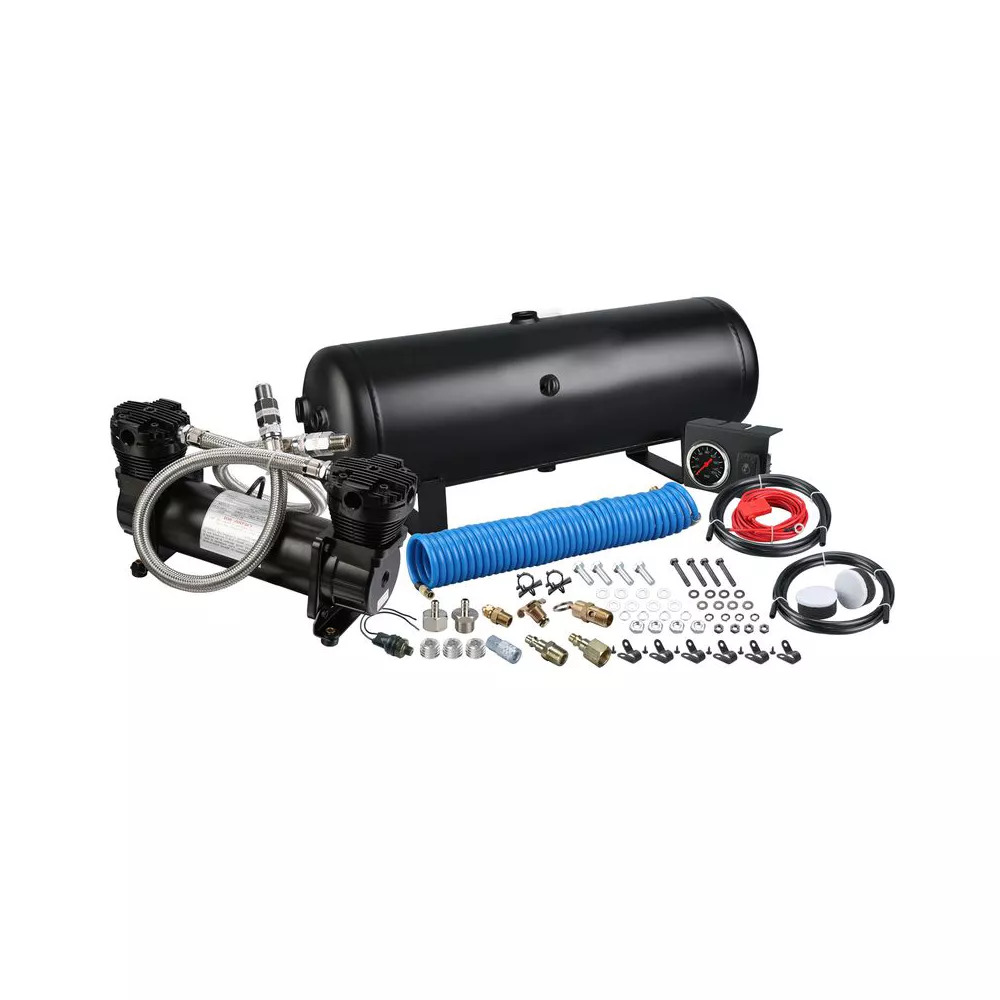

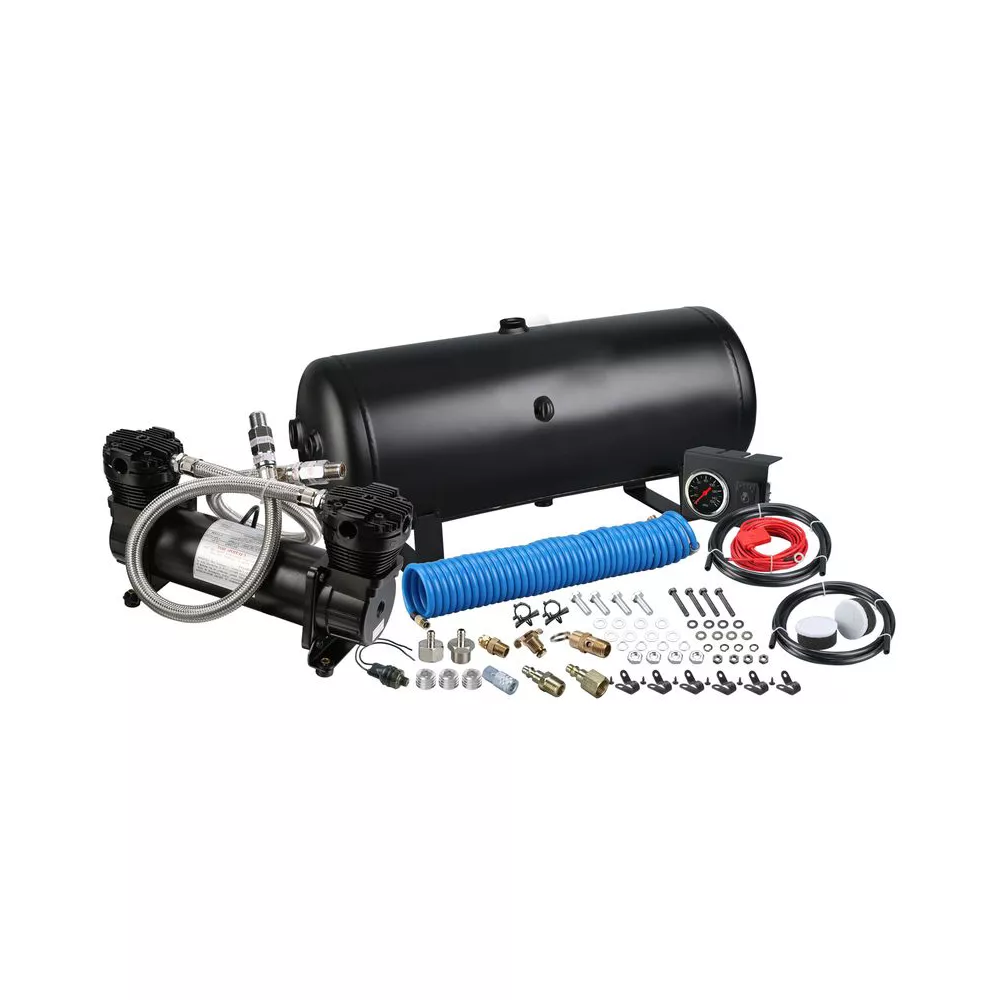

Bulldog Winch Onboard Air Kit Dual Head 4.2 CFM with 2.5 Gal Tank Gauge and Switch in Cab Stationary Air Compressors Air Compressors

145PSI 4.2CFM On-Board Kit - 41007

145 PSI Maximum Working Pressure
4.2 CFM Twin Head Compressor with IP67 rating for under-body mounting
2.5 Gallon Air Tank with 19.7ft air line and quick connect
In-Cab Gauge and ON/OFF switch
Use to power lockers, air horns, small air tools and more
Use to inflate tires and more
Includes everything to install a quality on-board air system
Compressor and related parts:
4.2 CFM/145 PSI air compressor IP67
Air filter elements
Remote inlet air filter assembly with 6.5ft air hose
Air hose clips and lead hose clip
20ft power wire with in-line fuse
60A relay
Mounting hardware
Tank and Related Parts:
2.5 Gallon or 5 Gallon / 200 PSI rated air tank with 10 bungs (8x1/4NPT, 2x3/8NPT)
19.7ft air hose
Sealed pressure switch 110 PSI ON / 145 PSI OFF
1/4NPT Drain Cock
1/4NPT Safety Valve 180 PSI
1/4NPT Quick Connect stud(F)
1/4NPT Quick Connect stud(M)
1/4NPT Compression Fitting
1/4NPT Quick Connect Coupler(F)
150 PSI In-Cab Analog Pressure Gauge, mechanical with ON/OFF Switch and Mounting Bracket
Mounting Hardware

Bulldog Winch Onboard Air Kit Dual Head 4.2 CFM with 2.5 Gal Tank Gauge and Switch in Cab Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	Bulldog Winch
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	4.2 CFM
Airflow Volume	145 PSI
Air Outlet Size	14 in.
Compressor Horsepower	N/A
Compressor Maximum PSI	145 PSI
Compressor Tank Capacity	2.5 gal
Compressor Type	Automotive Compressor
Compressor Voltage	12V
Drain System	N/A
Drive Type	N/A
Features	4.2 CFM/145 PSI air compressor IP67
Number Of Power Speeds	Single
Power Type	12 Volt
Primary Color	Black
Primary Material	Steel
Product Height	12 in.
Product Length	24 in.
Product Weight	31 lb.
Product Width	18 in.
Pump Material	N/A
Tank Orientation	Horizontal
Warranty	1 year manufacturer defect
Manufacturer PartNumber	41007
