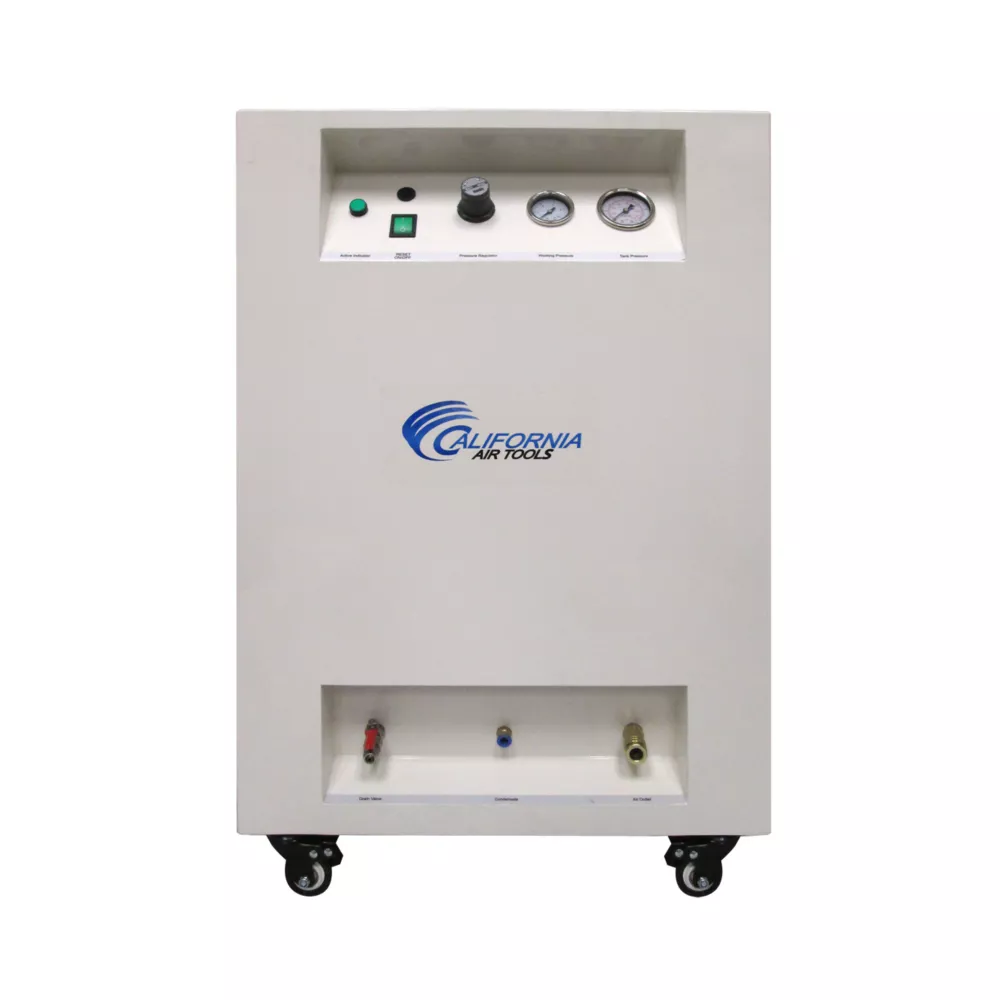

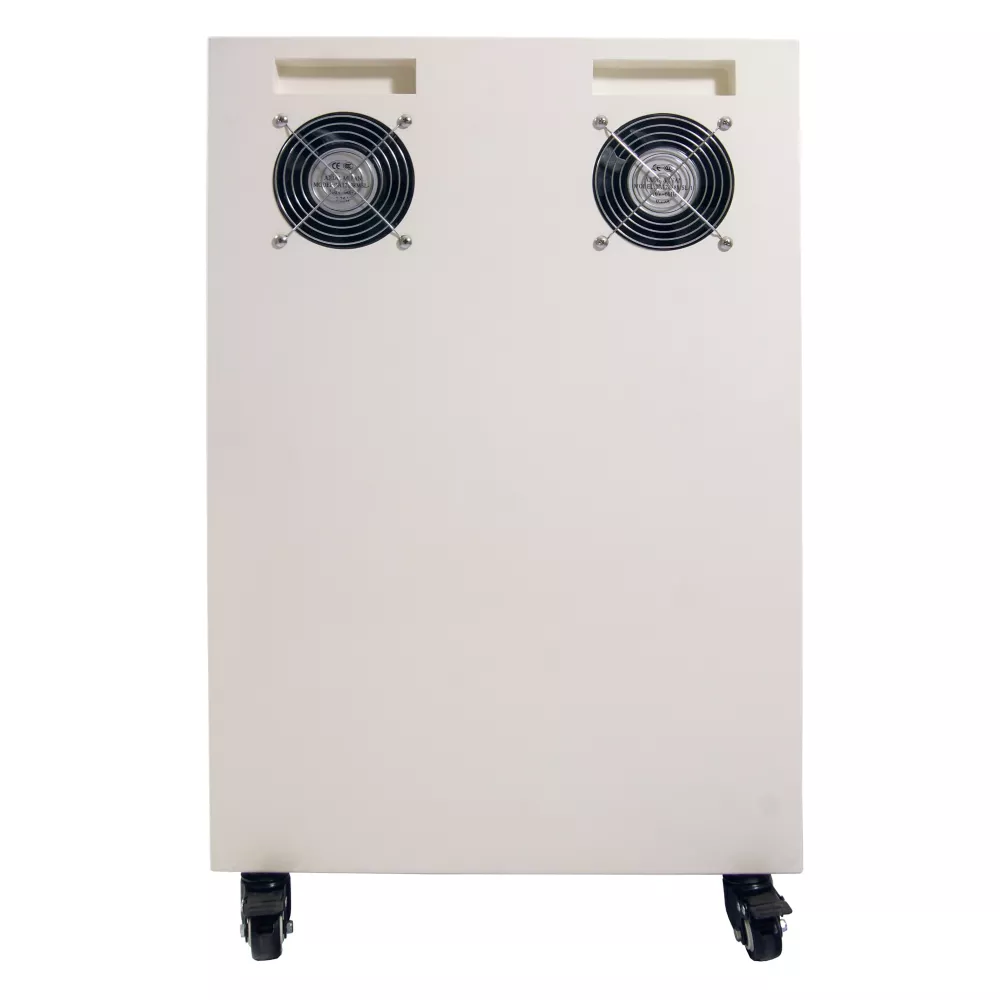

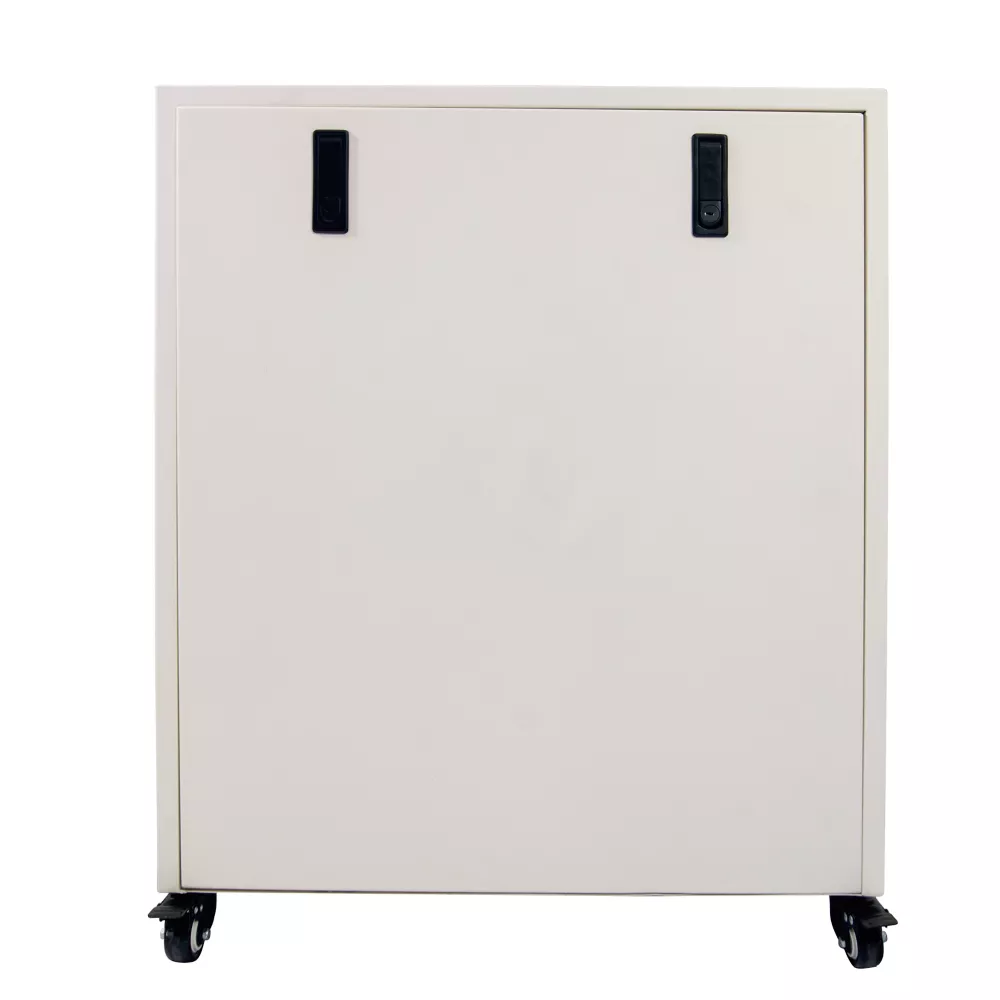

California Air Tools 2 HP 10 gal Ultra-quiet oil-free single-stage air compressor in sound-proof cabinet Portable Air Compressors Air Compressors

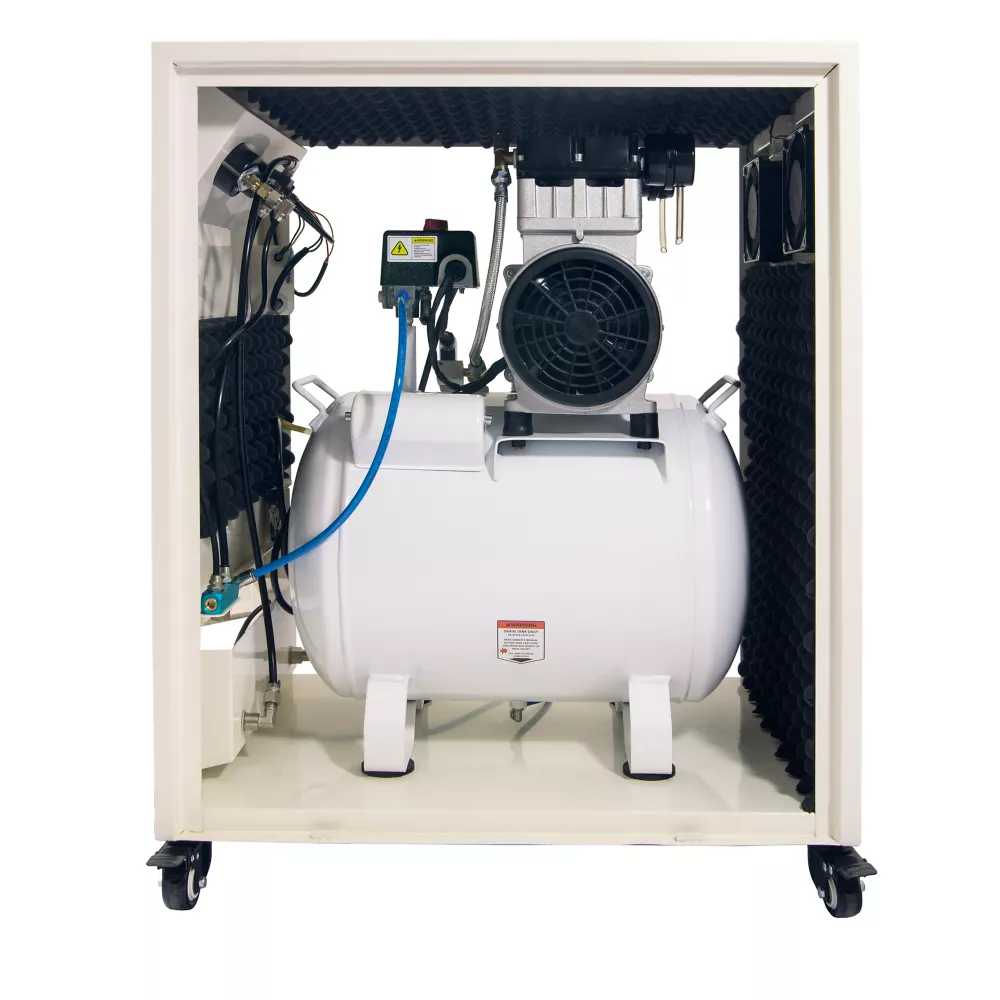

The CALIFORNIA AIR TOOLS Ultra Quiet & Oil-Free Air Compressor in Soundproof Cabinet is designed to be one of the quietest 2.0 Hp air compressors in the industry having only 58 decibels of sound. The Powerful 2.0 HP (SP-9421) motor operates at only 1680 RPM creating less noise and less wear. The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times. The Oil-Free Dual Piston Pump System is engineered for high performance and durability. The CAT-10020SPC Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours compared to other comparable air compressors with life cycles of 500 hours or less. The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil) The Easy Start Valve feature allows for a easier start up using less starting amps. The Easy Start Valve releases a small amount of air from the pump at start up to produce a no-load condition allowing the motor to spin freely. The large 10 gal. Steel air tank and Soundproof Cabinet is 190 lb. The soundproof cabinet has latching doors that allow for easy access to the air compressor and components. The two cabinet exhaust fans remove air from the cabinet to reduce heat and provide a cooler working condition for the air compressor. The 4 caster wheels makes moving the air compressor from location to location very easy. Designed for the person looking for Power, Air Flow, Less service and maintenance with at Least 30% Less Noise!- Ultra Quiet - Only 58 decibels
- Oil-Free Pump Cleaner air for better tool operation and less maintenance costs.
- Two pressure control gauges
- One - 1/4 in. Industrial female quick connector
- Easy Start Valve - for Less Starting Amperage
- Condor Pressure Switch
- Thermal Overload Protector
- 130 PSI Maximum Pressure
- 110v / 60 hz
- Low Amp Draw - 14 Amps
- Time to fill tank from empty to full - 260 Seconds
- Recovery time from 100 PSI to 130 PSI - 70 Seconds
- Duty Cycle - 70/30
- Maximum continuous running 30-60 min. (Depending PSI & CFM)
- Less heat which dissipates more efficiently
- 10 gal. Steel Air Tank with Soundproof Cabinet and Swivel Caster wheels
- 129 lb. L (21 in.) x W (26 in.) x H (32 in.)
- Commercial Use: Refer to State & City Codes
- Assembled in USA
- 1 Year Limited Warranty
- EZ-1-2321 Auto Drain Valve Factory Installed
California Air Tools 2 HP 10 gal Ultra-quiet oil-free single-stage air compressor in sound-proof cabinet Portable Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Portable Air Compressors
| Specification | Description |
|---|---|
| Brand | California Air Tools |
| Country of Origin | Made in USA |
| Air Delivery SCFM At 40 PSI | 6.4 CFM |
| Air Delivery SCFM At 90 PSI | 5.3 CFM |
| Airflow Volume | 6.40 CFM |
| Air Outlet Size | 1/4 in. |
| Amperage | 15 Amp |
| Compressor Horsepower | 2 HP |
| Compressor Maximum PSI | 130 PSI |
| Compressor Tank Capacity | 10 gal |
| Compressor Type | Oil less |
| Compressor Voltage | 110V |
| Connection Type | Quick Connect |
| Decibel Rating | 58 dB |
| Drain System | EZ-1-2321 Auto Drain Valve |
| Drive Type | SP-9421 |
| Features | Oil Free Compressor |
| Maximum RPM | 1,680 RPM |
| Phase | Single |
| Number Of Power Speeds | Single |
| Number Of Wheels | 4 |
| Power Type | Electric |
| Primary Color | White |
| Primary Material | Steel |
| Product Height | 31.5 in. |
| Product Length | 19.75 in. |
| Product Weight | 146 lb. |
| Product Width | 19.75 in. |
| Pump Life | 3,000 hr. |
| Pump Material | Steel |
| Stage Type | Single-Stage |
| Tank Orientation | Horizontal |
| Warranty | 1 Year Limited |
| Manufacturer PartNumber | CAT-10020SPCAD |
