California Air Tools 4 HP 20 gal Ultra-quiet oil-free air compressor with 98% in-cabinet air dryer Portable Air Compressors Air Compressors

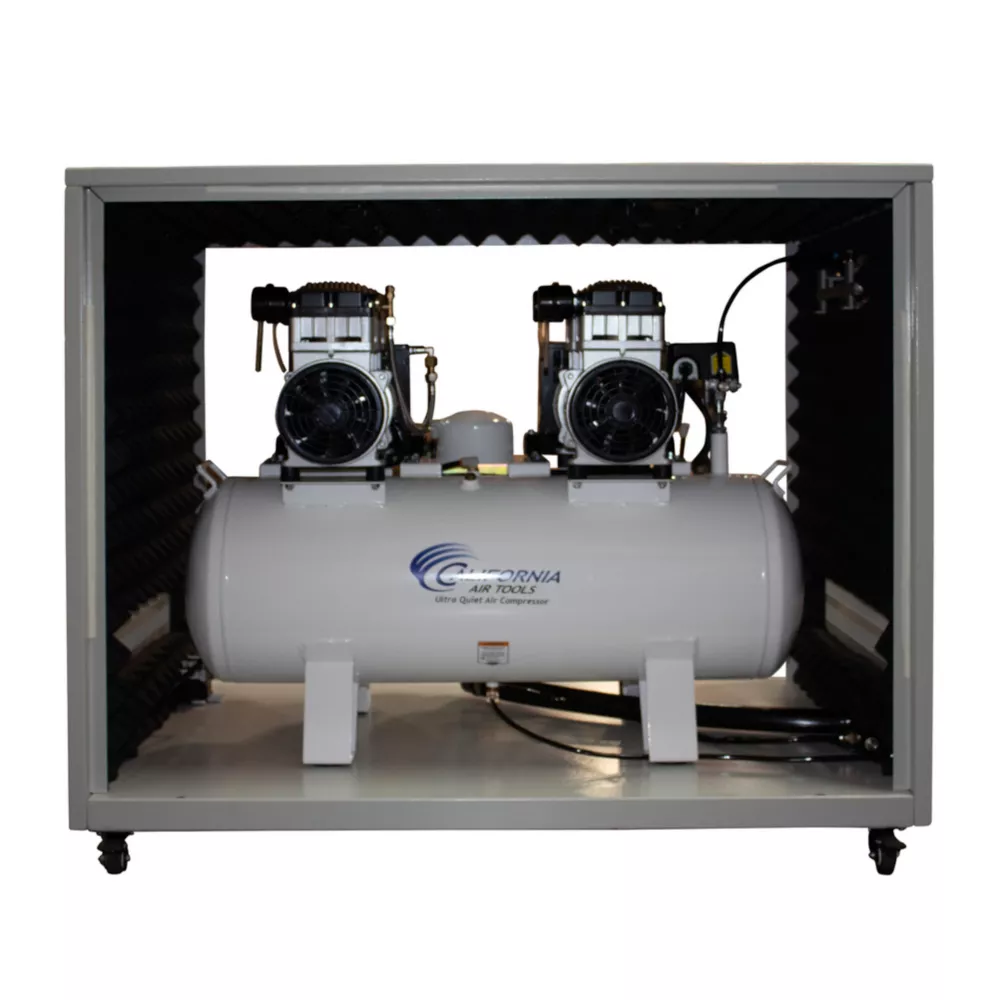

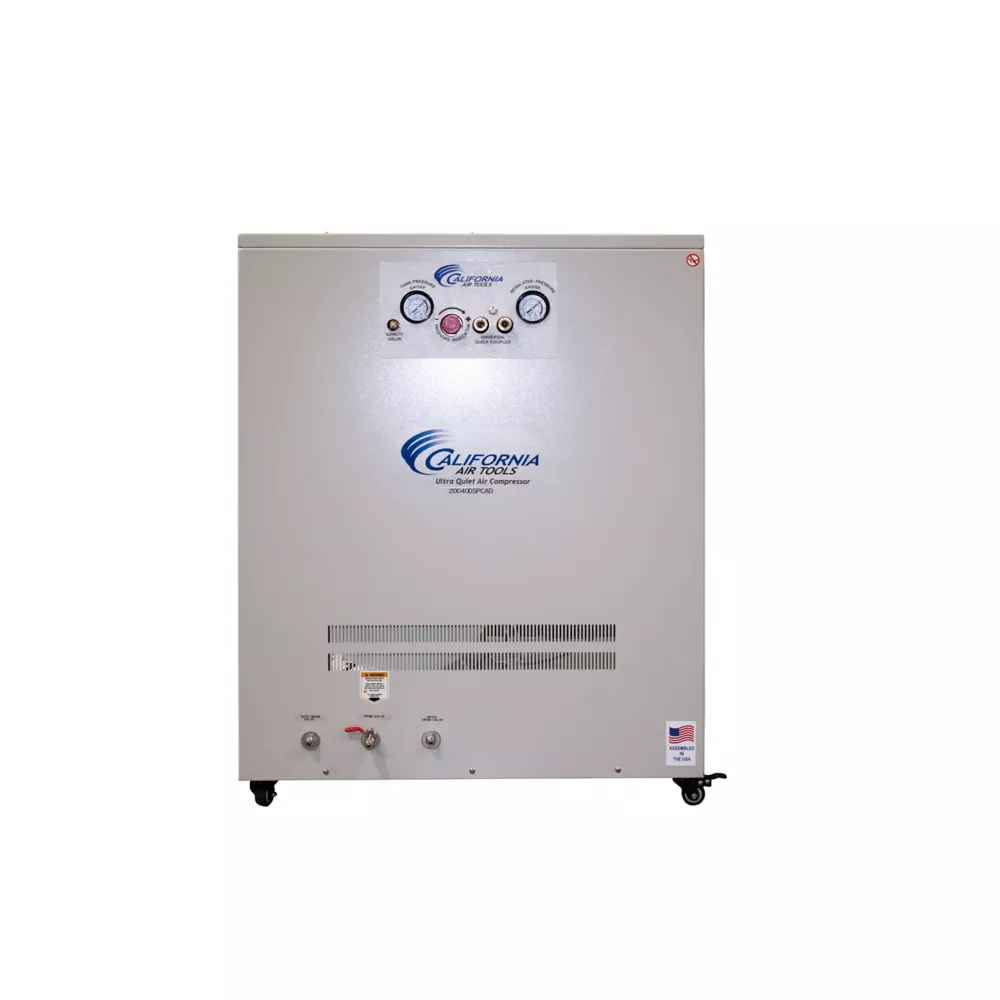

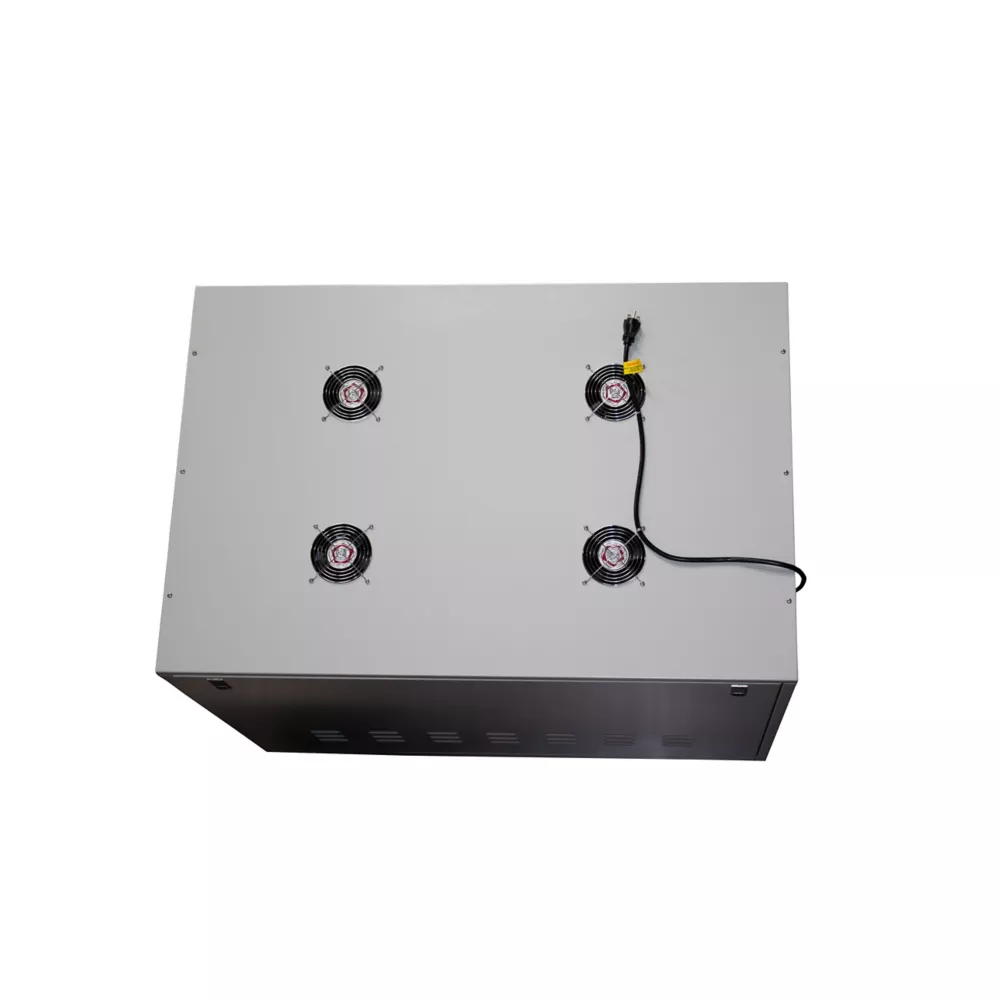

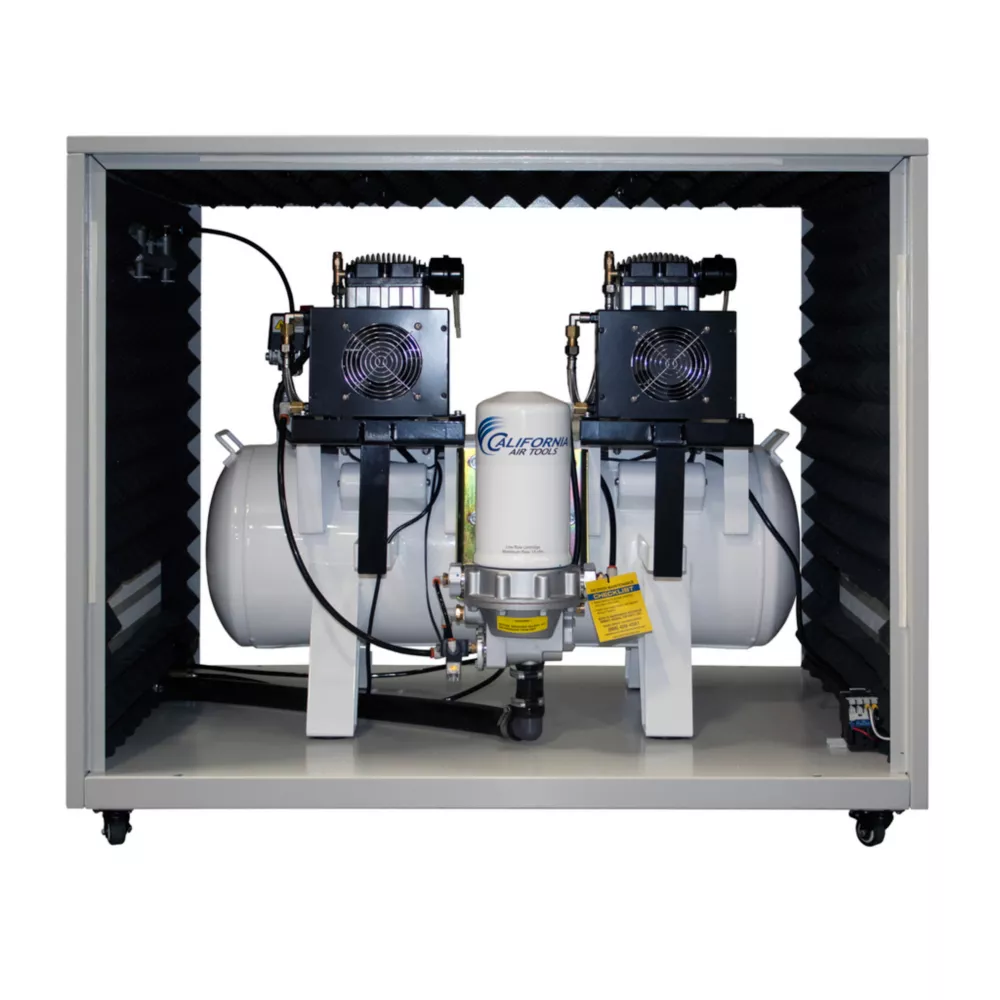

The 20040DSPCADC Ultra Quiet, Ultra Dry Oil-Free Air Compressor with Air Drying System in a Soundproof Cabinet is designed to be one of the quietest 4.0 Hp air compressors in the industry having only 65 decibels of sound. The Powerful (2) 2.0 HP motors operates at only 1680 RPM creating less noise and less wear. The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times. The Oil-Free Dual Piston Pump System is engineered for high performance and durability. The Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours compared to other comparable air compressors with life cycles of 1500 hours or less. The Oil-Free pump allows for use in a variety of temperatures and eliminates oil from being in the air. The sturdy steel soundproof cabinet has a large steel air tank and caster wheels that makes it easy to move. The cabinet is lined with acoustic soundproofing foam insulation to reduce compressor's noise and vibration. The two latching door handles allows for easy access to the air compressor. The four exhaust fans are designed to remove the air from the cabinet for a cooler running air compressor. The Air Dryer is specially designed to remove up to 98% of the water vapor from the air to protect sensitive tools and machinery. PDP performance range (-20' F. to -51' F.) Air Quality: ISO 8573 - Class 2.3.1 To dry the air from the air compressor an Aftercooler and Dryer are utilized. The aftercooler is a heat exchanger for cooling the discharge air from the air compressor. The water vapor from the compressed air is condensed into liquid form and pushed into the Air Dryer. The Spin-On Air Dryer Cartridge has a regenerating High Temperature Molecular Sieve Desiccant to dry air. This cartridge dryer has a life of 2-years before replacement. The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank. The manually set timer allows you to set the time for both the frequency and duration of the draining Designed for the person looking for Power, Dry Air, Air Flow and Less Service with at Least 30% Less Noise!- Ultra Quiet - Only 65 decibels
- Oil-Free Pump (Class 1) Cleaner air for better tool operation and less maintenance costs.
- 5.0 Micron (Class 2) Air Filter Regulator
- Two pressure control gauges
- Two - 1/4 in. Industrial female quick connectors
- Condor Pressure Switch
- Thermal Overload Protector
- 130 PSI Maximum Pressure
- 220 Volts / 60 Hertz / Single Phase - (No 208 Volts) Low Amp Draw - 14 Amps
- Time to fill tank from empty to full - 150 Seconds
- Recovery time from 100 PSI to 130 PSI - 40 Seconds
- Duty Cycle - 70/30 Aftercooler (condenser)
- Maximum continuous running 30-60 min. (Depending PSI & CFM)
- L (31 in.) x W/D (46 in.) x H (39 in.) 375 lb.
- Air Dryer Cartridge uses a High-Temperature Molecular Sieve Desiccant
- Easy to remove (spin off) and replace every 2 years
- PDP performance range (-20' F. to -51' F.) Air Quality: ISO 8573 - Class 2.3.1
- Plug Type: Nema 6-15P
- Comes complete (4) Air Filters
- 1 Year Limited Warranty
California Air Tools 4 HP 20 gal Ultra-quiet oil-free air compressor with 98% in-cabinet air dryer Portable Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Portable Air Compressors
| Specification | Description |
|---|---|
| Brand | California Air Tools |
| Country of Origin | Made in USA |
| Air Delivery SCFM At 40 PSI | 12.8 CFM |
| Air Delivery SCFM At 90 PSI | 10.6 CFM |
| Airflow Volume | 12.80 CFM |
| Air Outlet Size | 1/4 in. |
| Amperage | 14 Amp |
| Compressor Horsepower | 4 HP |
| Compressor Maximum PSI | 130 PSI |
| Compressor Tank Capacity | 20 gal |
| Compressor Type | Oil less |
| Compressor Voltage | 220V |
| Connection Type | Quick Connect |
| Decibel Rating | 65 dB |
| Drain System | EZ-1 Automatic Drain Valve |
| Drive Type | Motor Pump |
| Features | Oil Free Compressor |
| Maximum RPM | 1,680 RPM |
| Phase | Single |
| Number Of Power Speeds | Single |
| Number Of Wheels | 4 |
| Power Type | Electric |
| Primary Color | White |
| Primary Material | Steel |
| Product Height | 39 in. |
| Product Length | 31 in. |
| Product Weight | 375 lb. |
| Product Width | 46 in. |
| Pump Life | 3,000 hr. |
| Pump Material | Steel |
| Stage Type | Single-Stage |
| Tank Fill Time | 150 sec. |
| Tank Orientation | Horizontal |
| Warranty | 1 Year Limited |
| Manufacturer PartNumber | CAT-20040DSPCADC |
