California Air Tools 4 HP 20 gal Ultra-quiet oil-free air compressor with air dryer and automatic drain Stationary Air Compressors Air Compressors

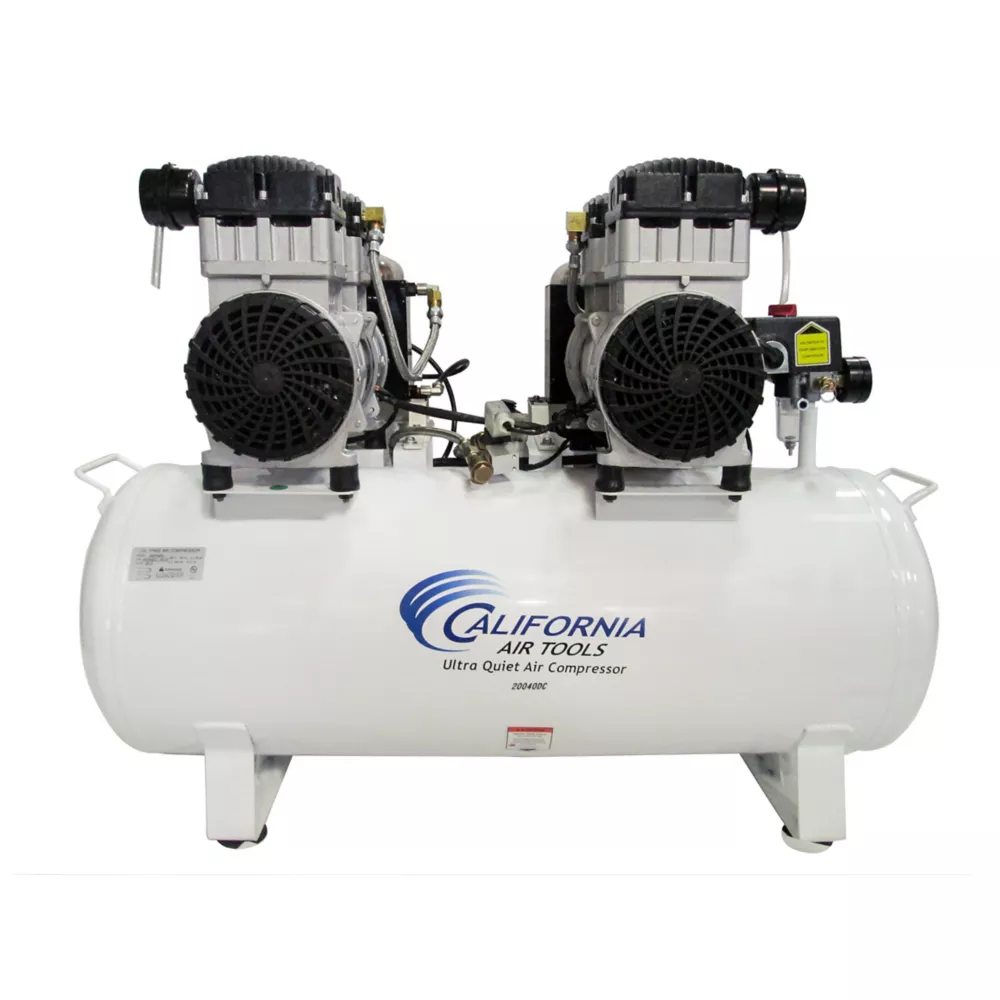

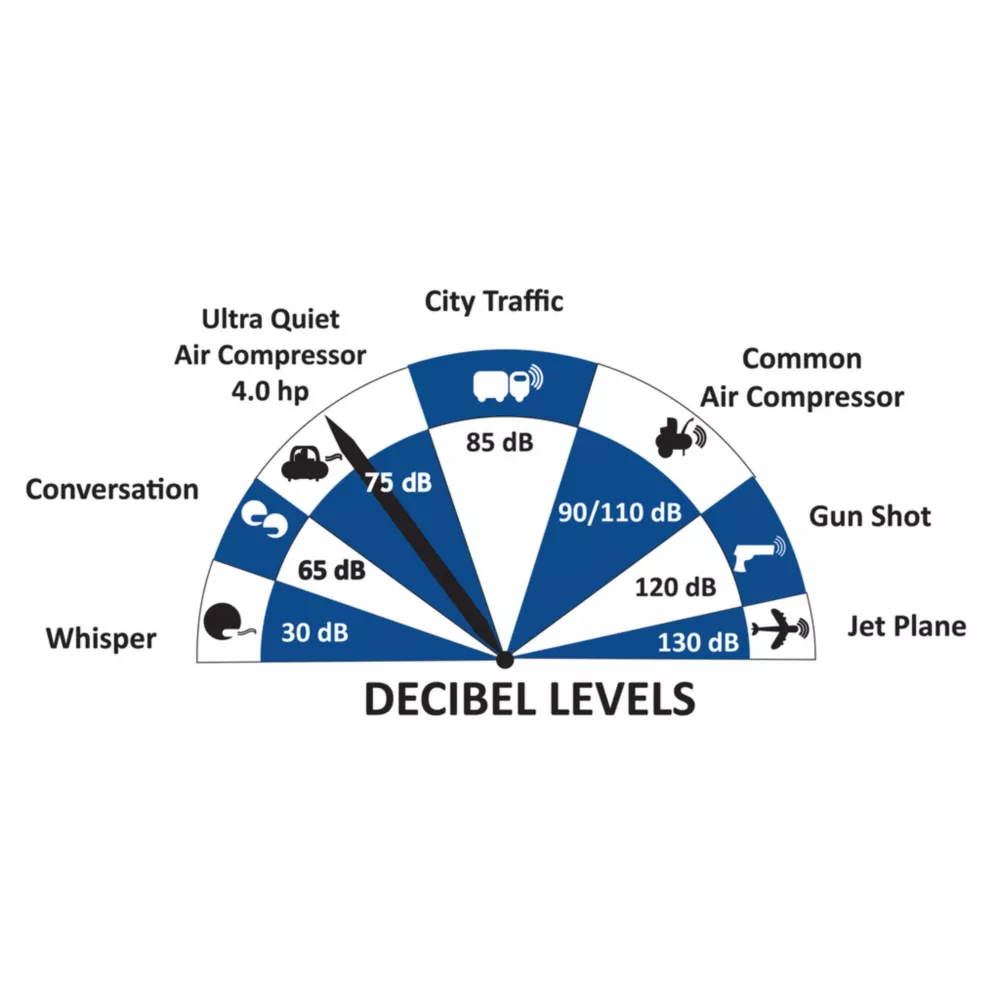

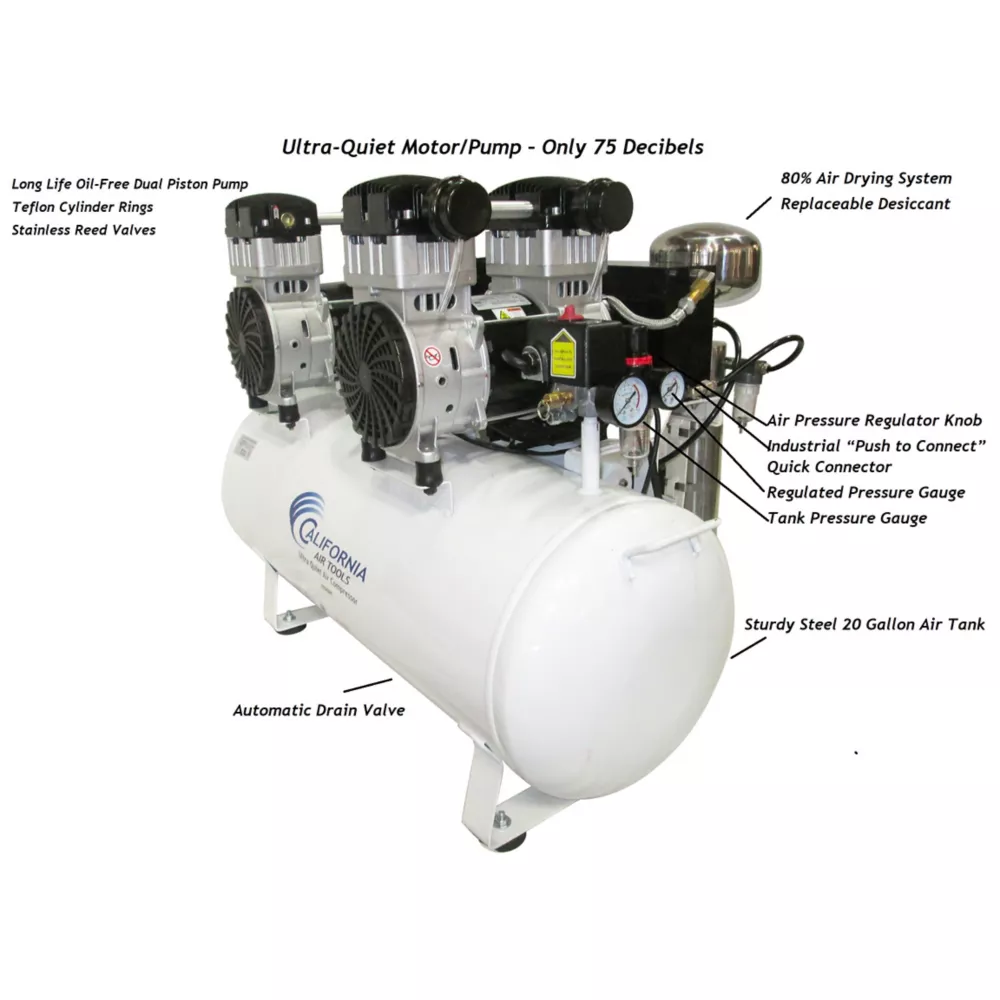

The CALIFORNIA AIR TOOLS Ultra Quiet & Oil-Free Air Compressor with Air Drying System is designed to be one of the quietest 4.0 Hp air compressors in the industry having only 75 decibels of sound. The Powerful 2.0 HP (SP-9421-22060) motors operates at only 1680 RPM creating less noise and less wear. The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times. The Oil-Free Dual Piston Pump System is engineered for high performance and durability. The CAT-20040DC Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours compared to other comparable air compressors with life cycles of 1500 hours or less. The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains. The large 20 gal. Steel Air Tank is just the right size for shop or garage. The Air Dryer is specially designed to remove the 80% of the water vapor from the air to protect sensitive tools and machinery. To dry the air from the air compressor an Aftercooler and Dryer are utilized. The aftercooler is a heat exchanger for cooling the discharge air from the air compressor. The water vapor from the compressed air is condensed into liquid form and pushed into the Air Dryer. Designed for the person looking for Power, Dry Air, Air Flow and Less Service with at Least 30% Less Noise!- Ultra Quiet - Only 75 decibels
- Oil-Free Pump Cleaner air for better tool operation and less maintenance costs
- One - 1/4 Industrial female quick connector
- Two pressure control gauges
- Condor Pressure Switch
- Thermal Overload Protector
- 125 PSI Maximum Pressure
- 220 Volts / 60 Hertz / Single Phase - (No 208 Volts) Low Amp Draw - 14 Amps
- Time to fill tank from empty to full - 150 Seconds
- Recovery time from 95 PSI to 125 PSI - 40 Seconds
- Duty Cycle - 70/30
- Maximum continuous running 30-60 min. (Depending PSI & CFM)
- Less heat which dissipates more efficiently
- L (39 in.) x W (25 in.) x H (28 in.) * 175 lbs

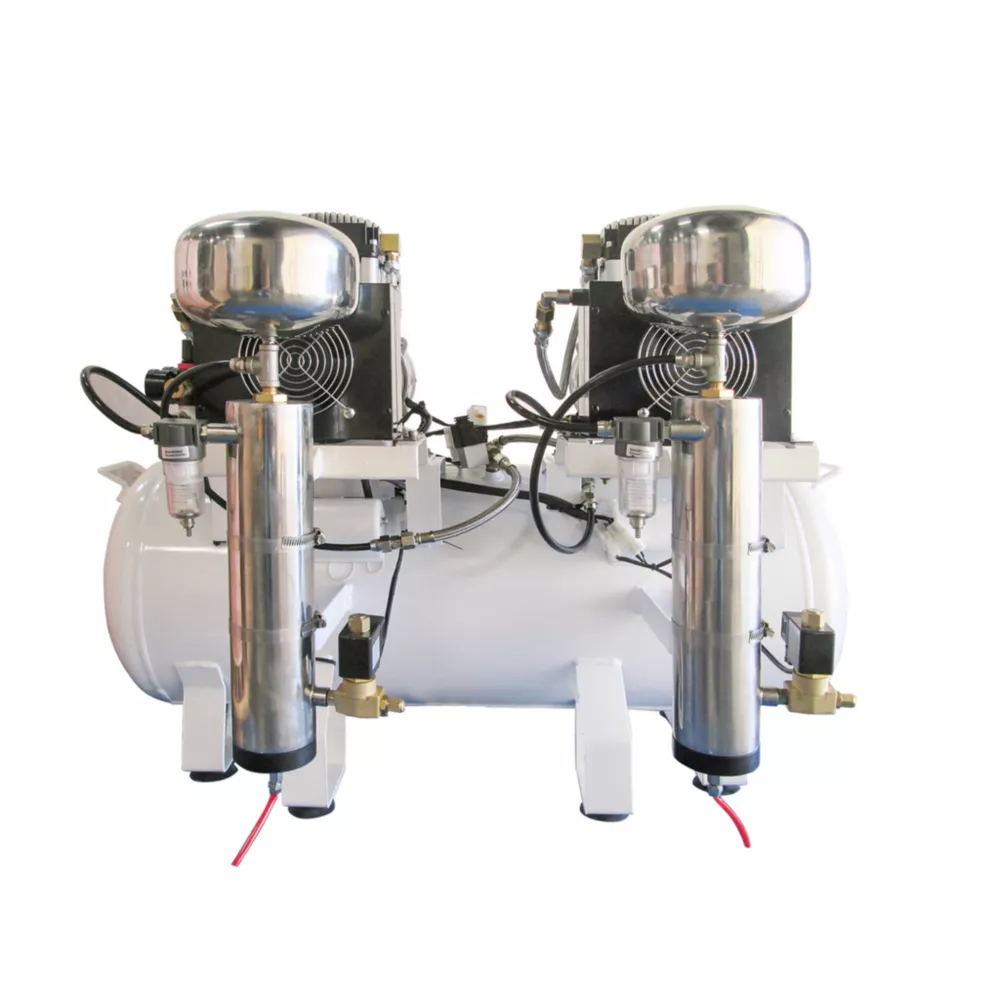

- Air Dryer - Includes Activated Alumina desiccant with a 4000-hour life.
- Aftercooler (condenser)
- Comes complete (4) Air Filters
- Plug Type: Nema 6-15P
- 1 Year Limited Warranty
California Air Tools 4 HP 20 gal Ultra-quiet oil-free air compressor with air dryer and automatic drain Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors
Specification | Description |
---|---|
Brand | California Air Tools |
Country of Origin | Made in USA |
Air Delivery SCFM At 40 PSI | 12.8 Amp |
Air Delivery SCFM At 90 PSI | 10.6 Amp |
Airflow Volume | 12.80 CFM |
Air Outlet Size | 1/4 in. |
Amperage | 14 Amp |
Compressor Horsepower | 2 HP |
Compressor Maximum PSI | 125 PSI |
Compressor Tank Capacity | 20 gal |
Compressor Type | Oil less |
Compressor Voltage | 220V |
Connection Type | Quick Connect |
Decibel Rating | 75 dB |
Drain System | Manual |
Drive Type | SP-9421-22060 |
Features | Oil Free Compressor |
Maximum RPM | 1,680 RPM |
Phase | Single |
Number Of Power Speeds | Single |
Number Of Wheels | 0 |
Power Type | Electric |
Primary Color | Brown |
Primary Material | Steel |
Product Height | 28 in. |
Product Length | 37.5 in. |
Product Weight | 192 lb. |
Product Width | 25 in. |
Pump Life | 3,000 hr. |
Pump Material | Steel |
Stage Type | Single-Stage |
Tank Fill Time | 150 sec. |
Tank Orientation | Horizontal |
Warranty | 1 Year Limited |
Manufacturer PartNumber | CAT-20040DCAD |
