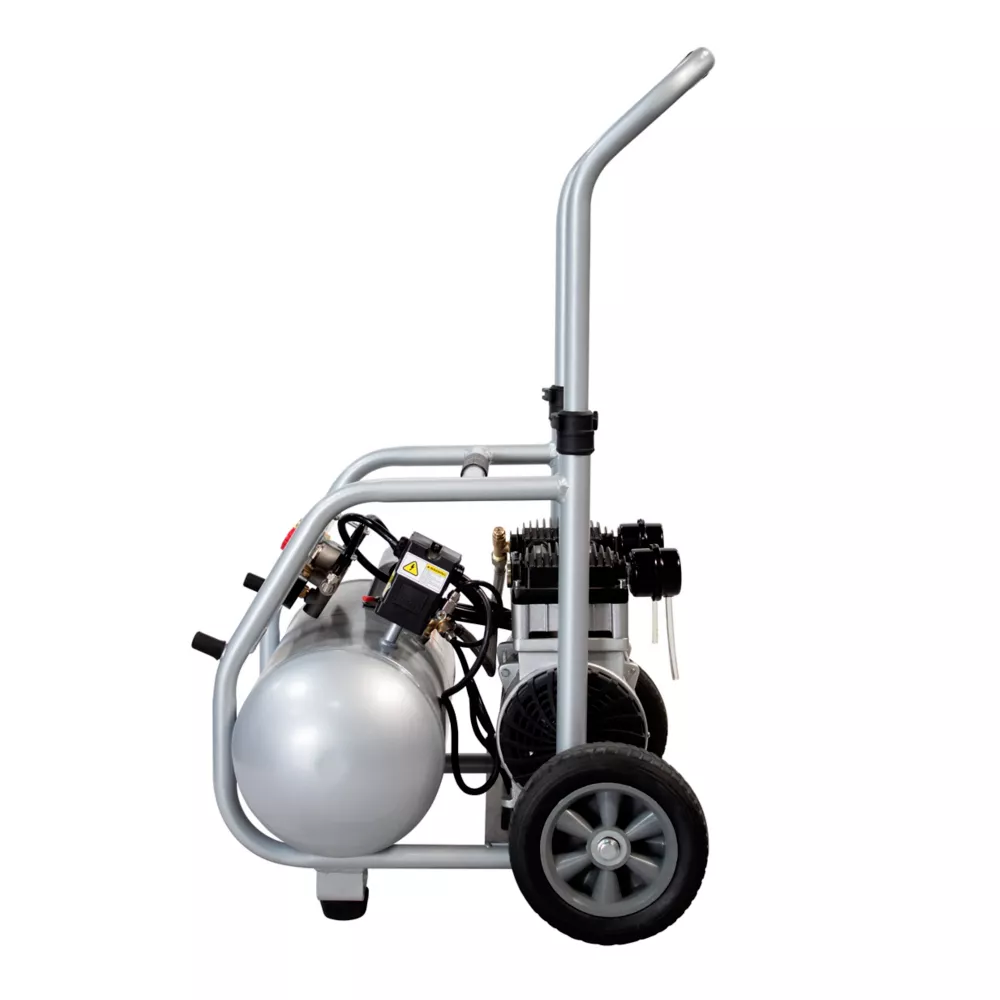

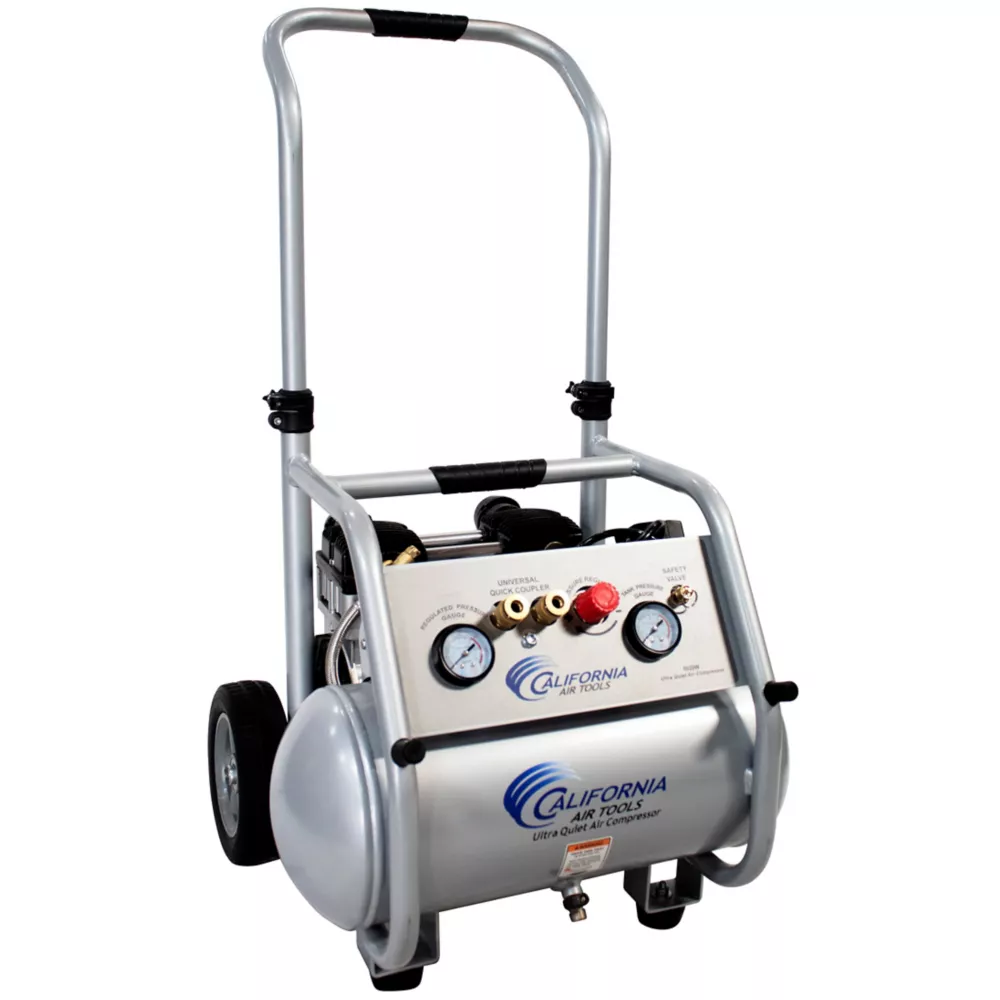

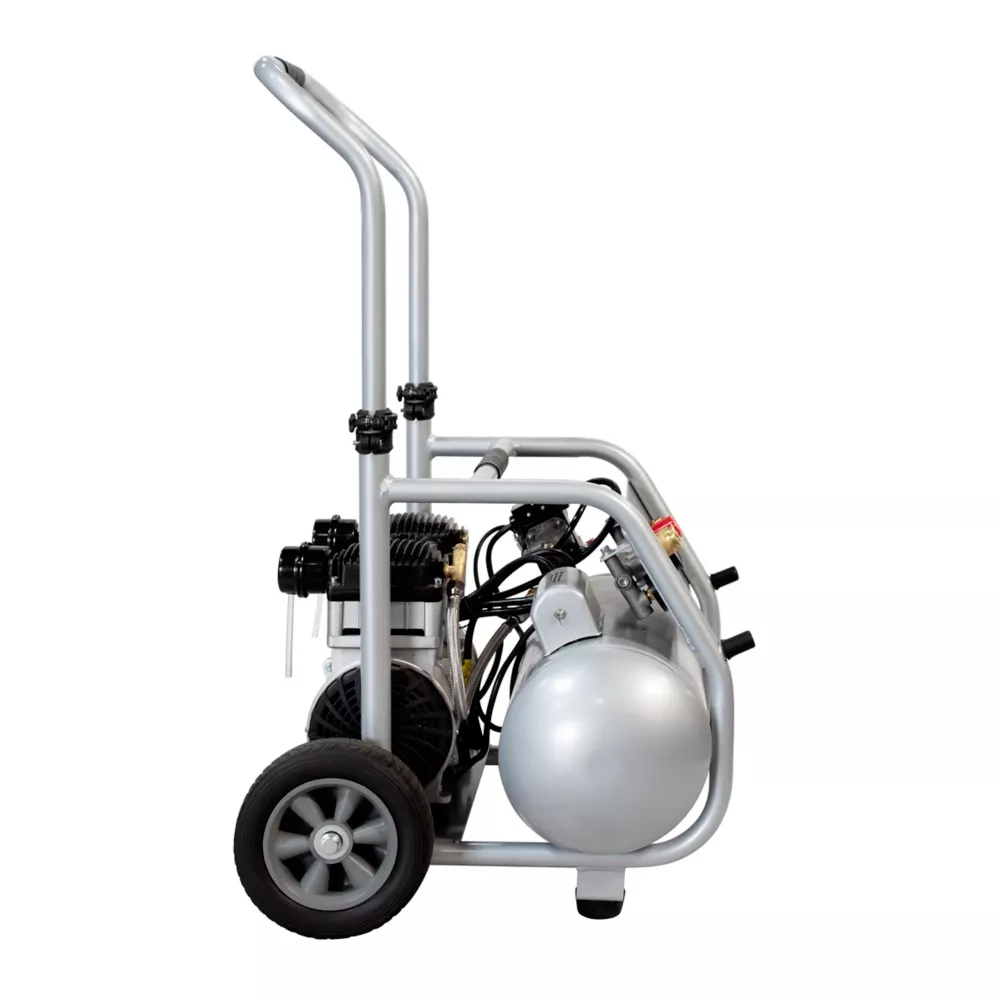

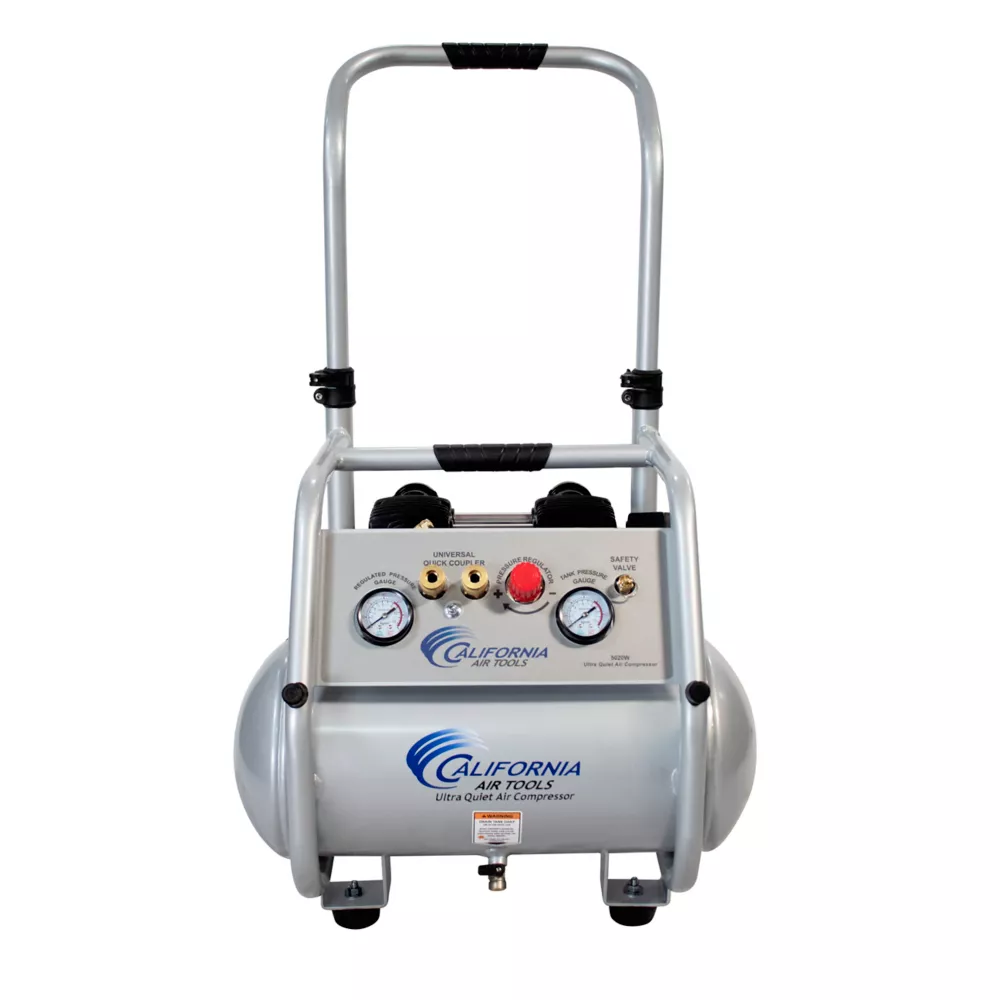

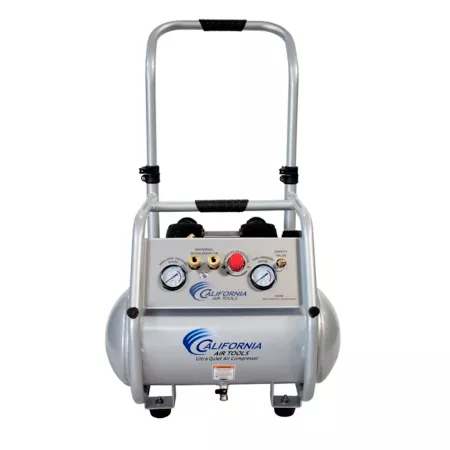

California Air Tools 5 Gallon 2 Horsepower Heavy Duty Air Compressor Stationary Air Compressors Air Compressors

Ideal for any Job Site, the CALIFORNIA AIR TOOLS 5020W Ultra Quiet & Oil-Free Rugged Air Compressor is designed to be one of the quietest 2.0 Hp air compressors in the industry having only 70 decibels of sound and features extra large 7.6" wheels. The Powerful 2.0 HP (SP-9421) motor operates at only 1680 RPM creating less noise and less wear. Motor has been designed to increase duty cycle and allow for longer continuous run times.* The Oil-Free Dual Piston Pump System is engineered for high performance, durability and provides up to 135 PSI. The CAT-5020W Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours compared to other comparable air compressors with life cycles of 500 hours or less. The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump). The Easy Start Valve feature allows for a easier start up using less starting amps. The Easy Start Valve releases a small amount of air from the pump at start up to produce a no-load condition allowing the SP-9421 motor to spin freely. This no-load start up requires less amps for a easier start up in cold temperatures. The large 5.0 Gallon Steel Air Compressor is only 82 pounds making it very easy to move around the jobsite and is lighter and quieter than all competitive models in the same class. Designed for the person looking for Rugged Durability, Power, Air Flow, Less Service and Maintenance with at Least 30% Less Noise! May be used for Air Brushing, Blow Cleaning, Bolting, Brad Nailing, Cutting, Drilling, Finish Nailing, Framing Nailing, Grinding, Hobby Nailing, Hobby Painting, Inflation, Roof Nailing, Sanding, Spraying, Stapling, Surface Prep, Trim and Wrenching.

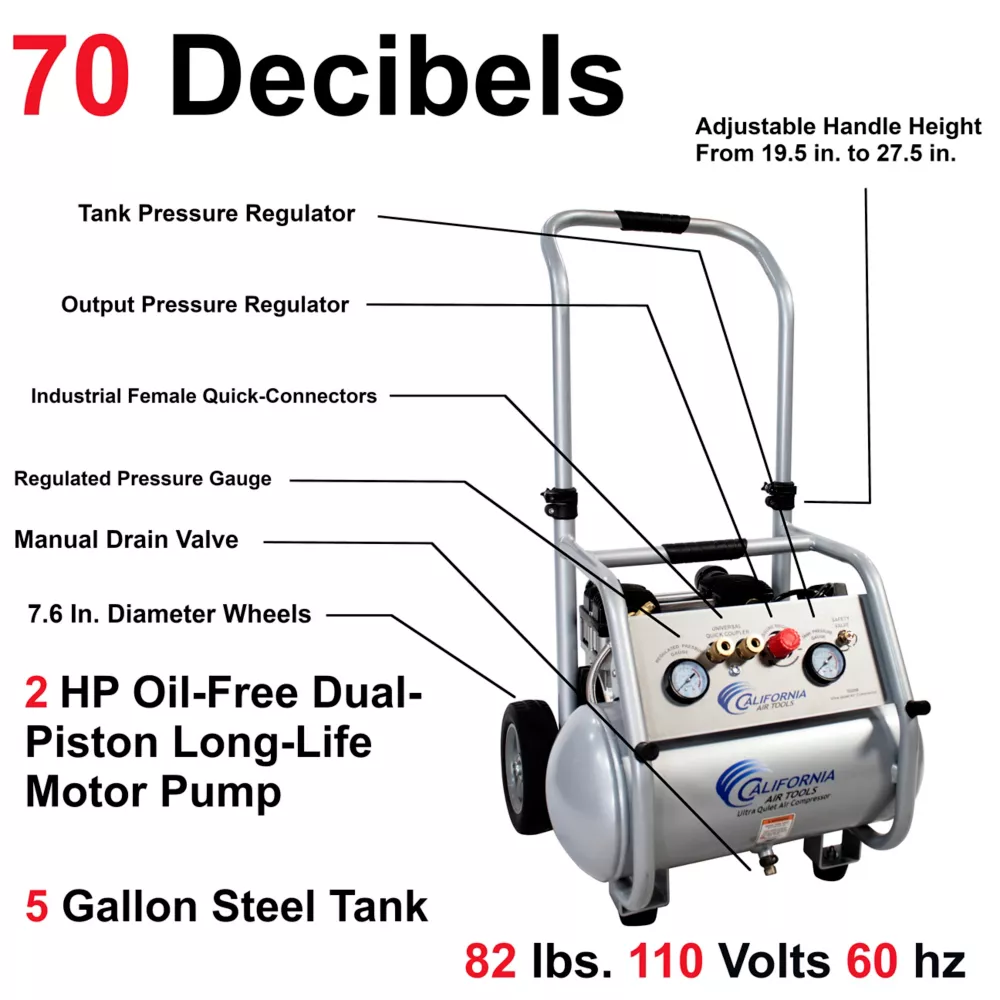

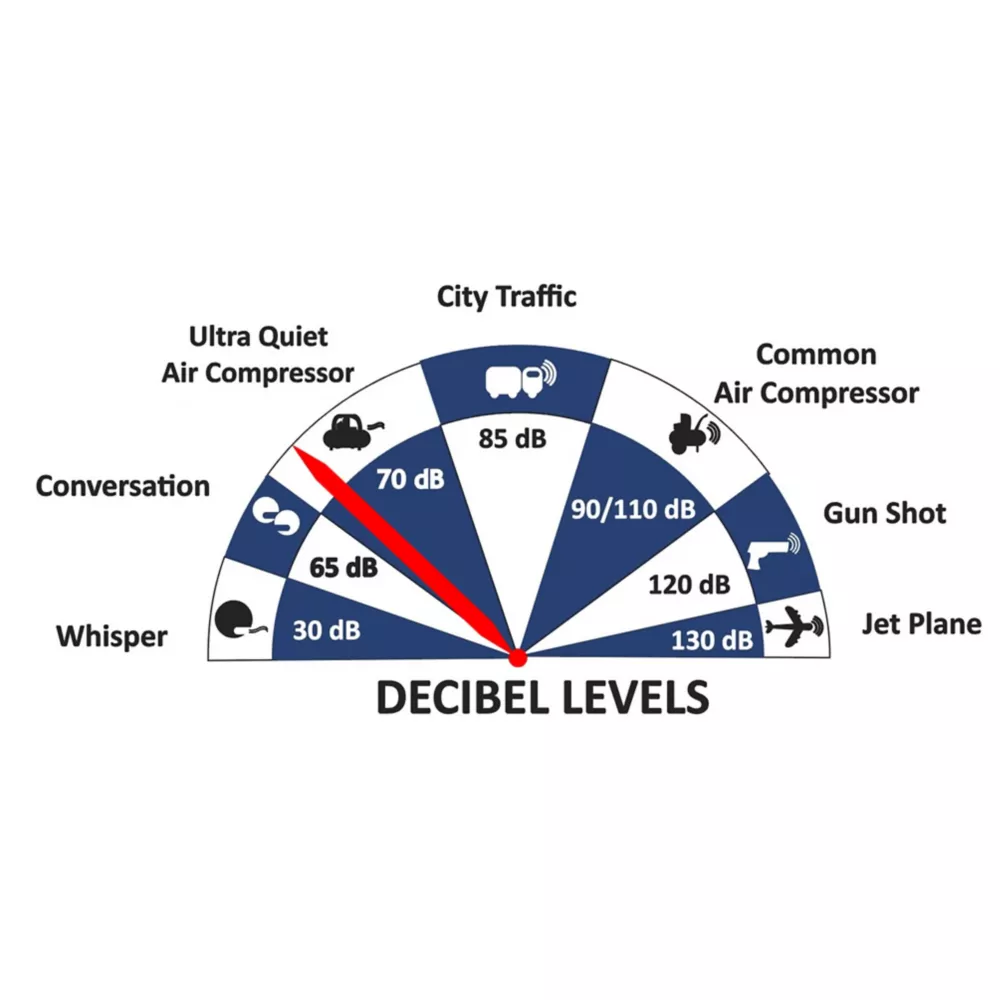

Ultra Quiet - Only 70 decibels
Oil-Free Pump Cleaner air for better tool operation. Less maintenance and Costs.
Protective Roll Cage
Telescope Handle for adjustable height: 19.5" To 27.5"
Easy to Lift and Easy to move around on Job Sites
Large Rugged Flatless Wheels (7.6")
Two pressure control gauges
Two - Female industrial "Push to Connect" quick connectors
Easy Start Valve - For Less Starting Amperage
Thermal Overload Protector
Recovery time from 95 PSI to 125 PSI - 20 Seconds
135 PSI Maximum Pressure
110v / 60 hz
Low Amp Draw - 14 Amps
Dedicated 15 amp outlet -14 gauge 25ft cord - Min. 5500 Watt Generator
Time to fill tank from empty to full - 60 Seconds
Recovery time from 95 PSI to 125 PSI - 20 Seconds
L (19.0") x W/D (21") x H (19.5" To 27.5")
Limited Warranty 1 Year

California Air Tools 5 Gallon 2 Horsepower Heavy Duty Air Compressor Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	California Air Tools
Country of Origin	Imported
Air Delivery SCFM At 40 PSI	6.4 CFM
Air Delivery SCFM At 90 PSI	5.3 CFM
Airflow Volume	6.4 CFM 40 PSI 5.3 CFM 90 PSI
Air Outlet Size	0.25 in.
Compressor Horsepower	2 HP
Compressor Maximum PSI	135 PSI
Compressor Tank Capacity	5 gal
Compressor Type	Vertical
Compressor Voltage	110V
Drain System	Manual Drain Valve
Drive Type	Induction Motor
Features	Telescoping handle
Number Of Power Speeds	Single
Number Of Wheels	(2) 7.6 in. Heavy Duty Wheels
Power Type	Electric
Primary Color	Gray
Primary Material	Steel
Product Height	19.5 in.
Product Length	19 in.
Product Weight	82 lb.
Product Width	21 in.
Pump Material	Steel
Stage Type	Single-Stage
Tank Orientation	Horizontal
Warranty	1 Year Limited
Manufacturer PartNumber	5020W

California Air Tools 5 Gallon 2 Horsepower Rugged Air Compressor Specifications Expand/Collapse Specification Description Brand California Air Tools Country of Origin Imported Air Flow SCFM at 40 PSI 6.4 CFM SCFM Air Flow at 90 PSI 5.3 CFM Air Flow Volume 6.4 CFM 40 PSI 5.3 CFM 90 PSI Air outlet size 0.25 in. Compressor Power 2 HP Compressor Maximum PSI 135 PSI Compressor Tank Capacity 5 gal Compressor Type Vertical Compressor Voltage 110 V Drain System Manual Drain Valve Drive Type Induction Motor Features Telescopic Handle Number of Power Speeds Single Number Wheels (2) 7.6" Heavy Duty Wheels Power Type Electric Primary Color Primary Material Gray Steel Product Height 19.5" Product Length 19" Product Weight 82 lbs Product Width 21" Pump Material Steel Type Single Stage Tank Orientation Horizontal Warranty 1 Year Limited Manufacturer Part Number 5020W
