California Air Tools 60 gallon 3.7 HP Continuous Running Air Compressor Stationary Air Compressors Air Compressors

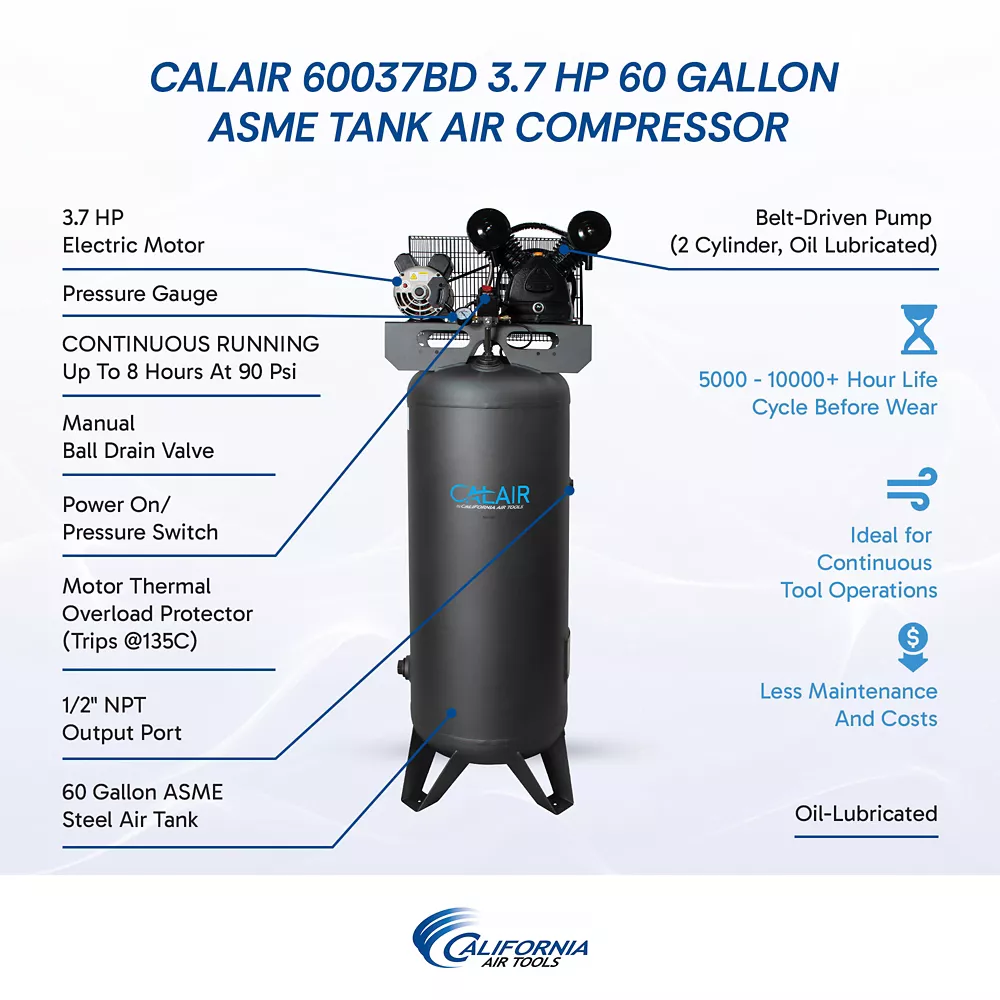

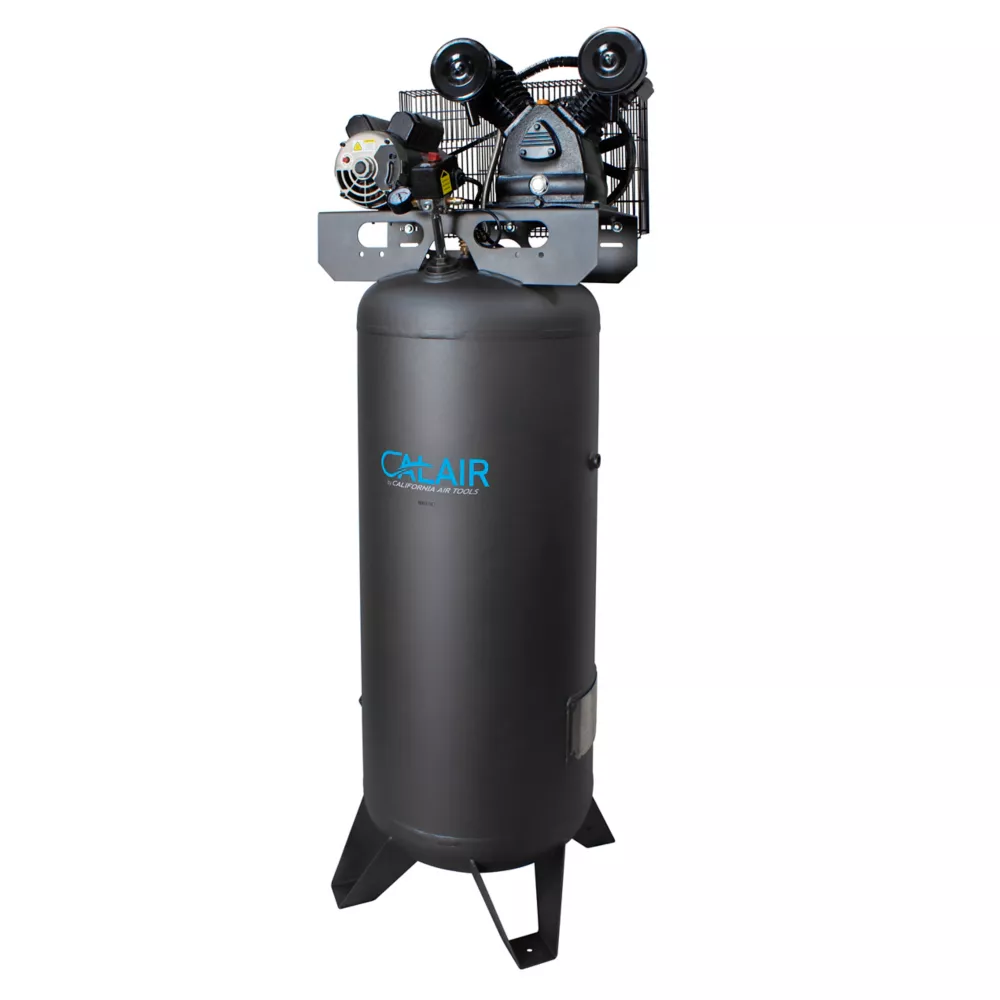

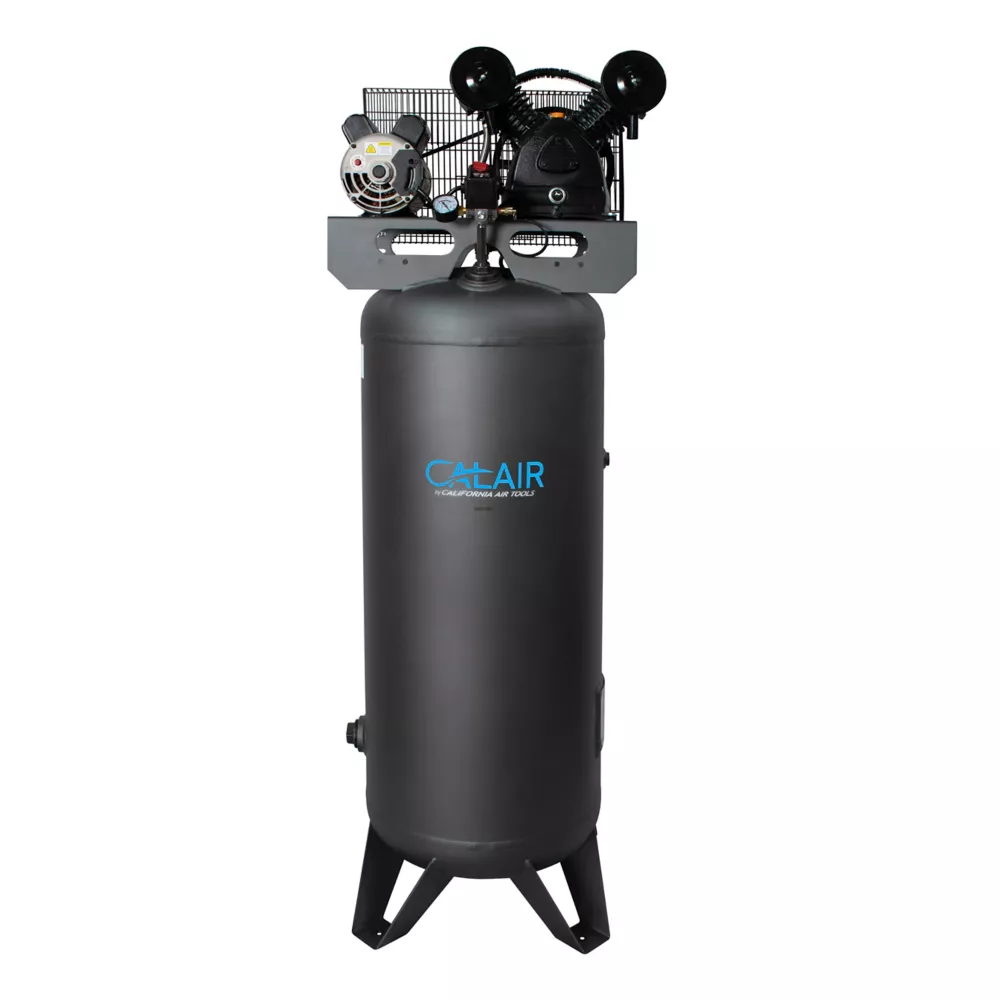

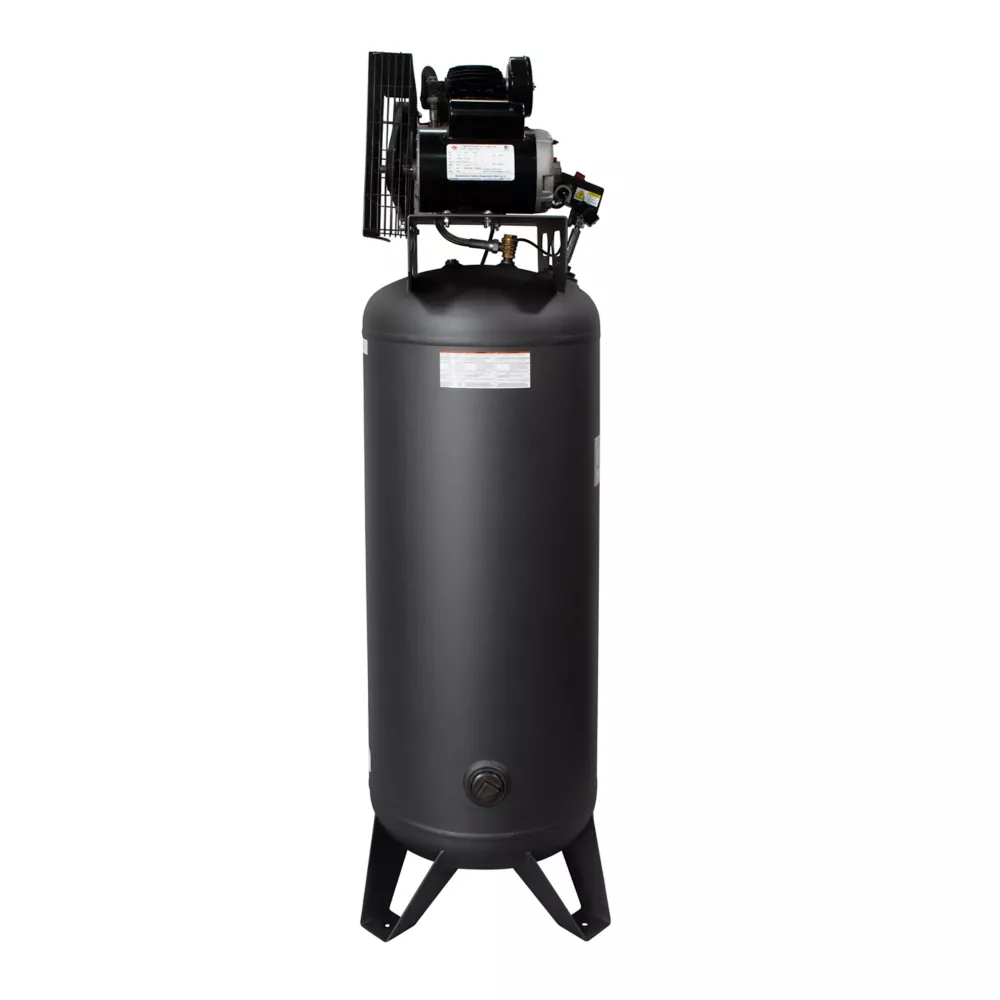

The California Air Tools 60 Gal. 3.7 HP Continuous Run Air Compressor is designed for continuous running up to 8 hours at 90 PSI. The CALAIR air compressor has a pump system that is designed to have a life cycle before maintenance/service of 5,000 to 10,000 hours of usage. The large 60 gal. ASME certified steel air tank is just the right size for a shop, warehouse or factory. It's ideal for air brushing, bolting, brad nailing, cutting, drilling, grinding, finish nailing, framing nailing, HVLP painting, hobby nailing, hobby painting, inflation, roof nailing, spraying, stapling, trim and impacting/wrenching. It's designed for people looking for reliable air flow in commercial and semi-rugged environments. This air compressor comes backed by a 1-year limited warranty for purchasing assurance.

3.7 HP motor with reset switch

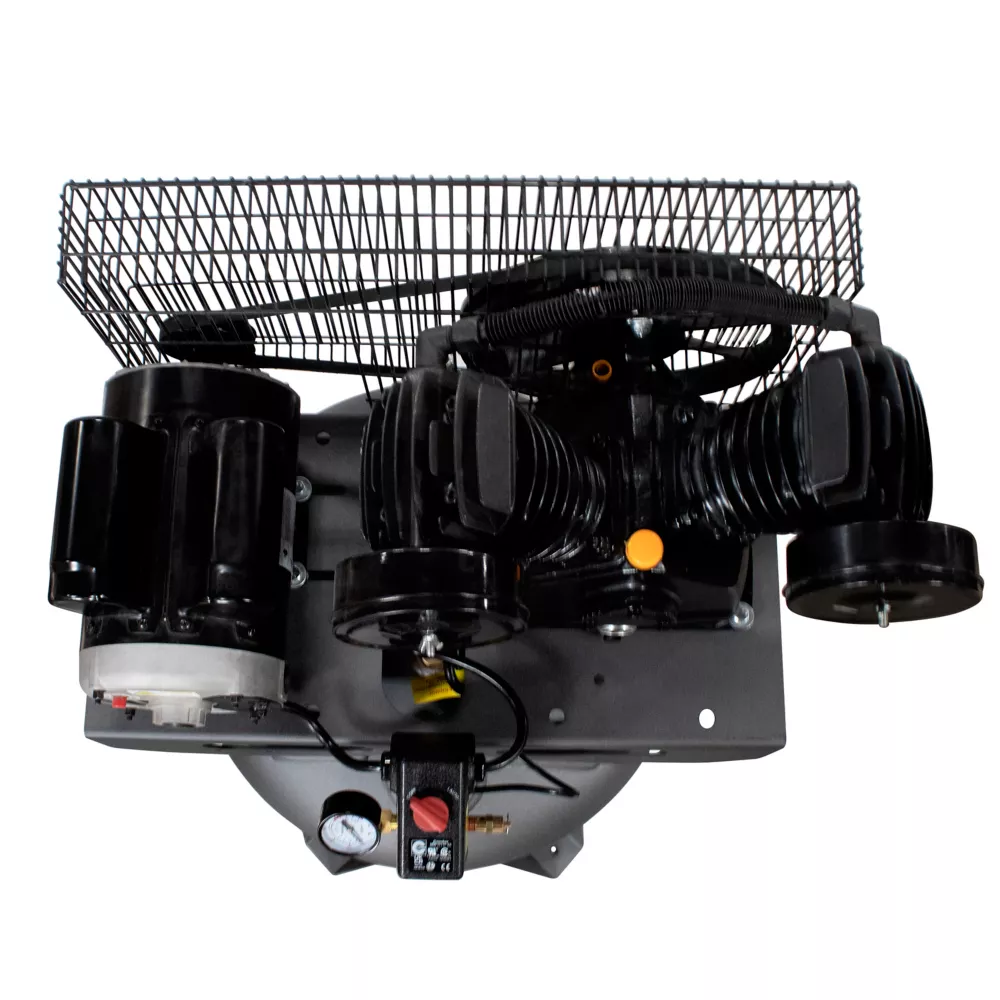

Belt-driven pump (Oil type ISO 68 / LDAB68); 5,000-to-10,000-hour life; single-stage pump (2 cylinders)
Equipped with a pressure gauge
1/2 in. NPT output valve port

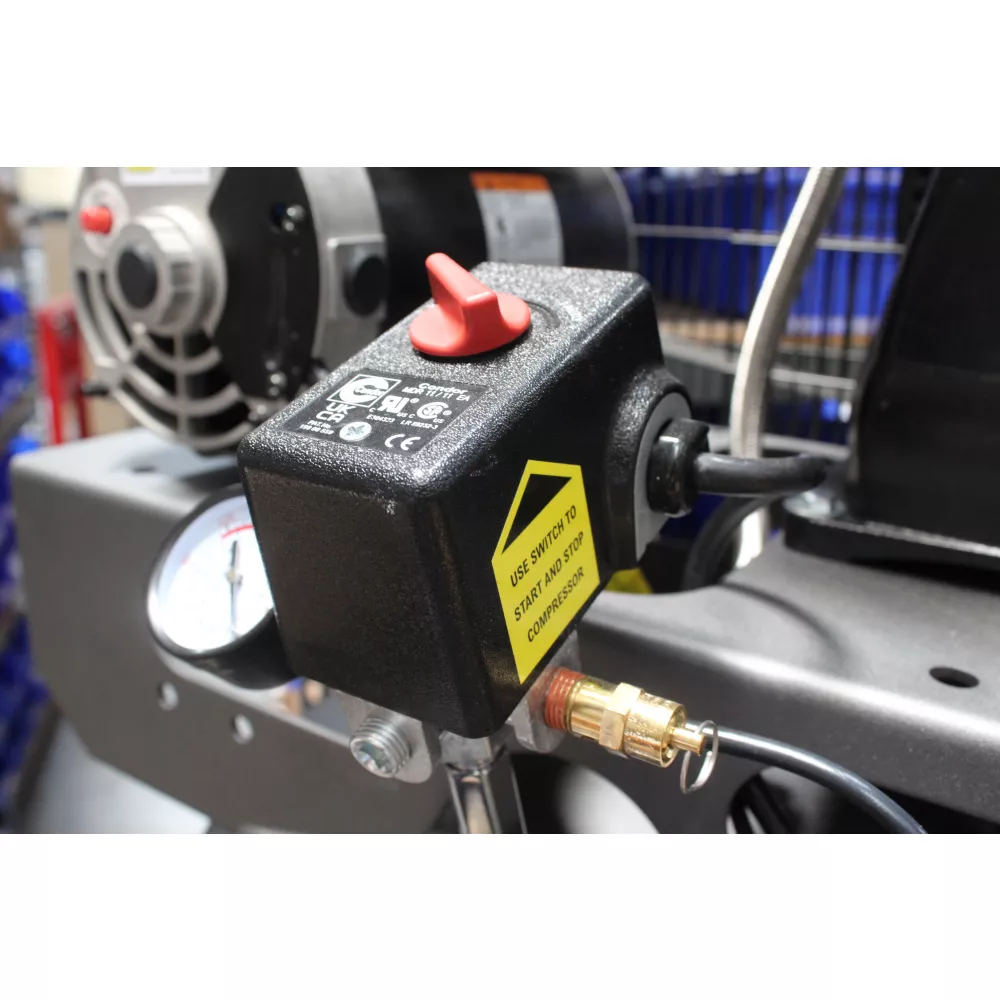

Power on/pressure switch
Motor thermal overload protector (Trips at135C)
Working pressure; 125-155 PSI
208V (200V-216V) to 230V (220V-240V)/60 Hertz/Single-Phase
11.5 CFM at 90 PSI; 13.6 CFM at 40 PSI
Continuous run up to 8 hours (10 hours maximum)
Backed by a 1-year limited warranty
16.7A draw
Power requirements: Dedicated 20A outlet
Plug type: NEMA 6-15P Receptacle: NEMA 6-15R or 6-20R
Maximum operating (ambient) temperatures: 36 deg. to 108 deg. F
Time to fill tank from empty to full (155 PSI); 6 minutes and 52 seconds
Recovery time from 125 PSI to 155 PSI; 1 minute and 37 seconds
60 gal. ASME certified steel air tank
Maximum tank pressure: 180 PSI

California Air Tools 60 gallon 3.7 HP Continuous Running Air Compressor Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	California Air Tools
Country of Origin	Imported
Air Delivery SCFM At 40 PSI	13.6 CFM 40 PSI
Air Delivery SCFM At 90 PSI	11.5 CFM 90 PSI
Airflow Volume	11.5 CFM 90 PSI 13.6 CFM 40 PSI
Air Outlet Size	0.5 in.
Compressor Horsepower	3.7 HP
Compressor Maximum PSI	200 PSI
Compressor Tank Capacity	60 gal
Compressor Type	Oil lubricated
Compressor Voltage	208V/230V
Drain System	Manual Drain
Drive Type	Belt Driven
Features	Industrial
Number Of Power Speeds	Single
Power Type	Electric
Primary Color	Multicolor
Primary Material	Steel

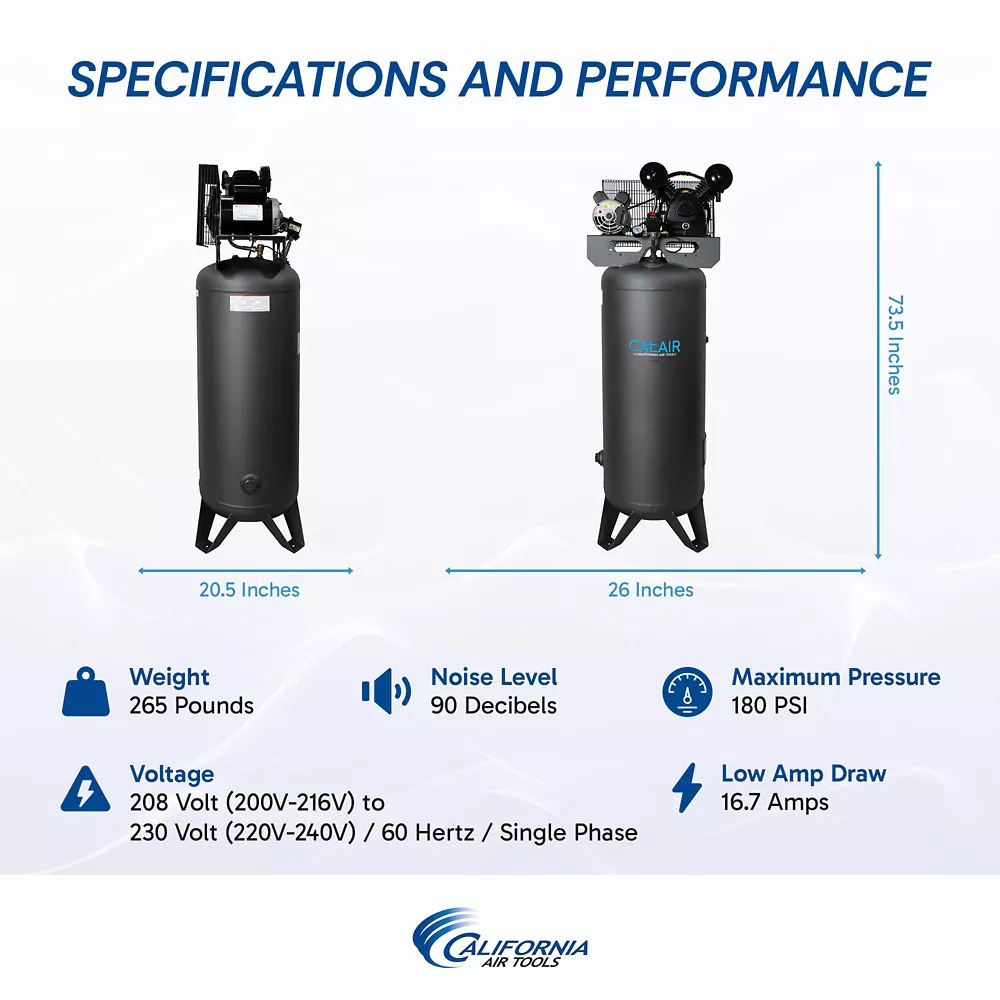

Product Height	73.5 in.
Product Length	26 in.
Product Weight	265 lb.
Product Width	20.5 in.
Pump Material	Steel
Tank Orientation	Vertical
Warranty	1 Year Limited Warranty
Manufacturer PartNumber	60037BD
