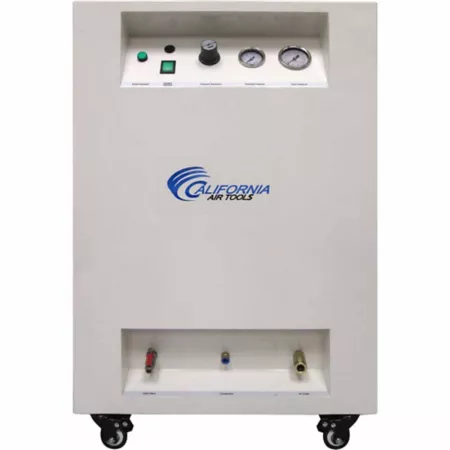

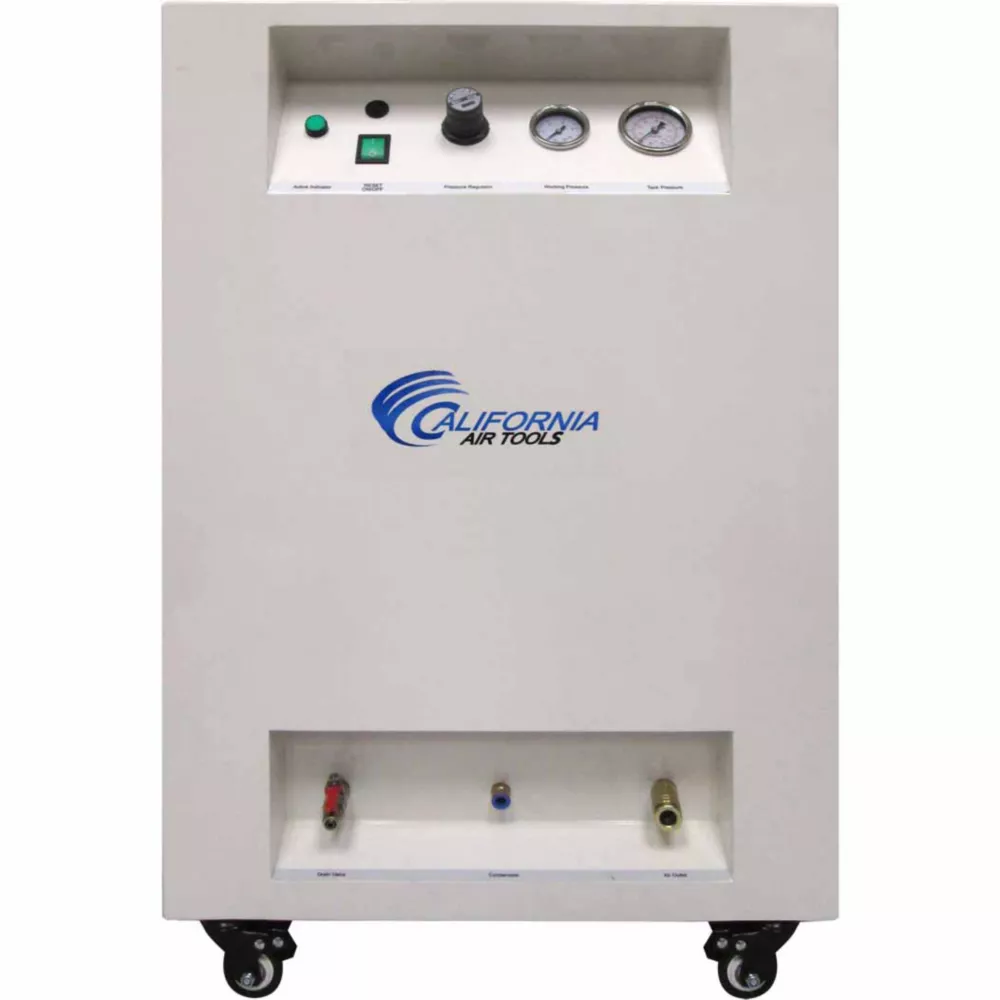

California Air Tools Ultra Quiet Oil-Free 2.0 HP 10 Gal Steel Tank Air Compressor in Soundproof Cabinet CAT-10020SPC Portable Air Compressors Air Compressors

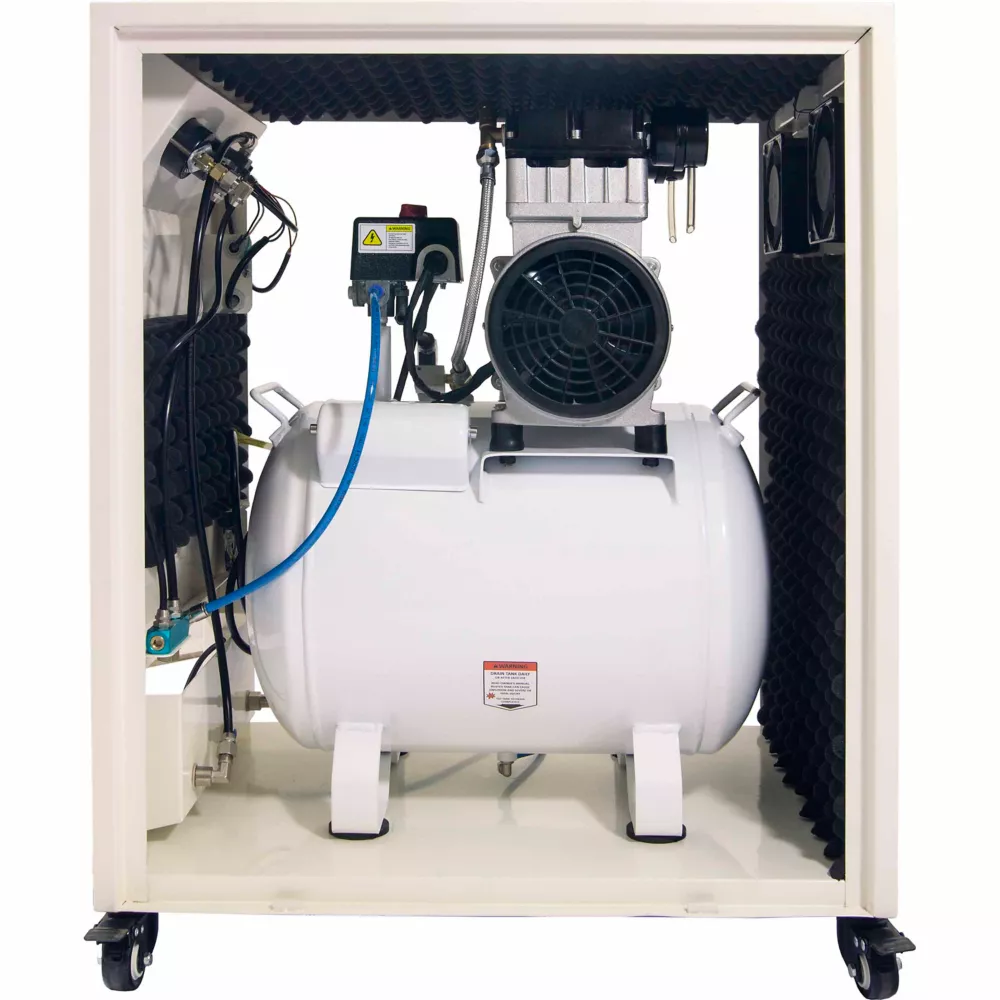

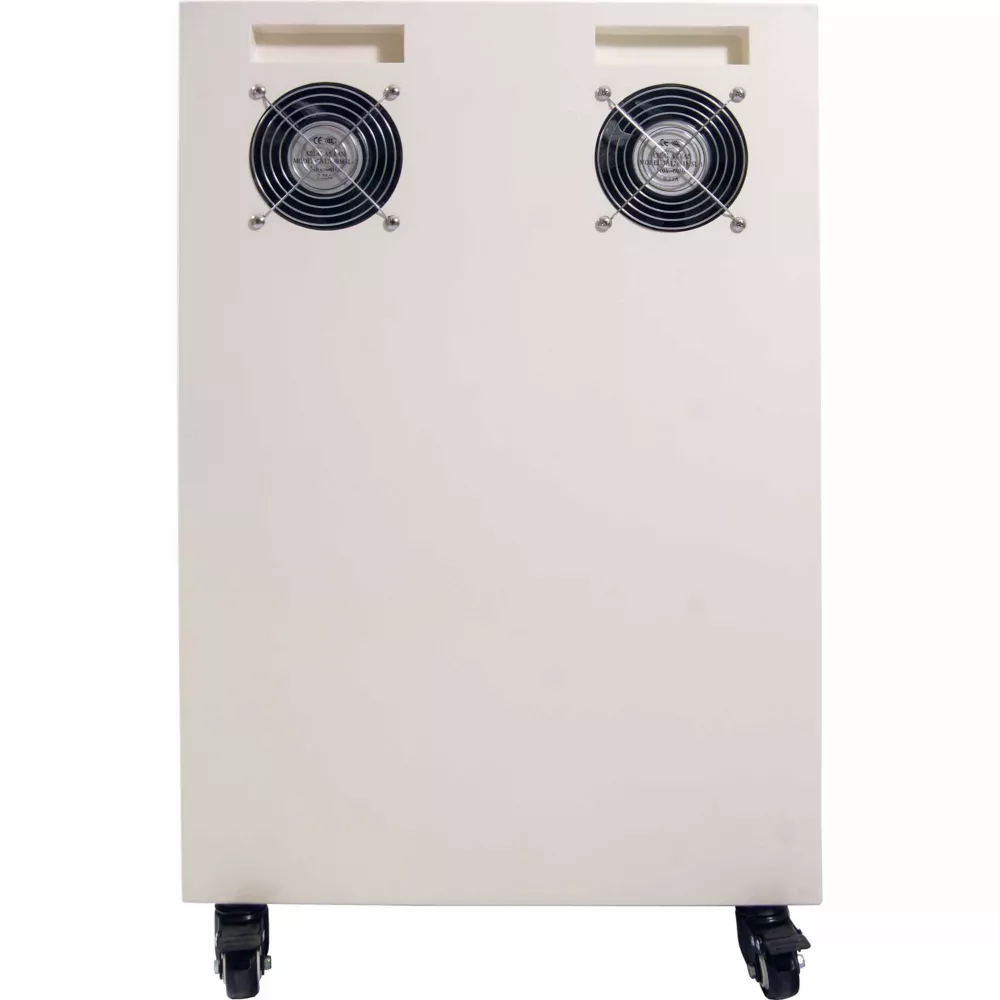

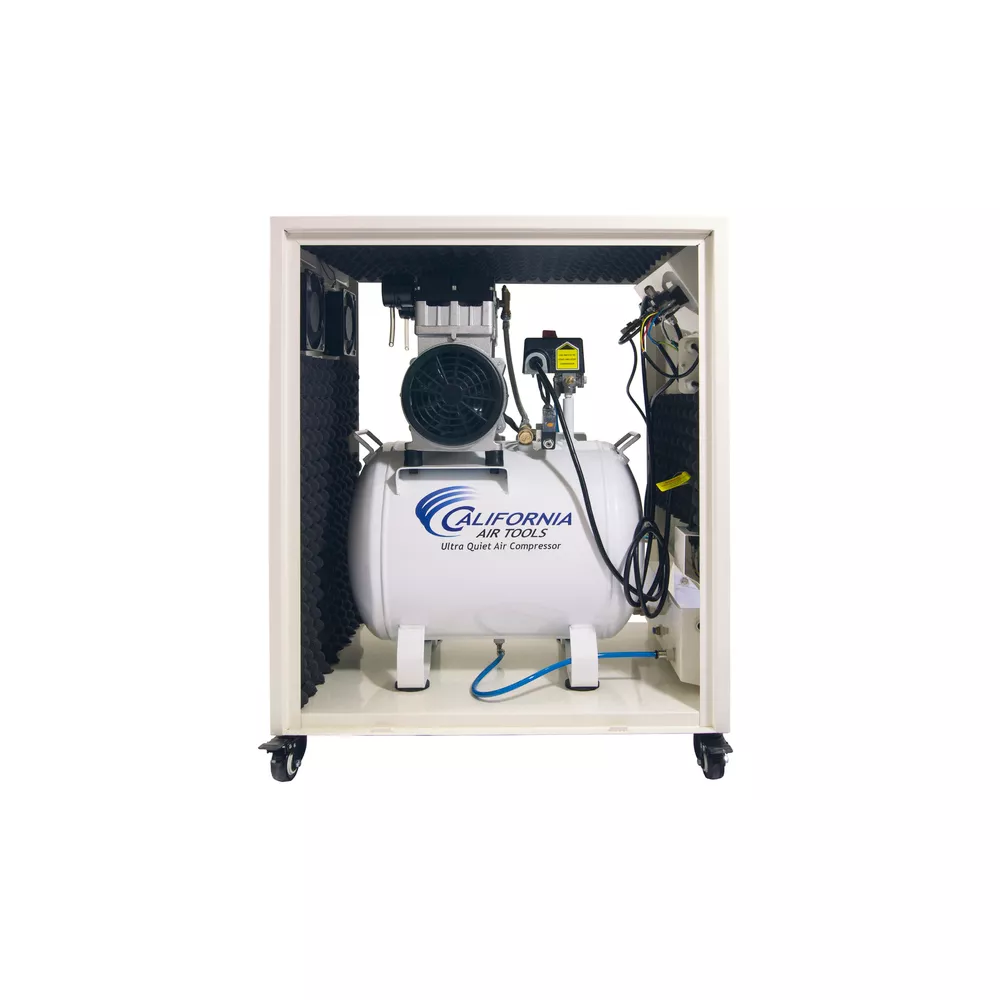

The California Air Tools Ultra Quiet Oil-Free 2.0 HP 10 Gal. Steel Tank Air Compressor in Sound Proof Cabinet is designed to be one of the quietest 2.0-horsepower air compressors in the industry, having only 58 decibels of sound. The powerful 2.0 HP (SP-9421) motor operates at only 1,680 RPM, creating less noise and less wear. The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times. The complete Soundproof Cabinet is 190 lb. The Soundproof Cabinet is made of a sturdy metal frame with 1/4 in. Acoustic Sound Proofing Foam insulation reduces noise by 30%. The cabinet has two latching doors that allow for easy access to the air compressor and components. The two cabinet exhaust fans are used to remove air from the cabinet for a cool working condition for the air compressor. Designed for power, air flow, less service and maintenance with at least 30% less noise, this California Air Tools air compressor is ideal for anyone working inside an office, shop, store, warehouse, lab or home where noise is a major issue.- Air compressor is crafted with a large 10-gallon steel air tank with a sound-proof cabinet that allows for more air capacity
- Oil-Free Dual Piston Pump System is engineered for high performance and durability
- Oil-Free Dual Piston pump designed to have a life cycle before wear of 3,000+ hours compared to other comparable air compressors with life cycles of 500 hours or less
- Oil-free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump)
- Easy Start Valve feature allows for easier air compressor start up using less starting amps
- Easy Start Valve releases a small amount of air from the pump at start up to produce a no-load condition, allowing the motor to spin freely
- California Air Tools air compressor has 4 swivel caster wheels for easily moving the air compressor from location to location very easy
- One 1/4 in. Industrial female quick connector
- Condor Pressure Switch
- Thermal Overload Protector for safety
- 130 PSI maximum pressure; 110V / 60 Hz; low amp draw - 14 amps
- Time to fill tank from empty to full - 260 seconds
- Recovery time from 100 PSI to 130 PSI - 70 seconds
- Duty Cycle - 70/30
- Maximum continuous running 30-60 min. (Depending PSI & CFM)
- Less heat which dissipates more efficiently
- L (21 in.) x W (26 in.) x H (32 in.)
- 129 lb.
- 1 year limited warranty
- Commercial Use: Refer to State & City Codes
- Assembled in USA with global components
California Air Tools Ultra Quiet Oil-Free 2.0 HP 10 Gal Steel Tank Air Compressor in Soundproof Cabinet CAT-10020SPC Portable Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Portable Air Compressors
| Specification | Description |
|---|---|
| Brand | California Air Tools |
| Country of Origin | Imported |
| Airflow Volume | 6.40 @ 40 PSI, 5.30 CFM @ 90 PSI |
| Air Outlet Size | 1/4 in. |
| Amperage | 14A |
| Compressor Horsepower | 2 HP |
| Compressor Maximum PSI | 130 PSI |
| Compressor Operation | Automatic start/stop |
| Compressor Tank Capacity | 10 gal |
| Compressor Type | Oil less |
| Compressor Voltage | 110V |
| Decibel Rating | 58 dB |
| Drain System | Manual |
| Drive Type | Induction |
| Features | Regulator Included, Oil Free Compressor |
| Maximum RPM | 1,680 RPM |
| Number Of Power Speeds | Single |
| Number Of Wheels | 2 |
| Power Type | Electric |
| Primary Color | Gray |
| Product Height | 32 in. |
| Product Length | 21 in. |
| Product Weight | 190 lb. |
| Product Width | 26 in. |
| Pump Life | 3,000 hours |
| Pump Material | Steel |
| Tank Fill Time | 260 seconds |
| Tank Orientation | Horizontal |
| Warranty | 1 Year |
| Manufacturer PartNumber | CAT-10020SPC |
