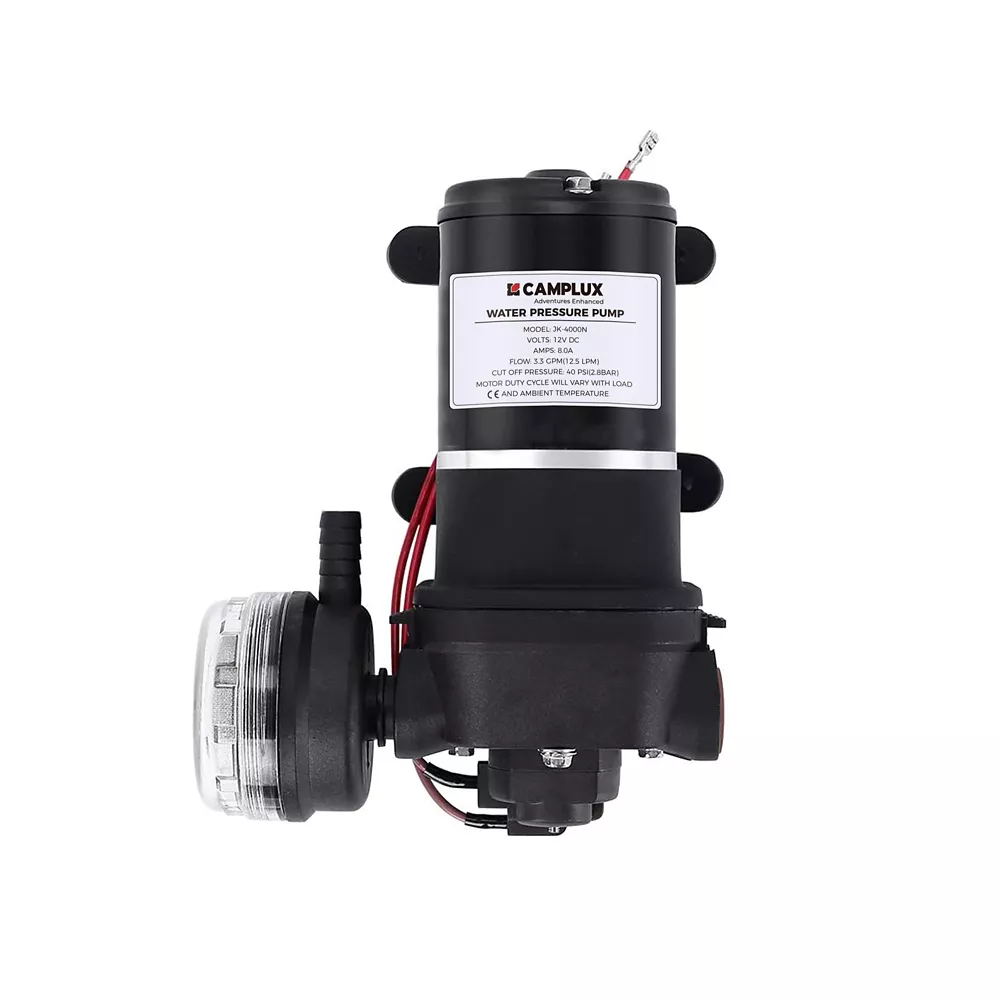

Camplux 12V Water Pressure Diaphragm Pump with Filter 3.3 GPM Well Pumps Home Improvement

The Camplux 3.3 GPM 12V Water Pressure Diaphragm Pump with Filter not only can help you to solve the problem of water pressure, but also ensure safety when working. If you worry about water pressure or water flow is small, this self-priming diaphragm pump will be a good choice. The well water pump is perfect for caravans, boats, motor homes and camping. The patented design delivers smooth and consistent flow at all ranges of operation. The built-in adjustable pressure switch also starts if the tap is turned on and stops if the tap is turned off.

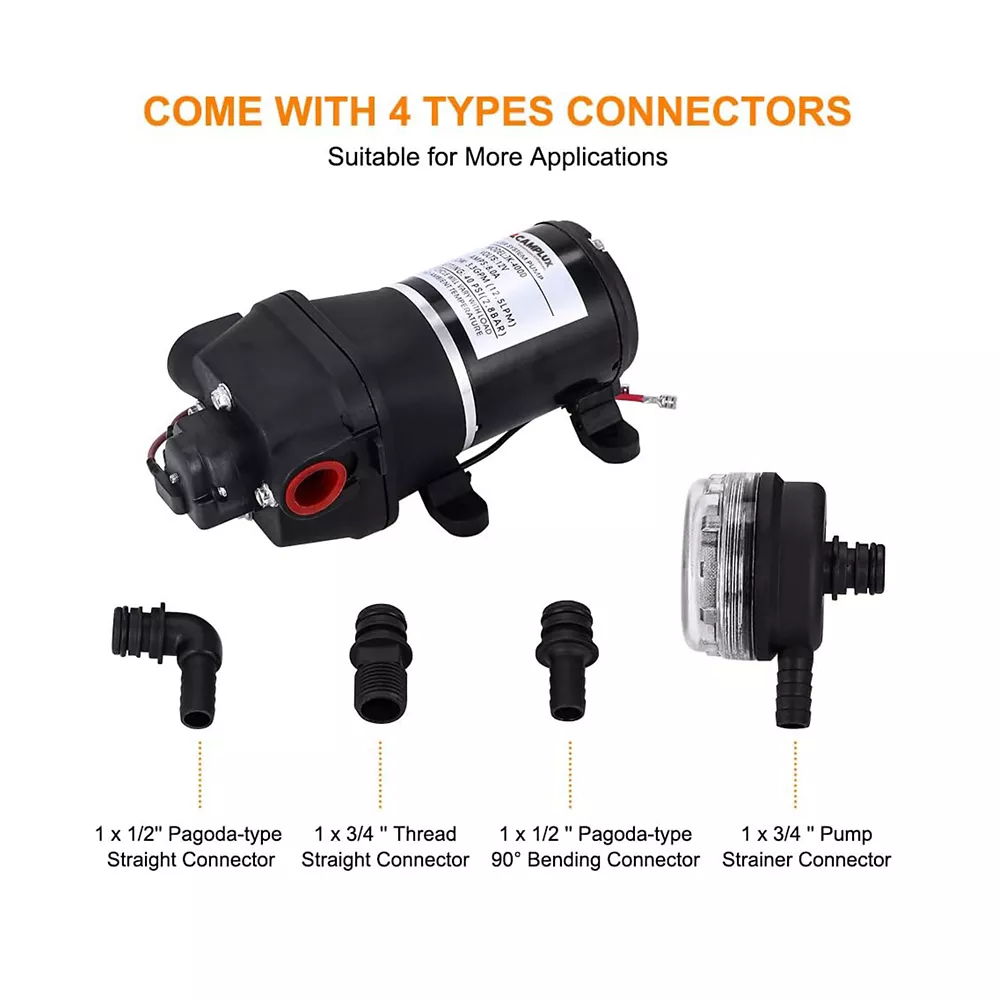

Includes 1 water pressure pump, (1) 1/2 in. barbed hose adaptor, (1) 1/2 in. male thread hose adaptor and 1 filter for debris
Can be mounted above tank, is able to run dry and is capable of self-priming up to 8 vertical ft.

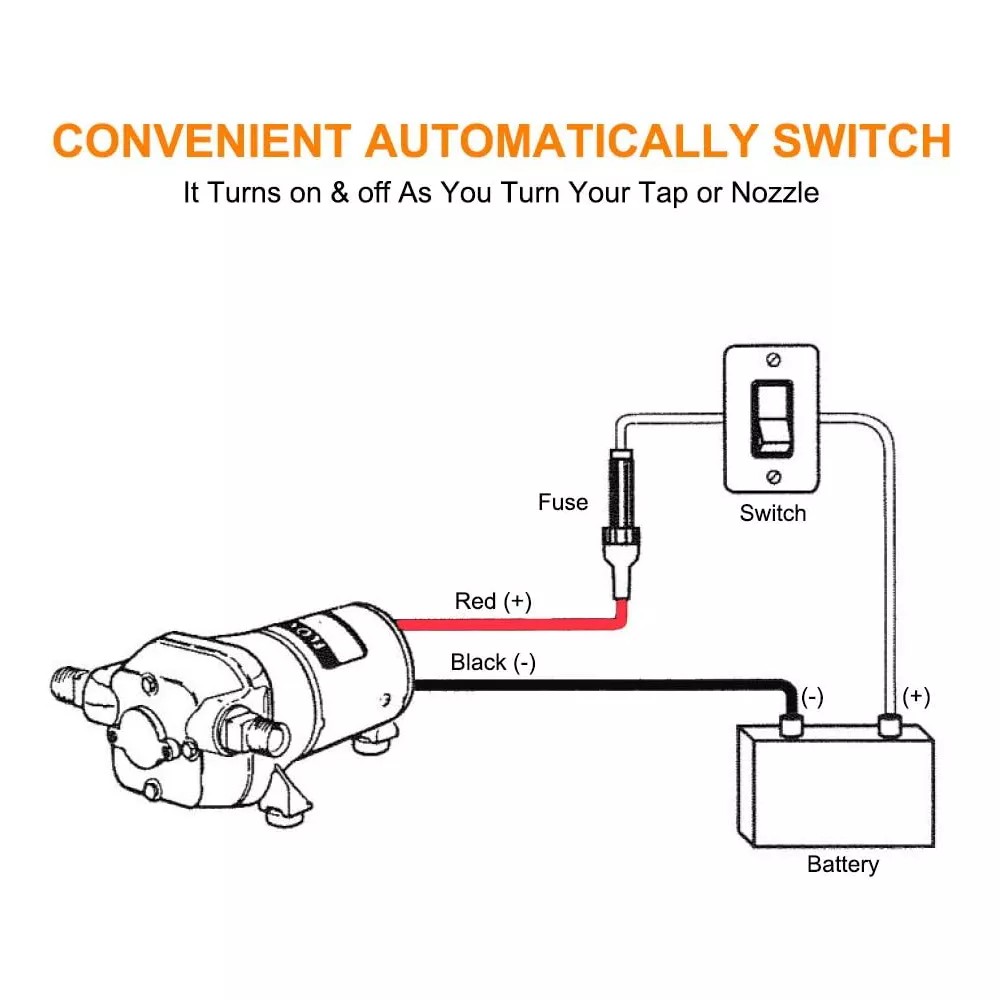

Built-in adjustable working pressure switch starts if the tap is turned on and stops if the tap is turned off

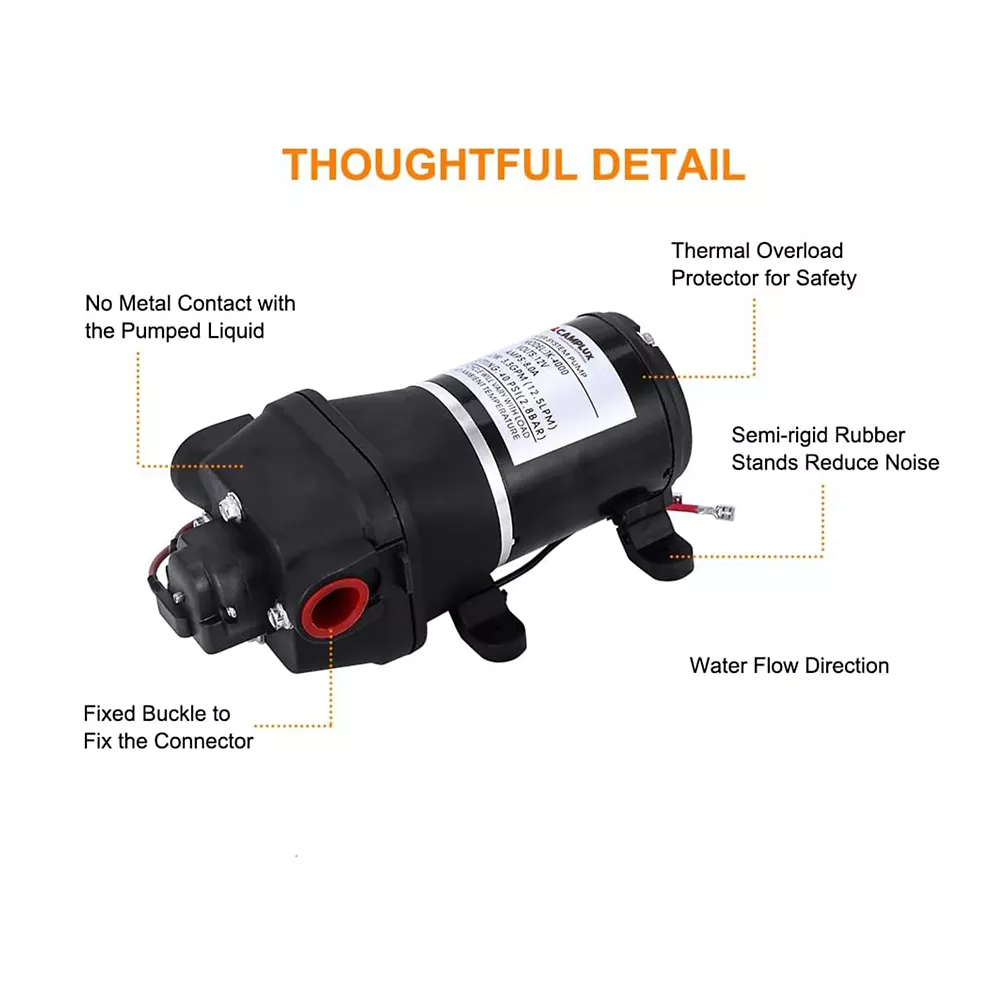

Patented design delivers smooth and consistent flow at all ranges of operation, while drawing low current; sealed switches and electro coating to inhibit corrosion; soft rubber mounting tabs to reduce vibrations
Outdoor electric supply: 12V DC, solar panels or car batteries
12V DC, 8A, 3.3 GPM; Inlet/Outlet: 1/2 in. diameter; default 40 PSI (2.8 bar, adjustable)

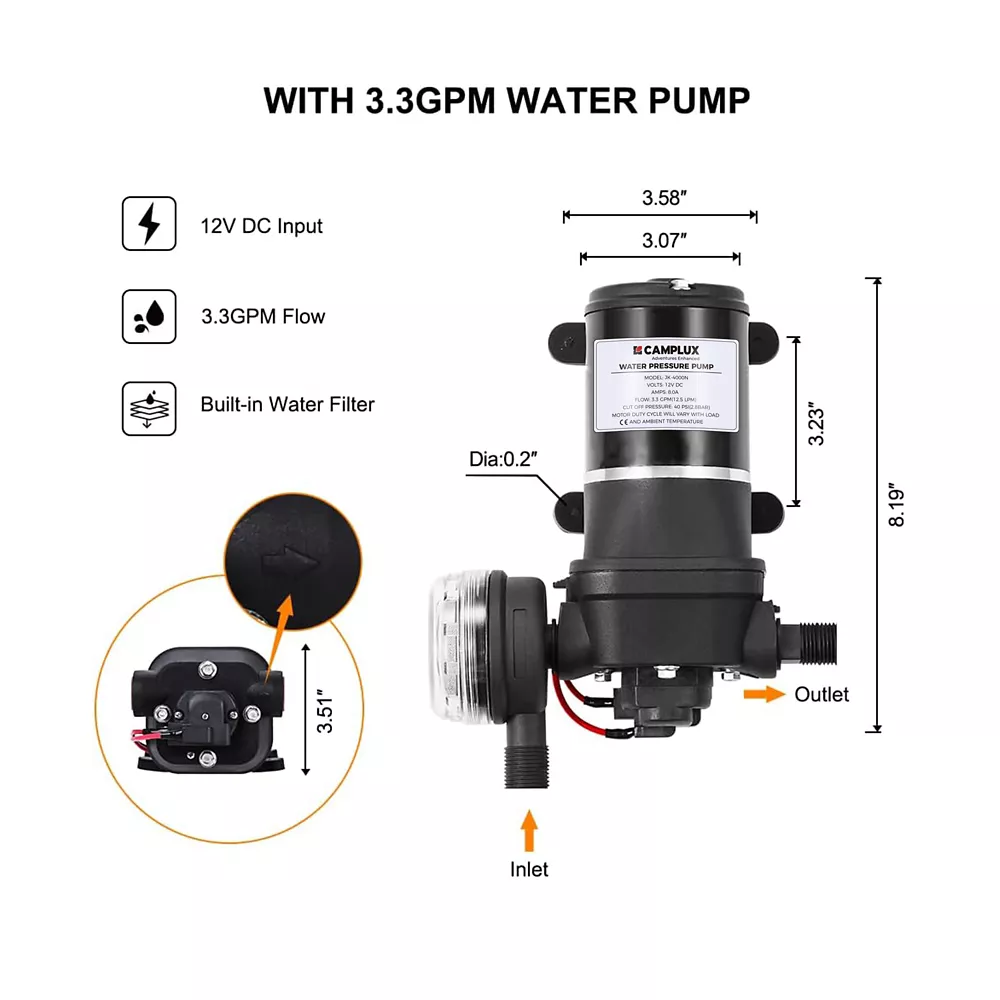

Dimensions: 8.2 in. x 3.6 in. x 3.5 in.; weight: 4.7 lb.

Camplux 12V Water Pressure Diaphragm Pump with Filter 3.3 GPM Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps

Specification	Description
Brand	Camplux
Country of Origin	Imported
Amperage	8 Amps
Body Material	Other
Compatible Pipe Material	Plastic
Compatible Well Diameter	0 in.
Discharge Connection	None
Discharge Diameter	3/4 in.
Discharge Rate at 0 ft.	3.3 GPM
Discharge Rate at 25 ft.	2.5 GPM
Discharge Rate at 50 ft.	2 GPM
Features	Self Priming
Head Pressure	40 PSI
Horsepower	3.3GPM
Inlet Connection	Threaded Male
Inlet Diameter	1 2 in.
Maximum Flow Rate	3.3 GPM
Maximum Head Lift	8 in.
Maximum Operating Depth	0 in.
Maximum Operating Temperature	140degF
Minimum Operating Temperature	32degF
Power Cord Length	0 in.
Power Type	12 Volt
Product Height	5 in.
Product Length	4.2 in.
Product Weight	4 lb.
Product Width	13.5 in.
Motor Type	DC motor
Voltage	12V
Warranty	1 Year
Manufacturer PartNumber	JK-4000

Camplux 12V Water Pressure Diaphragm Pump with Filter, 3.3 GPM Specifications expand/collapse Specification Description Brand Camplux Country of Origin Imported Amperage 8 Amps Body Material Other Compatible Pipe Material Plastic Compatible Well Diameter 0 in. Discharge Connection None Discharge Diameter 3/4 in. Discharge flow at 0 ft. 3.3 GPM Discharge Rate at 25 2.5 GPM Discharge Rate at 50 ft. 2 GPM Features Self-Priming Head Pressure 40 PSI Power 3.3 GPM Inlet Connection Male Threaded Inlet Diameter 1 2 in. Maximum flow 3.3 GPM Maximum lift height 8 in. Maximum Operating Depth 0 in. Maximum Operating Temperature 140 degF Minimum Operating Temperature 32 degF Power Cord Length 0 in. Power Type 12 Volt Product Height 5 in. Product length 4.2 in. Product weight 4 lbs. Product width 13.5 in. Motor Type DC Motor Voltage 12V Warranty 1 Year Manufacturer Part Number JK-4000
