Champion Power Equipment 12V Electric Truck/SUV Winch Kit 10 000 lb Capacity ATV & UTV Winches Electric Winches
The Champion Power Equipment Truck/SUV Winch Kit with a 3.6 horsepower (12-volt) DC series wound motor is designed for powerful and reliable winching with your truck or SUV. With a gear reduction ratio of 216:1, this winch boasts a line speed of 3.9 feet per minute with a full load, and 15.7 feet per minute with no load. The 85 ft. by in. galvanized, super-duty aircraft cable is less prone to fraying, even when used in highly abrasive terrain, such as in rocks, mud, or sand. This incredibly strong cable is guided onto the 2.5 by 8.8 in. drum through the reliable roller fairlead to maximize the life of the cable. The efficient three-stage planetary gear system, dynamic braking system and free spooling clutch along with the hand-held quick-connect remote control and 12 ft. cable offer excellent control while using the winch kit. The snatch block included in the winch kit can be used to increase winching power or to aid in angled pulls. With a rated line pull of 10,000 pounds, this winch installs quickly with our Speed Mount 2 in. hitch adapter, which features convenient 3-position adjustable handles that also serve as side guards to protect your winch. The Speed Mount hitch adapter is designed for quick and easy mounting, transportation and storage. To ensure you'll have everything you need to start winching, in addition to the Speed Mount hitch adapter, you'll also receive a roller fairlead, a hand-held quick-connect remote control, a snatch block and 6 ft. battery lead cables in the truck/SUV winch kit. Champion Support and our nationwide network of service centers will back up your purchase with a 2-year limited warranty and FREE lifetime technical support.- 10,000 lb. rated line pull in the winch kit is powered by a 3.6-horsepower (12-volt) DC series wound motor
- Line speed of 3.9 feet per minute with a full load, and 15.7 feet per minute with no load

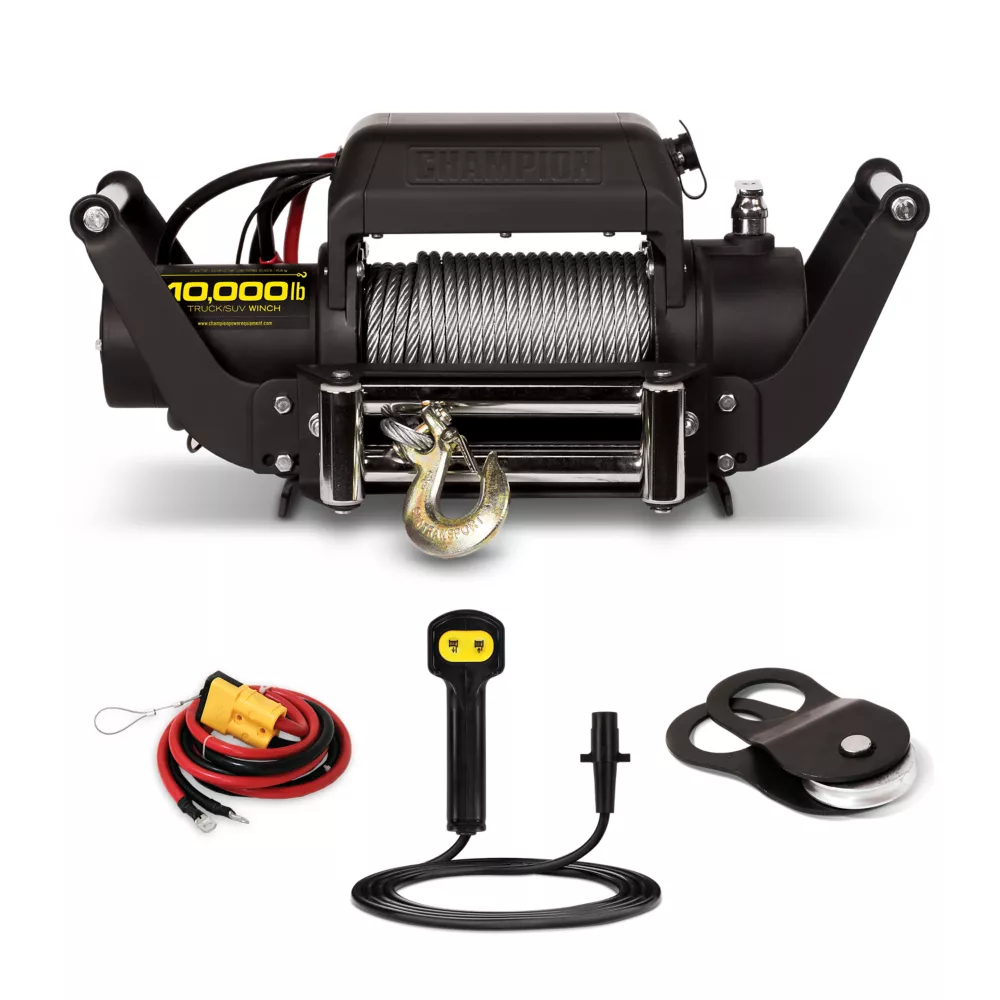

- Speed Mount 2 in. hitch adapter, included hand-held quick-connect remote control, 6 ft. battery lead cables and roller fairlead in the winch kit create an easier than ever winching experience
- Roller fairlead in the winch kit creates a safe and smooth pull with the 85 ft. super-duty aircraft cable, plus the included snatch block can aid in angled pulls and increase winching power
- Champion Support includes 2-year limited warranty with FREE lifetime technical support from dedicated experts
- Three-stage planetary gear system with the free-spooling clutch and handlebar-mounted remote control for control while using the truck/SUV winch kit
- Dynamic braking of the winch drum provides intense stopping power
- Snatch block included with the truck/SUV winch kit can be used to increase winching power
Champion Power Equipment 12V Electric Truck/SUV Winch Kit 10 000 lb Capacity ATV & UTV Winches Trailers & Towing> Winches & Recovery> Electric Winches> ATV & UTV Winches
| Specification | Description |
|---|---|
| Brand | Champion Power Equipment |
| Country of Origin | Imported |
| Braking Mechanism | Dynamic |
| Capacity | 10,000 lb. |
| Clutch Type | Free-spooling |
| Compatibility | Truck/SUV |
| Engine Brand | Champion Power Equipment |
| Engine Displacement | N/A |
| Engine Type | Electric |
| Fairlead Included | Yes |
| Fairlead Type | 4-Way Roller |
| Features | Rated Line Pull - 10,000; Gear Reduction 216:1; |
| Gear Ratios | 216:1 |
| Horsepower | 3.6 HP |
| Line Diameter | 3/8 in. |
| Line Length | 85 ft. |
| Line Pull Capacity | 10,000 lb. |
| Line Speed | 3.9 FPM with a full load and 15.7 FPM with no load |
| Mounting Bolt Length | 10 in. |
| Mounting Bolt Width | 4.5 in. |
| Number of Speeds | 3 |
| Power Type | 12 Volt |
| Primary Material | Steel |
| Product Height | 5.60 in. |
| Product Length | 21.90 in. |
| Product Weight | 116.80 lb. |
| Product Width | 10.50 in. |
| Line Type | Galvanized |
| Voltage | 12V |
| Warranty | 2 Year Limited |
| Motor Type | Electric |
| Manufacturer PartNumber | 11006 |
