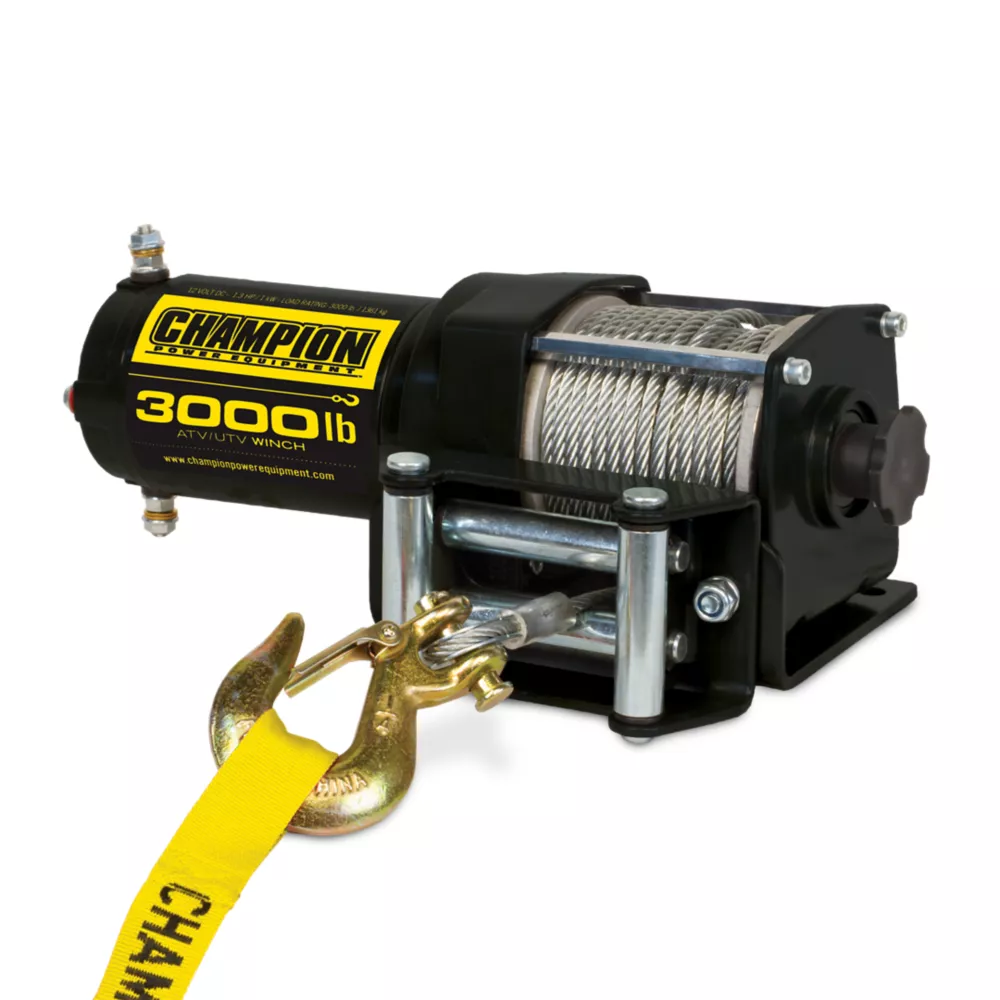

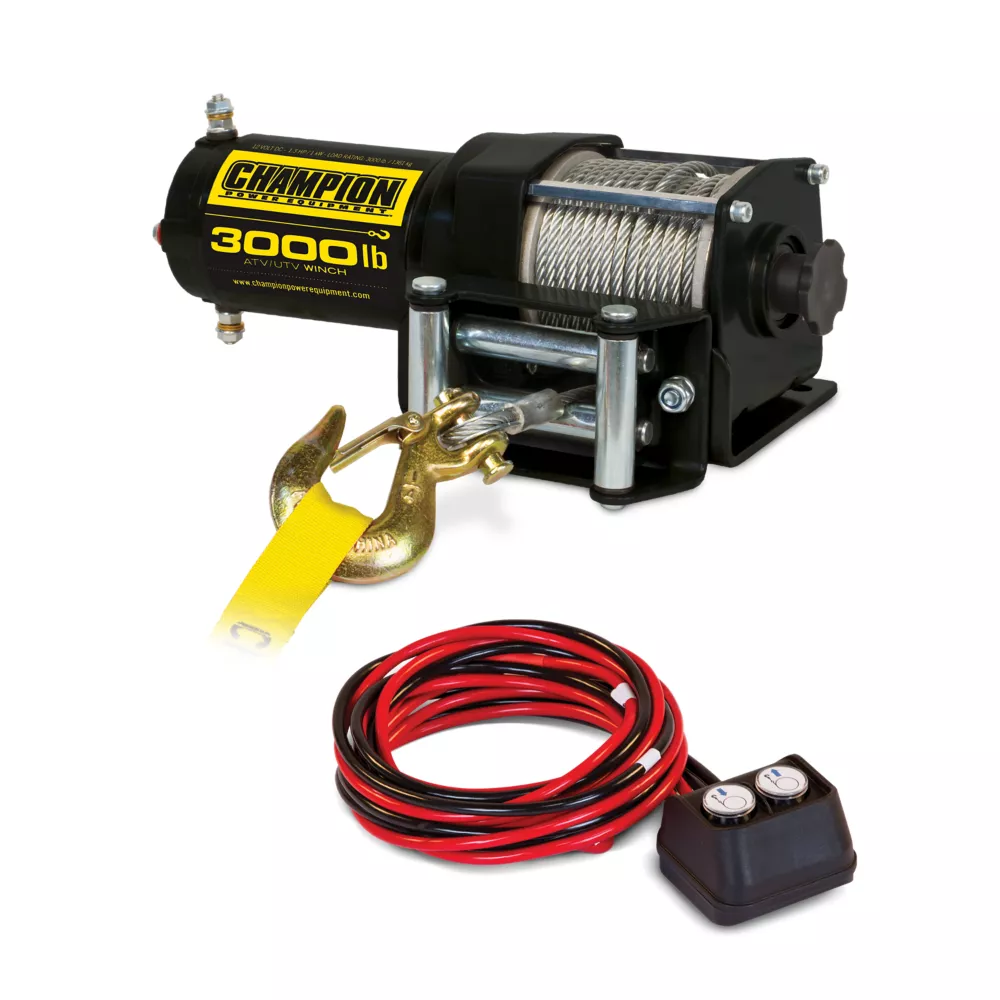

Champion Power Equipment 3 000 lb ATV/UTV Winch Kit ATV & UTV Winches Trailers & Towing

The Champion Power Equipment ATV/UTV Winch Kit includes everything you need to start winching, including a mounting channel, a roller fairlead and a remote control. With a rated line pull of 3,000 pounds, mount this winch on your ATV or side by side with the mounting channel to quickly harness the strength of its 1.3 horsepower (12-volt) DC permanent magnet motor. The 46 ft. by 3/16 in. galvanized, super-duty aircraft cable in the winch kit is less prone to fraying, even when used in highly abrasive terrain, such as in rocks, mud, or sand. This incredibly strong cable is guided onto the 1.2 by 2.9 in. drum through the reliable roller fairlead to maximize the life of the cable. The three-stage planetary gear system along with the free-spooling clutch and handlebar-mounted remote control offer excellent control while winching. Designed with your safety in mind, this winch features dynamic braking of the winch drum so you'll have the stopping power you need for each job. With a gear reduction ratio of 153:1, the winch boasts a line speed of 3.9 feet per minute with a full load, and 11.2 feet per minute with no load. Accompanied by the heavy-duty clevis hook and handy strap, this compact and lightweight winch kit is anything but lightweight when it comes to power. Offering much more than a motor and a spool of rope, the Champion 3000 lb. ATV/UTV Winch Kit is a necessary tool for any situation you might encounter. Champion Support and our nationwide network of service centers will back up your purchase with a 2-year limited warranty and FREE lifetime technical support.

3,000 lb. rated line pull in the winch kit is powered by a 1.3 horsepower (12-volt) DC motor
Line speed of 3.9 feet per minute with a full load, and 11.2 feet per minute with no load

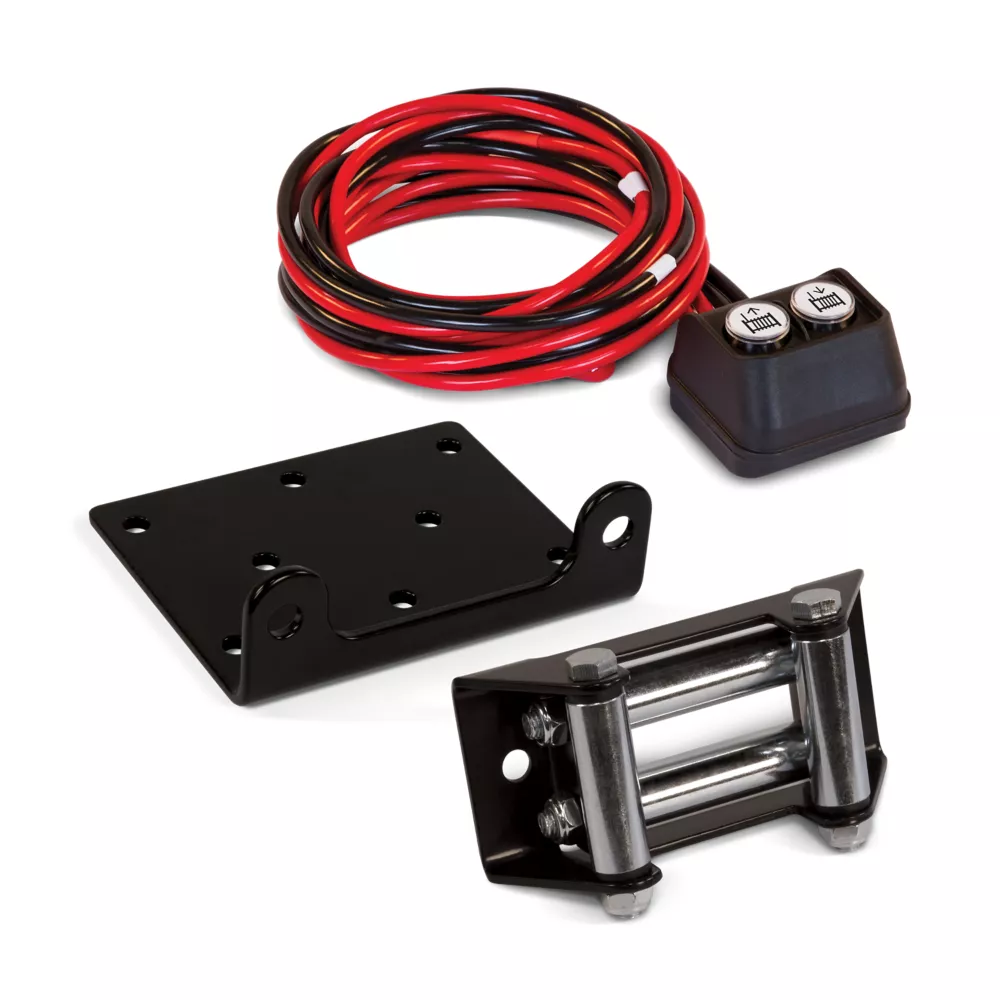

Mounting channel, remote control and roller fairlead included in the ATV/UTV winch kit create an easier than ever winching experience
Roller fairlead creates a safe and smooth pull with the dependable 46 ft. galvanized super-duty aircraft cable which is able to withstand abrasive terrain without fraying
Champion Support includes 2-year limited warranty with FREE lifetime technical support from dedicated experts
Dynamic braking of the winch drum provides intense stopping power
Three-stage planetary gear system with the free-spooling clutch and handlebar-mounted remote control for control over the ATV/UTV winch kit

Champion Power Equipment 3 000 lb ATV/UTV Winch Kit ATV & UTV Winches Trailers & Towing> Winches & Recovery> Electric Winches> ATV & UTV Winches

Specification	Description
Brand	Champion Power Equipment
Country of Origin	Imported
Braking Mechanism	Dynamic
Brand Compatibility	Champion
Clutch Type	Free-spooling
Engine Brand	Champion Power Equipment
Engine Displacement	0 N/A
Engine Type	Electric
Features	Fairlead Included, Remote Control
Gear Ratios	153:1
Horsepower	1.3 HP
Line Capacity	3/16 in. x 46 ft.
Line Diameter	3/16 in.
Line Length	45.9 ft.
Line Pull Capacity	3,000 lb.
Line Speed	3.9 FPM with a full load and 11.2 FPM with no load.
Model Compatibility	3000-lb. ATV/UTV Winch Kit
Mounting Bolt Length	3.1 in.
Mounting Bolt Width	3.1 in.
Number of Speeds	2
Power Type	12 Volt
Primary Material	Steel
Product Height	4.3 in.
Product Length	12 in.
Product Weight	19.8 lb.
Product Width	4.3 in.
Line Type	Galvanized
Voltage	12V
Warranty	2 Year Limited
Motor Type	Electric
Manufacturer PartNumber	13005

Champion Power Equipment 3000-lb. ATV/UTV Winch Kit Specifications Expand/Collapse Specification Description Brand Champion Power Equipment Country of Origin Imported Brake Mechanism Champion Brand Dynamic Compatibility Clutch Type Free-Spool Motor Brand Champion Power Equipment Motor Displacement 0 N/A Motor Type Electric Features Guide- cable included, remote control Gear ratios 153:1 Power 1.3 HP Line capacity 3/16 in. x 46 ft. Line diameter 3/16 in. Line length 45.9 ft. Line pulling capacity 3,000 lbs. Line speed 3.9 FPM at full load and 11.2 FPM at no load. Compatibility of 3,000 lb models. ATV/UTV Winch Kit Mounting Bolt Length 3.1 in. Mounting bolt width 3.1 in. Number of Speeds 2 Power Type 12 Volt Main Material Steel Product Height 4.3 in. Product length 12 in. Product weight 19.8 lbs. Product width 4.3 in. Line type Galvanized voltage 12 V 2-year limited warranty M typeelectric motor Manufacturer part number 13005
