Champion Power Equipment ATV/UTV Winch Kit 3 000 lb Capacity 4.3 FPM ATV & UTV Winches Trailers & Towing

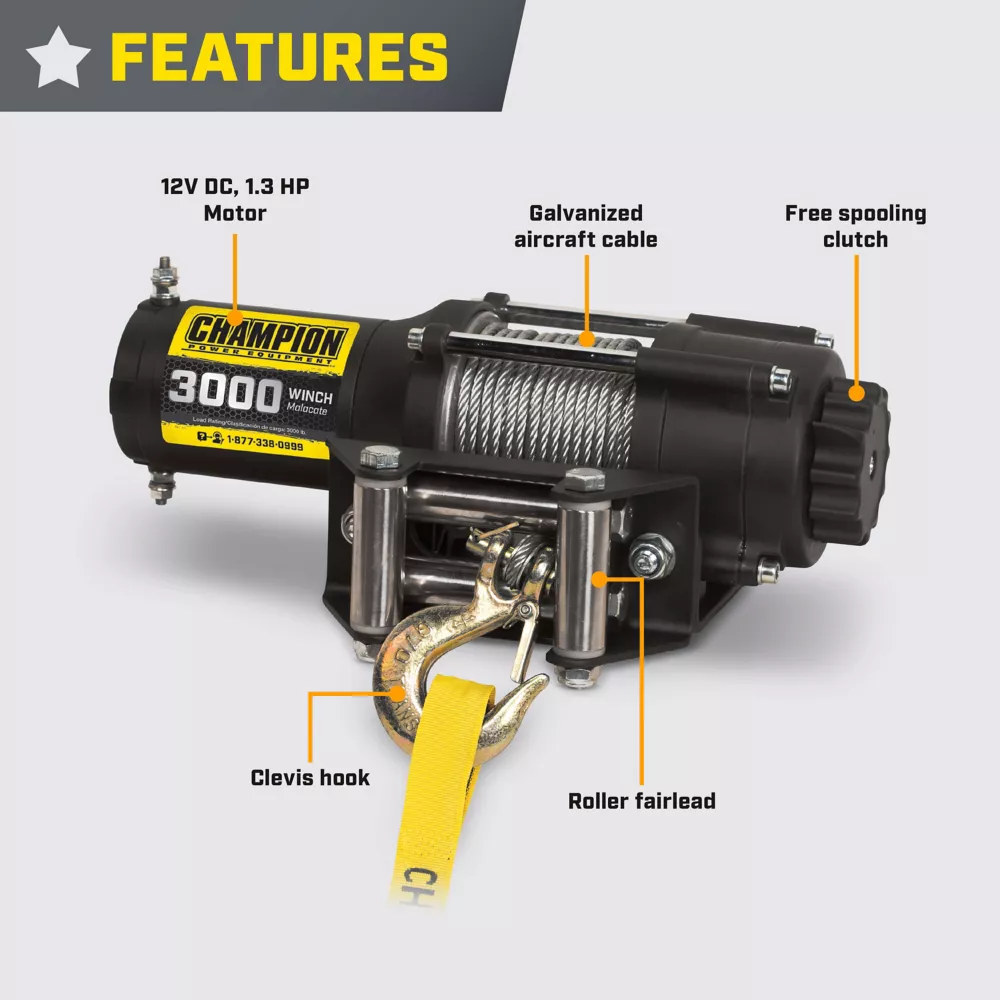

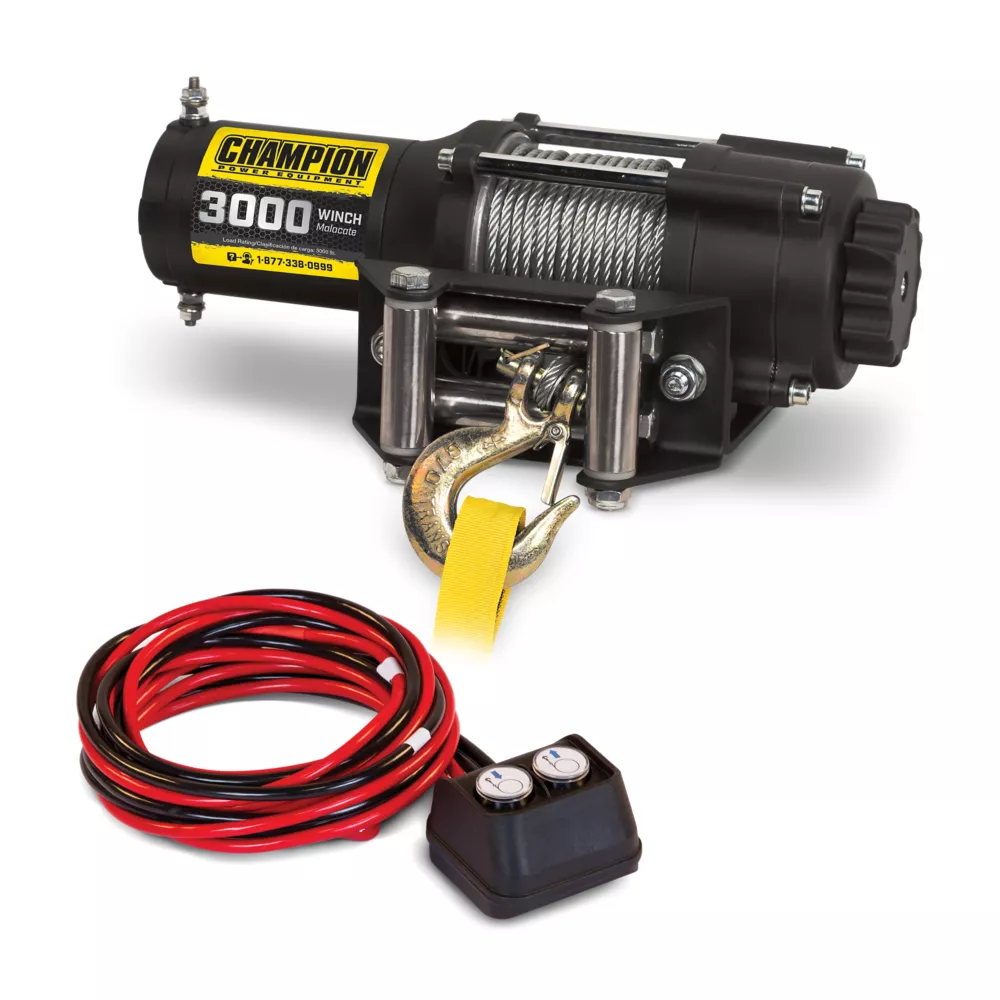

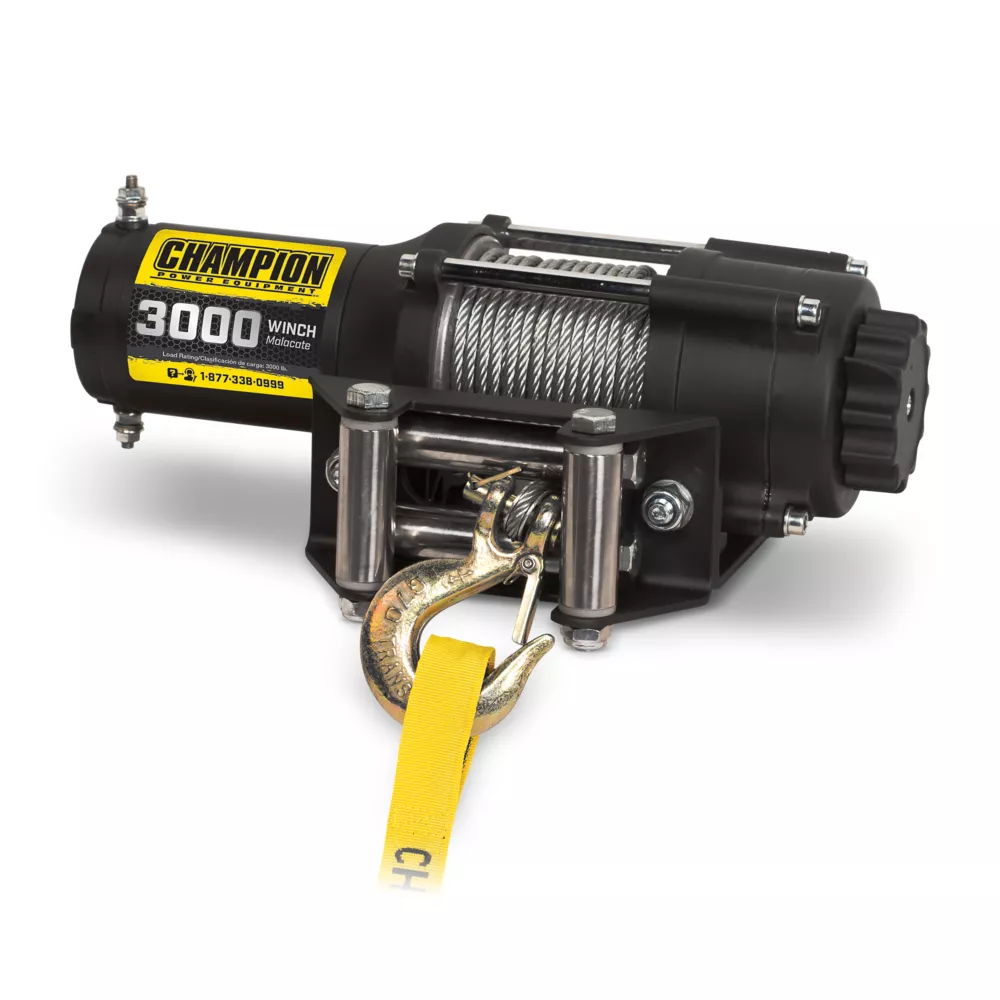

The Champion Power Equipment 3000-lb. ATV/UTV Winch Kit includes everything you need to start winching, including a mounting channel, a roller fairlead and a remote control. with a rated line pull of 3000 pounds, mount this winch on your ATV or side by side with the mounting channel to quickly harness the strength of its 1.3-horsepower (12-volt) DC permanent magnet motor. The 46-foot by 3/16-inch galvanized, super-duty aircraft cable is less prone to fraying, even when used in highly abrasive terrain, such as in rocks, mud, or sand. This incredibly strong cable is guided onto the 1.5 by 3.2-inch drum through the reliable roller fairlead to maximize the life of the cable. The three-stage planetary gear system along with the free-spooling clutch and handlebar-mounted remote control offer excellent control while winching. Designed with your safety in mind, this winch features dynamic braking of the winch drum so you'll have the stopping power you need for each job.

Powerful - 3000-lb. rated line pull powered by a 1.3-horsepower (12-volt) DC motor.
Efficient - Line speed of 4.3 feet per minute with a full load, and 8.9 feet per minute with no load.

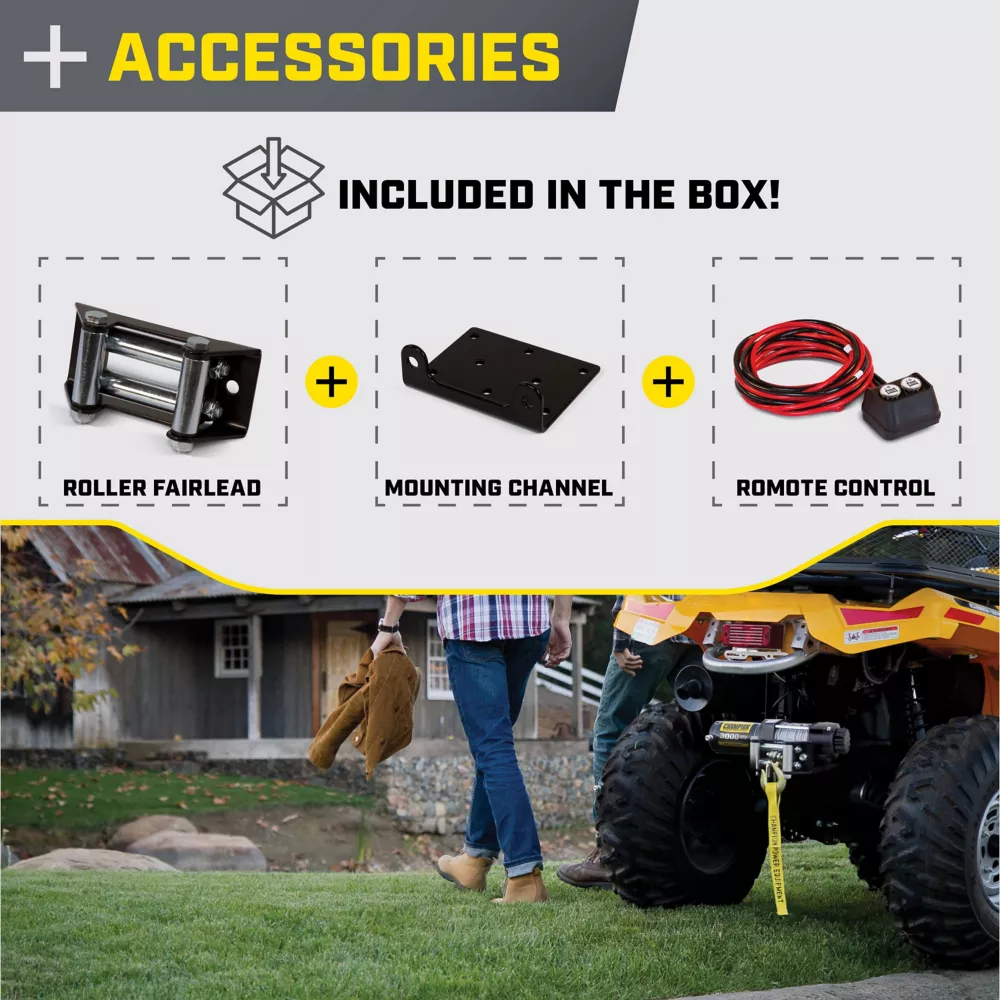

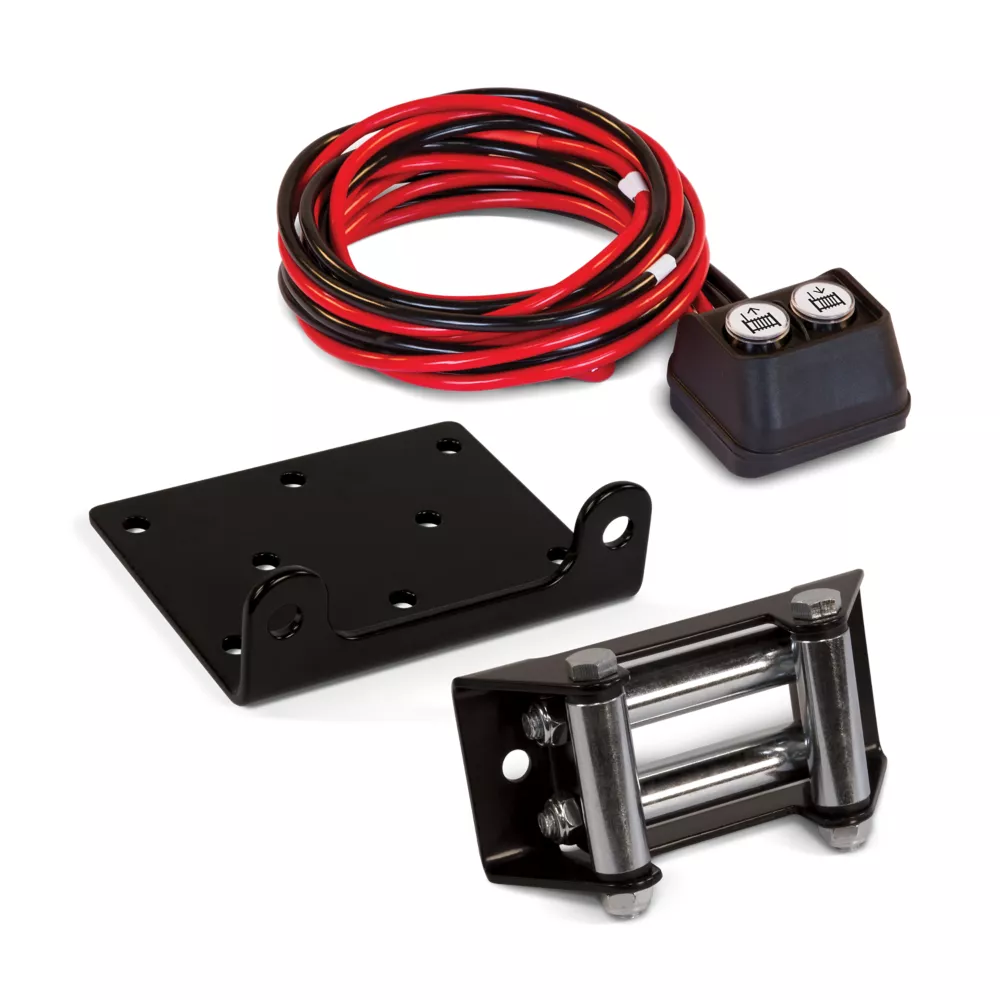

Convenient - Included mounting channel, remote control and roller fairlead create an easier than ever winching experience.
Hassle-Free - The roller fairlead creates a safe and smooth pull with the dependable 46-foot galvanized super-duty aircraft cable which is able to withstand abrasive terrain without fraying.
Reliable - Champion Support includes 2-year limited warranty with FREE lifetime technical support from dedicated experts

2 Year Limited Warranty

Champion Power Equipment ATV/UTV Winch Kit 3 000 lb Capacity 4.3 FPM ATV & UTV Winches Trailers & Towing> Winches & Recovery> Electric Winches> ATV & UTV Winches

Specification	Description
Brand	Champion Power Equipment
Country of Origin	Imported
Braking Mechanism	Dynamic
Brand Compatibility	Champion
Clutch Type	Free-spooling
Engine Brand	N/A
Engine Displacement	0 cc
Engine Type	None
Features	Cable Included, Fairlead Included, Remote Control
Gear Ratios	171:1 ratio
Handle Length	10.3 ft.
Horsepower	1.3 HP
Line Capacity	3/16 in. x 46 ft.
Line Diameter	3/16 in.
Line Length	45.9 ft.
Line Pull Capacity	3,000 lb.
Line Speed	4.3 FPM
Maximum Operating Range	10.3 ft.
Model Compatibility	ATV/UTV
Mounting Bolt Length	4.9 in.
Mounting Bolt Width	3 in.
Number of Speeds	2
Power Type	12 Volt, 12V
Primary Material	Steel
Product Height	4.2 in.
Product Length	12.7 in.
Product Weight	19.7 lb.
Product Width	4.1 in.
Line Type	Galvanized
Voltage	12V
Warranty	2 Year Limited
Motor Type	Electric
Manufacturer PartNumber	13004
