Champion Power Equipment ATV/UTV Winch Kit with Mini Rocker 4 000 lbs 14001 ATV & UTV Winches Electric Winches

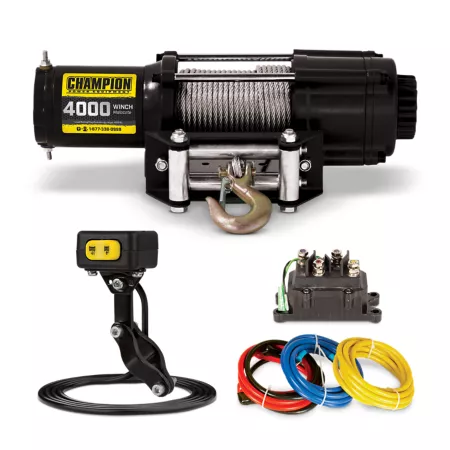

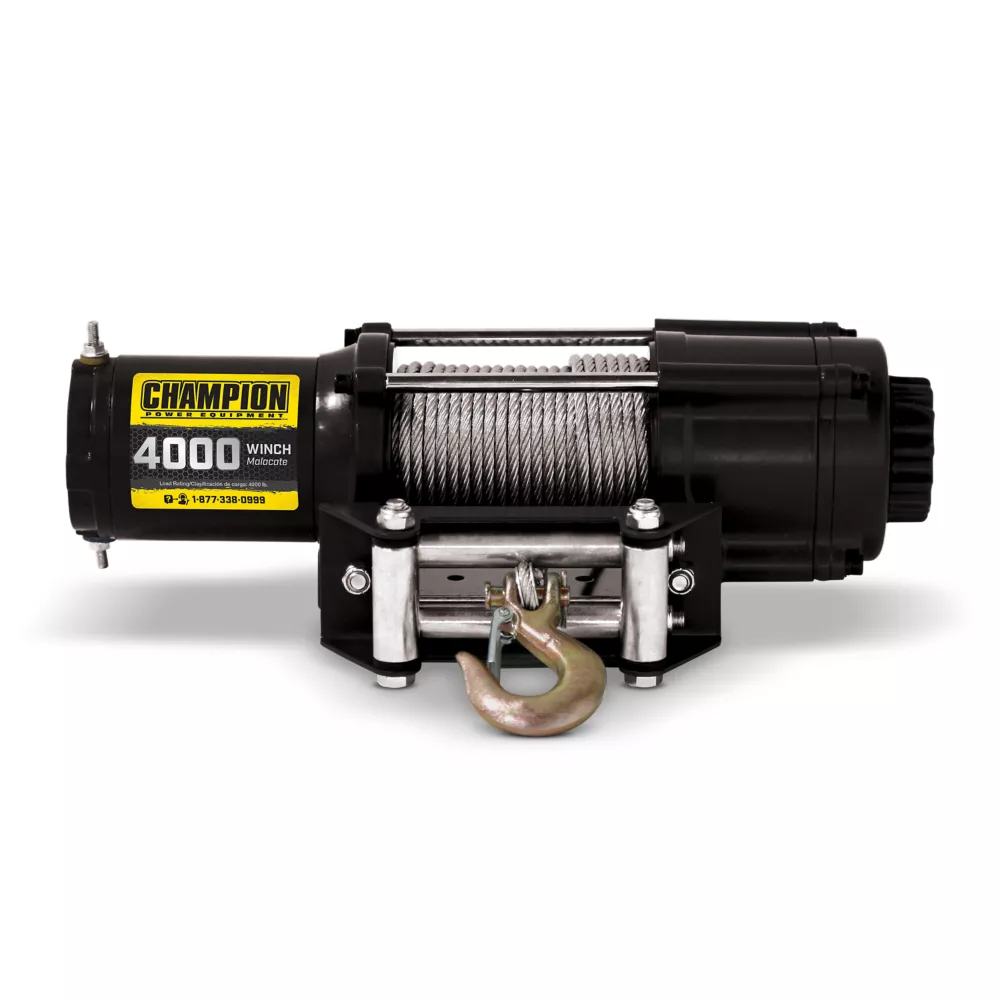

The Champion Power Equipment ATV/UTV Winch Kit with Mini-Rocker includes everything you need to start winching, including cables and contactor, a mounting channel, roller fairlead and a wiring kit with contactor and mini-rocker handlebar switch. This winch kit is the perfect combination of power and performance to use with your ATV, trailer, boat or snowmobile. With a rated line pull of 4,000 pounds, mount this winch on your ATV or side by side with the mounting channel to quickly harness the strength of its 1.4 horsepower (12-volt) DC permanent magnet motor. The 49 ft. by 7/32 in. galvanized, super-duty aircraft cable is less prone to fraying, even when used in highly abrasive terrain, such as in rocks, mud, or sand. This incredibly strong cable is guided onto the 1.7 by 3.1 in. drum through the reliable roller fairlead to maximize the life of the cable. The three-stage planetary gear system along with the free-spooling clutch and ergonomic mini-rocker handlebar switch offer excellent control while winching. Designed with your safety in mind, this winch features dynamic braking of the winch drum so you'll have the stopping power you need for each job. With a gear reduction ratio of 180:1, the winch boasts a line speed of 3.3 feet per minute with a full load, and 12.8 feet per minute with no load. Accompanied by the heavy-duty clevis hook and handy strap, this compact and lightweight winch kit is anything but lightweight when it comes to power. Offering much more than a motor and a spool of rope, the Champion 4,000 lb. ATV/UTV Winch Kit is a necessary tool for any situation you might encounter. Champion Support and our nationwide network of service centers will back up your purchase with a 2-year limited warranty and FREE lifetime technical support.

4000 lb. rated line pull powered by a 1.4 horsepower (12-volt) DC motor
Line speed of 3.3 feet per minute with a full load, and 12.8 feet per minute with no load

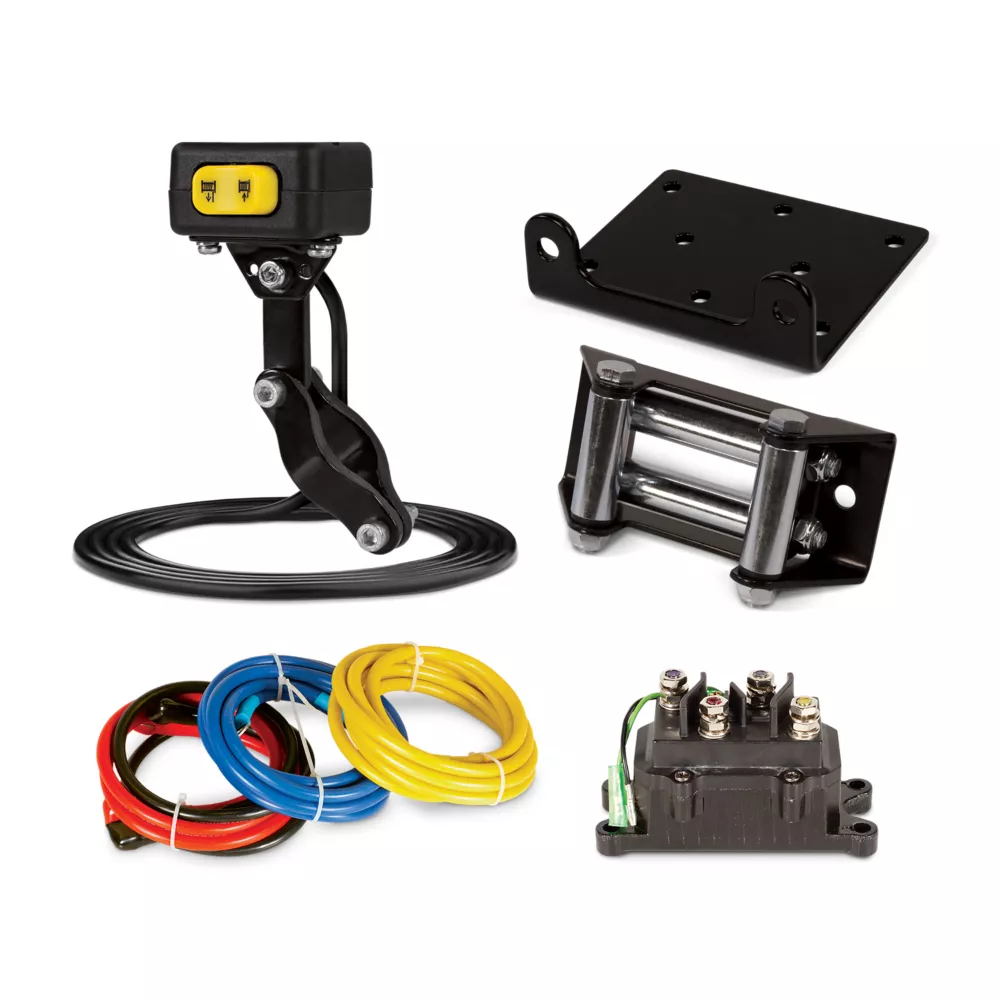

Mounting channel, roller fairlead and wiring kit with contactor and mini-rocker handlebar switch included in the ATV/UTV winch kit create an easier than ever winching experience
Roller fairlead in the ATV/UTV winch kit creates a safe and smooth pull with the dependable 49 ft. galvanized super-duty aircraft cable which is able to withstand abrasive terrain without fraying
Champion Support includes 2-year limited warranty with FREE lifetime technical support from dedicated experts
Three-stage planetary gear system with the free-spooling clutch and ergonomic mini-rocker handlebar switch offer control over the winch kit
Dynamic braking of the winch drum for intense stopping power
Heavy-duty clevis hook and handy strap make the winch kit compact and lightweight

Champion Power Equipment ATV/UTV Winch Kit with Mini Rocker 4 000 lbs 14001 ATV & UTV Winches Trailers & Towing> Winches & Recovery> Electric Winches> ATV & UTV Winches

Specification	Description
Brand	Champion Power Equipment
Country of Origin	Imported
Braking Mechanism	Dynamic
Brand Compatibility	Champion
Clutch Type	Free-spooling
Engine Brand	Champion Power Equipment
Engine Displacement	0 cc
Engine Type	Electric
Features	Fairlead Included, Remote Control
Gear Ratios	171:1
Horsepower	1.4 HP
Line Capacity	7/32 in. x 49 ft.
Line Diameter	7/32 in.
Line Length	49 ft.
Line Pull Capacity	4,000 lb.
Line Speed	3.3 FPM
Model Compatibility	4000-lb. ATV/UTV Winch Kit
Mounting Bolt Length	4.9 in.
Mounting Bolt Width	3 in.
Number of Speeds	2
Power Type	12 Volt
Primary Material	Metal

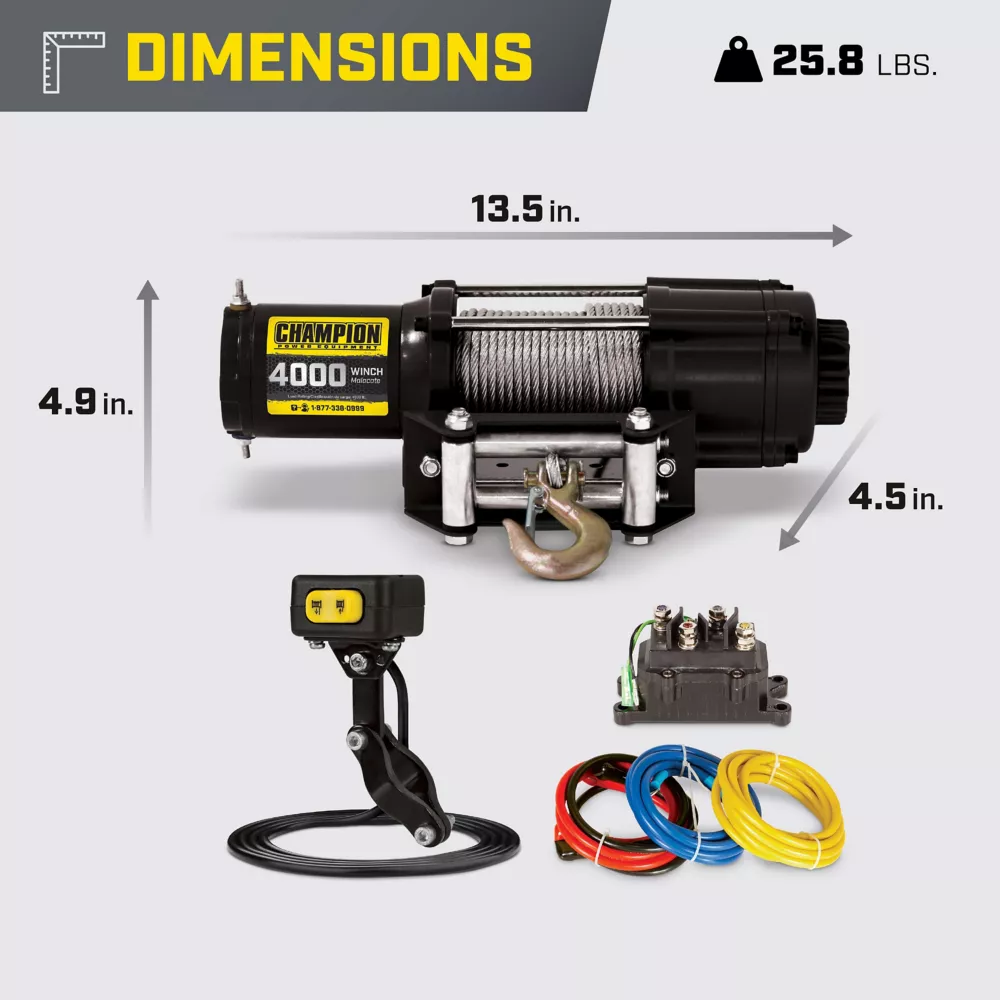

Product Height	4.90 in.
Product Length	13.50 in.
Product Weight	25.8 lb.
Product Width	4.5 in.
Line Type	Galvanized
Voltage	12V
Warranty	2 Year Limited
Motor Type	Electric
Manufacturer PartNumber	14001

Champion Power Equipment ATV/UTV Winch Kit with Mini-Rocker, 4,000 lb., 14001 Specifications expand/collapse Specification Description Brand Champion Power Equipment Country of origin Imported braking mechanism Champion brand dynamic compatibility Clutch type Free-spool motor Brand Champion Power Equipment Engine displacement 0 cc Engine type Electric Features Cable guide included , remote control Gear ratios 171:1 Power 1.4 HP line capacity 7/32 in. x 49 ft. Line diameter 7/32 in. Line length 49 ft. Line pulling capacity 4,000 lbs. Line speed 3.3 FPM Model compatibility 4,000 lb. ATV/UTV Winch Kit Mounting Bolt Length 4.9 in. Mounting bolt width 3 in. Number of Speeds 2 Power Type 12 Volt Main Material Metal Product Height 4.90 in. Product length 13.50 in. Product weight 25.8 lbs. Product width 4.5 in. Line Type Galvanized Voltage 12V Warranty 2 Year Limited Electric Motor Type Manufacturer Part Number 14001
