Champion Power Equipment XL Synthetic Rope Winch Kit for ATV and UTV 5 500 lb ATV & UTV Winches Electric Winches

The Champion Power Equipment 100723 5500-lb. ATV/UTV Winch includes everything you need to start winching. With a rated line pull of 5500 pounds, mount this winch on your ATV or side by side with the included mounting plate to quickly harness the strength of its 1.7-horsepower (12-volt) DC permanent magnet motor. Made from hi-tech polyethylene, the high flexibility and low weight of synthetic rope prevent kinking, plus it won't fray or curl. Synthetic rope stores less kinetic energy and will not recoil with as much force as steel, and if it breaks, it can be repaired in the field, plus it floats so water recovery is easier. Since it's free of wire splinters or burrs often found in steel rope, there's less chance of injury. Designed with a stainless steel thimble and protective sleeve, the 50-feet by 3/16-inch synthetic winch rope is guided onto the drum through the fairlead. Featuring a black anodized finish, the lightweight aluminum hawse fairlead is precisely machined to maximize the life of the synthetic rope. Features a positive battery cable with a built-in, self-resetting circuit breaker designed to protect the winch motor from an overweight pull or long full weight pull failures. The three-stage planetary gear system along with the handlebar-mounted remote control and free-spooling clutch offer excellent control while winching. With a gear reduction ratio of 166:1, the winch boasts a line speed of 2.0 feet per minute with a full load, and 12.8 feet per minute with no load. The drum measures 2.0 by 3.2 inches, and accompanied by the heavy-duty clevis hook and handy strap, this compact and lightweight tool is anything but lightweight when it comes to power. Offering much more than a motor and a spool of rope, the Champion 5500-lb. winch kit is a necessary tool for any situation you might encounter. IP68 Water and Dust Proof Rated, Champion Support and our nationwide network of service centers will back up your purchase with a 2-year limited warranty and FREE lifetime technical support.

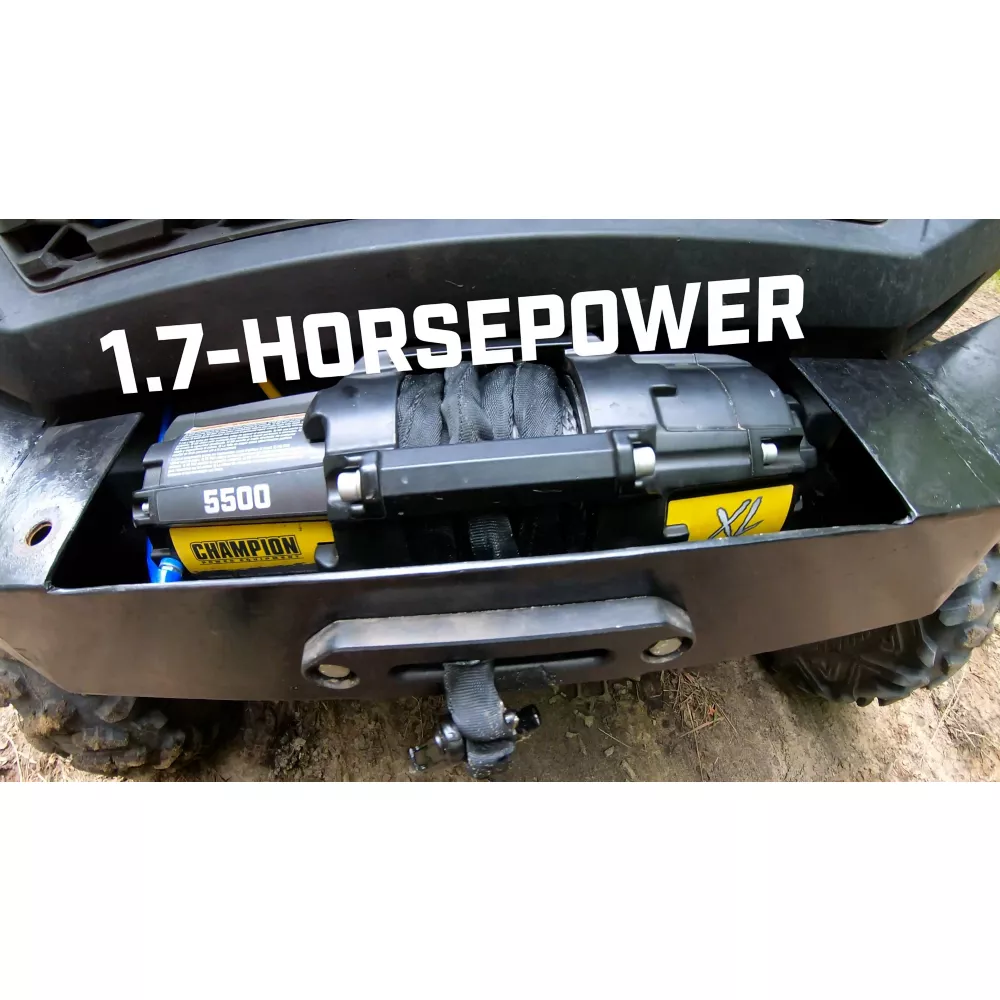

Powerful: 5500-lb. rated line pull powered by a 1.7-horsepower (12-volt) DC motor

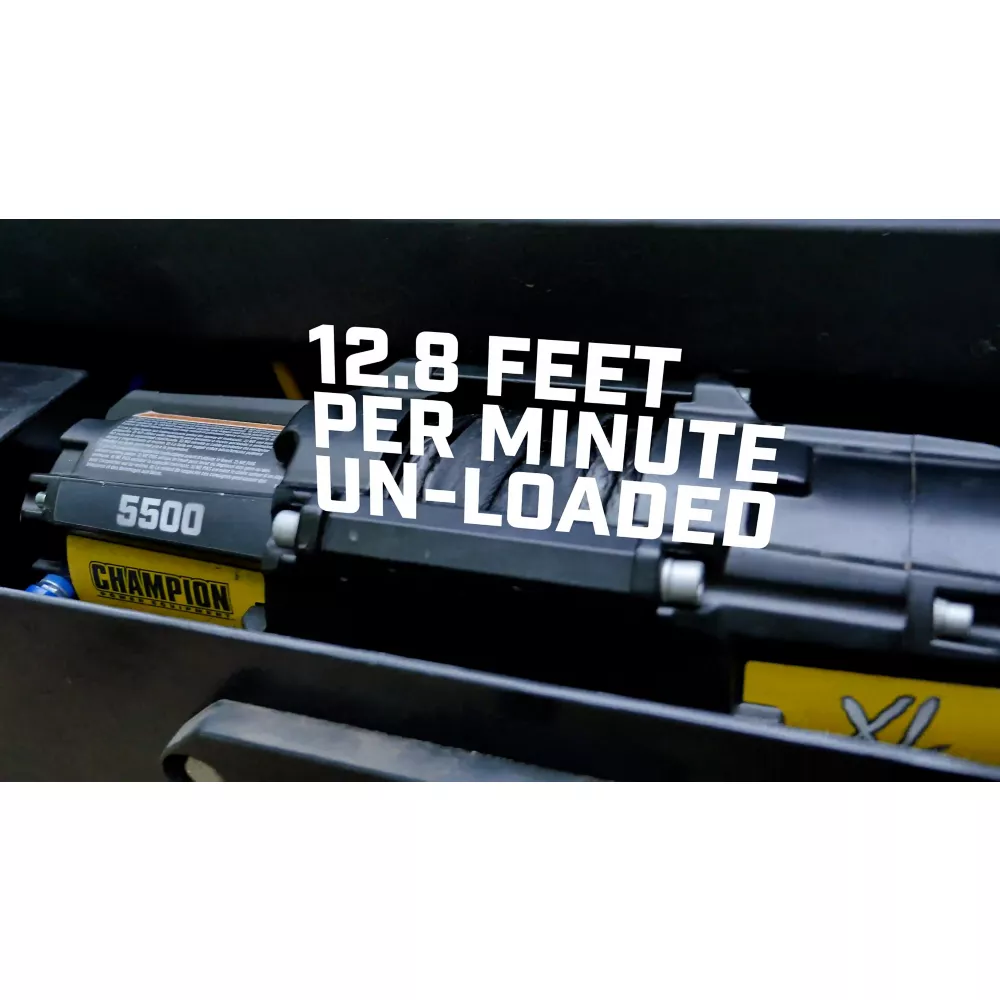

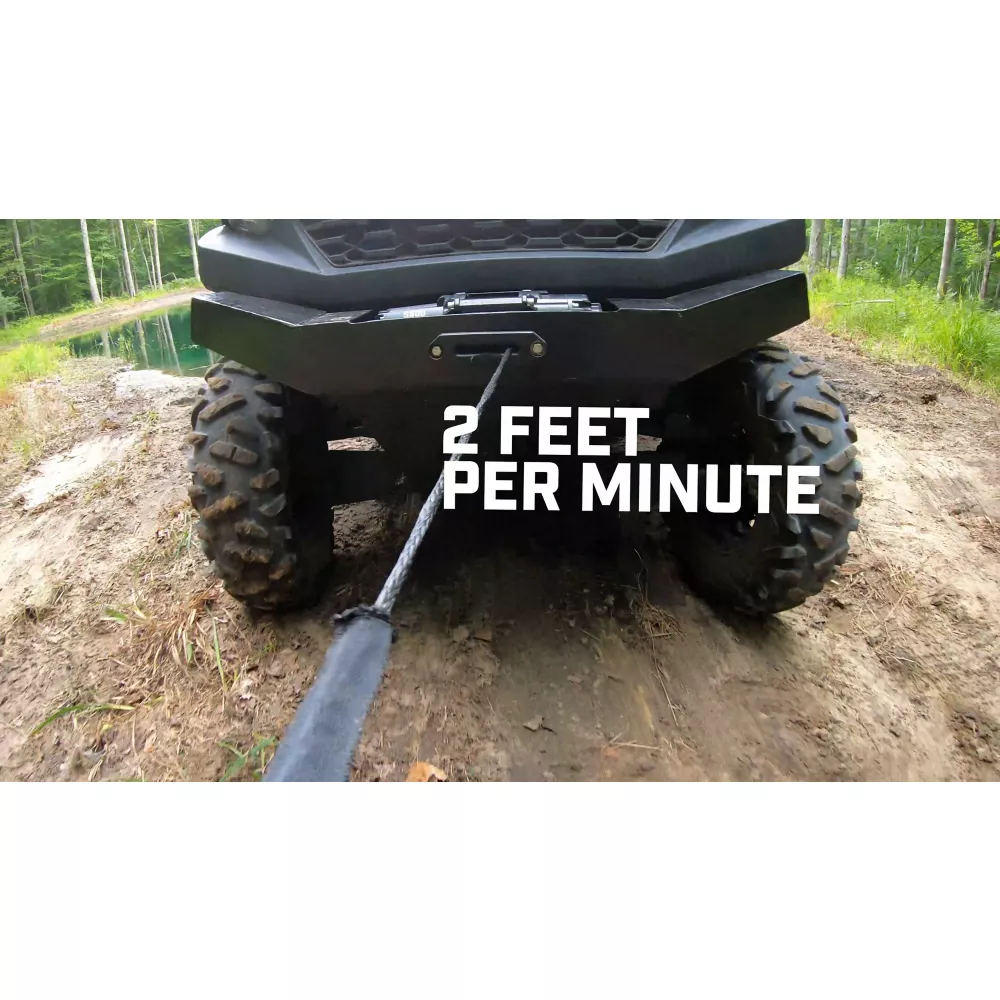

Efficient: Line speed of 2.0 feet per minute with a full load, and 12.8 feet per minute with no load
Convenient: Included remote control and free-spooling clutch create an easier than ever winching experience
Hasle-Free: The hawse fairlead creates a smooth pull with the safe, strong and flexible synthetic rope, which is lightweight, splinter-free, wont kink, has less recoil than steel and floats. The circuit breaker designed to protect the winch motor from an overweight pull or long full weight pull
Reliable: IP68 Water and Dust Proof Rated, Champion Support includes 2-year limited warranty with FREE lifetime technical support from dedicated experts

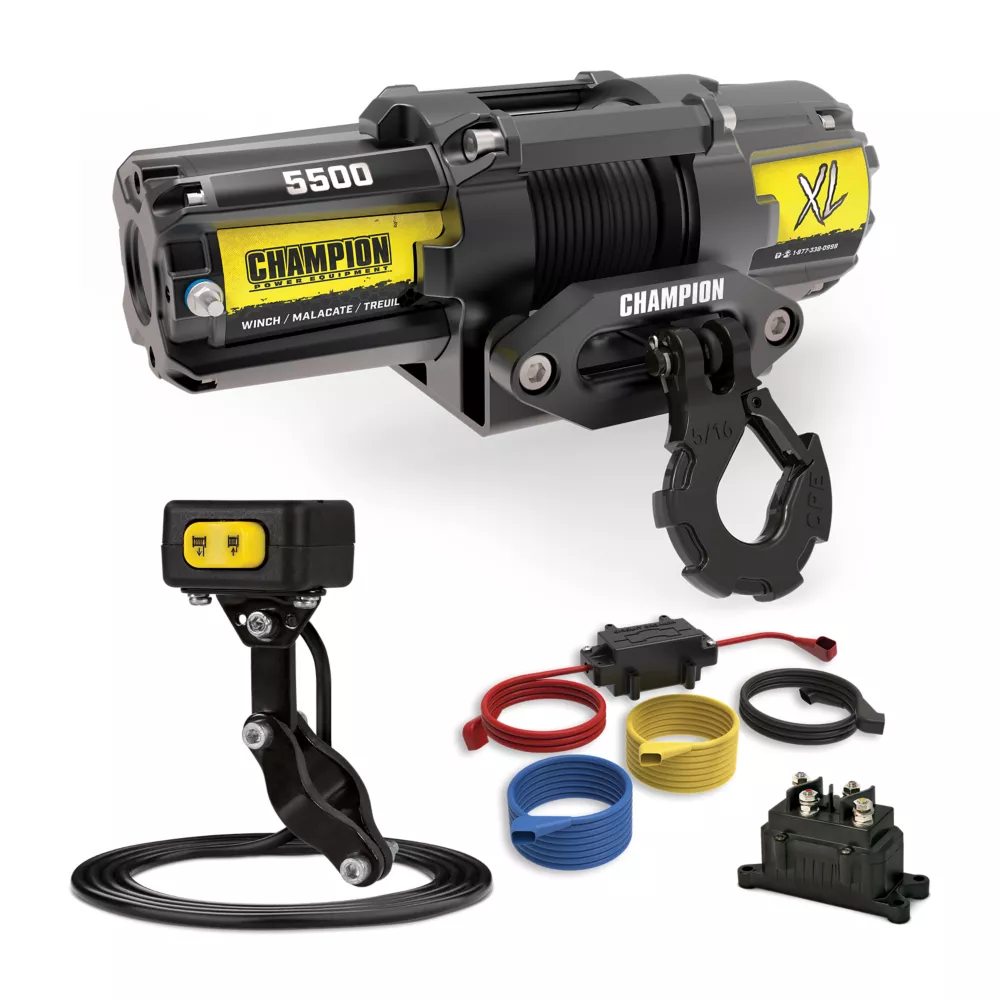

Items Included: Synthetic Rope, Hawse Fairlead, Mounting Plate, Mini-Rocker Switch, Contactor, Battery Cables & Hardware

Champion Power Equipment XL Synthetic Rope Winch Kit for ATV and UTV 5 500 lb ATV & UTV Winches Trailers & Towing> Winches & Recovery> Electric Winches> ATV & UTV Winches

Specification	Description
Brand	Champion Power Equipment
Country of Origin	Imported
Brand Compatibility	All
Features	Remote Control, Free Spooling Clutch, Synthetic Rope, Self-resetting Circuit breaker

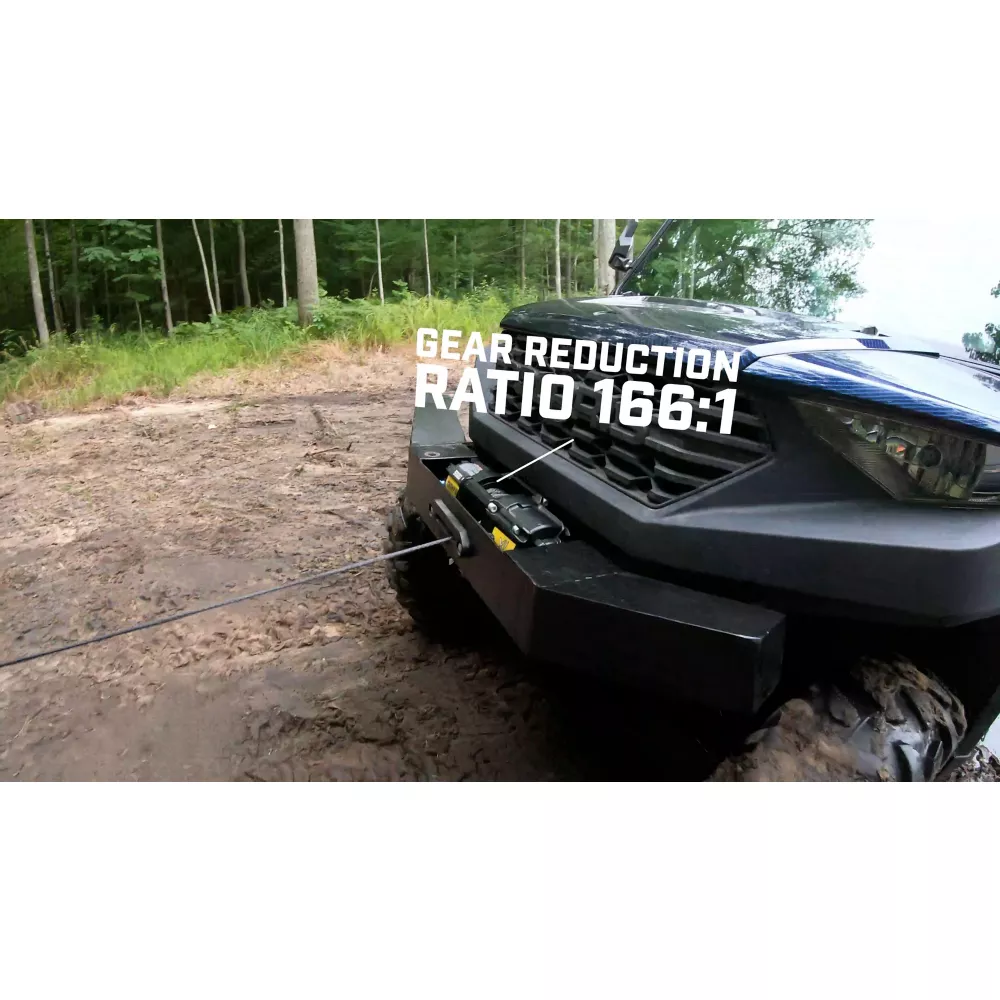

Gear Ratios	166:1
Horsepower	1.7 hp
Line Capacity	5,500 Lb.
Line Diameter	0.23 in.
Line Length	10 ft.
Line Pull Capacity	5,500 lb.
Line Speed	2 FPM
Model Compatibility	Universal
Mounting Bolt Length	4.9 in.
Mounting Bolt Width	3 in.
Number of Speeds	6
Power Type	12 Volt
Primary Material	Steel
Product Height	5.1 in.
Product Length	14.8 in.
Product Weight	29.8 lb.
Product Width	5.1 in.
Line Type	Rope
Voltage	12 VDC
Warranty	2 Year Limited Warranty
Motor Type	Electric
Manufacturer PartNumber	100723

Champion Power Equipment XL 5500 lb. ATV and UTV Synthetic Rope Winch Kit Specifications expand/collapse Specification Description Brand Champion Power Equipment Country of origin Imported brand Compatibility All features Remote control, free-spool clutch, synthetic rope, self-resetting circuit breaker Gear ratios 166:1 Power 1.7 hp Line capacity 5,500 lb. Line diameter 0.23 in. Line length 10 ft. Line pulling capacity 5,500 lbs. Line Speed 2 FPM Model Compatibility Universal Mounting Bolt Length 4.9 in. Mounting bolt width 3 in. Number of speeds 6 Power type 12 volts Main material steel Product height 5.1 in. Product length 14.8 in. Product weight 29.8 lbs. Product width 5.1 in. Line Type Cable Voltage 12 VDC Warranty 2 Year Limited Warranty Electric Motor Type Manufacturer Part Number 100723.
