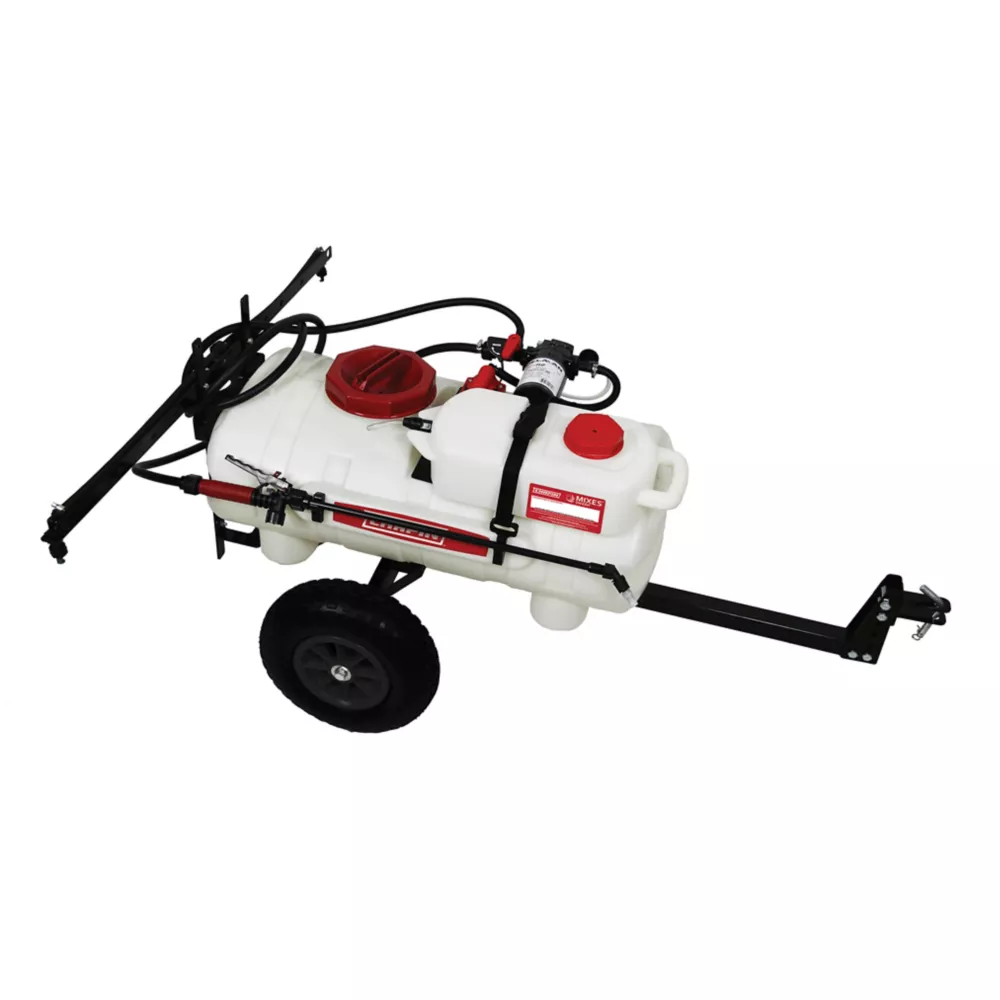

Chapin 25 gal 12V 1-Nozzle Trailer ATV Sprayer Mix at Outlet (M.O.E.) Tow Behind Sprayers Farm & Ranch

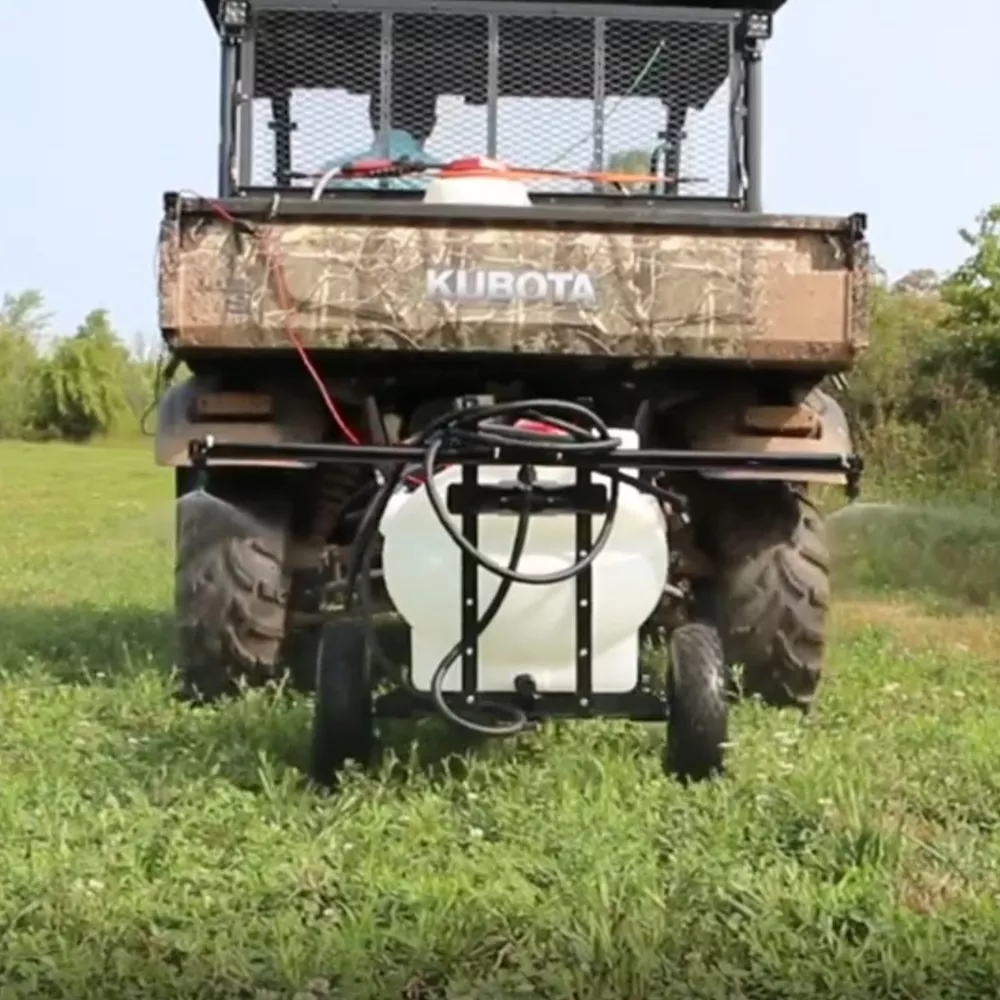

Stop wasting water, chemical concentrate and time with Mixes on Exit, the clean tank spraying system from Chapin. Chapin's 97761E 25-gallon tow behind ATV spot sprayer is part of our Mixes on Exit system. The water tank is completely separate from the concentrate tank, and it only mixes when you're applying your chemical. It's designed around two tanks - a 25-gallon water tank and a 2-gallon concentrate tank. Easily connect the pump to your ATV/UTV/lawn tractor battery. The included lockable poly shut-off and wand provide versatile, adjustable spraying on the go. A simple mix valve control allows you to adjust the concentrate from 1 to 15 ounces per-Gallon. Its quick connect feature is an added benefit that makes changing the concentrate tanks quick and efficient. Additional concentrate tanks are available and sold separately. You can swap your chemicals out on the fly when you're on the job. Made in the USA with global materials.

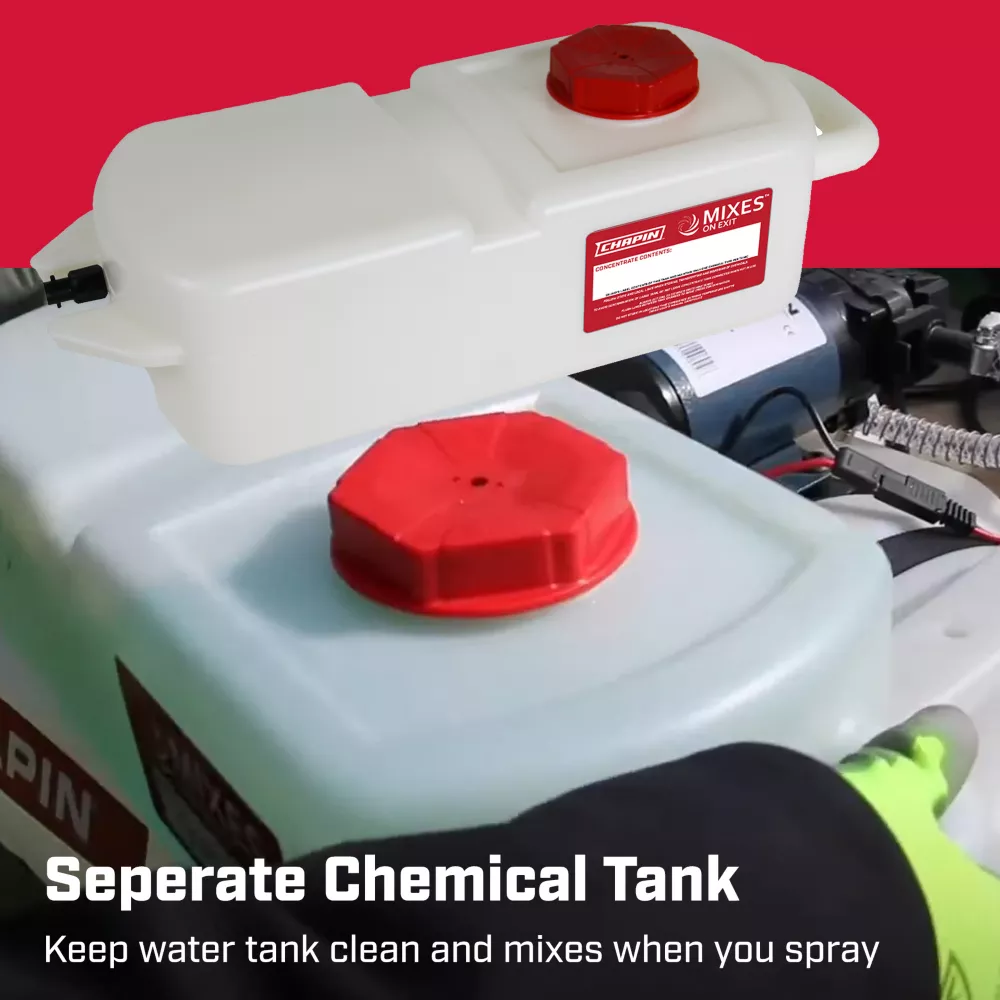

Dual tank design: keep your water and concentrate separate until youre ready to spray; no more messy and wasteful premixing; no more wasted chemical or clean water; adjustable mix valve allows 1-15 ounces of concentrate per-Gallon of water
25-gallon water tank: chemical-resistant, weather-resistant translucent poly tank to hold only clean water; no need to pre-measure chemical in large tank; removable chemical concentrate tank (6-8061); drain cap on large tank to quickly empty water

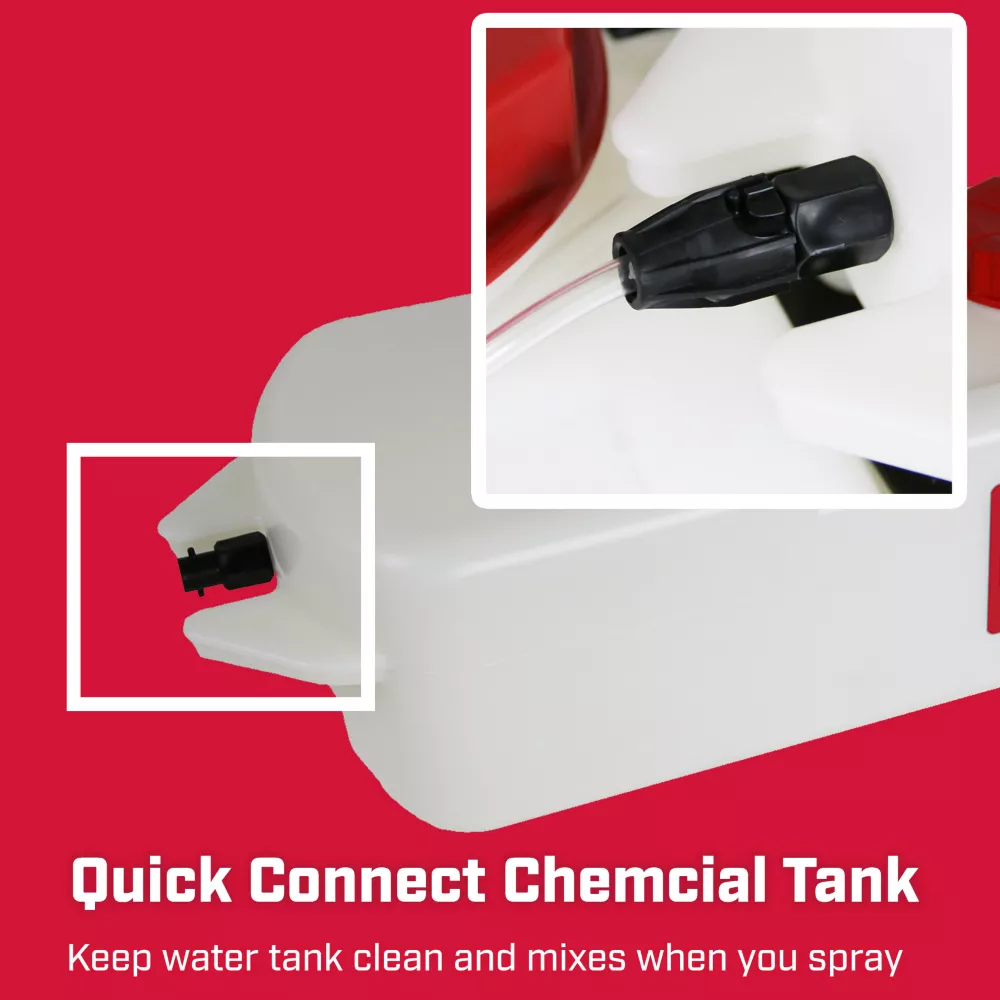

Quick connect: 2.5 GPM Chapin pump clips to your ATV/lawn tractor battery easily with alligator clips; no additional parts required to hook up the pump; quick connect chemical tank to water tank and quickly swap concentrate tanks (additional concentrate tanks sold separately)
Triple filtration and seals: Chapins standard filter cap basket, in-tank filter and filter at shut-off so youll have less downtime disassembling to unclog you hose and wand; chemical-resistant seals and gaskets handle stronger pesticides, fertilizers, weed killers

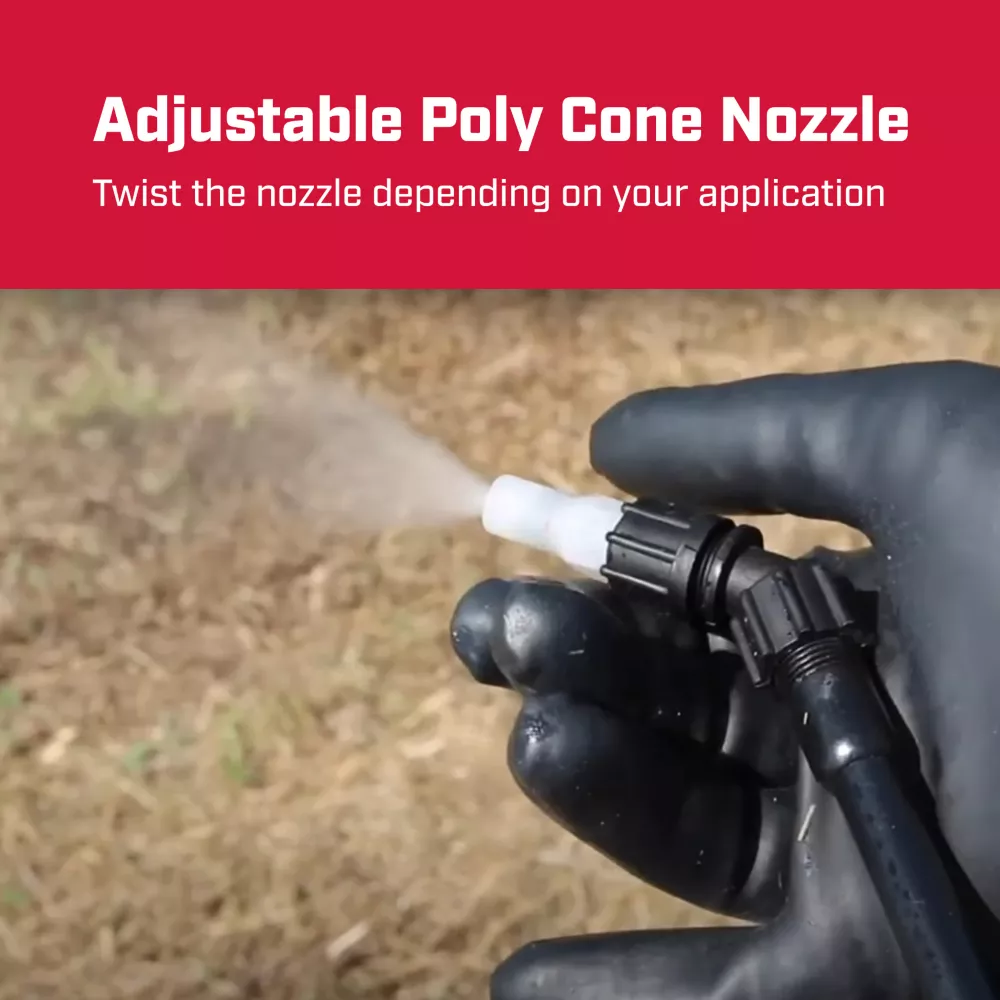

Components: adjustable poly cone nozzle, boom and spot spray functions, 20-inch poly wand and 15-feet of reinforced hose
Made in the USA with global materials: designed and produced in the USA with US-based customer service and technical support, located at Chapins home base in Batavia, NY; backed by Chapins 1-year limited warranty

Chapin 25 gal 12V 1-Nozzle Trailer ATV Sprayer Mix at Outlet (M.O.E.) Tow Behind Sprayers Farm & Ranch> Ag Sprayers> Tow Behind Sprayers

Specification	Description
Brand	Chapin
Country of Origin	Made in USA
Brand Compatibility	Universal

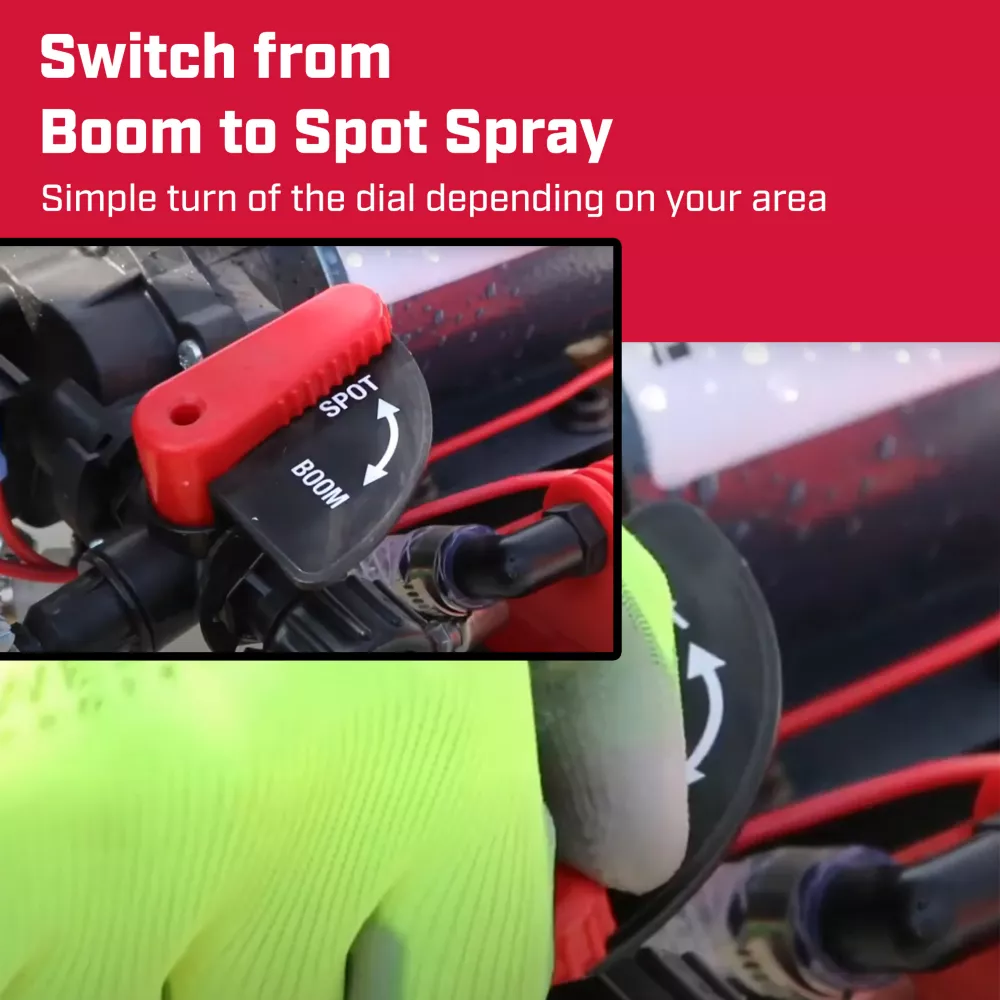

Features	Water and chemical stay separate and only mix when spraying, adjustable mix valve allows 1 - 15 oz. of concentrate per gal. of water, quickly switch from boom to spot spray, hitches up to ATV/UTV or lawn tractor
Hose Diameter	3/4 in.
Hose Length	180 in.
Maximum Flow Rate	2.5 GPM
Maximum Horizontal Throw	25 ft.
Maximum Operating Pressure	60 PSI
Maximum Vertical Throw	23 ft.
Model Compatibility	Universal
Mounting Type	Pin
Number of Nozzles	1
Package Quantity	1
Power Type	12 Volt
Primary Color	White
Product Height	38 in.
Product Length	19.2 in.
Product Weight	59.6 lb.
Product Width	16.8 in.
Pump Type	Diaphragm
Recommended Chemicals	Fertilizers
Sprayer Type	Tow Behind
Swath	0 in.
Tank Capacity	25 gal.
Tank Material	Polyethylene
Warranty	1 year limited warranty
Manufacturer PartNumber	97761
