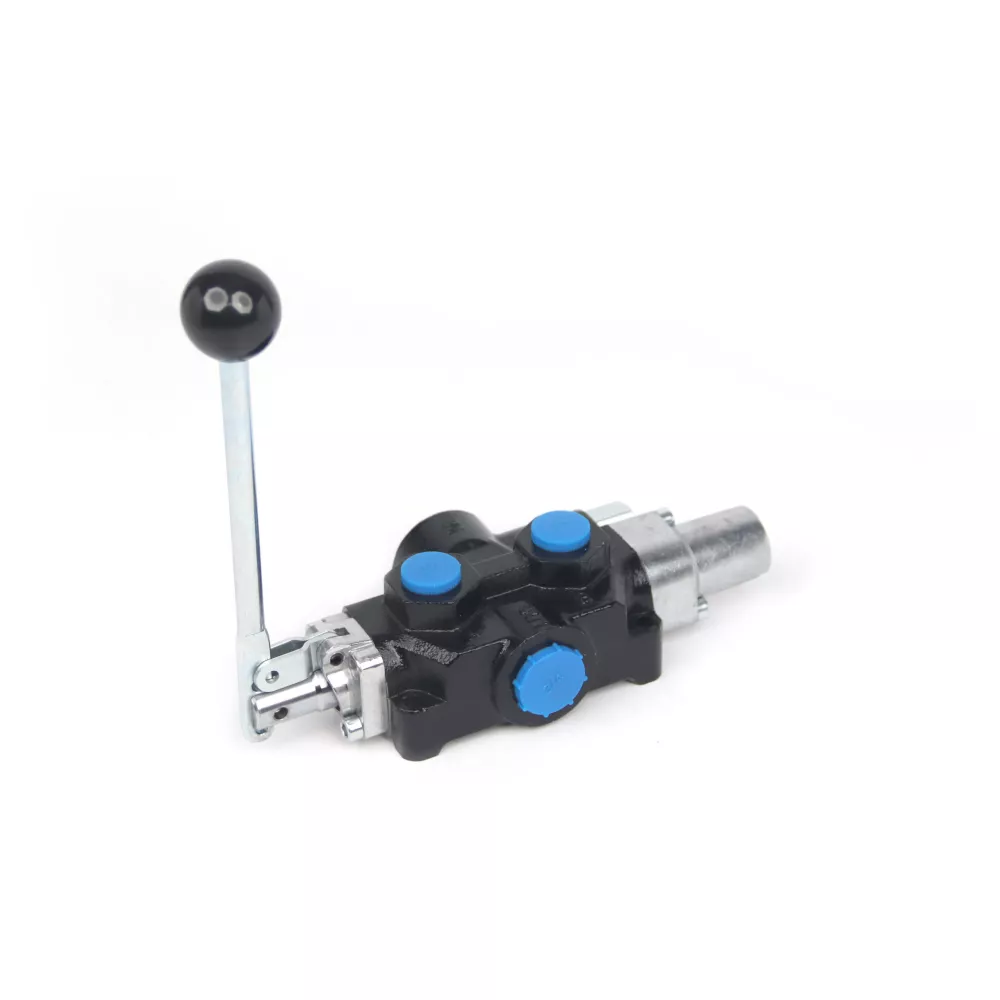

Chief 2 750 PSI LG Series Log Splitter Valve 25 GPM 1 Spool 3/4 in NPT Inlet/Outlet Hydraulic Valves & Manifolds Tractor Repair & Parts

The Chief 2,750 PSI LG Series Log Splitter Valve is made of durable cast iron. Designed to be used as a log splitter valve, this hydraulic valve features a 25 GPM and a 2,750 PSI rating. The high-pressure relief valve detent creates continuous flow when handle is positioned towards the valve and springs back to neutral when the cylinder completes its stroke. Create the perfect equipment setup with help from a compact Chief log splitter valve.

Complete handle assembly included with the log splitter valve
Maximum tank pressure: 500 PSI
Maximum operating temperature: 180 degrees Fahrenheit
Recommended system filtration: 10 micron standard
Maximum GPM: 25
Maximum operating pressure of the log splitter valve: 2,750 PSI
Built-in high-pressure relief valve preset at 2,250 PSI
Kick-off pressure adjustable from 1,000 - 2,600 PSI, preset at 1,400 PSI
Valving: 4-way, 3-position tandem center with spring to neutral and press release detent
Action: 4-way 3-position spring to neutral with press release detent

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief 2 750 PSI LG Series Log Splitter Valve 25 GPM 1 Spool 3/4 in NPT Inlet/Outlet Hydraulic Valves & Manifolds Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Valves & Manifolds

Specification	Description
Brand	Chief
Country of Origin	Imported
Brand Compatibility	Universal
Compatibility	Most applications
Inlet Size	3/4 in.
Inlet Type	Female
Maximum Flow Rate	25 GPM
Maximum PSI	2,750 PSI
Model Compatibility	Most applications
Number Of Directional Control Positions	3
Outlet Size	3/4 in.
Outlet Type	NPT
Primary Material	Cast Iron
Product Height	N/A
Product Length	N/A
Product Weight	10 lb.
Product Width	N/A
Warranty	1 Year
Work Port Size	1/2 in.
Manufacturer PartNumber	220998
