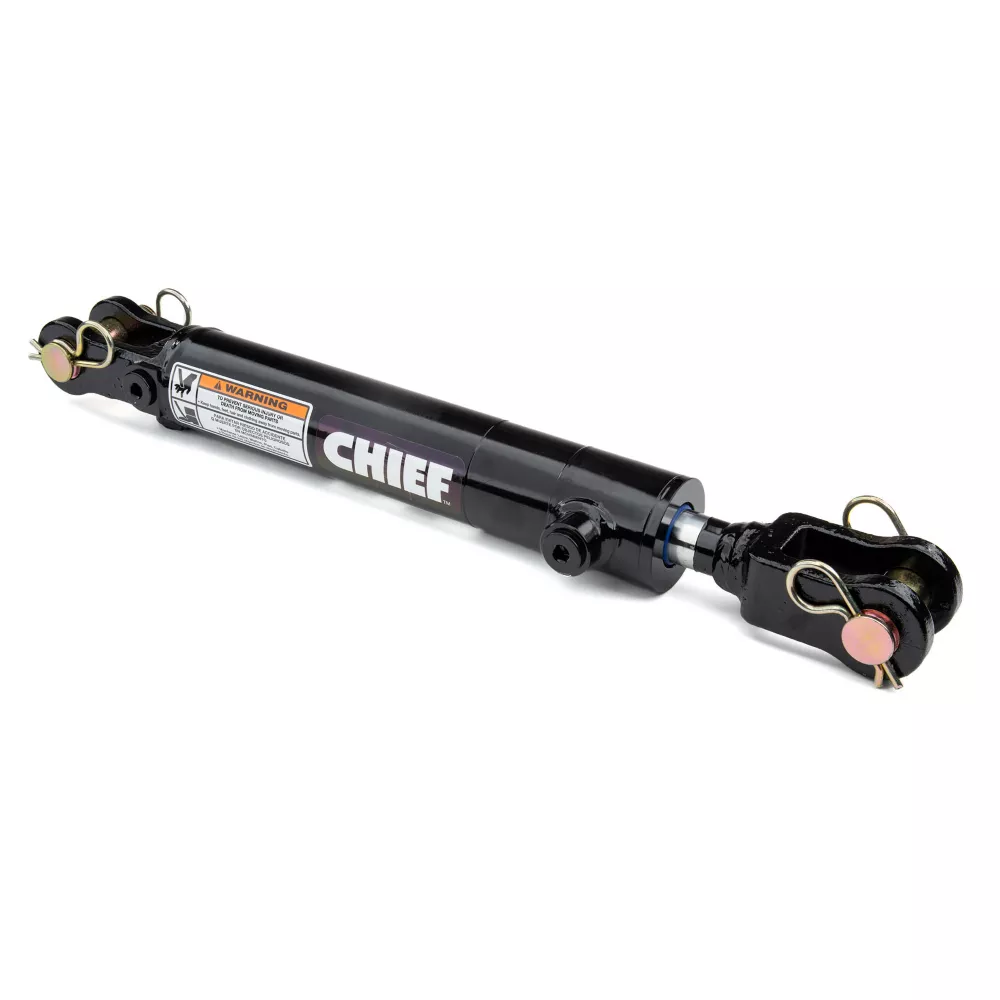

Chief 2 in Bore x 48 in Stroke AT Tie Rod Cylinder Alternative 1.125 in Rod Diameter Hydraulic Cylinders Tractor Repair & Parts

The Chief 2 in. Bore x 48 in. Stroke AT Alternative to Tie-Rod Cylinder features a snap ring on the rod end gland for easy field repair. Unlike a tie-rod, there are no bolts; simply remove the snap ring and you're ready to replace the hydraulic cylinder's seals. This welded hydraulic cylinder provides value pricing without sacrificing quality. Before the cylinder is ready for sale, it undergoes rigorous testing to ensure maximum reliability and performance.

Welded hydraulic cylinder has a rugged ductile iron welded clevis design
Standard SAE #8 ports
3,000 PSI seal kits for extended life
Retainer ring (snap ring) head design reduces downtime and allows for quick and easy service
Optional SAE #8 third port location (for 90° use)
Hard chrome-plated rod for the most extreme applications
Precision-welded piston for an efficient hydraulic cylinder
Gloss black paint finish
1 year warranty
Measures 58.25 in. retracted and 106.25 in. extended
Column load: 1,570 lb.
Pin diameter of 1 in. and rod diameter of 1.125 in.

Chief 2 in Bore x 48 in Stroke AT Tie Rod Cylinder Alternative 1.125 in Rod Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Imported
Bore Diameter	2 in.
Brand Compatibility	Universal
Compatibility	Most applications
Extended Length	48 in.
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	9,420 lb.
Model Compatibility	Most applications
Package Quantity	1
Pin Diameter	1 in.
Port Size	SAE 8
Primary Material	Steel
Product Height	N/A
Product Length	N/A
Product Weight	39.9 lb.
Product Width	N/A
Retracted Length	58.25 in.
Rod Diameter	1.125 in.
Stroke Distance	48 in.
Warranty	1 Year
Manufacturer PartNumber	297091
