Chief 3 000 PSI 2-Position Selector Valves SV Series 30 GPM Knob 12 Port SAE Size Hydraulic Valves & Manifolds

Chief 3 000 PSI 2-Position Selector Valves SV Series 30 GPM Knob 12 Port SAE Size Hydraulic Valves & Manifolds Tractor Repair & Parts

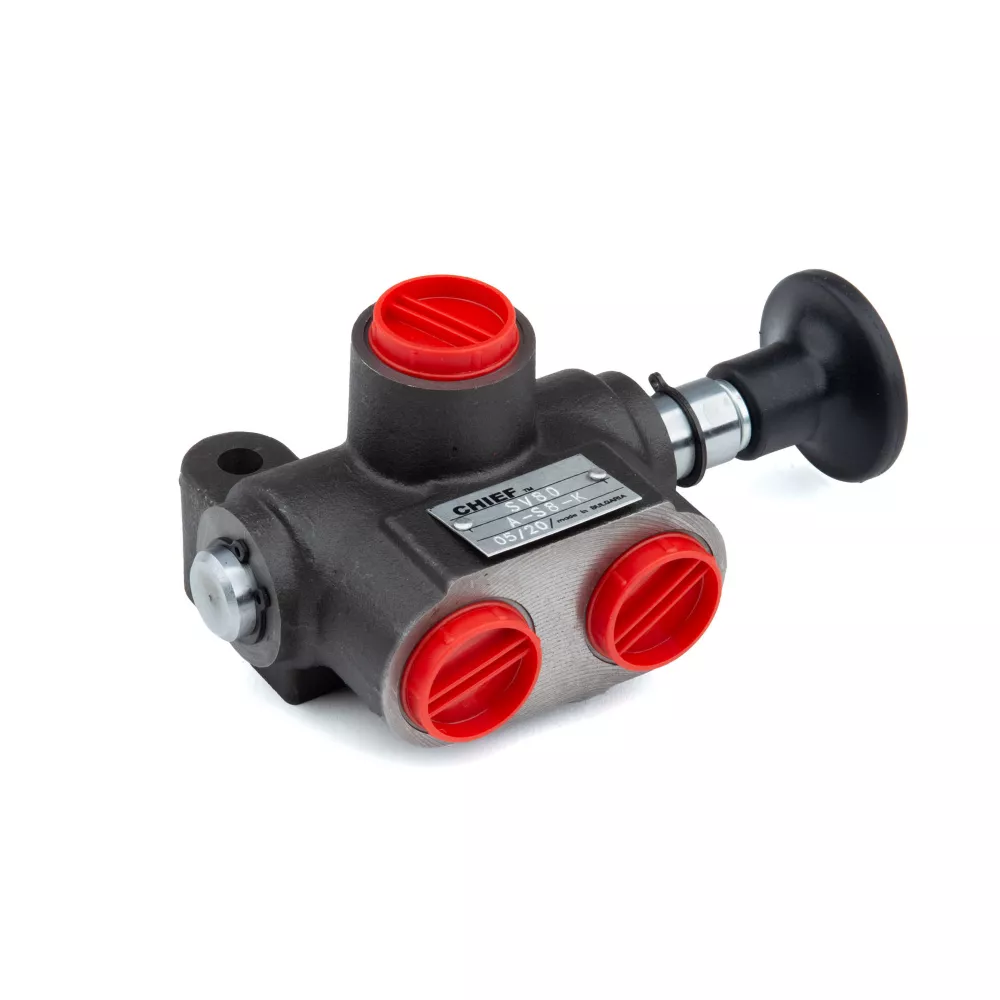

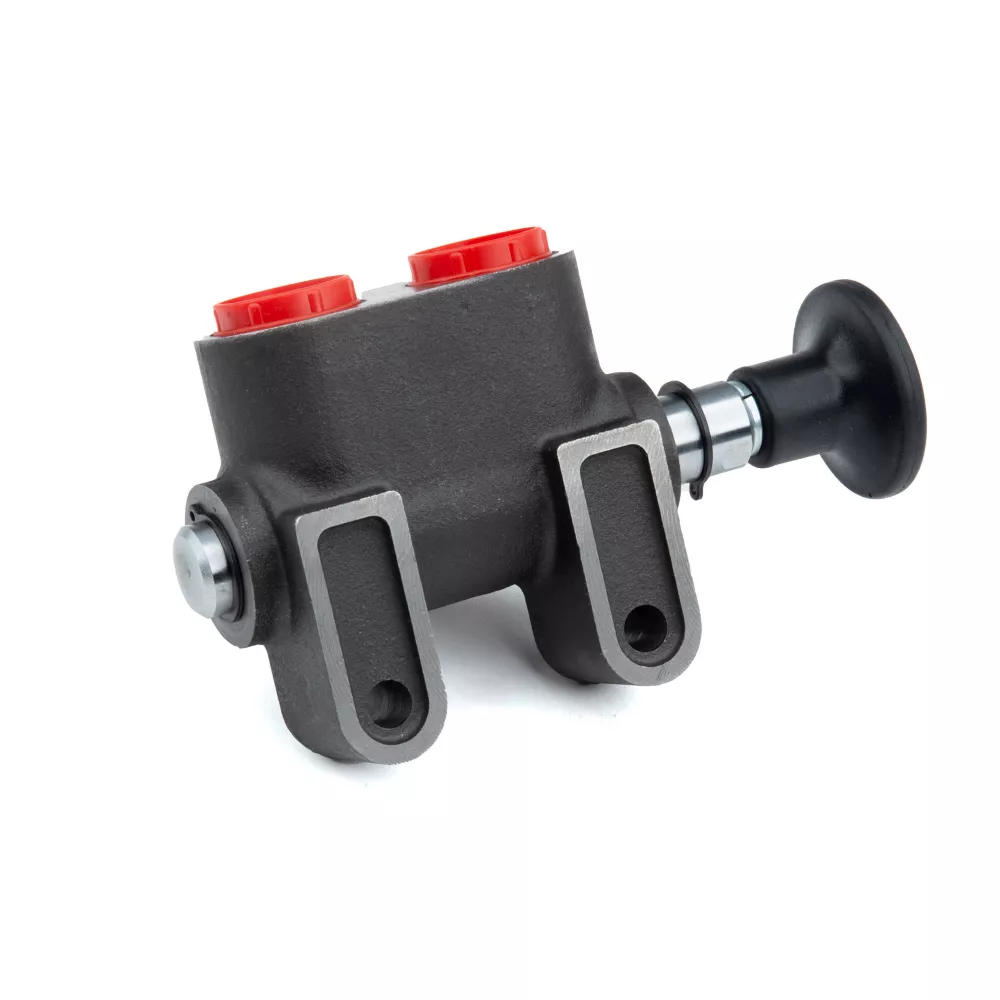

The Chief 2-Position Selector Valves are made of durable cast iron for durability. This 2-way selector valve permits the control of 2 single-acting cylinders with one 3-way control valve. Designed to direct the flow of oil in a hydraulic to 2 separate hydraulic lines, the selector valves come with one knob handle for easy use.

• 30 GPM flow rate and 3,000 PSI
• Designed to direct the flow of oil in a hydraulic to 2 separate hydraulic lines
• 2-way selector valve permits the control of 2 single-acting cylinders with one 3-way control valve
• Valve spool is the open-crossover spool type
• Valve should be shifted before pressure is applied
• Made of cast iron construction for durability
• Maximum temperature of 180 degrees F
• Equipped with SAE 12 selector valve port size
• Comes with 1 knob handle for easy use
• Selector valves weigh 6 lb.

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief 3 000 PSI 2-Position Selector Valves SV Series 30 GPM Knob 12 Port SAE Size Hydraulic Valves & Manifolds Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Valves & Manifolds

Specification	Description
Brand	Chief
Country of Origin	Imported
Brand Compatibility	Universal
Compatibility	Most application
Inlet Size	N/A
Inlet Type	N/A
Maximum Flow Rate	30GPM
Maximum PSI	3,000 PSI
Model Compatibility	Most applications
Number Of Directional Control Positions	2
Outlet Size	N/A
Outlet Type	N/A
Primary Material	Cast Iron
Product Height	N/A
Product Length	N/A
Product Weight	6 lb.
Product Width	N/A
Warranty	1 Year
Manufacturer PartNumber	220937

Chief 3,000 PSI 2-Position Selector Valves, SV Series, 30 GPM, Knob, SAE 12 Port Size Specifications Expand/Collapse Specification Description Brand Primary Country of Origin Imported Brand Compatibility Universal Compatibility Most Applications Inlet Size N/A Inlet Type N/A Maximum Flow 30 GPM Maximum PSI 3,000 PSI Model Compatibility The most applications Number of directional control positions 2 Output Size N/ Output Type A N/A Primary Material Cast Iron Product Height N/A Product Length N/A Product Weight 6 lbs Product Width N/A 1 Year Warranty Manufacturer part number 220937
