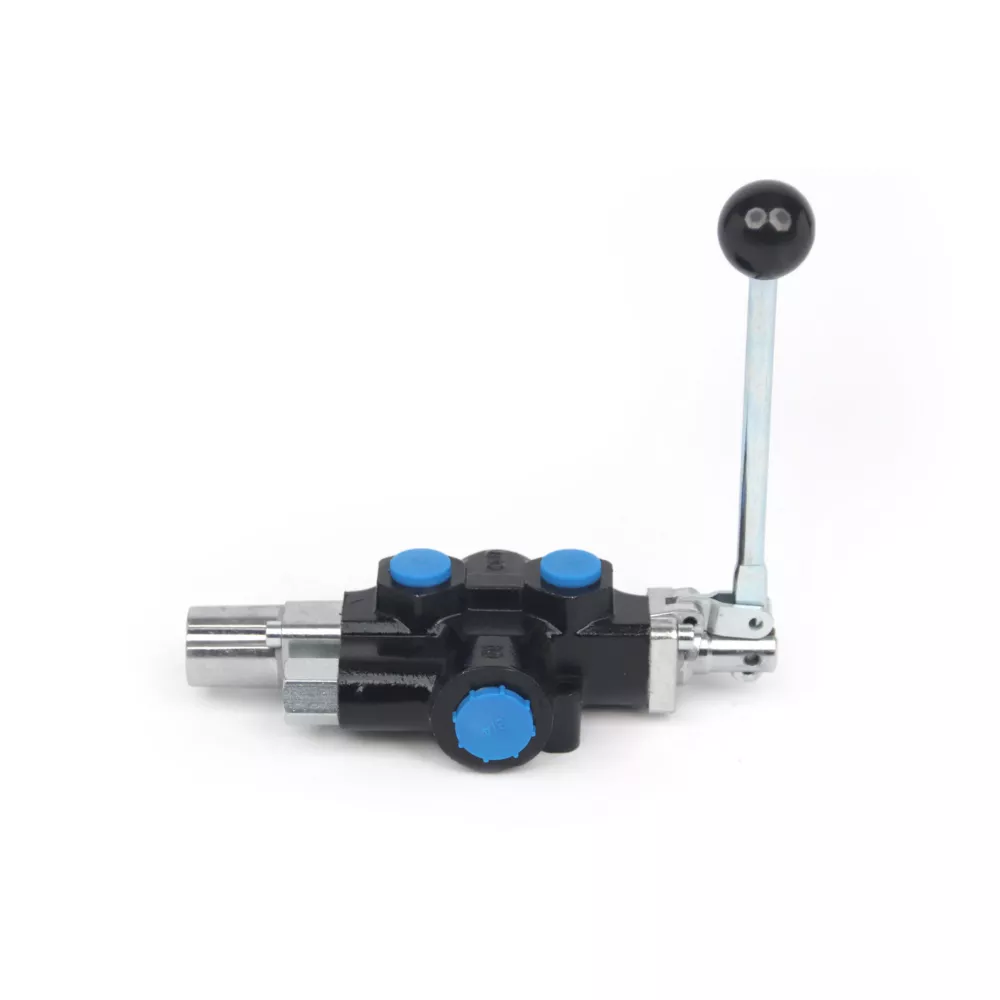

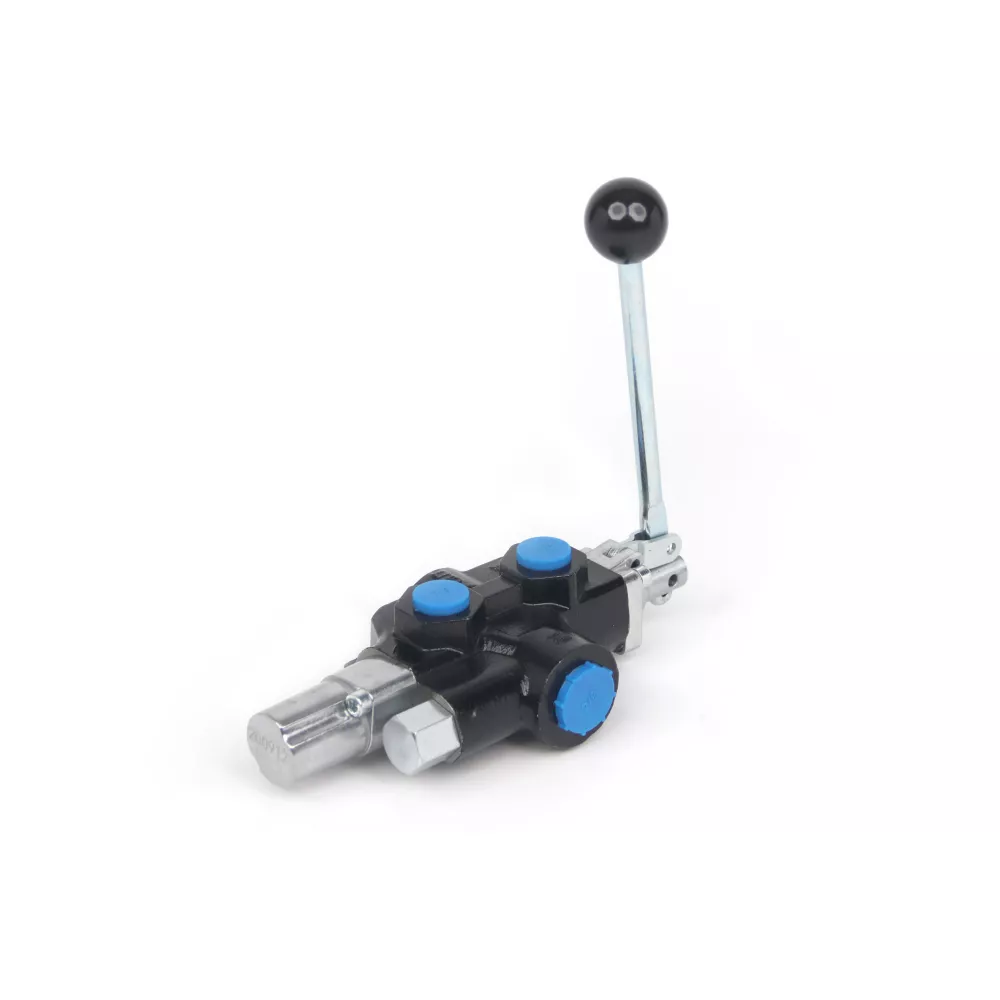

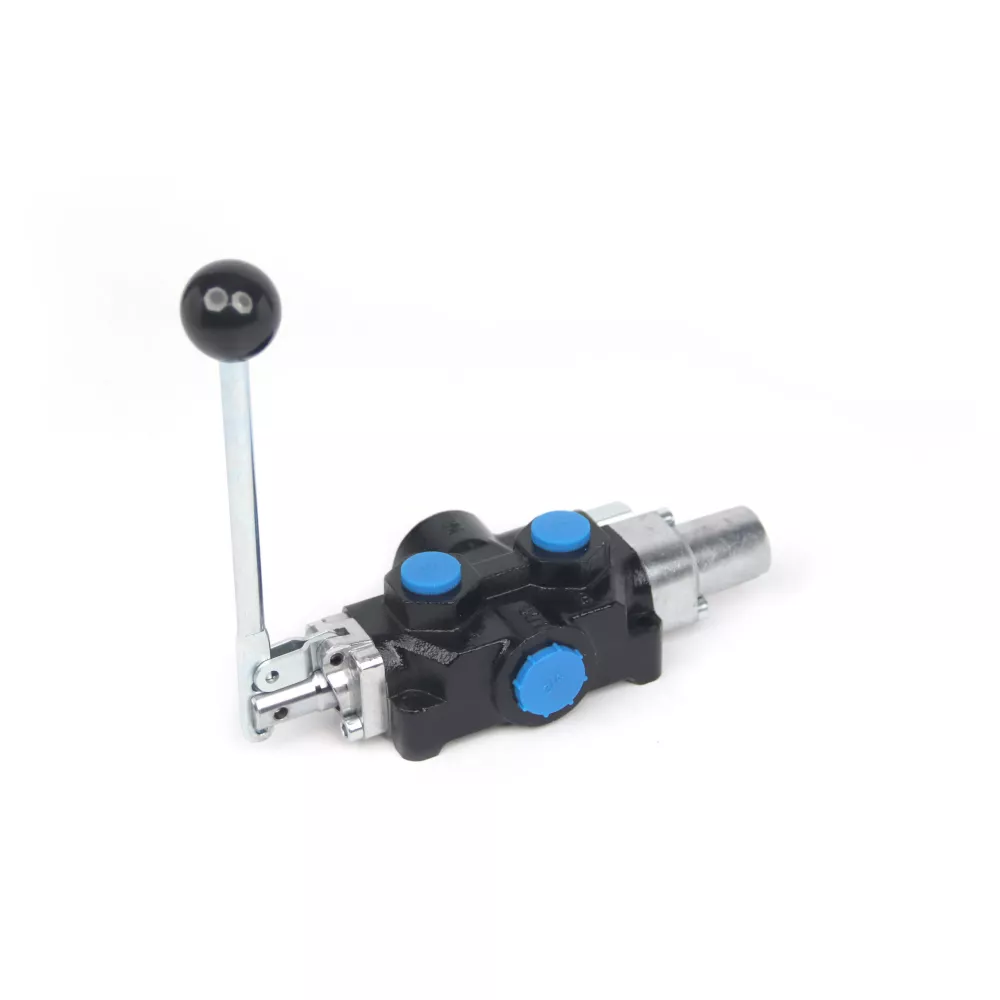

Chief 3 000 PSI Compact Log Splitter Valve 18 GPM 1 Spool 3/4 in NPT Inlet/Outlet Hydraulic Valves & Manifolds Tractor Repair & Parts

The Chief Compact Log Splitter Valve is compatible with most log splitters with 8-10 HP motors. The valve features an adjustable detent and handle design along with a 4-way, 3-position tandem center with a 4th position float. Made from cast-iron, this quality log splitter valve provides reliable operation rated for 25 GPM. Rated for 3,000 PSI operating pressure and 221 degrees Fahrenheit operating temperature. Satisfaction guaranteed.

Single-spool valve offers 25 GPM, a 3/4 in. NPT inlet/outlet, and 1/2 in. NPT work ports
Compact valve with adjustable detent and handle design
Compatible with most log splitters with 8-10 HP motors
Single spool log splitter valve with adjustable kick out detent
Made of a rugged cast-iron body
4-way, 3-position tandem center with a 4th position float
Max operating temperature: 221 degrees Fahrenheit
Operating pressure: 3,000 PSI
Complete handle assembly included with the valve
Dimensions of the log splitter valve: 9.06 in. x 4.33 in. x 2.56 in.
Satisfaction guaranteed

Chief 3 000 PSI Compact Log Splitter Valve 18 GPM 1 Spool 3/4 in NPT Inlet/Outlet Hydraulic Valves & Manifolds Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Valves & Manifolds

Specification	Description
Brand	Chief
Country of Origin	Imported
Brand Compatibility	Universal
Compatibility	Most applications
Inlet Size	3/4 in.
Inlet Type	Female
Maximum Flow Rate	18 GPM
Maximum PSI	3,000 PSI
Model Compatibility	Most applications
Number Of Directional Control Positions	4
Outlet Size	3/4 in. NPT
Outlet Type	N/A
Primary Material	Cast Iron
Product Height	3.68 in.
Product Length	10.43 in.
Product Weight	5 lb.
Product Width	8.93 in.
Warranty	1 Year
Work Port Size	1/2 in.
Manufacturer PartNumber	310997

Chief 3,000 PSI Compact Log Splitter Valve, 18 GPM, 1 Spool, 3/4 in. NPT Inlet/Outlet Specifications expand/collapse Specification Description Primary Brand Country of Origin Imported Brand Compatibility Universal Compatibility Most Applications Inlet Size 3/4 in. Inlet Type Female Maximum Flow 18 GPM Maximum PSI 3,000 PSI Model Compatibility Most Applications Number of Directional Control Positions 4 Outlet Size 3/4 in. NPT Outlet Type N/A Primary Material Cast Iron Product Height 3. 68 in. Product Length 10.43 in. Product Weight 5 lb. Product Width 8.93 in. Warranty 1 Year Working Port Size 1/2 in. Manufacturer part number 310997
