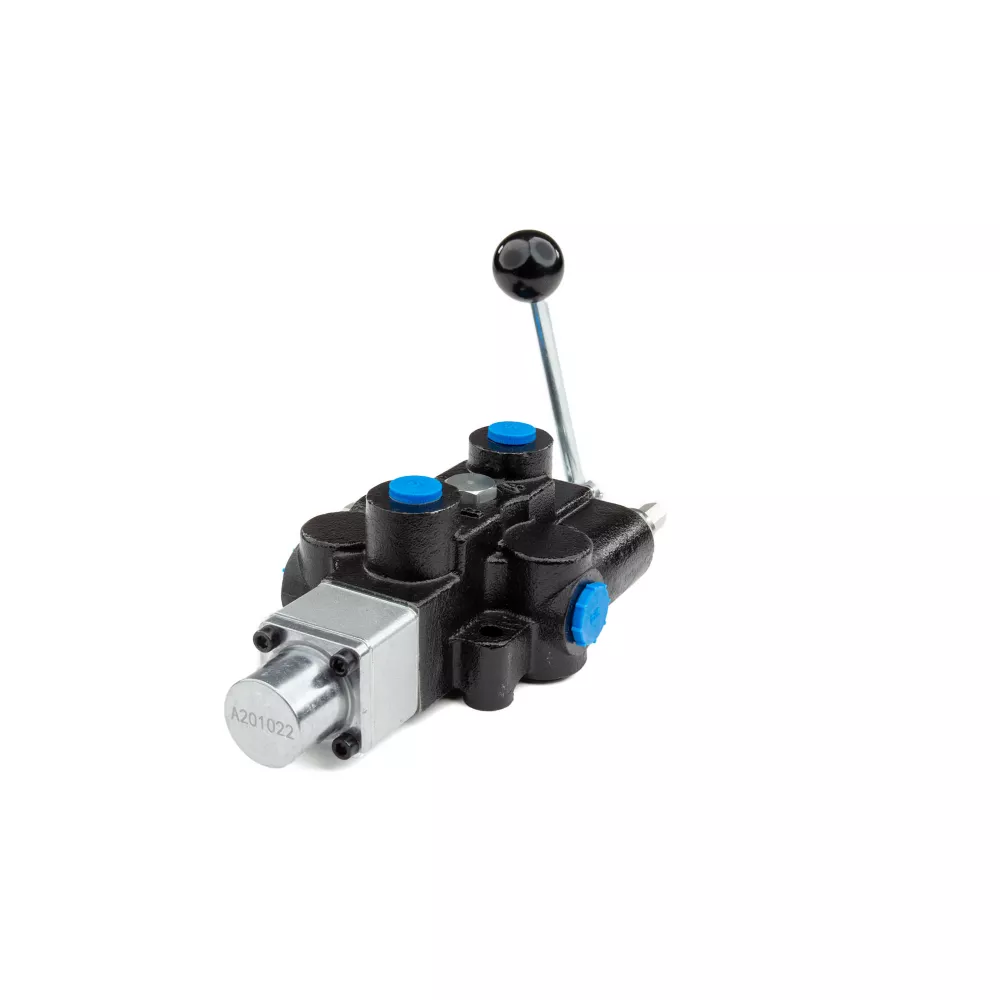

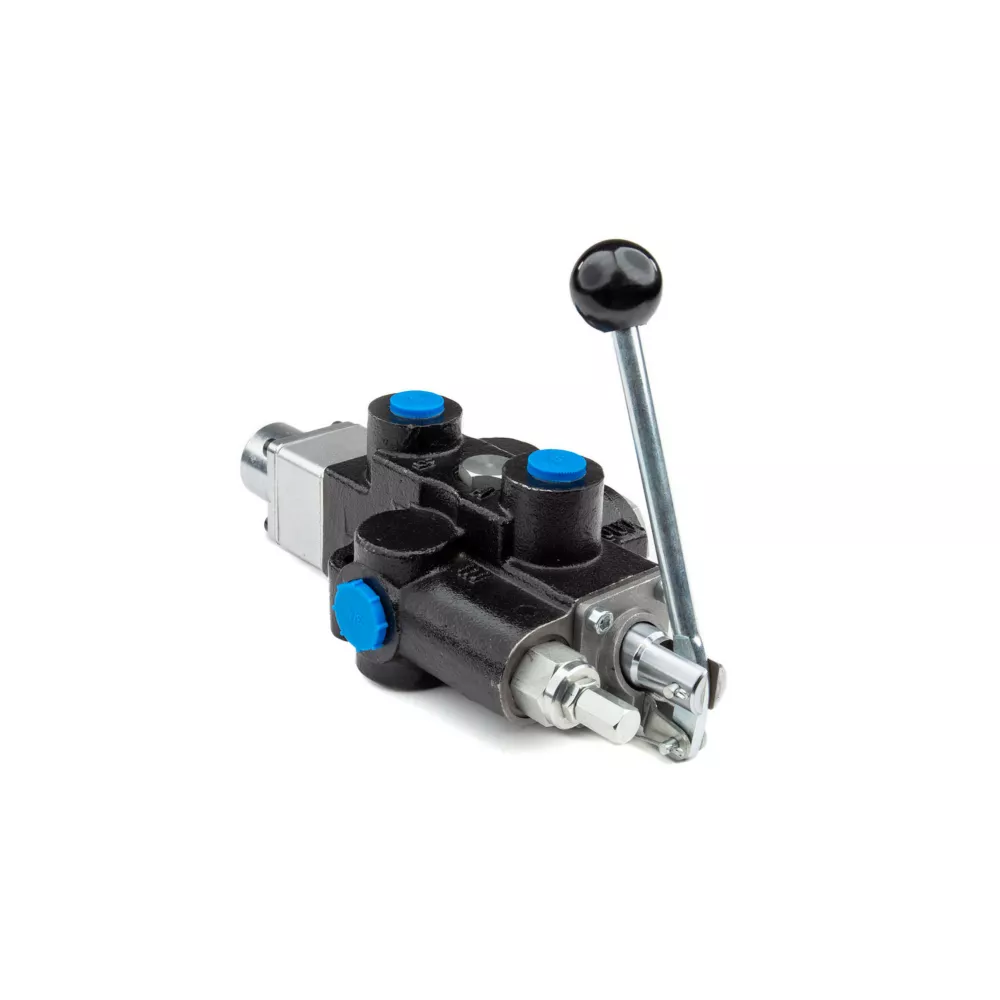

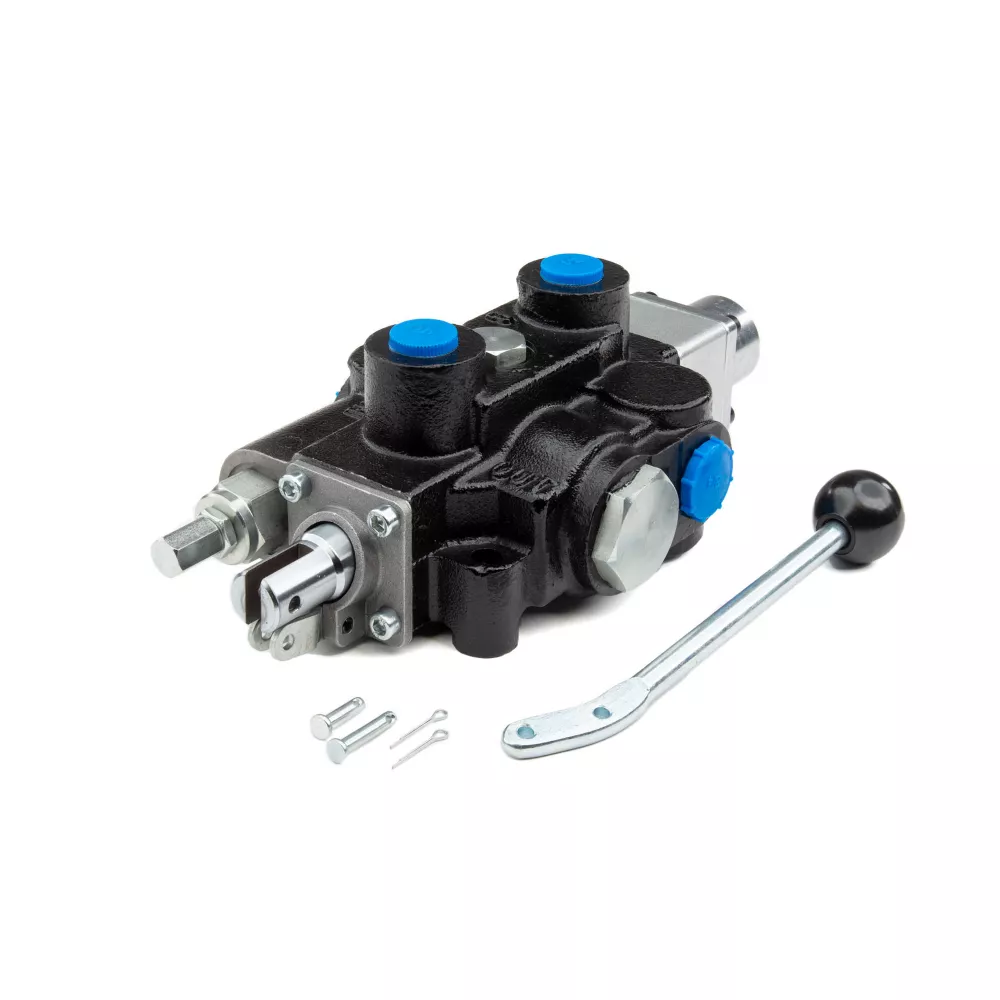

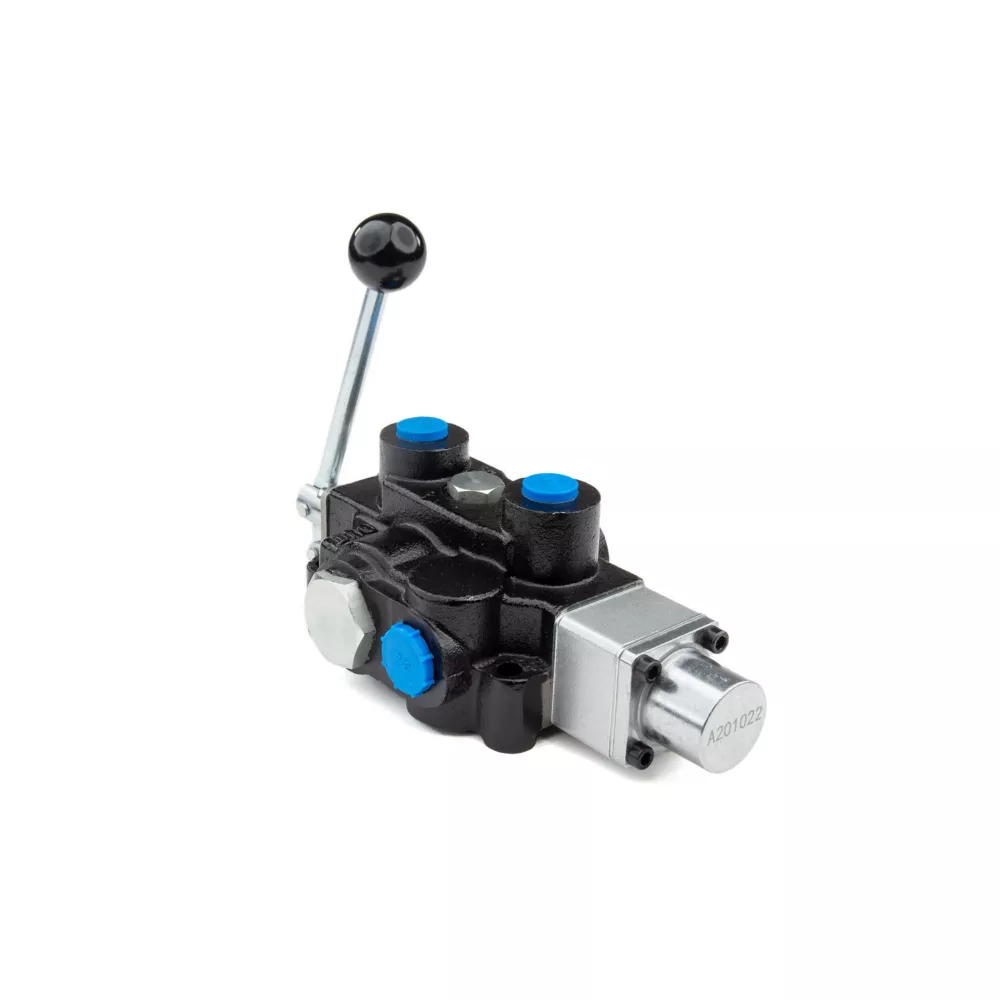

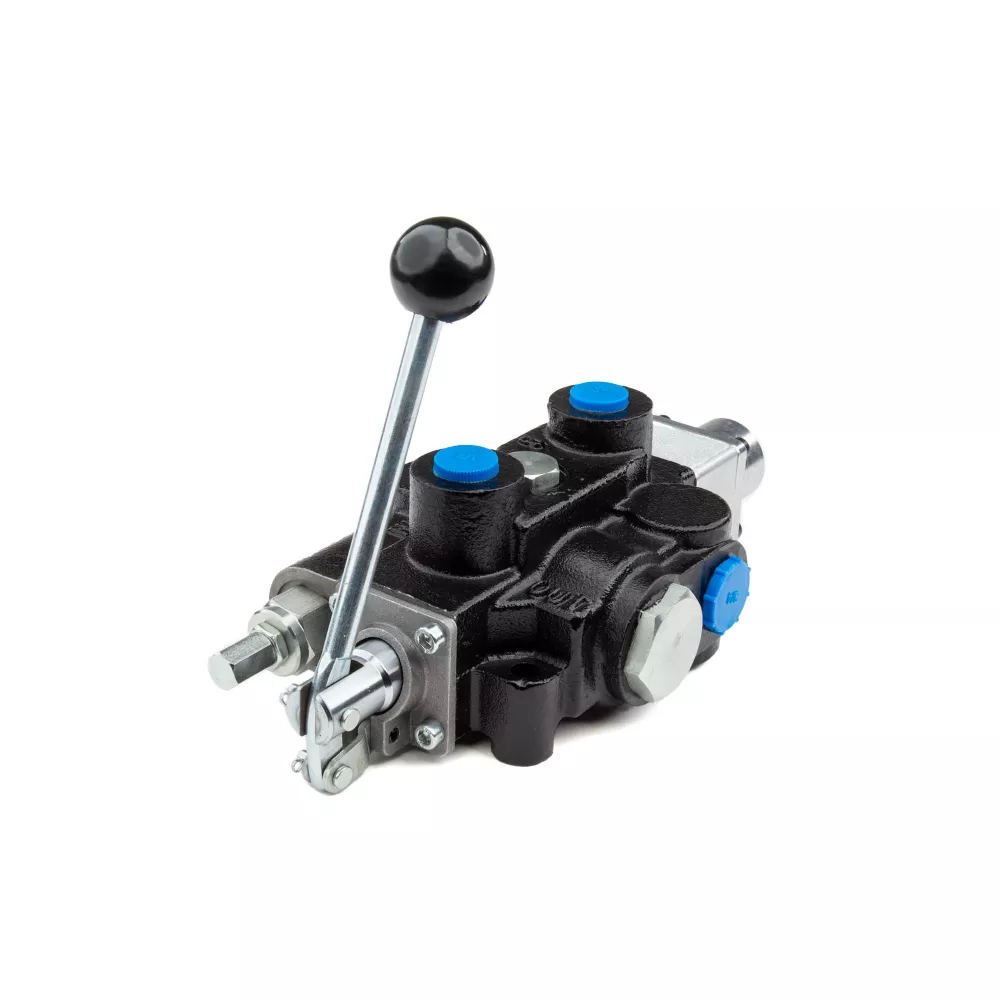

Chief 3 000 PSI Directional Control Valve 25 GPM 1 Spool 3/4 in NPT Ports Hydraulic Valves & Manifolds Tractor Repair & Parts

The Chief 3,000 PSI Directional Control Valve is made of durable cast iron. The spool valve offers 1/2 in. NPT work ports and a 4-way, 4-position spring center with float detent at the 4th position. This hydraulic valve has a flow rate of 25 GPM and offers a 1,500 - 3,000 PSI relief setting.

Directional control valve offers 25 GPM
1,500 - 3,000 PSI relief setting
One 4-way, 4-position spool and a handle
Float detent at 4th position
3/4 in. NPT inlet and outlet ports
Spool valve with 1/2 in. NPT work ports
Spring center to neutral from either work position
Durable cast-iron directional control valve is made for lasting use

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief 3 000 PSI Directional Control Valve 25 GPM 1 Spool 3/4 in NPT Ports Hydraulic Valves & Manifolds Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Valves & Manifolds

Specification	Description
Brand	Chief
Country of Origin	Imported
Brand Compatibility	Universal
Compatibility	Most applications
Inlet Size	N/A
Inlet Type	Male
Maximum Flow Rate	25 GPM
Maximum PSI	3,000 PSI
Model Compatibility	Most applications
Number Of Directional Control Positions	4
Outlet Size	3/4 in.
Outlet Type	NPT
Primary Material	Cast Iron
Product Height	N/A
Product Length	N/A
Product Weight	16 lb.
Product Width	N/A
Warranty	1 Year
Work Port Size	1/2 in.
Manufacturer PartNumber	220572
