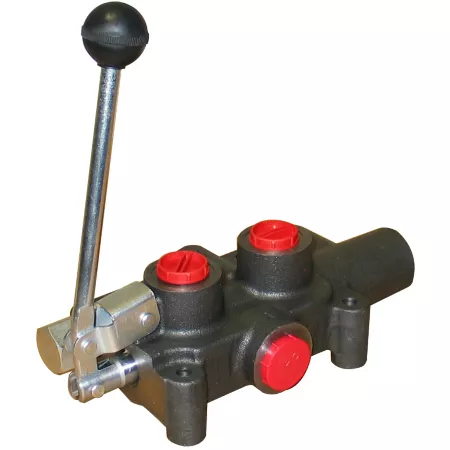

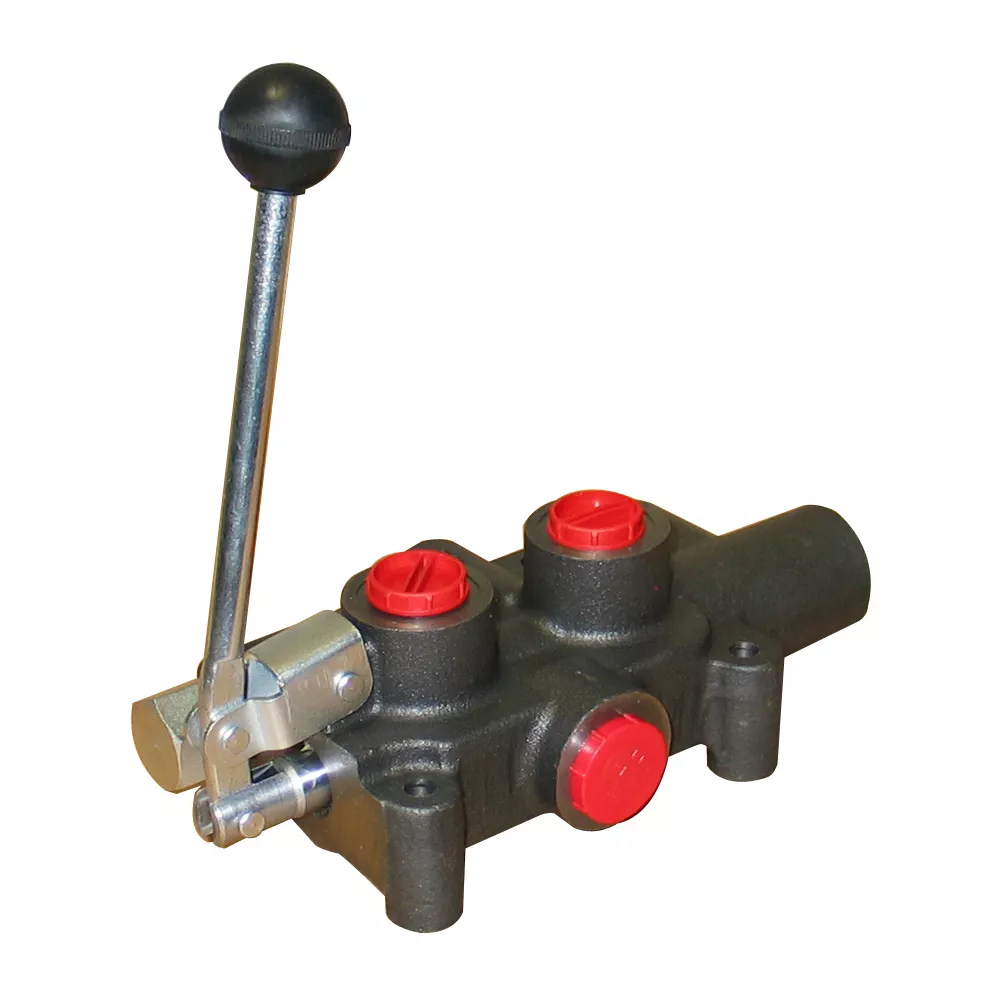

Chief 3 600 PSI LG Series Valve 25 GPM 1 Spool SAE 12 Inlet/Outlet SAE 10 Working Ports Hydraulic Valves & Manifolds Tractor Repair & Parts

The Chief 3,600 PSI LG Series Valve is made of durable cast iron for lasting use. Your new favorite cast iron valve will offer a single spool and a spring center detent. The spool valve provides SAE 10 work ports and a 25 GPM maximum-it's a reliable hard worker.

Cast iron valve designed with SAE 10 work ports
In neutral position both work ports are blocked allowing the pump to unload to the tank
Provides a maximum of 3,600 PSI
Spring center detent and pressure-release detent
Single spool valve design
Cast-iron body is designed for lasting strength
Complete handle assembly included
Features a 4-way, 3-position tandem center
Hard chromed plated spool for a long lasting valve
Handle can be installed in the up or down position
Detent release pressure adjustable from 70-to 140 bar
Nominal flow rating of 21 GPM
1 year warranty

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief 3 600 PSI LG Series Valve 25 GPM 1 Spool SAE 12 Inlet/Outlet SAE 10 Working Ports Hydraulic Valves & Manifolds Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Valves & Manifolds

Specification	Description
Brand	Chief
Country of Origin	Imported
Brand Compatibility	Universal
Maximum Flow Rate	25 GPM
Maximum PSI	3,600 PSI
Model Compatibility	Universal
Number Of Directional Control Positions	4
Outlet Size	SAE 12
Outlet Type	SAE
Primary Material	Cast Iron
Product Weight	10 lb.
Warranty	1 Year
Work Port Size	SAE 10
Manufacturer PartNumber	220965

Chief 3,600 PSI LG Series Valve, 25 GPM, 1 Spool, SAE 12 Inlet/Outlet, SAE 10 Work Ports Specifications Expand/Collapse Specification Description Brand Main Country of Origin Imported Brand Compatibility Universal Maximum Flow 25 GPM Maximum PSI 3,600 PSI Model Compatibility Universal Number of Directional Control Positions 4 SAE Output Size 12 SAE Output Type Primary Material Cast Iron Product Weight 10 lbs Warranty 1 Year Labor Port Size SAE 10 Manufacturer Part Number 220965
