Chief 3 625 PSI G Series Directional Control Valve 10 GPM 1 Spool SAE 10 Inlet/Outlet Hydraulic Valves & Manifolds Tractor Repair & Parts

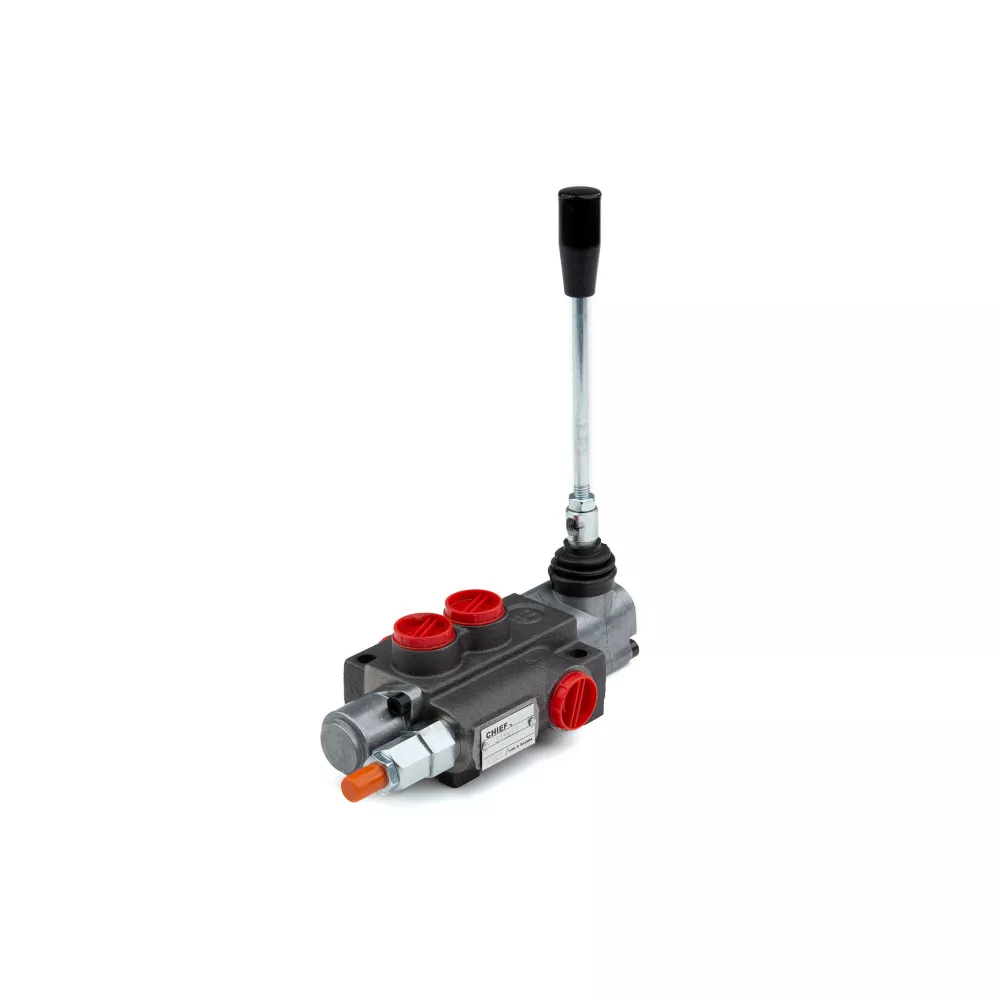

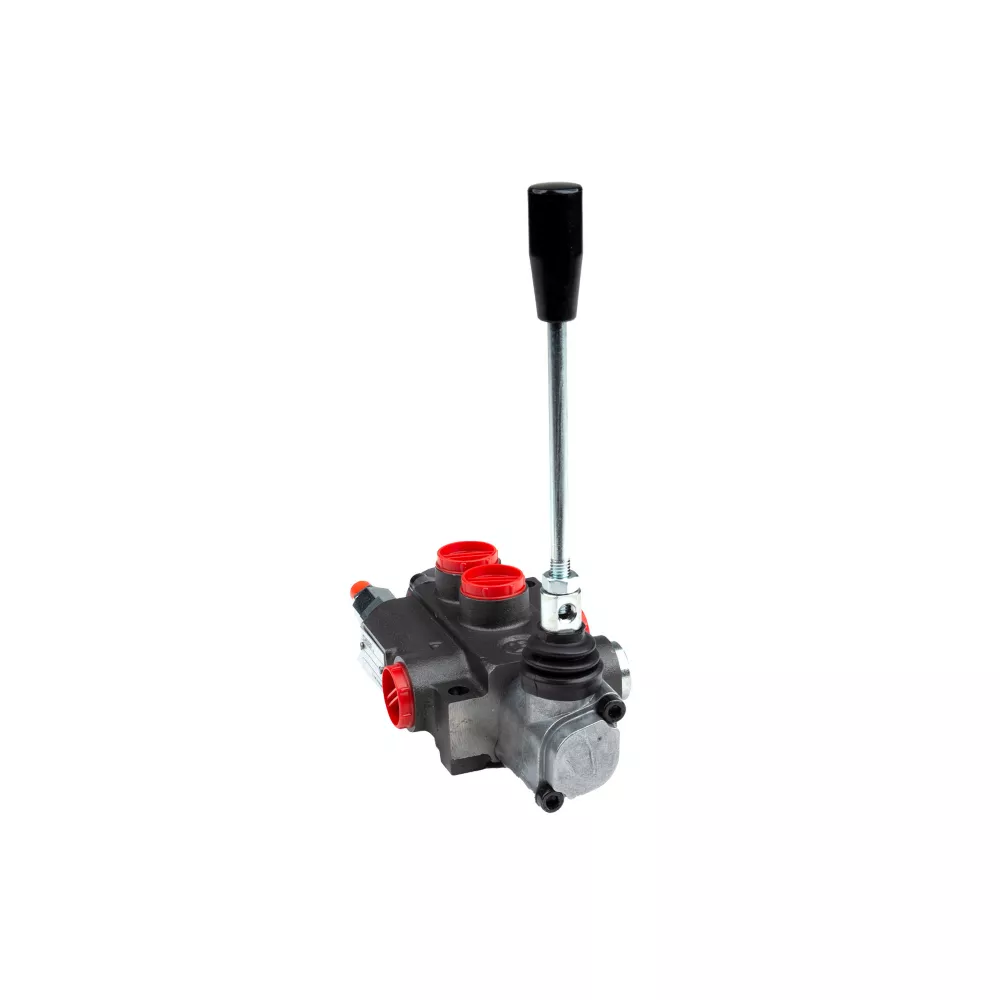

The Chief 3,625 PSI G Series Directional Control Valve is made of durable cast iron for lasting use. This hydraulic control valve features adjustable relief up to 3,625 PSI, and it has an anti-drop load check on each spool for safe operation. This Chief hydraulic directional control valve is equipped with a single spool. A complete handle assembly is included with the directional control valve, too.

Directional control valve features cast iron construction for durability
Anti-drop load check on each spool for safe operation
Hydraulic control valve features adjustable relief up to 3,625 PSI
Complete handle assembly
Power beyond or closed center available
See accessories for power beyond plug or closed center conversion plug
Hydraulic valve is equipped with a single spool
European design with 10 GPM, SAE 10 inlet, SAE 10 outlet, and SAE 10 work ports
Max operating temperature of the valve: 176 degrees F

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief 3 625 PSI G Series Directional Control Valve 10 GPM 1 Spool SAE 10 Inlet/Outlet Hydraulic Valves & Manifolds Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Valves & Manifolds

Specification	Description
Brand	Chief
Country of Origin	Imported
Brand Compatibility	Universal
Compatibility	Most applications
Inlet Size	0 N/A
Inlet Type	Female
Maximum Flow Rate	10 GPM
Maximum PSI	3,625 PSI
Model Compatibility	Most applications
Number Of Directional Control Positions	3
OEM Replacement	Control valve
Outlet Size	SAE 10
Outlet Type	N/A
Primary Material	Cast Iron
Product Height	0 N/A
Product Length	0 N/A
Product Weight	5.5 lb.
Product Width	0 N/A
Warranty	1 Year
Work Port Size	SAE 8
Manufacturer PartNumber	220953

Chief 3,625 PSI G Series Directional Control Valve, 10 GPM, 1 Spool, SAE 10 Inlet/Outlet Specifications Expand/Collapse Specification Description Brand Main Country of Origin Imported Brand Compatibility Universal Compatibility Most Applications Inlet Size 0 N/A Inlet Type Female Maximum Flow 10 GPM Maximum PSI 3,625 PSI Model Compatibility Most of Applications Number of Directional Control Positions 3 OEM Replacement Control Valve Outlet Size SAE 10 Outlet Type N/A Primary Material Cast Iron Product Height 0 N/A Product Length 0 N/A Product Weight 5.5 lbs . Product Width 0 N/A 1 Year Warranty Working Port Size SAE 8 Manufacturer Part Number 220953
