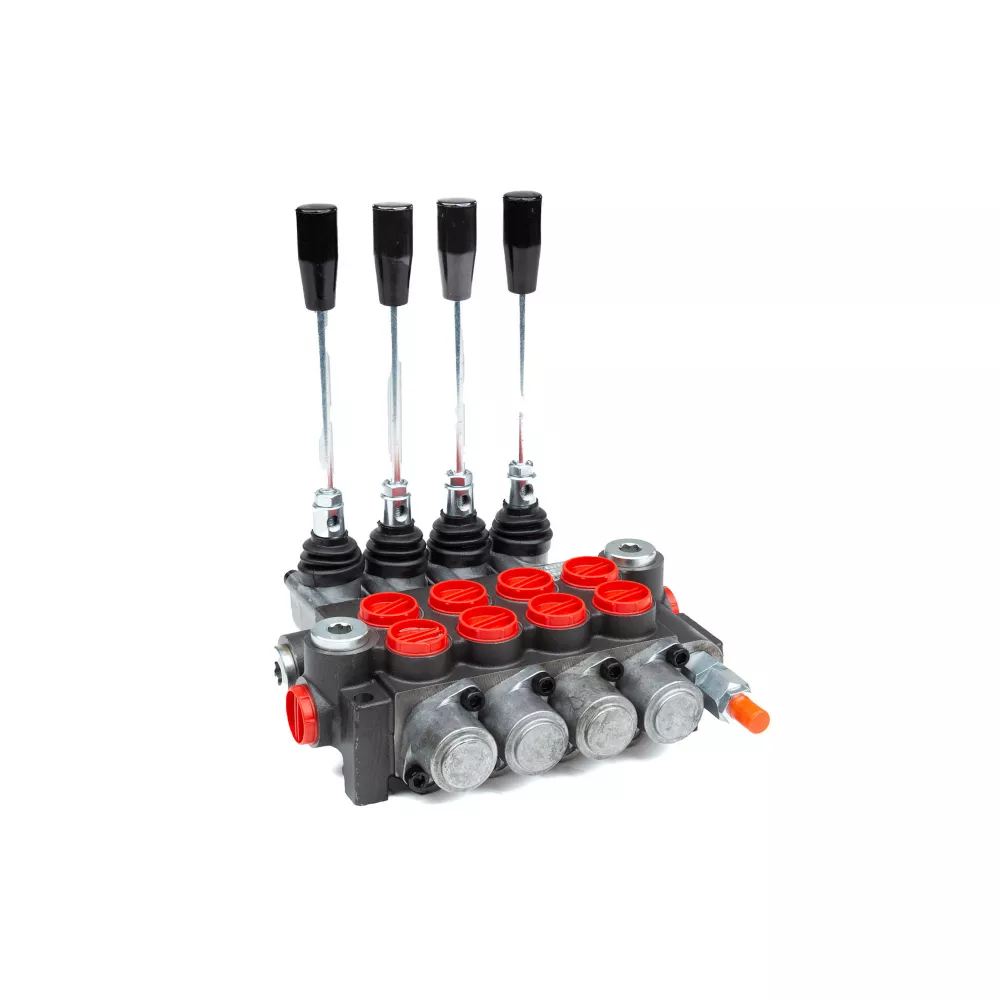

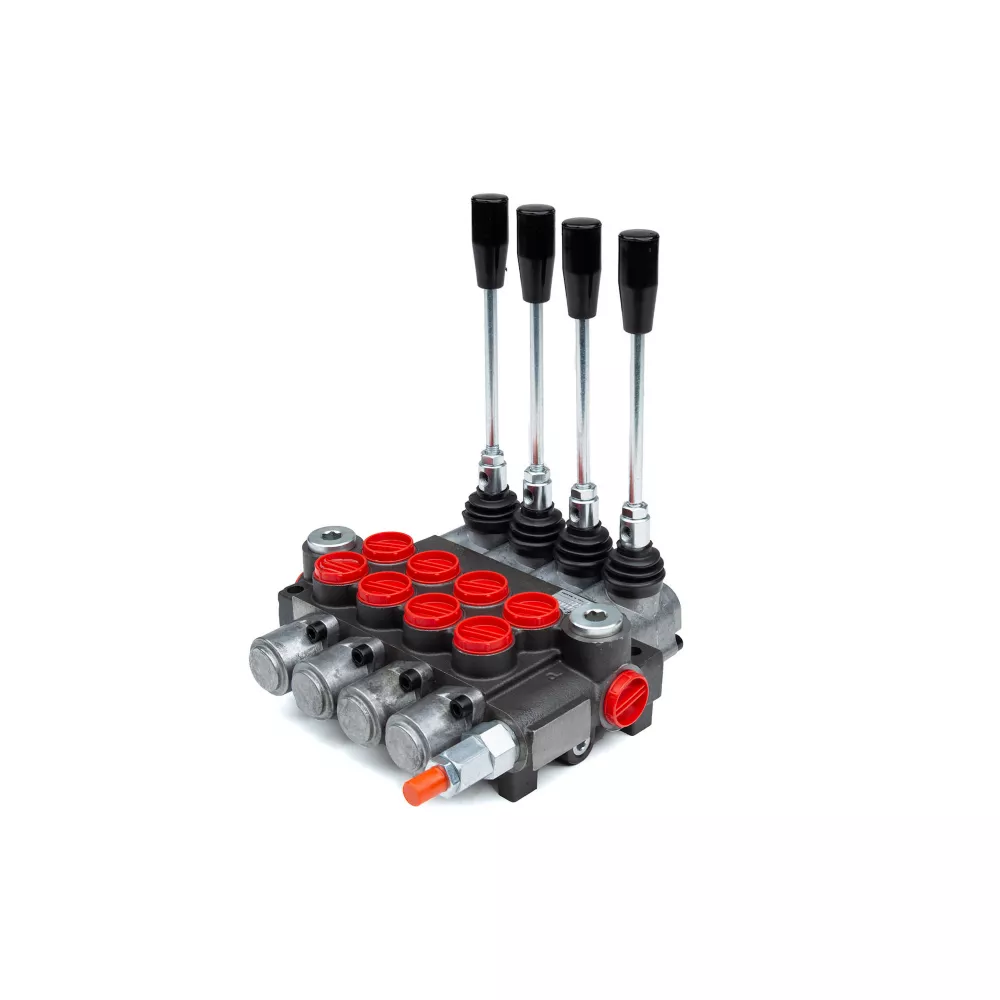

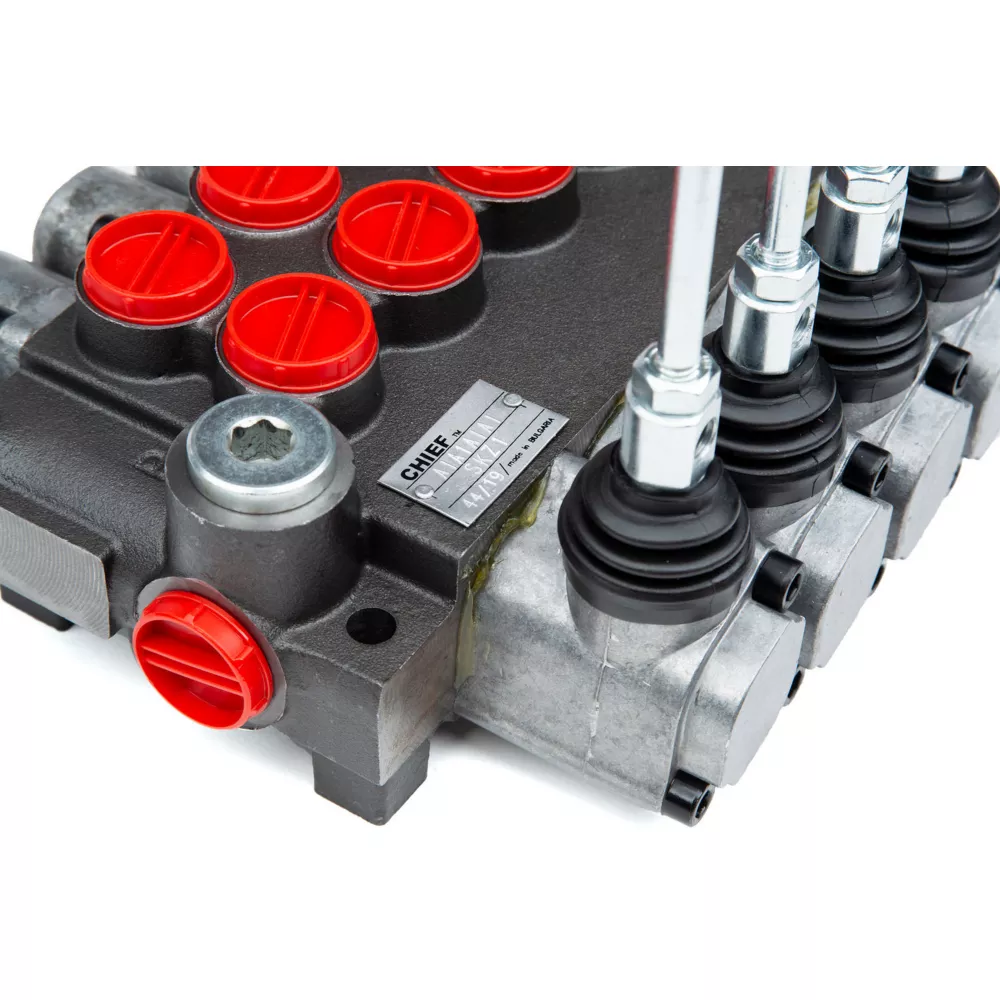

Chief 3 625 PSI G Series Directional Control Valve 10 GPM 4 Spool SAE 10 Inlet/Outlet Hydraulic Valves & Manifolds Tractor Repair & Parts
The Chief 3,625 PSI G Series Directional Control Valve is made of durable cast iron for lasting use. This hydraulic control valve features adjustable relief up to 3,625 PSI, and it has an anti-drop load check on each spool for safe operation. This Chief hydraulic directional control valve is equipped with four spools. Create the perfect equipment setup with help from a Chief hydraulic valve today.- Directional control valve features cast iron construction for durability
- Anti-drop load check on each spool for safe operation
- This hydraulic control valve features adjustable relief up to 3,625 PSI

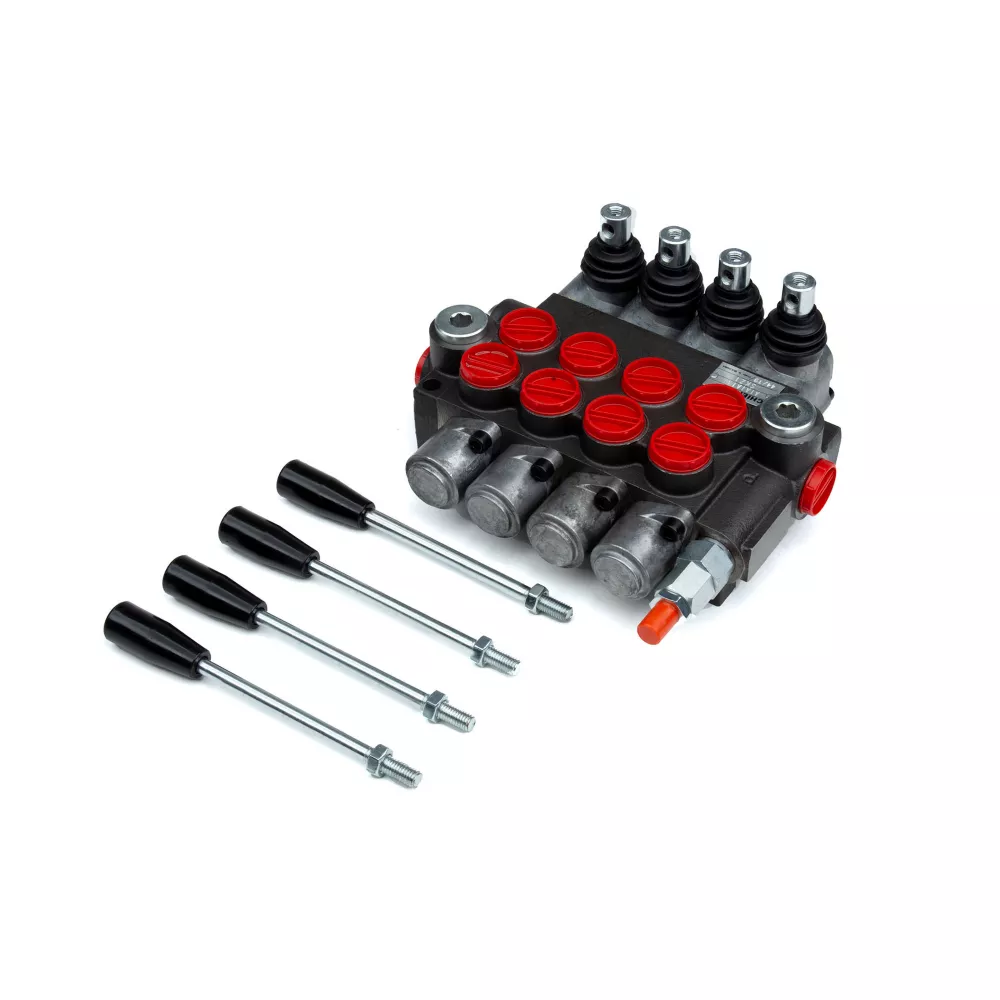

- Complete handle assembly included with the hydraulic valve
- Power beyond or closed center available
- See accessories for power beyond plug or closed center conversion plug
- This Chief hydraulic directional control valve is equipped with four spools
- European design with 10 GPM, SAE 10 inlet, SAE 10 outlet, and SAE 10 work ports
- Valving: 4-way, 3-position tandem center
- Action: 3-position spring center
- Max operating temperature of the valve: 176 degrees F
Chief 3 625 PSI G Series Directional Control Valve 10 GPM 4 Spool SAE 10 Inlet/Outlet Hydraulic Valves & Manifolds Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Valves & Manifolds
| Specification | Description |
|---|---|
| Brand | Chief |
| Country of Origin | Imported |
| Brand Compatibility | Universal |
| Compatibility | Most applications |
| Inlet Size | N/A |
| Inlet Type | Female |
| Maximum Flow Rate | 10 GPM |
| Maximum PSI | 3,625 PSI |
| Model Compatibility | Most applications |
| Number Of Directional Control Positions | 3 |
| Number Of Working Ports | 8 |
| OEM Replacement | Control valve |
| Outlet Size | SAE 10 |
| Outlet Type | N/A |
| Primary Material | Cast Iron |
| Product Height | N/A |
| Product Length | N/A |
| Product Weight | 18 lb. |
| Product Width | N/A |
| Warranty | 1 Year |
| Work Port Size | SAE 8 |
| Manufacturer PartNumber | 220909 |
