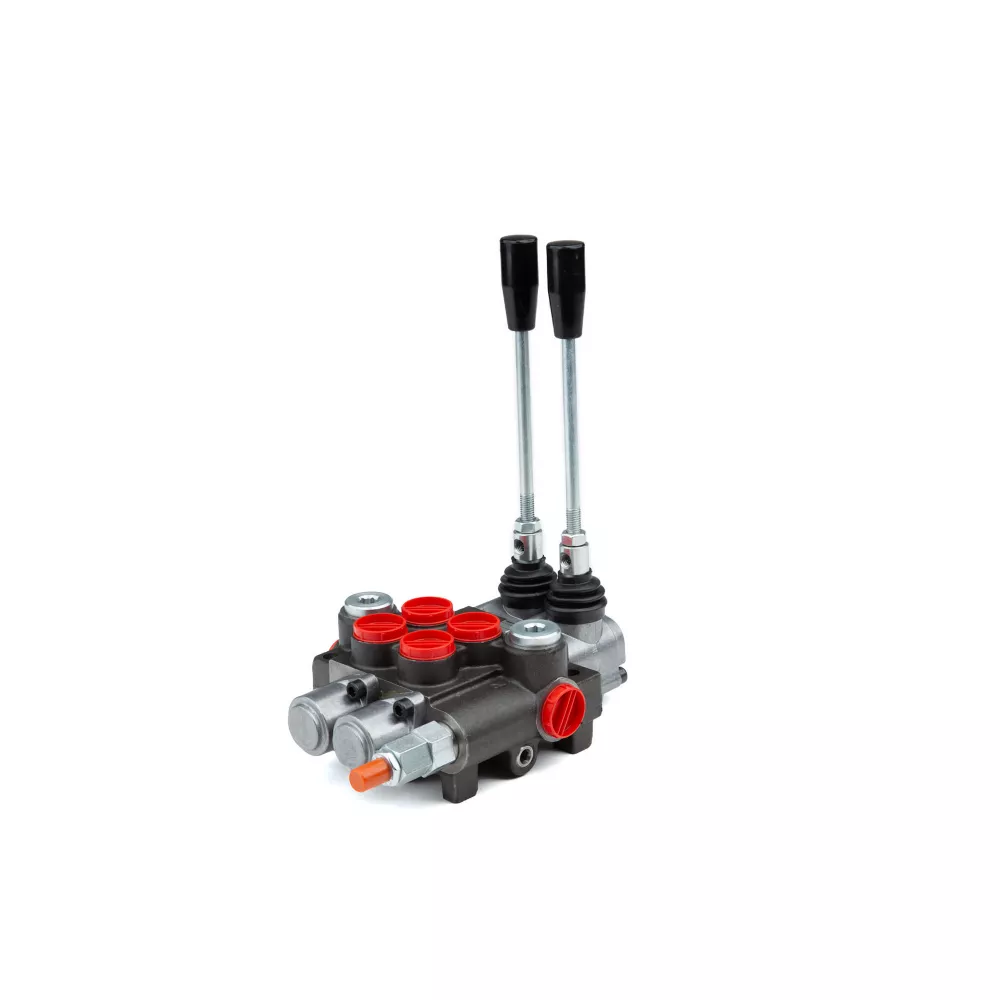

Chief 3 625 PSI G Series Directional Control Valve 30 GPM 2 Spool SAE 12 Inlet/SAE 16 Outlet Hydraulic Valves & Manifolds Tractor Repair & Parts

The Chief 3,625 PSI G Series Directional Control Valve is made of durable cast iron for lasting use. This hydraulic control valve features adjustable relief up to 3,625 PSI, and it has an anti-drop load check on each spool for safe operation. This Chief hydraulic directional control valve is equipped with two spools. Create the perfect equipment setup for your needs with help from a Chief hydraulic valve today.

Directional control valve features cast iron construction for durability
Anti-drop load check on each spool for safe operation
This hydraulic control valve features adjustable relief up to 3,625 PSI
Complete handle assembly included with the hydraulic valve
Power beyond or closed center available
See accessories for power beyond plug or closed center conversion plug
This Chief hydraulic directional control valve is equipped with two spools
European design with 30 GPM, SAE 12 inlet, SAE 16 outlet, and SAE 12 work ports
Flow rate: 30 GPM
Valving: 4-way 3 position, tandem center
Action: 3-positiion spring center
Max operating temperature of the directional control valve: 176 degrees F

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief 3 625 PSI G Series Directional Control Valve 30 GPM 2 Spool SAE 12 Inlet/SAE 16 Outlet Hydraulic Valves & Manifolds Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Valves & Manifolds

Specification	Description
Brand	Chief
Country of Origin	Imported
Brand Compatibility	Universal
Compatibility	Most applications
Inlet Size	SAE 12
Inlet Type	Female
Maximum Flow Rate	30 GPM
Maximum PSI	3,625 PSI
Model Compatibility	Most applications
Number Of Directional Control Positions	3
OEM Replacement	Control valve
Outlet Size	SAE 16
Outlet Type	N/A
Primary Material	Cast Iron
Product Height	N/A
Product Length	N/A
Product Weight	42 lb.
Product Width	N/A
Warranty	1 Year
Work Port Size	SAE 12
Manufacturer PartNumber	220930

Chief 3,625 PSI G Series Directional Control Valve, 30 GPM, 2 Spool, SAE 12 Inlet/ SAE 16 Outlet Specifications Expand/Collapse Specification Description Brand Primary Country of Origin Imported Brand Compatibility Universal Compatibility Most Applications Inlet Size SAE 12 Inlet Type Female Maximum Flow 30 GPM Maximum PSI 3,625 PSI Model Compatibility Most Applications Number of Directional Control Positions 3 OEM Replacement Control Valve Outlet Size Outlet Type SAE 16 N/A Primary Material Cast Iron Product Height N/A Product Length N/A Product Weight 42 lbs Product Width N /A 1 Year Warranty Working Port Size SAE 12 Manufacturer Part Number 220930
