Chief 3 Fine Proportioning Valve 625 PSI 13 GPM 2 Spools SAE 10 Inlet/Outlet Hydraulic Valves & Manifolds Tractor Repair & Parts

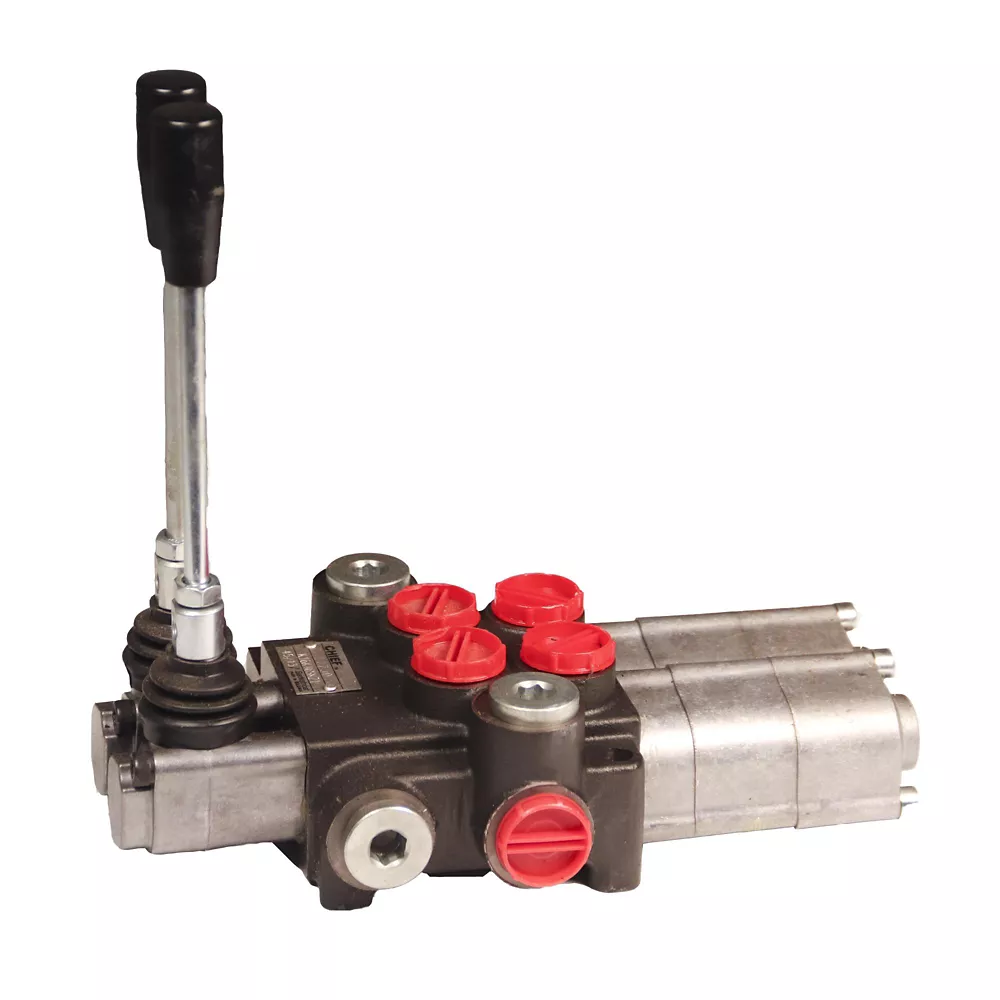

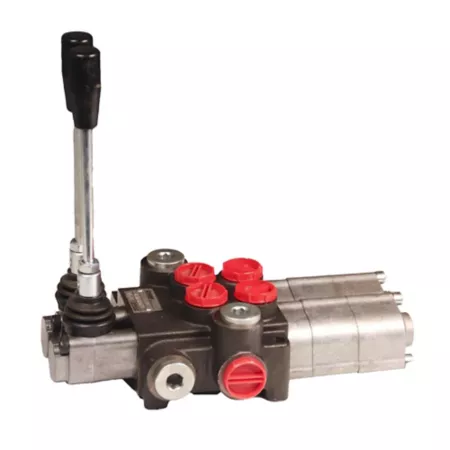

The Chief 3,625 PSI Fine Metering Valve is made of durable cast iron. The metering valve features a maximum operating pressure of 3,625 PSI and offers 2 spools. If you're looking for a hydraulic valve you can rely on, Chief has you covered. This particular model of fine metering valve features a 4-position float detent/3-position spring center design.

Metering valve offers a flow rate of 13 GPM
2-spool valve design
Action: 4-position float detent/3-position spring center
4-way, 4-position tandem fine metering spring center to neutral
Maximum operating pressure: 3,625 PSI
SAE 10 inlet/outlet ports and SAE 8 work port
Maximum operating temperature of the hydraulic valve: 176 degrees Fahrenheit

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief 3 Fine Proportioning Valve 625 PSI 13 GPM 2 Spools SAE 10 Inlet/Outlet Hydraulic Valves & Manifolds Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Valves & Manifolds

Specification	Description
Brand	Chief
Country of Origin	Imported
Brand Compatibility	Universal
Compatibility	Universal
Inlet Size	SAE 10
Inlet Type	Female
Maximum Flow Rate	13 GPM
Maximum PSI	3,625 PSI
Model Compatibility	Universal
Number Of Directional Control Positions	4
Outlet Size	SAE 10
Outlet Type	N/A
Primary Material	Cast Iron
Product Height	0 N/A
Product Length	0 N/A
Product Weight	10 lb.
Product Width	0 N/A
Warranty	1 Year
Work Port Size	SAE 8
Manufacturer PartNumber	220872

Chief 3,625 PSI Fine Metering Valve, 13 GPM, 2 Spool, SAE 10 Inlet/Outlet Specifications Expand/Collapse Specification Description Brand Main Country of Origin Imported Brand Compatibility Universal Compatibility Universal Inlet Size SAE 10 Inlet Type Female Maximum Flow 13 GPM Maximum PSI 3,625 PSI Model Compatibility Universal Number of Directional Control Positions 4 Outlet Size SAE 10 Outlet Type N/A Primary Material Cast Iron Product Height 0 N/A Product Length 0 N/A Product Weight 10 lbs. Product Width 0 N/A 1 Year Warranty Working Port Size SAE 8 Manufacturer Part Number 220872
