Chief 3 in Bore x 18 in Stroke AT Tie Rod Cylinder Alternative 1.25 in Rod Diameter Hydraulic Cylinders Tractor Repair & Parts

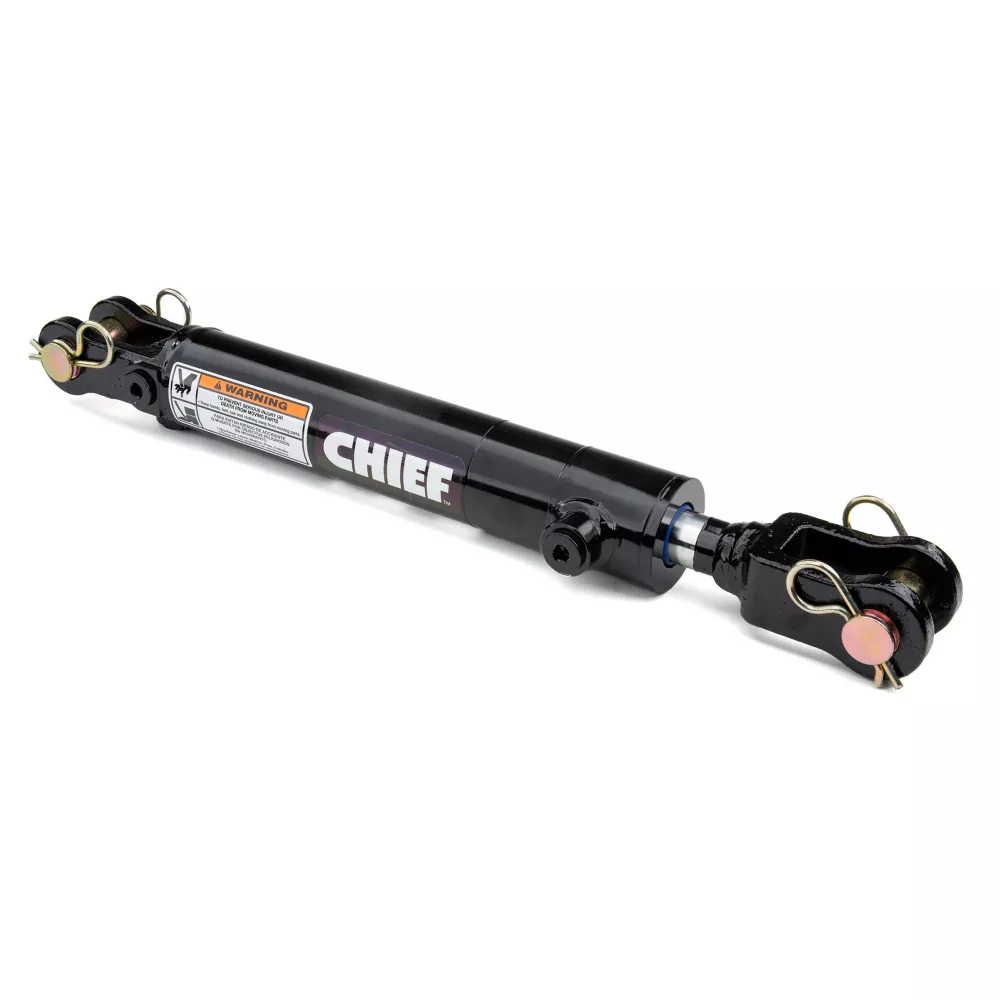

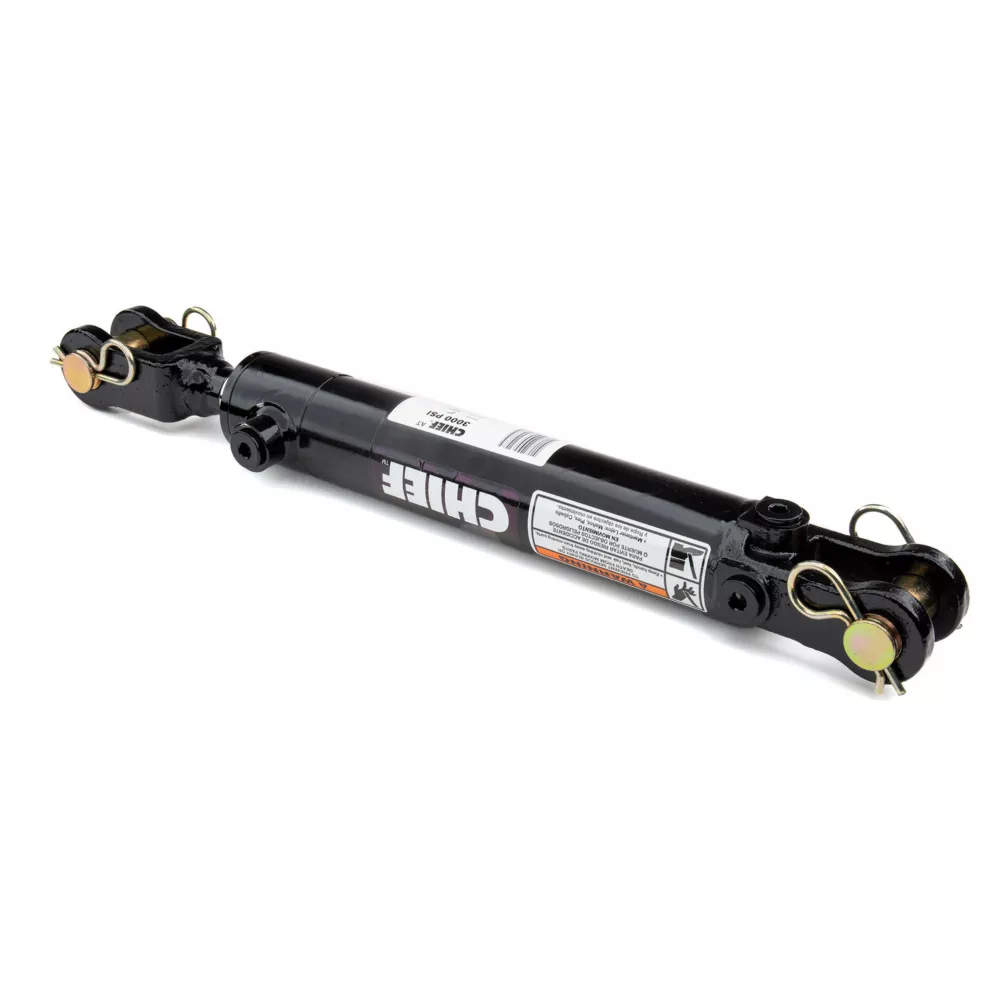

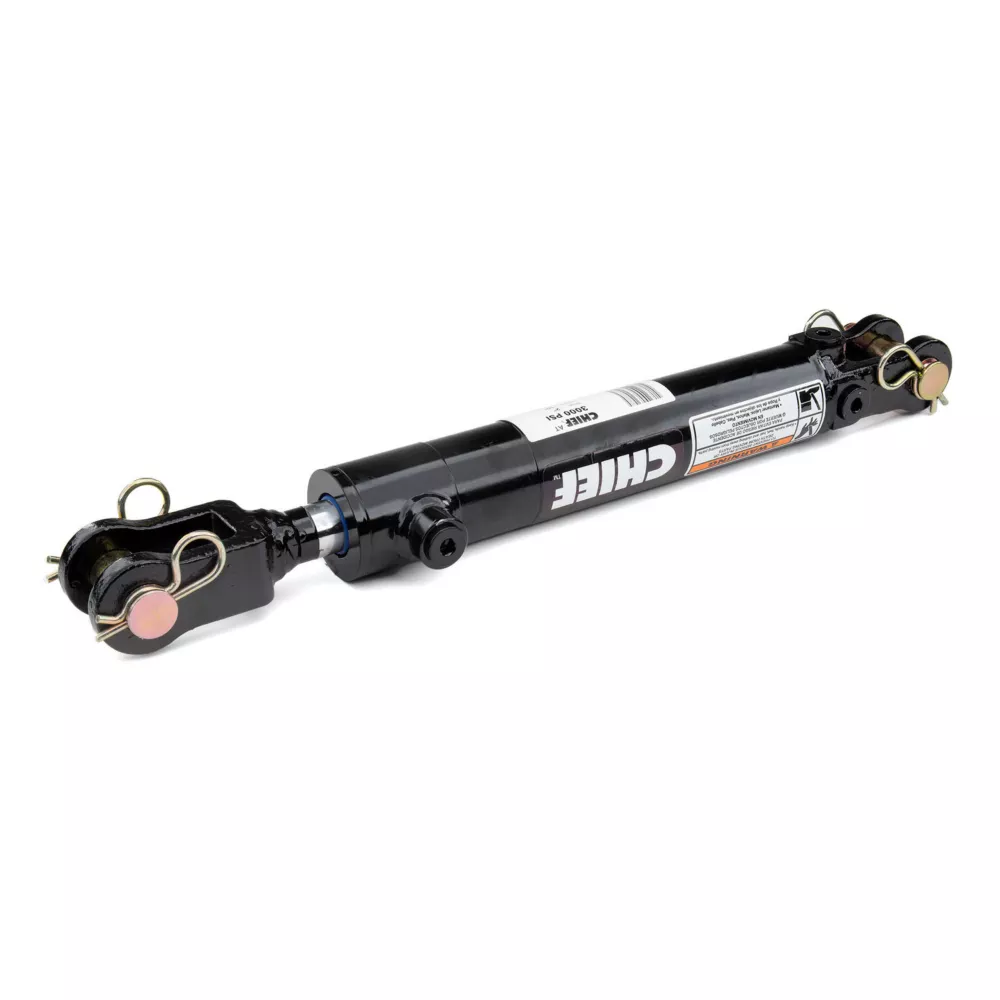

The Chief 3 in. Bore x 18 in. Stroke AT Alternative to Tie-Rod Cylinder features a snap ring on the rod end gland for easy field repair. Unlike a tie-rod, there are no bolts; simply remove the snap ring and you're ready to replace the hydraulic cylinder's seals. This welded hydraulic cylinder provides value pricing without sacrificing quality. Before the cylinder is ready for sale, it undergoes rigorous testing to ensure maximum reliability and performance.

Welded hydraulic cylinder has a rugged ductile iron welded clevis design
Uses standard SAE #8 ports
3,000 PSI seal kits for extended life
Retainer ring (snap ring) head design reduces downtime and allows for quick and easy service
Optional SAE #8 third port location for 90 degree use
Hard chrome-plated rod for the most extreme applications
Precision-welded piston for an efficient hydraulic cylinder
Gloss black paint finish
Measures 24.25 in. retracted and 38.25 in. extended
Column load: 18,530 lb.
Pin diameter of 1 in. and rod diameter of 1.125 in.
1 year warranty

Chief 3 in Bore x 18 in Stroke AT Tie Rod Cylinder Alternative 1.25 in Rod Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Imported
Bore Diameter	3 in.
Brand Compatibility	Universal
Compatibility	Most applications
Extended Length	18 in.
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	12,750 lb.
Model Compatibility	Most applications
Package Quantity	1
Pin Diameter	1 in.
Port Size	SAE 8
Primary Material	Steel
Product Height	0N/A
Product Length	0N/A
Product Weight	28 lb.
Product Width	0N/A
Retracted Length	28.25 in.
Rod Diameter	1.25 in.
Stroke Distance	18 in.
Warranty	1 Year
Manufacturer PartNumber	297126

Chief 3 in. Bore x 18 in. Stroke AT Alternative to Tie-Rod Cylinder, 1.25 in. Rod Diameter Specifications expand/collapse Specification Description Brand Primary Country of Origin Imported Bore Diameter 3 in. Brand Compatibility Universal Compatibility Most Applications Extended Length 18 in. Maximum operating pressure 3,000 PSI Maximum weight capacity 12,750 lbs. Model Compatibility Most Applications Package Quantity 1 Pin Diameter 1 in Port Size SAE 8 Primary Material Steel Product Height 0N/A Product Length 0N/A Product Weight 28 lbs. Product Width 0N/A Retracted Length 28.25 in. Shank diameter 1.25 in. Travel distance 18 in. 1 year warranty Manufacturer part number 297126.
