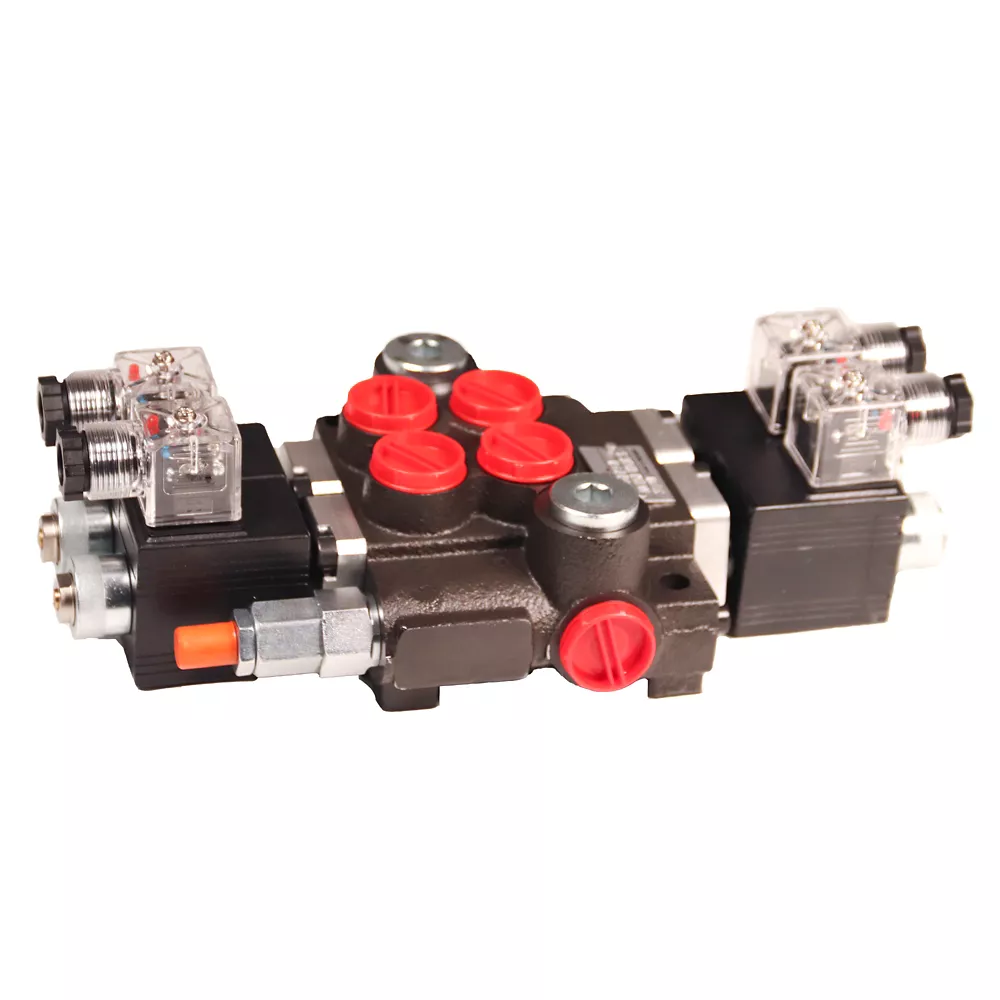

Chief 3625 PSI Control Solenoid Valve 13 GPM 2 Coils SAE 10 Inlet/Outlet 12 Volt DC Hydraulic Valves & Manifolds Tractor Repair & Parts

The Chief 3,625 PSI Solenoid Control Valve is made of durable cast iron. This solenoid valve is a monoblock directional control valve that offers the perfect choice whether you are designing a new system or simply trying to get more out of your current system. With 2 spools and a 4-way, 3-position design, the solenoid valve can meet the specific needs of your application and hydraulic system. Plus, this hydraulic solenoid valve also allows for interchangeable spools for easy in-place maintenance. Create the perfect setup for your needs with a reliable Chief hydraulic valve today.

Durable cast-iron solenoid control valve designed for lasting use
Monoblock directional control valve offers the perfect choice whether you are designing a new system or simply trying to get more out of your current system
Includes precise bore honing and spool grinding that results in less cross-port leakage and less wasted energy
Each hydraulic solenoid valve also allows for interchangeable spools for easy in-place maintenance
With 2 special spools and 7 different monoblock housings, these solenoid valves can meet the specific needs of your application and hydraulic system designs with their double-acting in 3 positions A and D spools
SAE #8 work port
SAE #10 inlet (female) and outlet ports
Valving: 4-way, 3-positive, tandem center, spring to neutral
Action: 3-position spring center
12VDC operation
Maximum operating temperature of the hydraulic valve: 176 degrees Fahrenheit
Valve is equipped with 2 spools
13 GPM flow rate
DIN connector
Universal brand compatibility

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief 3625 PSI Control Solenoid Valve 13 GPM 2 Coils SAE 10 Inlet/Outlet 12 Volt DC Hydraulic Valves & Manifolds Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Valves & Manifolds

Specification	Description
Brand	Chief
Country of Origin	Imported
Brand Compatibility	Other
Compatibility	Most applications
Inlet Size	SAE 10
Inlet Type	Other
Maximum Flow Rate	13 GPM
Maximum PSI	3,625 PSI
Model Compatibility	Most applications
Number Of Directional Control Positions	3
Outlet Size	SAE 10
Outlet Type	N/A
Primary Material	Cast Iron
Product Height	N/A
Product Length	N/A
Product Weight	11.5 lb.
Product Width	N/A
Warranty	1 Year
Work Port Size	SAE 8
Manufacturer PartNumber	220876

Chief 3,625 PSI Solenoid Control Valve, 13 GPM, 2 Spool, SAE 10 Inlet/Outlet, 12VDC Specifications Expand/Collapse Specification Description Brand Main Country of Origin Imported Brand Compatibility Other Compatibility Most Applications Inlet Size SAE 10 Inlet Type Other Maximum Flow 13 GPM Maximum PSI 3,625 PSI Model Compatibility Most Applications Number of Directional Control Positions 3 Output Size SAE 10 Output Type N/A Primary Material Cast Iron Product Height N/A Product Length N/A Product Weight 11.5 lbs Product Width N/A Warranty 1 Year Port Size Working SAE 8 Manufacturer Part Number 220876
