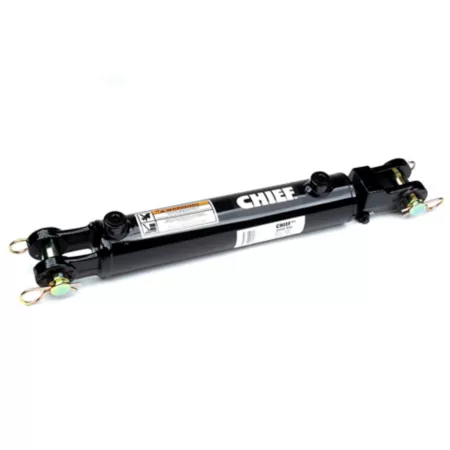

Chief 4" Bore x 30" Stroke AT Tie Rod Cylinder Alternative 1.375 IHCP Rod Diameter Hydraulic Cylinders Tractor Repair & Parts

The Chief 4 in. Bore x 30 in. Stroke AT Alternative to Tie-Rod Cylinder features a snap ring on the rod end gland for easy field repair. Unlike a tie-rod, there are no bolts; simply remove the snap ring and you're ready to replace the hydraulic cylinder's seals. This welded hydraulic cylinder provides value pricing without sacrificing quality. Before the cylinder is ready for sale, it undergoes rigorous testing to ensure maximum reliability and performance.

Welded hydraulic cylinder has a rugged ductile iron welded clevis design
Uses standard SAE #8 ports
3,000 PSI seal kits for extended life
Retainer ring (snap ring) head design reduces downtime and allows for quick and easy service
Optional SAE #8 third port location for 90 degree use
Hard chrome-plated rod for the most extreme applications
Precision-welded piston for an efficient hydraulic cylinder
1.5:1 safety factor with 20,000 cycles endurance testing
Gloss black paint finish
1 year warranty

Chief 4" Bore x 30" Stroke AT Tie Rod Cylinder Alternative 1.375 IHCP Rod Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Imported
Bore Diameter	4 in.
Brand Compatibility	Universal
Extended Length	30 in.
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	57.3 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	1 in.
Primary Material	Steel
Product Weight	57.3 lb.
Rod Diameter	1.5 IHCP
Stroke Distance	30 in.
Warranty	1 Year
Manufacturer PartNumber	297185

Chief 4 in. Bore x 30 in. Stroke AT Alternative to Tie-Rod Cylinder, 1.375 IHCP Rod Diameter Specifications expand/collapse Specification Description Brand Primary Country of Origin Imported Bore Diameter 4 in. Brand Compatibility Universal Extended Length 30 in. Maximum operating pressure 3,000 PSI Maximum weight capacity 57.3 lbs. Model Compatibility Universal Packing Quantity 1 Pin Diameter 1 in. Main Material Steel Product Weight 57.3 lbs. Shank Diameter 1.5 IHCP Stroke Distance 30 in. 1 year warranty Manufacturer part number 297185
