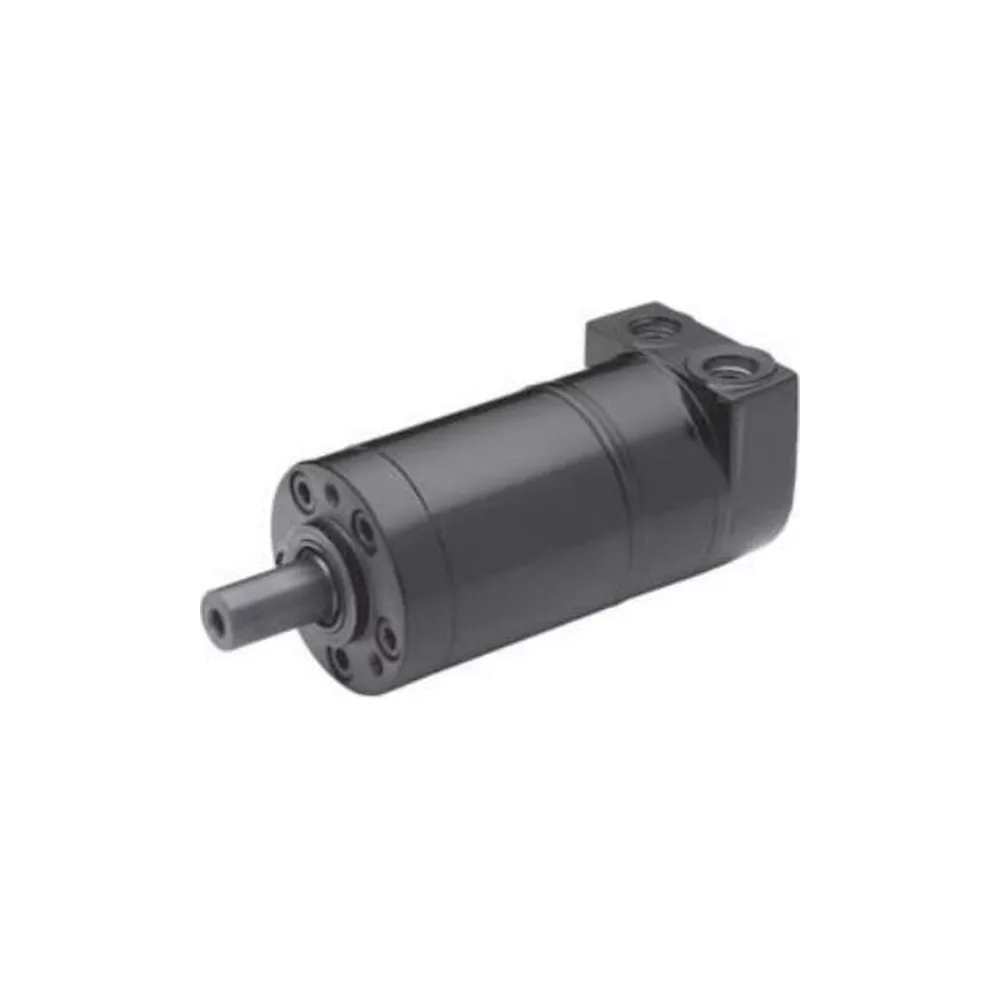

Chief 6.6 GPM 1015 PSI High Torque Compact Motor 3.07 CID 200 RPM Side Ports 407 Torque Hydraulic Motors Tractor Repair & Parts

The Chief 6.6 GPM 1,015 PSI Compact Hi-Torque Motor has a compact size to fit almost anywhere. This is a highly efficient, low-speed high-torque hydraulic motor design which can be used in either parallel or series systems. The low weight hydraulic cylinder motor is manufactured in accordance with the requirements of the ISO 9000-2000 quality system.

Hydraulic cylinder motor for use on machine tools, augers, drilling/tapping machines, conveyors, sweepers, fans, etc.
Reversible rotation, SAE 6 ports, SAE 3 case drain for a versatile high-torque hydraulic motor
5/8 in. diameter shaft, 1 3/8 in. long with keyway
5-bolt mounting with 1.775 diameter bolt circle
1.241 diameter pilot
CID: 3.07
Torque: 407
200 RPM
1,015 PSI

Chief 6.6 GPM 1015 PSI High Torque Compact Motor 3.07 CID 200 RPM Side Ports 407 Torque Hydraulic Motors Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Motors

Specification	Description
Brand	Chief
Country of Origin	Made in USA
Continuous Torque	407
Maximum Operating Pressure	1,015 PSI
Maximum Speed	500 RPM
Product Weight	5.5 lb.
Shaft Diameter	5/8 in.
Warranty	1 Year
Manufacturer PartNumber	271658

Chief 6.6 GPM 1,015 PSI Compact Hi-Torque Motor, 3.07 CID, 200 RPM, Side Ports, 407 Torque Specifications expand/collapse Specification Description Brand Main Country of Origin Made in USA Continuous Torque 407 Maximum Operating Pressure 1,015 PSI Maximum Speed 500 RPM Product Weight 5.5 lbs. Shaft diameter 5/8 in. 1 Year Warranty Manufacturer Part Number 271658
