Chief 9.5 GPM Hydraulic Gear Pump 3/4 in Diameter Keyed Shaft 1.22 CID 3 000 PSI CCW Rotation Attachment Parts & Accessories Farm & Ranch

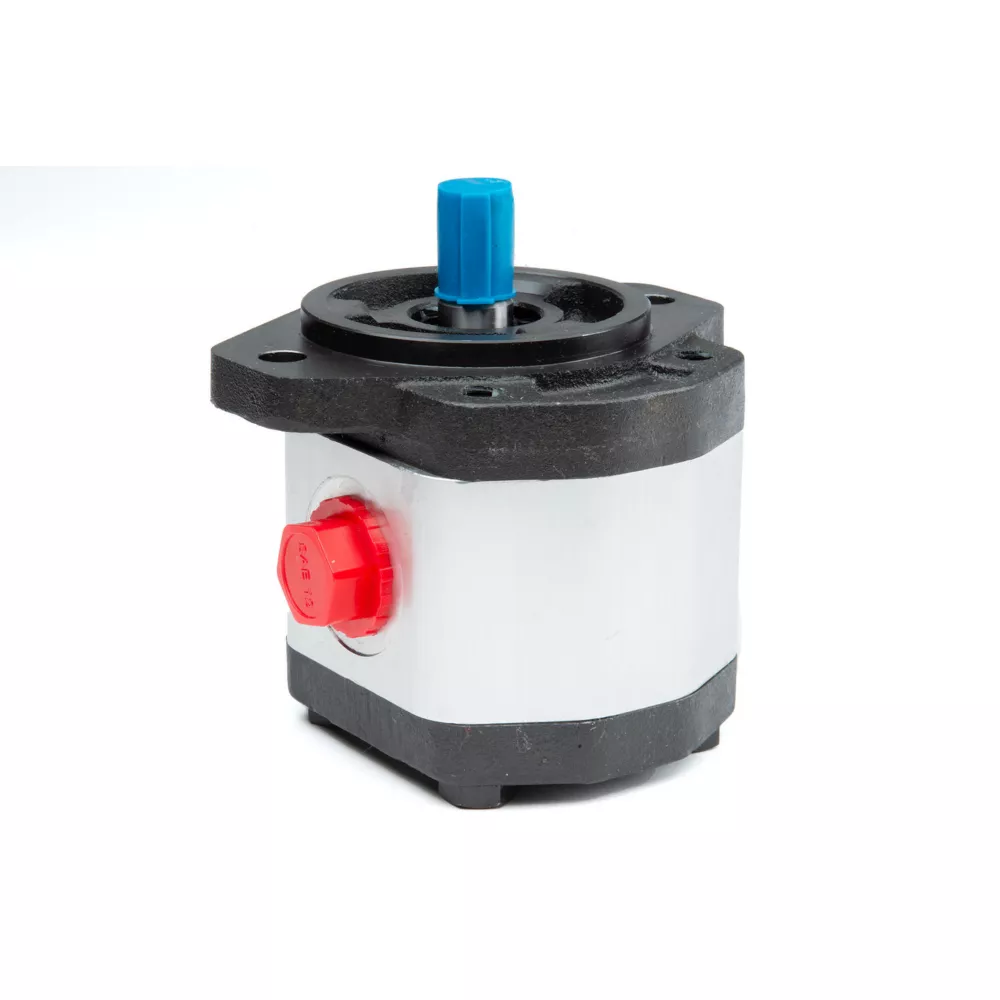

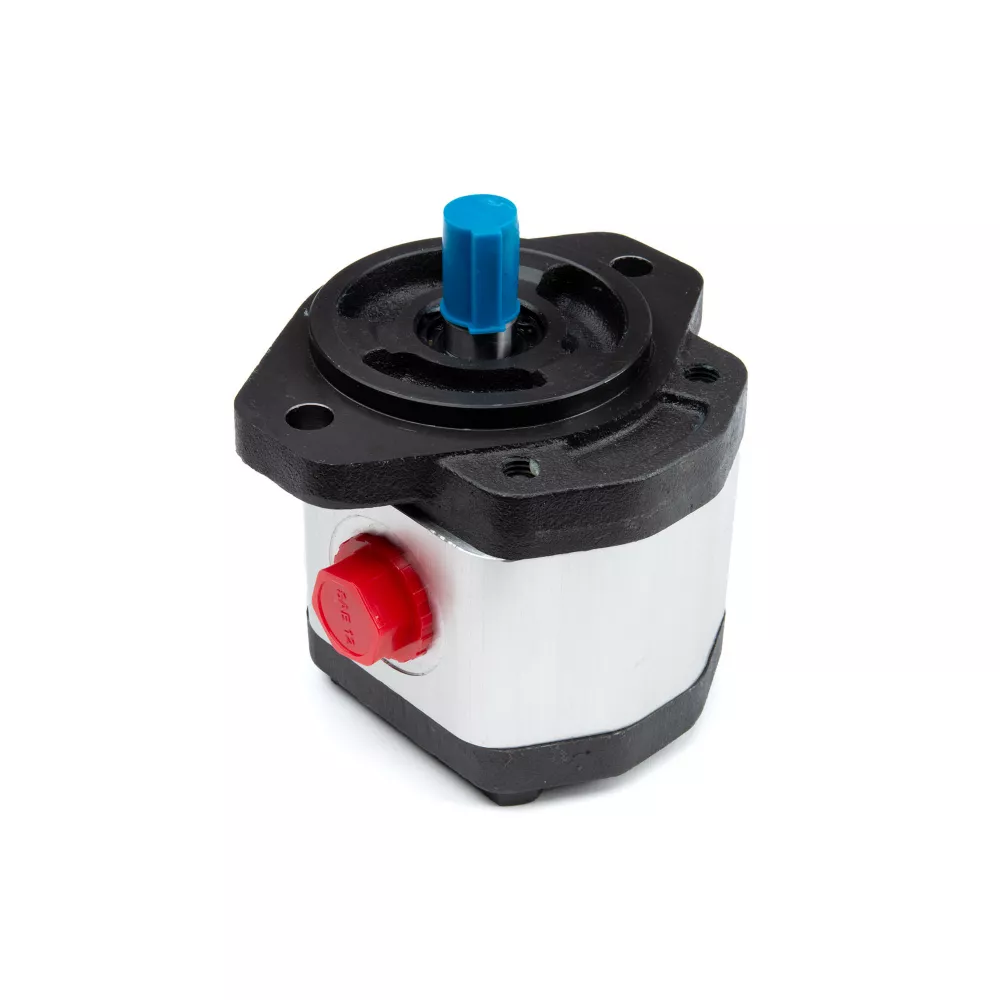

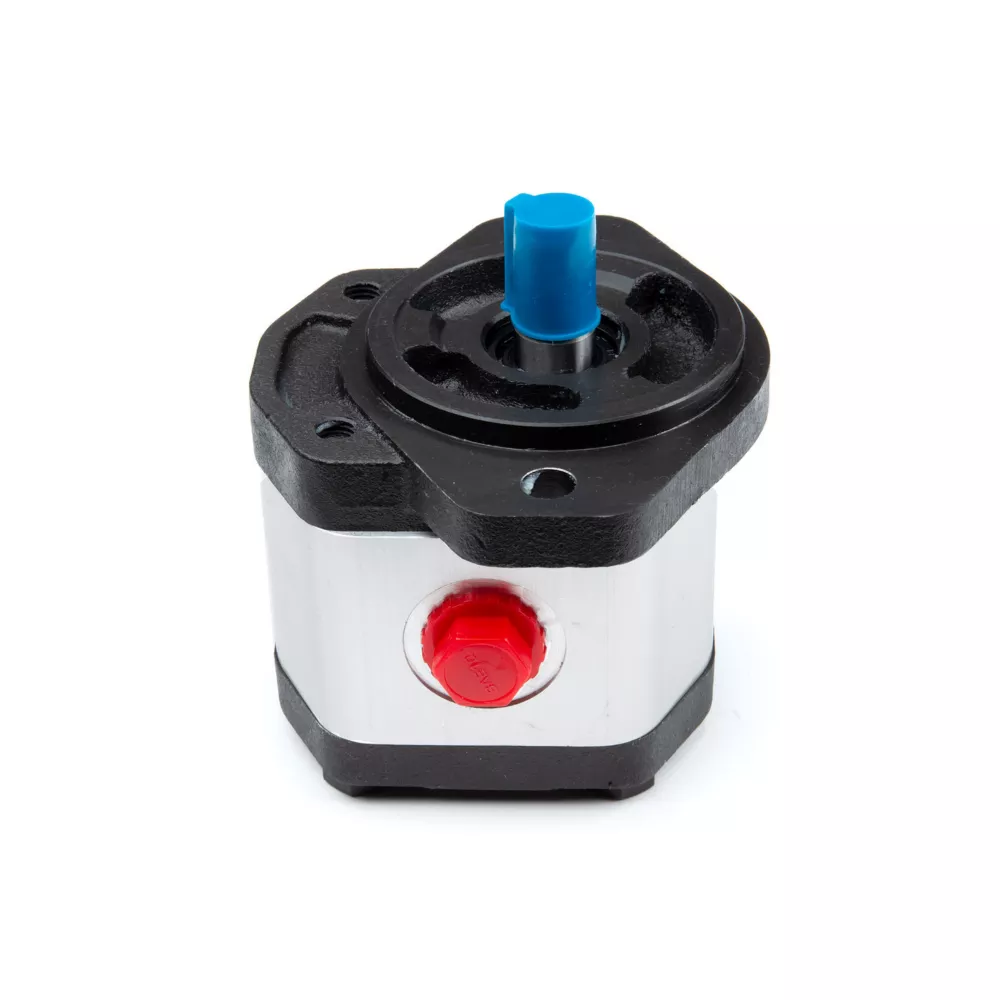

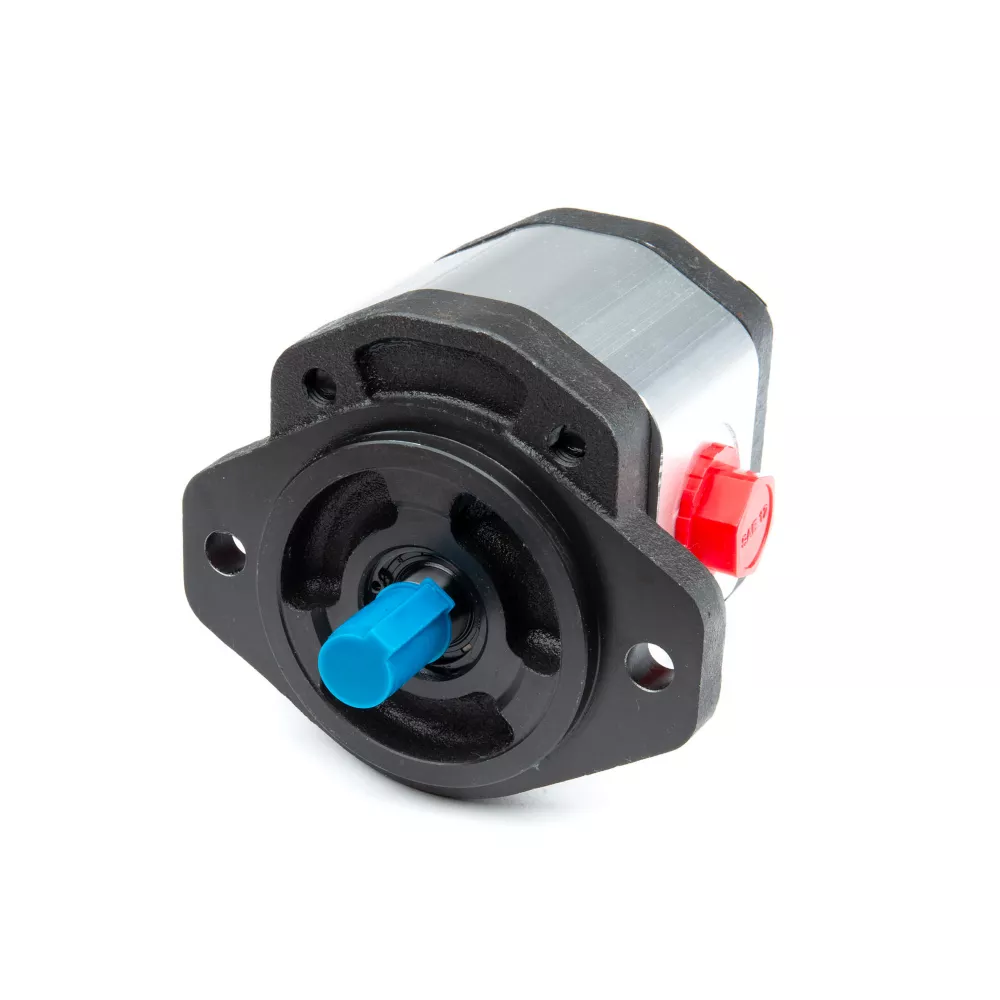

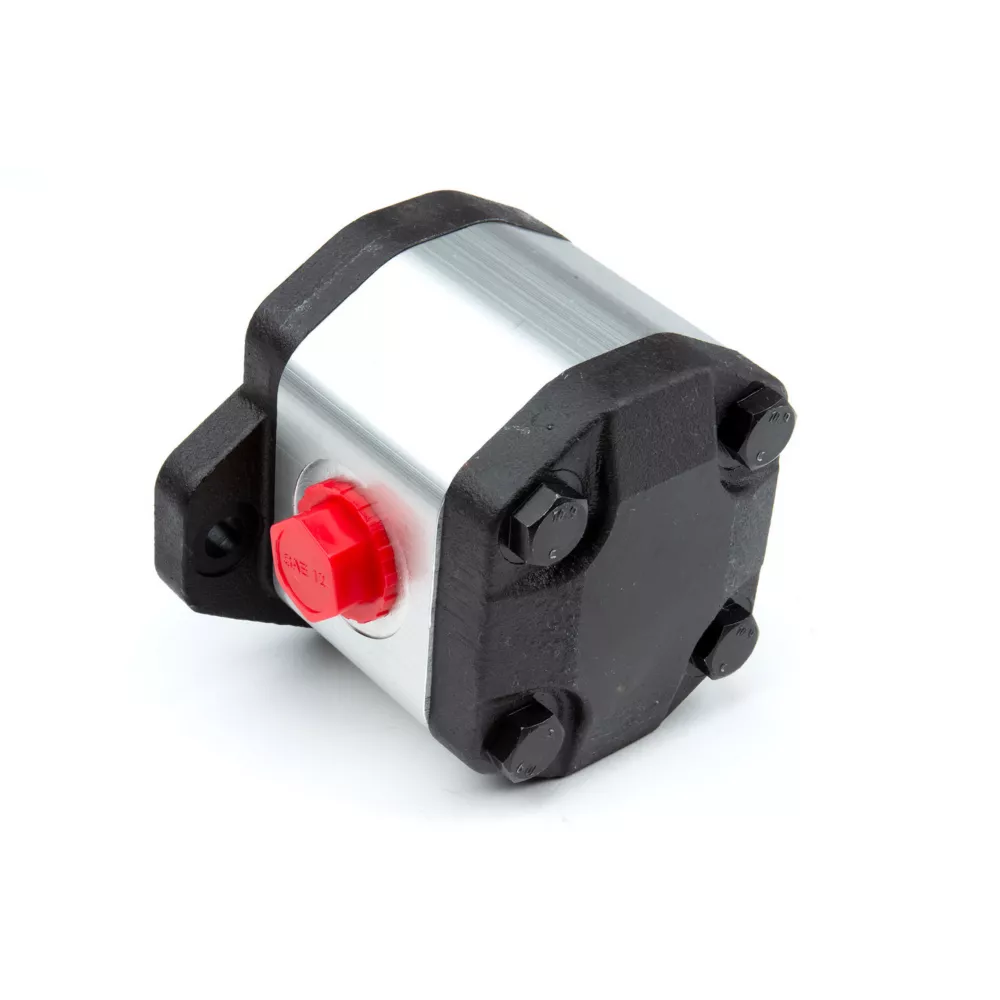

The Chief 9.5 GPM Hydraulic Gear Pump offers an aluminum body with cast-iron end plate construction. It's a high pressure hydraulic gear pump with 11 displacement sizes from 0.24 to 1.95 in3/rev (4 to 32 cm3/rev). The standard mounting flange is SAE A-2 bolt, and the standard drive shaft is a 5/8 in. diameter straight shaft with 5/32 in. straight key. Put this durable hydraulic pump to the test in your facility today.

175 degrees F max temperature
Filtration: 25 micron or better
Oil viscosity: 6 to 200 CST
Inlet pressure: 12 to 32 PSI ABS
Oil temperature: -25 to 80 degrees C (-12 to 175 degrees F)
Ambient: -22 to 55 degrees C (-8 to 130 degrees F)
3/4 in. diameter keyed shaft
CCW (counterclockwise) rotation
3,000 PSI
Flow rate of the hydraulic pump: 9.5 GPM at 2,000 RPM
1.22 C.I.D.
Aluminum body gear pump complete with cast-iron end plate construction
Hydraulic gear pump has 11 displacement sizes from 0.24 to 1.95 in3/rev (4 to 32 cm3/rev)
Standard mounting flange on the Chief gear pump is SAE A-2 bolt
Standard drive shaft is a 5/8 in. diameter straight shaft with 5/32 in. straight key

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief 9.5 GPM Hydraulic Gear Pump 3/4 in Diameter Keyed Shaft 1.22 CID 3 000 PSI CCW Rotation Attachment Parts & Accessories Farm & Ranch> Tractor & 3 Point Attachments> Attachment Parts & Accessories

Specification	Description
Brand	Chief
Country of Origin	Made in USA
Compatibility	Most application
Package Quantity	1
Primary Color	No Color
Primary Material	Other
Product Height	N/A
Product Length	N/A
Product Weight	9.3 lb.
Product Width	N/A
Warranty	1 Year
Manufacturer PartNumber	252182

Chief 9.5 GPM Hydraulic Gear Pump, 3/4 in. Diameter Keyed Shaft, 1.22 CID, 3,000 PSI, CCW Rotation Specifications expand/collapse Specification Description Brand Primary Country of Origin Made in USA Compatibility Most Applications Package Quantity 1 Primary Color No Color Primary Material Other Product Height N/A Product Length N/A Product Weight 9. 3 lbs. Product Width N/A 1 Year Warranty Manufacturer Part Number 252182
